LG Art Cool Gallery Wall Mounted 4-Zone LGRED° Heat System - 42,000 BTU Outdoor - 9k + 9k + 9k + 9k Indoor - 20.5 SEER

LG Art Cool Gallery Wall Mounted 4-Zone LGRED° Heat System - 42,000 BTU Outdoor - 9k + 9k + 9k + 9k Indoor - 20.5 SEER
Our Price
Compare Prices
Shipping Info
Model: L4L42G09090909
(Based on expert analysis, manufacturer ratings and customer reviews)
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Number of Reviews (3)
Write A Review
$6,099.00
$5,794.05
Only 3 In-Stock
Ships Monday, Dec 17th
Free Shipping
Free Lift Gate Service -
Holiday Shipping Schedule
Holiday Schedule -
Outdoor Unit BTU/h
Indoor Unit Sizes ? Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. For example (9k + 12k) means the system includes a 9k BTU unit and a 12k BTU unit.
High Heating Capacity
Add-Ons

Only 3 In-Stock
Ships Monday, Dec 17th
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • 3
    Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
    LG continues to demonstrate global leadership in innovation and technology with their advancements in home comfort solutions. The LGRED° Heat ductless heat pump system boasts superior heating performance in extreme cold weather climates. The powerful LMU420HHV outdoor condenser works with LG indoor units to provide the maximum amount of comfort control for your home. With several air flow options, quiet operation, and weather protection technology, the LGRED° Heat system is accommodating to nearly every home.
  • LGRED° Heat Technology
  • Low or negative ambient temperatures won't slow down the LMU420HHV. LGRED° Heat technology boasts 100% heating capacity down to 5°F and continuous heating operation down to -13°F.
  • Integrated Base Pan Heater
  • Base pan heaters come factory installed on all LGRED° outdoor condensers in order to mitigate the risk of damage caused by freezing condensate.
  • Inverter Technology
  • LG's inverter technology features an electronic expansion valve and a variable speed compressor that carefully regulates refrigerant flow, reducing energy consumption and providing consistent, accurate temperatures without overshooting or short-cycling.
  • Gold Fin Protection
  • To ensure the reliability and longevity of the LMU420HHV's heat exchanger, LG employs a Gold Fin coating that prevents corrosion and improves durability.
  • Personlization
  • Modify and personalize your unit with your own artwork or photography to give any room some character.
  • Quiet Design
  • Thanks to a brushless direct current fan motor, both the outdoor and indoor units in this system produce less mechanical and electrical noise, allowing them to provide comfort that doesn't disrupt your home.
  • Self-Cleaning Coil
  • These wall mount units feature a self-cleaning heat exchanger coil that automatically removes dirt and moisture. This helps to prevent unpleasant odors and to combat the formation of mold.
  • Jet Temperature Control
  • Getting your zone comfortable quickly is no problem thanks to the Jet Heat and Jet Cool modes. With the press of a button, your system will temporarily adjust the set point and fan speed to provide rapid heating or cooling.
  • Automated Operation
  • Auto operation mode continually compares your zone's current and desired temperatures and uses that data to intelligently adjust the unit's fan speed and refrigerant flow to provide optimal comfort.
  • Sleep Mode
  • With the sleep mode and timer functions, you can set this indoor unit to save energy at night. Sleep mode will incrementally adjust temperature for an hour before the timer function automatically deactivates the unit.
  • Dehumidify
  • LG's multi-zone indoor units include a dehumidifying operation mode. In this mode, the unit's internal sensors monitor temperature and modify the set point and fan speed to remove moisture from the air.
  • Improved Air Quality
  • The LG wall mounted units use a dual filtration system to keep your air clean. A washable filter is backed up by a plasma filtration system that can attract and capture microscopic irritants for pristine air quality.
  • Hot Start
  • When the hot start function is enabled, the indoor unit's fan will not engage until the outdoor condenser has had the opportunity to warm the indoor coil. This prevents the unit from blowing cold air during heating operations.
  • Recommended line set sizes for indoor unit connectivity:
  • LMAN097HVP: 1/4" x 3/8" Line Set (Qty 4)
  • A branch box with a 3/8" x 3/4" line set connection is also required. Additional branch boxes and line sets may be required based on your configuration.

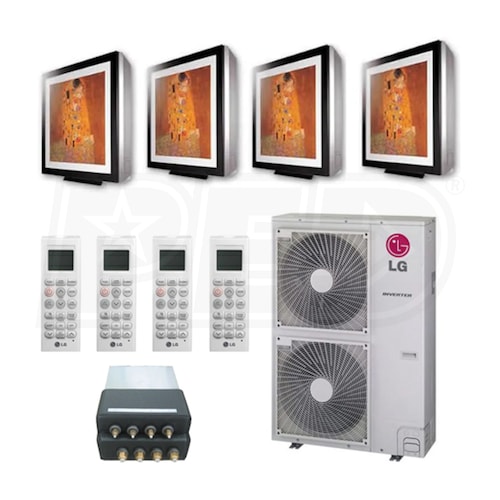

  • Product Includes
    • (1) LG - 42k BTU - LGRED° Heat Outdoor Condenser - For 2-6 Zones (LMU420HHV)
    • (4) LG Art Cool Gallery 9k BTU Wall Mounted Unit - For Multi-Zone (LMAN097HVP)
    Product Note
    This product requires at least two compatible LG mini split indoor units and the following accessories for installation:
    • Branch Box - An LG branch box is required to connect this condenser to the LG mini split indoor units.
    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
    • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
    • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
    • Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
    Adding these accessories to your order will provide a complete, ready-to-install mini split system.
Specifications
General Information
Type
Wall Mounted
Product Line
LGRED Heat
Product Sub-line
Art Cool Gallery
Operating Mode ? Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling + Heating
Number of Zones ? A zone is a room or area within a building that has its own temperature control.
4
Indoor Unit Size(s) ? Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. For example (09 + 12) means the system includes a 9k BTU unit and a 12k BTU unit.
9 + 9 + 9 + 9
DOE Regional Compliance ? In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Performance
Cooling Capacity
36000 BTU
SEER ? SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
20.5
EER ? EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
14
HSPF ? HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system. Learn More
11
Cooling Power Input
3000 Watts
Heating Power Input
3290 Watts
Minimum Outdoor Temperature for Heating ? This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-13 F
Minimum Outdoor Temperature for Cooling
14 F
Dimensions
Product Weight
351 Pounds
Certifications
Energy Star Listed
Yes
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
10443471
LMU420HHV Specifications
General Information
Type
Outdoor Condenser
Product Line
LGRED Heat
Operating Mode ? Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling + Heating
Maximum Number of Zones
6
Multi-Zone Compatible
Yes
Installation Location
Outdoor
Branch Box Required ? By making a single connection to the outdoor condenser, a branch box can supply the right amount of refrigerant to multiple indoor units. Learn More
Yes
Color
Warm Gray
Performance
Nominal Capacity
42000 BTU
Cooling Power Input
3000 Watts
Heating Power Input
3300 Watts
Maximum Sound Level ? Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
57 dB
Minimum Outdoor Temperature for Heating ? This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-13 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
30.2 Amps
Recommended Breaker Size
45 Amps
Dimensions
Maximum Line Length
475.7 Feet
Liquid Connection Size
3/8 Inch
Gas Connection Size
3/4 Inch
Product Height
54 17/48 Inches
Product Width
37 10/24 Inches
Product Depth
13 Inches
Product Weight
222.7 Pounds
Shipping Weight
250 Pounds
Certifications
UL Listed
Yes
ETL Listed
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
LMAN097HVP Specifications
General Information
Type
Wall Mounted Unit
Product Line
Multi F
Product Sub-line
Art Cool Gallery
Operating Mode ? Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling + Heating
Multi-Zone Compatible
Yes
Remote Control
Wireless
Installation Location
Indoor
Performance
Nominal Capacity
9000 BTU
Minimum Air Flow
155 CFM
Maximum Air Flow
272 CFM
Maximum Sound Level ? Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
39 dB
Minimum Sound Level
31 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Liquid Connection Size
1/4 Inch
Gas Connection Size
3/8 Inch
Drain Outlet Diameter
5/8 Inch
Product Height
23 5/8 Inches
Product Width
23 5/8 Inches
Product Depth
5 19/24 Inches
Product Weight
32 Pounds
Shipping Weight
37 Pounds
Certifications
UL Listed
Yes
ETL Listed
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Features
Features
    LG continues to demonstrate global leadership in innovation and technology with their advancements in home comfort solutions. The LGRED° Heat ductless heat pump system boasts superior heating performance in extreme cold weather climates. The powerful LMU420HHV outdoor condenser works with LG indoor units to provide the maximum amount of comfort control for your home. With several air flow options, quiet operation, and weather protection technology, the LGRED° Heat system is accommodating to nearly every home.
  • LGRED° Heat Technology
  • Low or negative ambient temperatures won't slow down the LMU420HHV. LGRED° Heat technology boasts 100% heating capacity down to 5°F and continuous heating operation down to -13°F.
  • Integrated Base Pan Heater
  • Base pan heaters come factory installed on all LGRED° outdoor condensers in order to mitigate the risk of damage caused by freezing condensate.
  • Inverter Technology
  • LG's inverter technology features an electronic expansion valve and a variable speed compressor that carefully regulates refrigerant flow, reducing energy consumption and providing consistent, accurate temperatures without overshooting or short-cycling.
  • Gold Fin Protection
  • To ensure the reliability and longevity of the LMU420HHV's heat exchanger, LG employs a Gold Fin coating that prevents corrosion and improves durability.
  • Personlization
  • Modify and personalize your unit with your own artwork or photography to give any room some character.
  • Quiet Design
  • Thanks to a brushless direct current fan motor, both the outdoor and indoor units in this system produce less mechanical and electrical noise, allowing them to provide comfort that doesn't disrupt your home.
  • Self-Cleaning Coil
  • These wall mount units feature a self-cleaning heat exchanger coil that automatically removes dirt and moisture. This helps to prevent unpleasant odors and to combat the formation of mold.
  • Jet Temperature Control
  • Getting your zone comfortable quickly is no problem thanks to the Jet Heat and Jet Cool modes. With the press of a button, your system will temporarily adjust the set point and fan speed to provide rapid heating or cooling.
  • Automated Operation
  • Auto operation mode continually compares your zone's current and desired temperatures and uses that data to intelligently adjust the unit's fan speed and refrigerant flow to provide optimal comfort.
  • Sleep Mode
  • With the sleep mode and timer functions, you can set this indoor unit to save energy at night. Sleep mode will incrementally adjust temperature for an hour before the timer function automatically deactivates the unit.
  • Dehumidify
  • LG's multi-zone indoor units include a dehumidifying operation mode. In this mode, the unit's internal sensors monitor temperature and modify the set point and fan speed to remove moisture from the air.
  • Improved Air Quality
  • The LG wall mounted units use a dual filtration system to keep your air clean. A washable filter is backed up by a plasma filtration system that can attract and capture microscopic irritants for pristine air quality.
  • Hot Start
  • When the hot start function is enabled, the indoor unit's fan will not engage until the outdoor condenser has had the opportunity to warm the indoor coil. This prevents the unit from blowing cold air during heating operations.
  • Recommended line set sizes for indoor unit connectivity:
  • LMAN097HVP: 1/4" x 3/8" Line Set (Qty 4)
  • A branch box with a 3/8" x 3/4" line set connection is also required. Additional branch boxes and line sets may be required based on your configuration.
  • Product Includes
    • (1) LG - 42k BTU - LGRED° Heat Outdoor Condenser - For 2-6 Zones (LMU420HHV)
    • (4) LG Art Cool Gallery 9k BTU Wall Mounted Unit - For Multi-Zone (LMAN097HVP)
    Product Note
    This product requires at least two compatible LG mini split indoor units and the following accessories for installation:
    • Branch Box - An LG branch box is required to connect this condenser to the LG mini split indoor units.
    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
    • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
    • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
    • Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
    Adding these accessories to your order will provide a complete, ready-to-install mini split system.
