Product Description
+
Features
Features

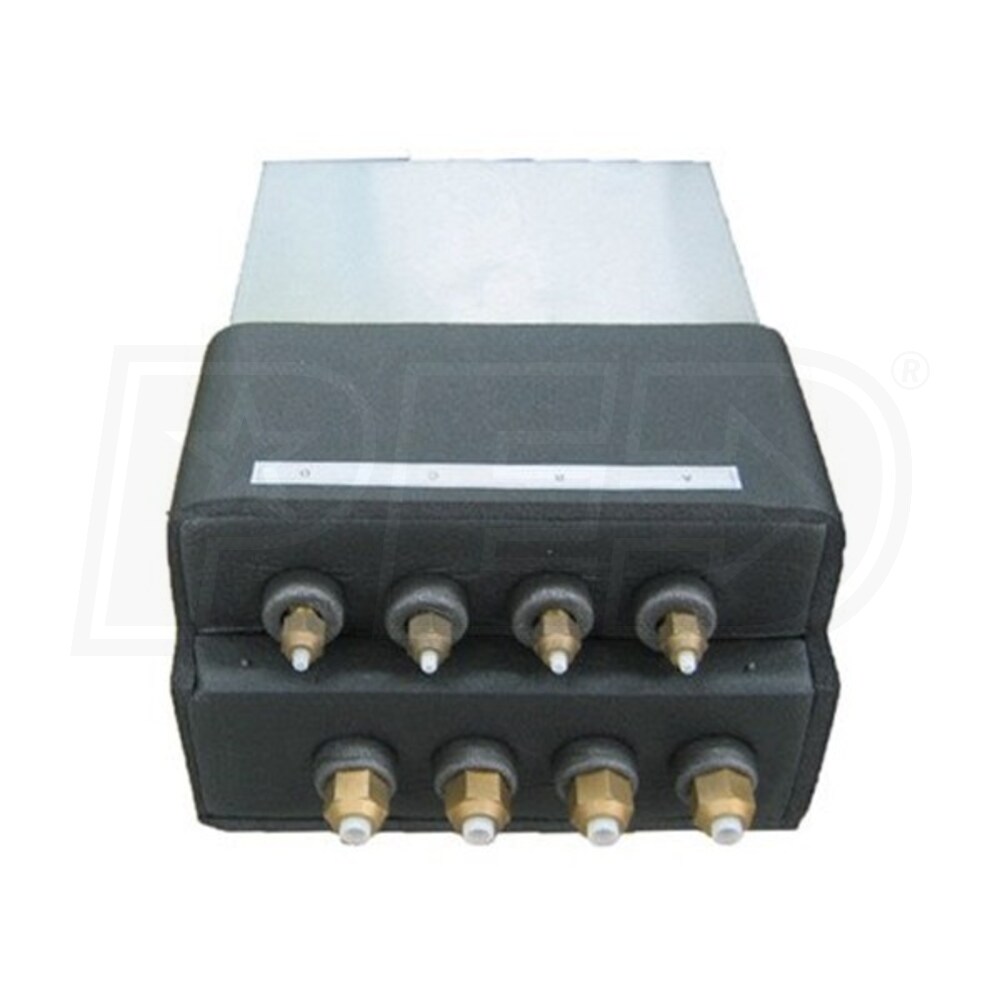

    The PMBD3640 is a four port branch distribution unit for LG's Multi F LMU540HV mini split outdoor condensers. A branch distribution unit is required to provide power, communication, and refrigerant flow from the LMU540HV to Multi F mini split indoor units.
  • Simple Installation
  • This branch distribution unit features flared joints to improve the speed and ease of installation.
  • Product Compatible With
  • LG LMU540HV Mini Split Outdoor Condensers
Specifications
General Information
Type
Branch Box
Product Line
Multi F
Ports Quantity
4
UPC
048231368179
Performance
Maximum Port Capacity
24000 BTU
Maximum Total Port Capacity
73000 BTU
Electrical Data
Power Consumption
32 Watts
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Liquid Connection Size
0.375 Inches
Suction Connection Size
0.75 Inches
Line Set A Liquid Connection
0.25 Inches
Line Set A Gas Connection
0.375 Inches
Line Set B Liquid Connection
0.25 Inches
Line Set B Gas Connection
0.375 Inches
Line Set C Liquid Connection
0.25 Inches
Line Set C Gas Connection
0.375 Inches
Line Set D Liquid Connection
0.25 Inches
Line Set D Gas Connection
0.375 Inches
Product Height
5.90625 Inches
Product Width
9.84375 Inches
Product Depth
11.8125 Inches
Product Weight
16 Pounds
Shipping Weight
18 Pounds
Certifications
Country of Origin
Korea
Features
Features
    The PMBD3640 is a four port branch distribution unit for LG's Multi F LMU540HV mini split outdoor condensers. A branch distribution unit is required to provide power, communication, and refrigerant flow from the LMU540HV to Multi F mini split indoor units.
  • Simple Installation
  • This branch distribution unit features flared joints to improve the speed and ease of installation.
  • Product Compatible With
  • LG LMU540HV Mini Split Outdoor Condensers
Specifications
General Information
Type
Branch Box
Product Line
Multi F
Ports Quantity
4
UPC
048231368179
Performance
Maximum Port Capacity
24000 BTU
Maximum Total Port Capacity
73000 BTU
Electrical Data
Power Consumption
32 Watts
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Liquid Connection Size
0.375 Inches
Suction Connection Size
0.75 Inches
Line Set A Liquid Connection
0.25 Inches
Line Set A Gas Connection
0.375 Inches
Line Set B Liquid Connection
0.25 Inches
Line Set B Gas Connection
0.375 Inches
Line Set C Liquid Connection
0.25 Inches
Line Set C Gas Connection
0.375 Inches
Line Set D Liquid Connection
0.25 Inches
Line Set D Gas Connection
0.375 Inches
Product Height
5.90625 Inches
Product Width
9.84375 Inches
Product Depth
11.8125 Inches
Product Weight
16 Pounds
Shipping Weight
18 Pounds
Certifications
Country of Origin
Korea
Product Specs
+
Specifications
General Information
Type
Branch Box
Product Line
Multi F
Ports Quantity
4
UPC
048231368179
Performance
Maximum Port Capacity
24000 BTU
Maximum Total Port Capacity
73000 BTU
Electrical Data
Power Consumption
32 Watts
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Liquid Connection Size
0.375 Inches
Suction Connection Size
0.75 Inches
Line Set A Liquid Connection
0.25 Inches
Line Set A Gas Connection
0.375 Inches
Line Set B Liquid Connection
0.25 Inches
Line Set B Gas Connection
0.375 Inches
Line Set C Liquid Connection
0.25 Inches
Line Set C Gas Connection
0.375 Inches
Line Set D Liquid Connection
0.25 Inches
Line Set D Gas Connection
0.375 Inches
Product Height
5.90625 Inches
Product Width
9.84375 Inches
Product Depth
11.8125 Inches
Product Weight
16 Pounds
Shipping Weight
18 Pounds
Certifications
Country of Origin
Korea
Reviews
(1)
+
LG PMBD3640 Reviews & Ratings
Product Q&A
(2)
+
Search Product Q&A's Answered by Chris, the eComfort Product Expert
icon-social-fb1
+
How do you connect 5 air handlers to the branch box?
Bobby I
from Mississippi
July 10, 2017
Answer
To connect more than 4 air handlers, you will need to use 2 branch boxes. You will need to purchase aPMBL5620 Distribution Pipe Assembly to connect the second branch box.
+
What is the difference between the LG PMBD3641 and the PMBD3640? Also - I know you can buy adapters, but the output ports on these branch units is 1/4X3/8. Most of the LG units larger than 12K BTU's require 1/4X1/2. Does this impact performance by stepping the size down? Do you recommend stepping down at the branch box or at the wall unit?
Chris
from Washington
October 19, 2016
Answer
The PMBD3640 is the standard option for an LG 4 port brnach box. The PMBD3641 includes a larger port specifically for use with the a 36k BTU indoor unit. Unless you are using one of these indoor units, there is no benefit to using the PMBD3641.

LG includes any necessary port adapters with the air handlers,so they do not need to be purchased separately. They specify specific line set sizes based on the capacity of the indoor unit, and the size of the line set, along with the connections available on the indoor unit and branch box, dictates the location of the adapters. The adapters may introduce a minimal restriction, but this is insignificant to the efficiency or performance of the system. Using a line set size other than the one LG prescribes could result in poor performance.
