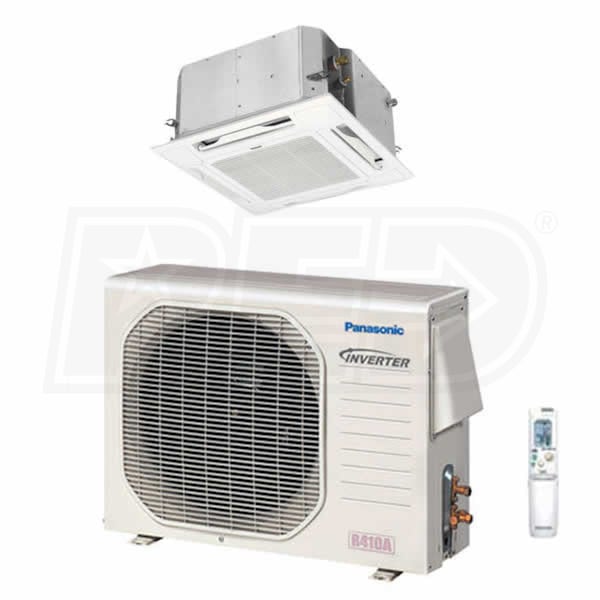

Panasonic - 12k BTU Cooling + Heating - Ceiling Cassette Air Conditioning System - 18.0 SEER

Panasonic - 12k BTU Cooling + Heating - Ceiling Cassette Air Conditioning System - 18.0 SEER
Our Price
Compare Prices
Shipping Info
Model: E12RB4U
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Number of Reviews (1)
Write A Review
$1,560.00
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping
Free Lift Gate Service -
System BTU/h
Add-Ons

Factory-Direct
Ships in 2-5 Business Days
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • 1
    Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
    Panasonic is a leading manufacturer of high quality electronic goods, and their air conditioners are no exception. Panasonic has over 53 years of air conditioning experience, allowing any consumer to purchase a Panasonic product knowing that the addition to their home or office will be efficient, reliable and easy to use. The E12RB4U mini split is a perfect example of Panasonic's engineering aptitude. Provide comforting air to all areas of your room by installing the unit into the ceiling as opposed to the wall. The 4 louvers can direct the air flow in whichever direction you please.
  • 4-Way Airflow
  • Installation in the center of a room provides the best results. Since that's not always practical, the CS-E12RB4UW has four louvers that allow you direct air which ever direction you desire.
  • Integrated Drain Pump
  • Panasonic has integrated a built-in drain pump that raises the condensate up 20 inches from pump discharge.
  • Quiet Operation
  • With the all new turbo fan and increased air path, the E12RB4U has reached one of the industry's lowest levels of noise. Noise is almost obsolete and produces nothing but a soft whisper.
  • Power Failure Automatic Restart
  • Your preset programmed operation can be reactivated once power is restored after a power failure.
  • High Power Mode
  • When the high power button is pushed, the unit will operate at maximum output for 30 minutes regardless of set temperature.
  • Cold Resistant
  • The E12RB4U compressor can handle outdoor temperatures as low as 0 degrees Fahrenheit for cooling mode and 5 degrees Fahrenheit for the heating mode. Panasonic uses some of the best cold-resistant components to prevent weather related issues.
  • Quick Results
  • Panasonic's inverter technology adjusts the compressor rotation speed for maximum performance. The E12RB4U can operate with higher cooling or heating power during the start up period to notice results quicker.
  • Product Includes
    • (1) Panasonic - 12k BTU - Cassette-Compatible Outdoor Condenser - Single Zone Only (CU-E12RB4U)
    • (1) Panasonic - 12k BTU - Ceiling Cassette - For Multi or Single-Zone - Grille Sold Separately (CS-E12RB4UW-NG)
    • (1) Panasonic E Series - Ceiling Cassette Grille Assembly - White (CZ-BT20U)
    Product Note
    This product requires the following accessories for installation:
    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor unit.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor unit to drain locations of your choosing. We recommend locally purchased PVC hard pipe for the condensate drain on cassette and concealed duct units.
    • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
    • Connecting Wire - This durable, insulated wire provides power to your indoor unit from your outdoor condenser.
    • Base Pan Heater - The base pan heater prevents ice from building up on the outdoor unit. Excessive ice build will lead to performance issues and could damage your unit.
    • Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
    Adding these accessories to your order will provide a complete, ready-to-install mini split system. Our convenient Mini Split Installation Starter Kits include all of the required accessories listed above. Starter kits can be added to your order from the accessories tab above.
Specifications
General Information
Type
Ceiling Cassette
Product Line
E Series
Operating Mode Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling + Heating
Number of Zones A zone is a room or area within a building that has its own temperature control.
1
Indoor Unit Size(s) Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. For example (09 + 12) means the system includes a 9k BTU unit and a 12k BTU unit.
12
DOE Regional Compliance In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Line Set Size
1/4" x 1/2"
Performance
Cooling Capacity
11900 BTU
Heating Capacity
13600 BTU
SEER SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
18.0
HSPF HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system. Learn More
9.0
Maximum Sound Level Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
66 dB
Minimum Outdoor Temperature for Heating This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
5 F
Minimum Outdoor Temperature for Cooling
0 F
Dimensions
Product Weight
122 Pounds
CU-E12RB4U Specifications
General Information
Type
Outdoor Condenser
Product Line
E Series
Operating Mode Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling + Heating
Maximum Number of Zones
1
Multi-Zone Compatible
No
Installation Location
Outdoor
Performance
Nominal Capacity
12000 BTU
Maximum Sound Level Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
66 dB
Minimum Outdoor Temperature for Heating This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
5 F
Minimum Outdoor Temperature for Cooling
0 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
15 Amps
Dimensions
Maximum Line Length
65.6 Feet
Liquid Connection Size
0.25 Inches
Suction Connection Size
0.5 Inches
Product Height
21.281 Inches
Product Width
30.719 Inches
Product Depth
11.406 Inches
Product Weight
82 Pounds
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
CS-E12RB4UW-NG Specifications
General Information
Type
Ceiling Cassette Unit
Product Line
RAC Multi E
Operating Mode Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling + Heating
Multi-Zone Compatible
Yes
Remote Control
Wireless
Installation Location
Indoor
Grille
Not Included
Required Grille Model
CZ-BT20U
Performance
Nominal Capacity
12000 BTU
Moisture Removal
4 Pints/Hour
Minimum Air Flow
240 CFM
Maximum Air Flow
410 CFM
Maximum Sound Level Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
38 dB
Minimum Sound Level
25 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Liquid Connection Size
0.25 Inches
Gas Connection Size
0.5 Inches
Product Height
10.25 Inches
Product Width
22.656 Inches
Product Depth
22.956 Inches
Product Weight
40 Pounds
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
CZ-BT20U Specifications
General Information
Type
Grille
Product Line
E Series
Installation Location
Indoor
Dimensions
Product Height
27.563 Inches
Product Width
27.563 Inches
Product Depth
2.031 Inches
Product Weight
6 Pounds
Shipping Height
28.906 Inches
Shipping Width
29.313 Inches
Shipping Depth
3.719 Inches
Shipping Weight
8 Pounds
