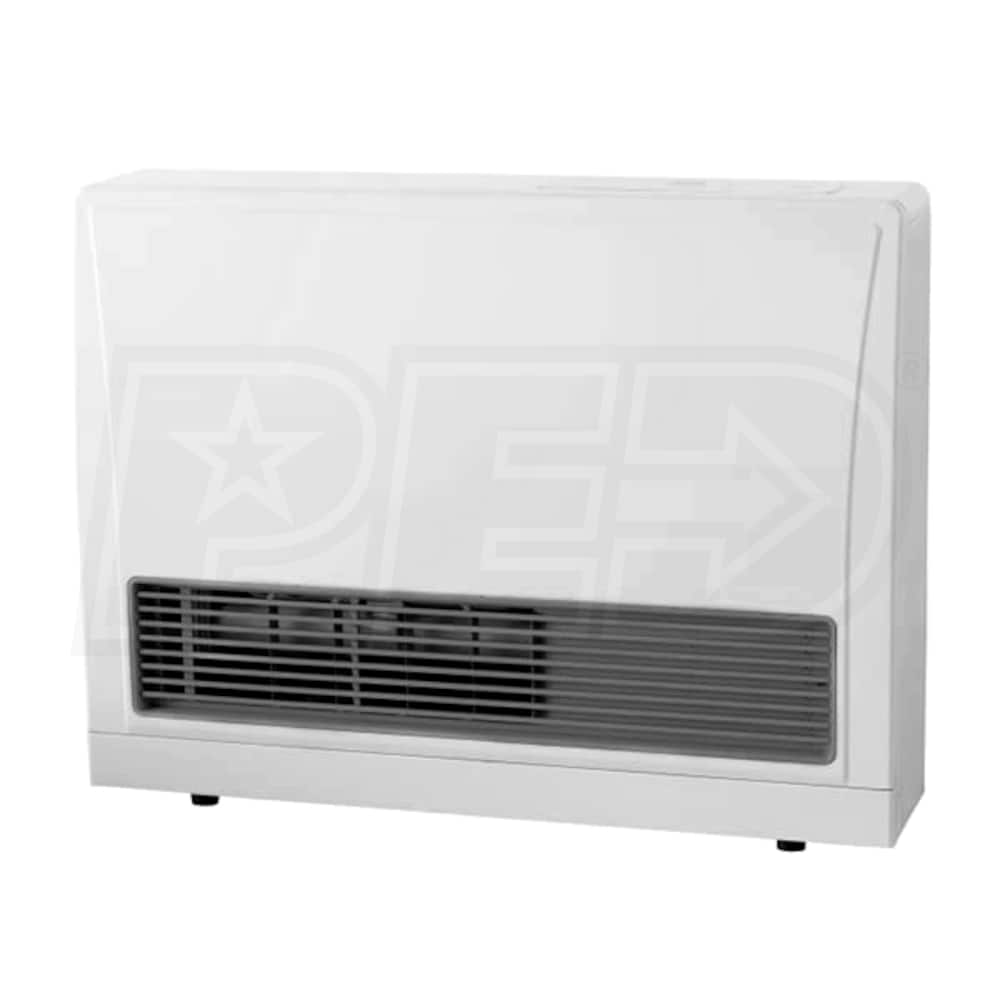

Rinnai EnergySaver® - 21,500 BTU - Gas Direct-Vent Wall Furnace - NG - 81% AFUE - White
Rinnai EnergySaver® - 21,500 BTU - Gas Direct-Vent Wall Furnace - NG - 81% AFUE - White
+
Share This Product
-
Product Description
-
8Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Consistent Home Comfort
- Rinnai's EnergySaver® Direct Vent Wall Furnace constantly monitors room temperature. Within seconds of detecting a temperature change of less than 1° F, the furnace begins to gently heat the room to the preset temperature.
- Modulating Technology
- Rinnai's modulating technology uses only the exact amount of gas needed to maintain a set temperature, providing dependable home comfort while optimizing energy efficiency.
- Simple, Flexible Installation
- Duct work is not required with the Rinnai EnergySaver®, making installation quick and hassle-free. Flexible venting placement allows for positioning along almost any outside wall.
- User-Friendly Control Panel
- Rinnai's user-friendly control panel allows you to configure preset temperatures and set heating schedules with a programmable timer.
- Product Includes
- Vent Kit - For walls 4-1/2" to 9-1/2" thick
- Wall Bracket
- Back Spacer Kit
With the Rinnai EnergySaver® Direct Vent Wall Furnace, you can be just as comfortable with your energy bill as you are with your room temperature. The EnergySaver® is a highly efficient furnace ideal for hard to heat areas like sunrooms, basements, room additions, and even whole-home heating. The EnergySaver® features Rinnai's modulating heat technology that responds to small temperature changes, resulting in higher levels of comfort at lower energy cost. The EnergySaver® also includes a user-friendly control panel that allows you to set temperature and adjust heating schedules with a programmable timer. The Rinnai EnergySaver® Wall Furnace puts you in control of your home's comfort, effectively and efficiently.
Specifications
General Information
Type
Gas Wall Furnace
Product Line
EnergySaver
Product Sub-line
EX22
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Direct Vent
Modulating/Staging
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Modulating
Blower Type
Blower type describes the motor that powers the fan in the unit. PSC multi-speed is the standard motor that operates with pre-set fan speed levels. ECM multi-speed are more efficient but still operate with pre-set fan speeds. Finally, ECM variable-speed motors are also energy efficient and automatically adjust to changing system conditions.
Blower type describes the motor that powers the fan in the unit. PSC multi-speed is the standard motor that operates with pre-set fan speed levels. ECM multi-speed are more efficient but still operate with pre-set fan speeds. Finally, ECM variable-speed motors are also energy efficient and automatically adjust to changing system conditions.
ECM Variable-Speed
Gas Conversion Kit
Available
Color
White
UPC
766156009907
Performance
Nominal Heating Capacity
21500 BTU
High Fire Input
21500 BTU
High Fire Output
17200 BTU
AFUE
AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
81 %
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
42 dB
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
1/2 Inch
Supply Connection
1/2 Inch
Product Height
22 43/48 Inches
Product Width
29 43/48 Inches
Product Depth
10 5/48 Inches
Product Weight
57 Pounds
Certifications
CSA Listed
Yes
AHRI Reference Number
10061799
Warranty Information
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Heat Exchanger Warranty
10 Years
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Consistent Home Comfort
- Rinnai's EnergySaver® Direct Vent Wall Furnace constantly monitors room temperature. Within seconds of detecting a temperature change of less than 1° F, the furnace begins to gently heat the room to the preset temperature.
- Modulating Technology
- Rinnai's modulating technology uses only the exact amount of gas needed to maintain a set temperature, providing dependable home comfort while optimizing energy efficiency.
- Simple, Flexible Installation
- Duct work is not required with the Rinnai EnergySaver®, making installation quick and hassle-free. Flexible venting placement allows for positioning along almost any outside wall.
- User-Friendly Control Panel
- Rinnai's user-friendly control panel allows you to configure preset temperatures and set heating schedules with a programmable timer.
- Product Includes
- Vent Kit - For walls 4-1/2" to 9-1/2" thick
- Wall Bracket
- Back Spacer Kit
With the Rinnai EnergySaver® Direct Vent Wall Furnace, you can be just as comfortable with your energy bill as you are with your room temperature. The EnergySaver® is a highly efficient furnace ideal for hard to heat areas like sunrooms, basements, room additions, and even whole-home heating. The EnergySaver® features Rinnai's modulating heat technology that responds to small temperature changes, resulting in higher levels of comfort at lower energy cost. The EnergySaver® also includes a user-friendly control panel that allows you to set temperature and adjust heating schedules with a programmable timer. The Rinnai EnergySaver® Wall Furnace puts you in control of your home's comfort, effectively and efficiently.
Specifications
General Information
Type
Gas Wall Furnace
Product Line
EnergySaver
Product Sub-line
EX22
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Direct Vent
Modulating/Staging
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Modulating
Blower Type
Blower type describes the motor that powers the fan in the unit. PSC multi-speed is the standard motor that operates with pre-set fan speed levels. ECM multi-speed are more efficient but still operate with pre-set fan speeds. Finally, ECM variable-speed motors are also energy efficient and automatically adjust to changing system conditions.
Blower type describes the motor that powers the fan in the unit. PSC multi-speed is the standard motor that operates with pre-set fan speed levels. ECM multi-speed are more efficient but still operate with pre-set fan speeds. Finally, ECM variable-speed motors are also energy efficient and automatically adjust to changing system conditions.
ECM Variable-Speed
Gas Conversion Kit
Available
Color
White
UPC
766156009907
Performance
Nominal Heating Capacity
21500 BTU
High Fire Input
21500 BTU
High Fire Output
17200 BTU
AFUE
AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
81 %
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
42 dB
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
1/2 Inch
Supply Connection
1/2 Inch
Product Height
22 43/48 Inches
Product Width
29 43/48 Inches
Product Depth
10 5/48 Inches
Product Weight
57 Pounds
Certifications
CSA Listed
Yes
AHRI Reference Number
10061799
Warranty Information
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Heat Exchanger Warranty
10 Years
Product Specs
+−
Specifications
General Information
Type
Gas Wall Furnace
Product Line
EnergySaver
Product Sub-line
EX22
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Direct Vent
Modulating/Staging
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Modulating
Blower Type
Blower type describes the motor that powers the fan in the unit. PSC multi-speed is the standard motor that operates with pre-set fan speed levels. ECM multi-speed are more efficient but still operate with pre-set fan speeds. Finally, ECM variable-speed motors are also energy efficient and automatically adjust to changing system conditions.
Blower type describes the motor that powers the fan in the unit. PSC multi-speed is the standard motor that operates with pre-set fan speed levels. ECM multi-speed are more efficient but still operate with pre-set fan speeds. Finally, ECM variable-speed motors are also energy efficient and automatically adjust to changing system conditions.
ECM Variable-Speed
Gas Conversion Kit
Available
Color
White
UPC
766156009907
Performance
Nominal Heating Capacity
21500 BTU
High Fire Input
21500 BTU
High Fire Output
17200 BTU
AFUE
AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
81 %
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
42 dB
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
1/2 Inch
Supply Connection
1/2 Inch
Product Height
22 43/48 Inches
Product Width
29 43/48 Inches
Product Depth
10 5/48 Inches
Product Weight
57 Pounds
Certifications
CSA Listed
Yes
AHRI Reference Number
10061799
Warranty Information
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Heat Exchanger Warranty
10 Years
Product Q&A
+−
Be the first to ask a question.
Recommended Accessories
+−
Expert Recommended Accessories
Hand Picked By Our Expert Chris
Required Accessories
Add All Required
Optional Accessories
How-To Articles
+−
Manuals
+−
+
Ask Chris, Our Product Expert, A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Continue Shopping
×
Rinnai EnergySaver® - 21,500 BTU - Gas Direct-Vent Wall Furnace - NG - 81% AFUE - White
×

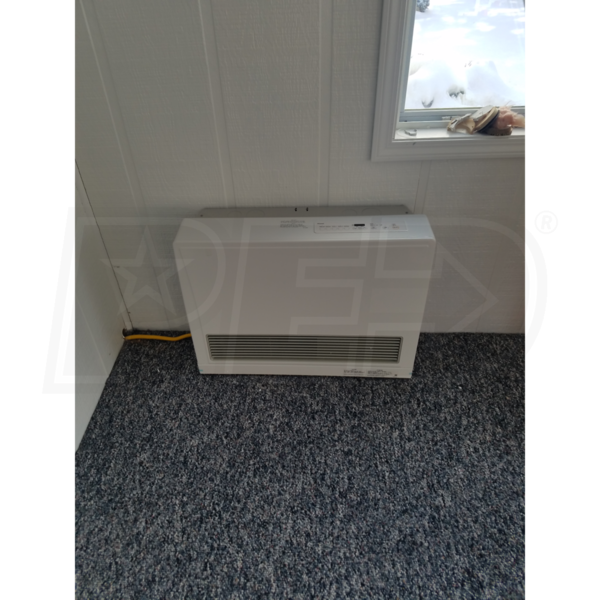

Customer Review Images
