Rinnai EnergySaver® - 20,700 BTU - Gas Direct-Vent Wall Furnace - LP - 81% AFUE - White
Model:
EX22CTWP
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Optional Accessories
1
$16.00
In-Stock
Features
Rinnai EnergySaver® - 20,700 BTU - Gas Direct-Vent Wall Furnace - LP - 81% AFUE - White
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- Product Includes
- EX22CTWP
- Vent Kit FOT-151 (4-1/2" - 9-1/2" Walls)

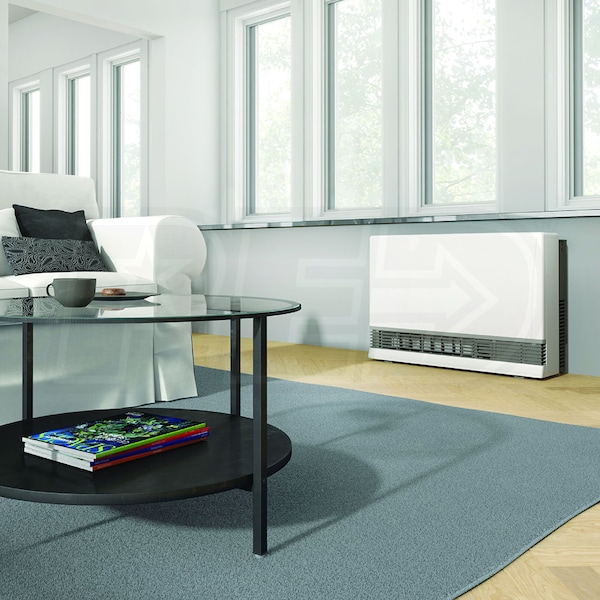

With the Rinnai EnergySaver® Direct Vent Wall Furnace, you can be just as comfortable with your energy bill as you are with your room temperature. The EnergySaver® is a highly efficient furnace ideal for hard to heat areas like sunrooms, basements, room additions, and even whole-home heating. The EnergySaver® features Rinnai's modulating heat technology that responds to small temperature changes, resulting in higher levels of comfort at lower energy cost. The EnergySaver® also includes a user-friendly control panel that allows you to set temperature and adjust heating schedules with a programmable timer. The Rinnai EnergySaver® Wall Furnace puts you in control of your home's comfort, effectively and efficiently.
California residents see
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm..
For more information go to: www.p65Warnings.ca.gov
Specifications
EX22CTWP
Overview
Product Category
Furnace
UPC
766156009907
General Information
Type
Gas Wall Furnace
Product Line
EnergySaver
Product Sub-line
EX22
Product Category
Furnace
Fuel Type
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Liquid Propane
Vent Type
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Direct Vent
Modulating/Staging
Modulating/Staging
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Modulating
Blower Motor Type
ECM Variable-Speed
Gas Conversion Kit
Available
Color
White
Performance
AFUE
AFUE
AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
81 %
Heating BTU
20700
High Fire Input
20700 BTU
High Fire Output
16560 BTU
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
42 dB
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
1/2 Inch
Supply Connection
1/2 Inch
Product Height
22 43/48 Inches
Product Width
29 43/48 Inches
Product Depth
10 5/48 Inches
Product Weight
57 Pounds
Certifications
CSA Listed
Yes
AHRI Reference Number
10061799
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Heat Exchanger Warranty
10 Years
Reviews
(10)
Rinnai EX22CTWP Reviews & Ratings
Customer Rating
4.80
(10 Ratings)
5
(8)
(8)4(2)
(2)3(0)
(0)2(0)
(0)1(0)
(0)
Great Product
By Dominique S
MIDDLE Village, New York
Purchased 01/09/2022 |
Review Posted 01/31/2022
It works just as it should. Very happy with my purchase.
Dominique S Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Easy To Use, Light Weight, High Quality, Id Buy It Again
Cons:
Expensive
Good Little Heater
By David J
West Yellowstone, Montana
Purchased 08/18/2020 |
Review Posted 10/20/2020
Great heater really helps keep our 800 sq ft living area much warmer. Timer option works well too.
David J Recommends This
Was this review helpful?
Rating Breakdown
4/5
4/5
5/5
4/5
Pros:
Easy To Use, Features
Cons:
Packaging
This Heater Is Perfect For What We Needed
By Miryam H
Rigby, Idaho
Purchased 10/10/2019 |
Review Posted 11/01/2019
The product was a lot larger than I thought it would be but it makes up for it in performance. I find it is user friendly and accurate.
Miryam H Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Durable, Easy To Use, Quiet, High Quality
Cons:
Expensive
Great Heater, love the timer feature
By David W
Findlay, Illinois
Purchased 01/01/2019 |
Review Posted 01/23/2019
Great Heater. Installed in our winter home in Quartzsite AZ. When we bought the place it had unvented Blue Flame heaters with smell all the time when burning. Replaced them with the Rinnai 8000 BTU, no more smell, just nice warm heater. Install took about 4 hours, just taking my time and doing it right. Nothing hard about it. I love waking up to a nice warm room, have our timer set on 6 AM, when we get up around 7 or so, it is toasty warm. We love this feature as we both like it cool while we sleep, but it is warm when we get up. The heater is easy to program and set.
David W Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Amazing Unit
By Jean G.T.
Prattsburgh, New York
Purchased 11/01/2018 |
Review Posted 01/04/2019
This unit is amazingly quiet and keeps the cabin comfortably warm. I am very impressed with it.
Jean G.T. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Great heater not easy to install
By Peter S
Monroe, Connecticut
Purchased 09/25/2018 |
Review Posted 12/01/2018
This heater is expensive and difficult to install although once it’s up and running it is a great heater nice and quiet and efficient.
Peter S Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Nice Little Furnace
By Randy L.
Baton Rouge, Louisiana
Purchased 09/03/2018 |
Review Posted 11/01/2018
I needed a winter heat source to complement my central heat pump and to replace an ancient floor furnace in my kitchen that has served that purpose for many years. Other than having to do a little wrenching and gas pipe work, the Rinnai was easy to install and set up. It puts out a lot of heat and is quiet. I have not had to run it much so far, though, as it's still pretty warm here in the Deep South.
Randy L. Recommends This
Was this review helpful?
Rating Breakdown
4/5
4/5
4/5
4/5
Efficient, come highly rated
By Erin L
THOMPSON FALLS, Montana
Purchased 10/02/2018 |
Review Posted 10/24/2018
This heater came recommended by many people. It shipped quickly and delivery was easy. So far it heats our 1200 square ft home amazingly well. Confident we made the right choice to add this propane heating option.
Erin L Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
4/5
4/5
Wonderful Heater
By Russell B
Peabody, Massachusetts
Purchased 08/31/2018 |
Review Posted 09/22/2018
Our old wall heater failed us and our plumber recommended this type of a wall heater. SOOO glad he did. It looks good and most of all it heats three bedrooms and an open living room and kitchen.
Russell B Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Just as Promised
By Debbie V.
Livermore, Maine
Purchased 04/24/2018 |
Review Posted 05/16/2018
We purchased this Rinnai heater for an apartment over our garage. It works very well and was easy to install.
Debbie V. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
4/5
Pros:
Features, Easy To Use
Cons:
Expensive
