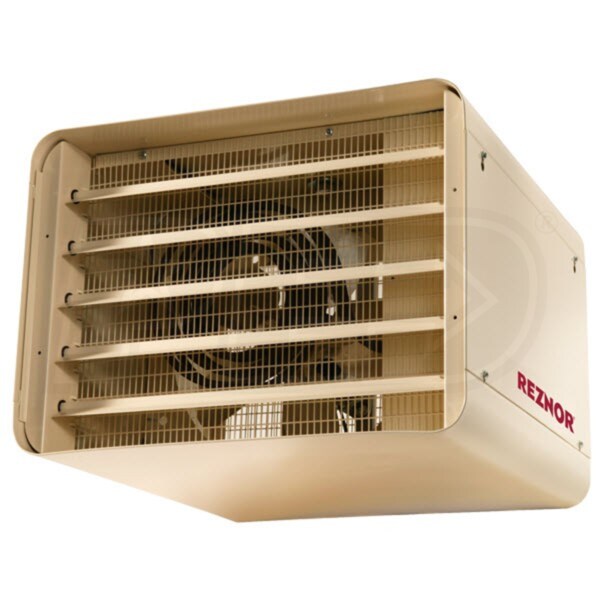

Reznor 34,144 BTU 10 kW Suspended Electric Heater 240V 3 Phase

Model:

EGHB-10-AK6E

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Reznor 34,144 BTU 10 kW Suspended Electric Heater 240V 3 Phase
Reznor 34,144 BTU 10 kW Suspended Electric Heater 240V 3 Phase
Model: EGHB-10-AK6E
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Bob, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Overview for Reznor EGHB-10-AK6E

    Reznor EGHB-10-AK6E 34,144 BTU 10 kW Suspended Electric Heater 240V 3 Phase.
  • Reznor EGHB-10-AK6E Features
  • 18 and 20 gauge steel cabinet
  • Adjustable louvers to direct airflow
  • Tubular heating elements
  • Epoxy/polyester powder paint
  • Thermally-protected motor
  • 85 F maximum operating temperature
  • Product Note
    Reznor EGHB Series is not designed for residential use.
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm..
For more information go to: www.p65Warnings.ca.gov

Specifications

EGHB-10-AK6E
specs product image PID-46117
General Information
Type
Heavy Duty
Product Line
EGHB
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Electric
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal/Vertical
Mount Type
Suspended
Additional Model Numbers

EGHB-10-AK6E, EGHB-10-AK6E

Performance
Heating Capacity
34144 BTU
Maximum Input Capacity Learn More
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
34144 BTU
Heating Capacity (kW)
10 kW
Maximum Air Flow
700 CFM
Minimum Air Flow
700 CFM
Electrical Data
Voltage
240 Volts
Phase
3
Frequency
60 Hz
Current Draw
24.08 Amps
Dimensions
Product Height
12 Inches
Product Width
16 1/2 Inches
Product Depth
17 Inches
Product Weight
45 Pounds
Shipping Weight
55 Pounds
Certifications
Country of Origin
United States
CSA Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
