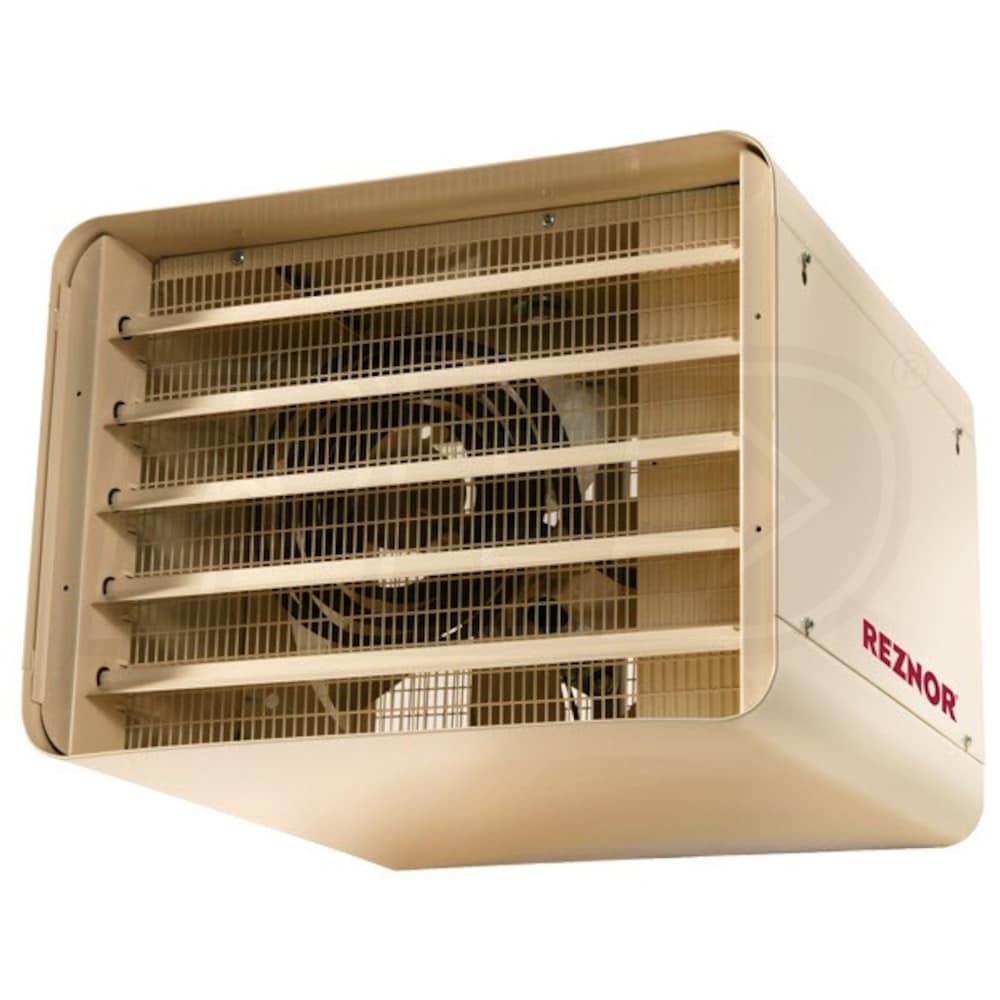

Reznor EGHB-3 Heavy Duty Suspended Electric Unit Heater, 240V, 1 Phase - 3 kW (10,243 BTU)

Reznor EGHB-3 Heavy Duty Suspended Electric Unit Heater, 240V, 1 Phase - 3 kW (10,243 BTU)
Our Price
Compare Prices
Shipping Info
Model: EGHB-3-AK3E
(Based on expert analysis, manufacturer ratings and customer reviews)
4.0 out of 54.0 out of 54.0 out of 54.0 out of 54.0 out of 5
Number of Reviews (2)
Write A Review
$657.91

Factory-Direct
Ships in 3-4 Weeks
Factory items ship direct from the manufacturer.
Shipping times vary.
Shipping Crate Icon
Free Shipping
Free Lift Gate Service -
Voltage/Phase
Add-Ons
Free Shipping$657.91Buy Now
$657.91Visit Site
Factory-Direct
Ships in 3-4 Weeks
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • 2
    Reviews
  • 1
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
    Reznor EGHB-3-AK3E Heavy Duty Suspended Electric Unit Heater is a 240 volt, heavy-duty suspended electric unit heater. It has an maximum heat capacity of 10243 BTU/hr. With a maximum operating temperature of 85 F, the Reznor EGHB-3-AK3E Heavy Duty Suspended Electric Unit Heater is designed for mines, commercial halls, stairwells, factories, warehouses, or other high-bay installation. Its exterior is coated in an epoxy/polyester powder paint which is corrosion resistant maintaining its appearance for years. Adjustable louvers allow for easier directed air flow. The EGHB-3-AK3E has a minimum recommended height of 8 ft. and a maximum recommended height of 15 ft. when mounted horizontally.
  • Reznor EGHB-3-AK3E Features
  • 18 and 20 gauge steel cabinet
  • Adjustable louvers to direct airflow
  • Tubular heating elements
  • Epoxy/polyester powder paint
  • Thermally-protected motor
  • 85 F maximum operating temperature
  • Product Note
    Reznor EGHB Series is not designed for residential use.
Specifications
General Information
Type
Heavy Duty
Product Line
EGHB
Fuel Type Learn More To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Electric
Configuration Learn More Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal/Vertical
Mount Type
Suspended
Performance
Heating Capacity
10243 BTU
Maximum Input Capacity Learn More The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
10243 BTU
Heating Capacity (kW)
3 kW
Minimum Air Flow
700 CFM
Maximum Air Flow
700 CFM
Electrical Data
Voltage
240 Volts
Phase
1
Frequency
60 Hz
Dimensions
Product Height
12 Inches
Product Width
16 1/2 Inches
Product Depth
17 Inches
Product Weight
45 Pounds
Certifications
Country of Origin
United States
CSA Listed
Yes
Warranty Information
Parts Warranty Learn More A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Features
Features
    Reznor EGHB-3-AK3E Heavy Duty Suspended Electric Unit Heater is a 240 volt, heavy-duty suspended electric unit heater. It has an maximum heat capacity of 10243 BTU/hr. With a maximum operating temperature of 85 F, the Reznor EGHB-3-AK3E Heavy Duty Suspended Electric Unit Heater is designed for mines, commercial halls, stairwells, factories, warehouses, or other high-bay installation. Its exterior is coated in an epoxy/polyester powder paint which is corrosion resistant maintaining its appearance for years. Adjustable louvers allow for easier directed air flow. The EGHB-3-AK3E has a minimum recommended height of 8 ft. and a maximum recommended height of 15 ft. when mounted horizontally.
  • Reznor EGHB-3-AK3E Features
  • 18 and 20 gauge steel cabinet
  • Adjustable louvers to direct airflow
  • Tubular heating elements
  • Epoxy/polyester powder paint
  • Thermally-protected motor
  • 85 F maximum operating temperature
  • Product Note
    Reznor EGHB Series is not designed for residential use.
Specifications
General Information
Type
Heavy Duty
Product Line
EGHB
Fuel Type Learn More To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Electric
Configuration Learn More Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal/Vertical
Mount Type
Suspended
Performance
Heating Capacity
10243 BTU
Maximum Input Capacity Learn More The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
10243 BTU
Heating Capacity (kW)
3 kW
Minimum Air Flow
700 CFM
Maximum Air Flow
700 CFM
Electrical Data
Voltage
240 Volts
Phase
1
Frequency
60 Hz
Dimensions
Product Height
12 Inches
Product Width
16 1/2 Inches
Product Depth
17 Inches
Product Weight
45 Pounds
Certifications
Country of Origin
United States
CSA Listed
Yes
Warranty Information
Parts Warranty Learn More A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Product Specs
+
Specifications
General Information
Type
Heavy Duty
Product Line
EGHB
Fuel Type Learn More To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Electric
Configuration Learn More Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal/Vertical
Mount Type
Suspended
Performance
Heating Capacity
10243 BTU
Maximum Input Capacity Learn More The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
10243 BTU
Heating Capacity (kW)
3 kW
Minimum Air Flow
700 CFM
Maximum Air Flow
700 CFM
Electrical Data
Voltage
240 Volts
Phase
1
Frequency
60 Hz
Dimensions
Product Height
12 Inches
Product Width
16 1/2 Inches
Product Depth
17 Inches
Product Weight
45 Pounds
Certifications
Country of Origin
United States
CSA Listed
Yes
Warranty Information
Parts Warranty Learn More A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Reviews
(2)
+
Reznor EGHB-3-AK3E Reviews & Ratings
Product Q&A
(1)
+
Search Product Q&A's Answered by Bob, the Heating Product Expert
icon-social-fb1
+
Is a wall mount bracket available for this unit?
Loren
from New Mexico
December 23, 2015
Answer
All EGHB series units, except the 40, 50, and 60 kW models, include both a wall and ceiling bracket that allows 360 degrees of rotation when installed horizontally. They can also be installed vertically using 4 field-supplied, 1/2", threaded rods.
