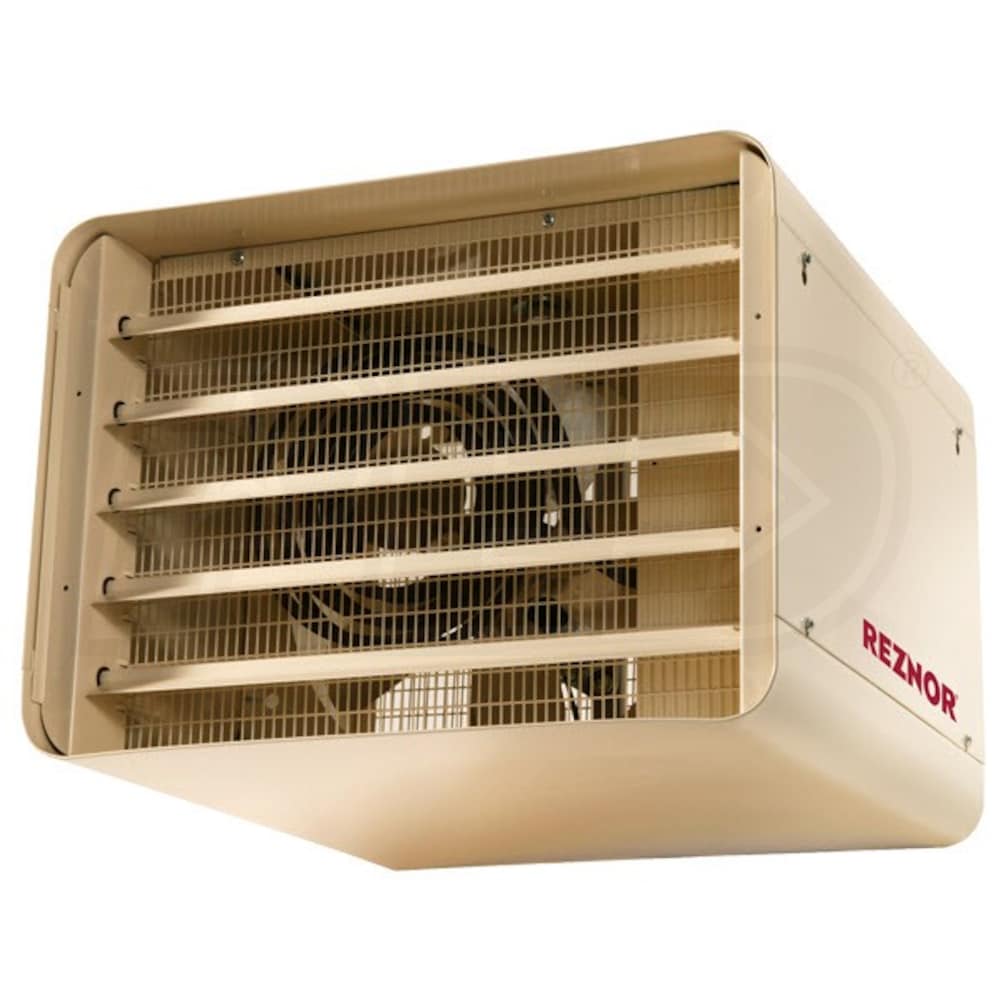

Reznor EGHB-10 Heavy Duty Suspended Electric Unit Heater, 240V, 1 Phase - 10 kW (34,144 BTU)
Reznor EGHB-10 Heavy Duty Suspended Electric Unit Heater, 240V, 1 Phase - 10 kW (34,144 BTU)
+
Share This Product
-
Product Description
-
2Reviews
-
1Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Features
Features
- Reznor EGHB-10-AK3E Features
- 18 and 20 gauge steel cabinet
- Adjustable louvers to direct airflow
- Tubular heating elements
- Epoxy/polyester powder paint
- Thermally-protected motor
- 85 F maximum operating temperature
Reznor EGHB-10-AK3E Heavy Duty Suspended Electric Unit Heater is a 240 volt, heavy-duty suspended electric unit heater. It has an maximum heat capacity of 34144 BTU/hr. With a maximum operating temperature of 85 F, the Reznor EGHB-10-AK3E Heavy Duty Suspended Electric Unit Heater is designed for mines, commercial halls, stairwells, factories, warehouses, or other high-bay installation. Its exterior is coated in an epoxy/polyester powder paint which is corrosion resistant maintaining its appearance for years. Adjustable louvers allow for easier directed air flow. The EGHB-10-AK3E has a minimum recommended height of 8 ft. and a maximum recommended height of 15 ft. when mounted horizontally.
Product Note
Reznor EGHB Series is not designed for residential use.
Specifications
General Information
Type
Heavy Duty
Product Line
EGHB
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Electric
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal/Vertical
Mount Type
Suspended
Performance
Heating Capacity
34144 BTU
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
34144 BTU
Heating Capacity (kW)
10.0 kW
Maximum Air Flow
700 CFM
Minimum Air Flow
700 CFM
Electrical Data
Voltage
240 Volts
Phase
1
Frequency
60 Hz
Current Draw
41.67 Amps
Dimensions
Product Height
12 Inches
Product Width
16 1/2 Inches
Product Depth
17 Inches
Product Weight
45 Pounds
Certifications
Country of Origin
United States
CSA Listed
Yes
Warranty Information
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Features
Features
- Reznor EGHB-10-AK3E Features
- 18 and 20 gauge steel cabinet
- Adjustable louvers to direct airflow
- Tubular heating elements
- Epoxy/polyester powder paint
- Thermally-protected motor
- 85 F maximum operating temperature
Reznor EGHB-10-AK3E Heavy Duty Suspended Electric Unit Heater is a 240 volt, heavy-duty suspended electric unit heater. It has an maximum heat capacity of 34144 BTU/hr. With a maximum operating temperature of 85 F, the Reznor EGHB-10-AK3E Heavy Duty Suspended Electric Unit Heater is designed for mines, commercial halls, stairwells, factories, warehouses, or other high-bay installation. Its exterior is coated in an epoxy/polyester powder paint which is corrosion resistant maintaining its appearance for years. Adjustable louvers allow for easier directed air flow. The EGHB-10-AK3E has a minimum recommended height of 8 ft. and a maximum recommended height of 15 ft. when mounted horizontally.
Product Note
Reznor EGHB Series is not designed for residential use.
Specifications
General Information
Type
Heavy Duty
Product Line
EGHB
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Electric
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal/Vertical
Mount Type
Suspended
Performance
Heating Capacity
34144 BTU
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
34144 BTU
Heating Capacity (kW)
10.0 kW
Maximum Air Flow
700 CFM
Minimum Air Flow
700 CFM
Electrical Data
Voltage
240 Volts
Phase
1
Frequency
60 Hz
Current Draw
41.67 Amps
Dimensions
Product Height
12 Inches
Product Width
16 1/2 Inches
Product Depth
17 Inches
Product Weight
45 Pounds
Certifications
Country of Origin
United States
CSA Listed
Yes
Warranty Information
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Product Specs
+−
Specifications
General Information
Type
Heavy Duty
Product Line
EGHB
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Electric
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal/Vertical
Mount Type
Suspended
Performance
Heating Capacity
34144 BTU
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
34144 BTU
Heating Capacity (kW)
10.0 kW
Maximum Air Flow
700 CFM
Minimum Air Flow
700 CFM
Electrical Data
Voltage
240 Volts
Phase
1
Frequency
60 Hz
Current Draw
41.67 Amps
Dimensions
Product Height
12 Inches
Product Width
16 1/2 Inches
Product Depth
17 Inches
Product Weight
45 Pounds
Certifications
Country of Origin
United States
CSA Listed
Yes
Warranty Information
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Product Q&A
(1)
+−
Search Product Q&A's
Answered by Bob, the Heating Product Expert
+−
Is a wall mount bracket available for this unit?
Loren
from New Mexico
December 23, 2015
Answer
All EGHB series units, except the 40, 50, and 60 kW models, include both a wall and ceiling bracket that allows 360 degrees of rotation when installed horizontally. They can also be installed vertically using 4 field-supplied, 1/2", threaded rods.
