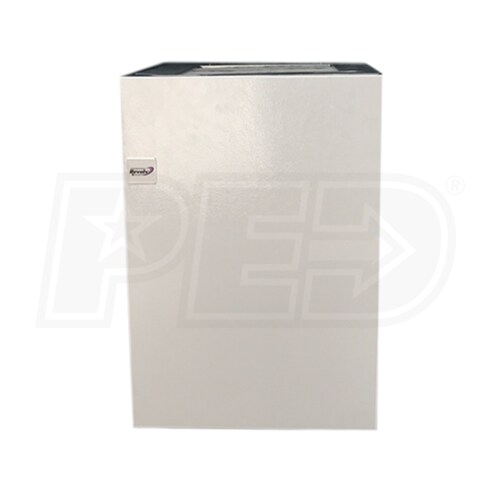

Revolv - 57k BTU - Electric Furnace - Manufactured Home - 100% Efficiency - 17 kW - Multi-Positional - Multi-Speed

Model:

RE9X17N4

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Revolv - 57k BTU - Electric Furnace - Manufactured Home - 100% Efficiency - 17 kW - Multi-Positional - Multi-Speed
Revolv - 57k BTU - Electric Furnace - Manufactured Home - 100% Efficiency - 17 kW - Multi-Positional - Multi-Speed
Model: RE9X17N4
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

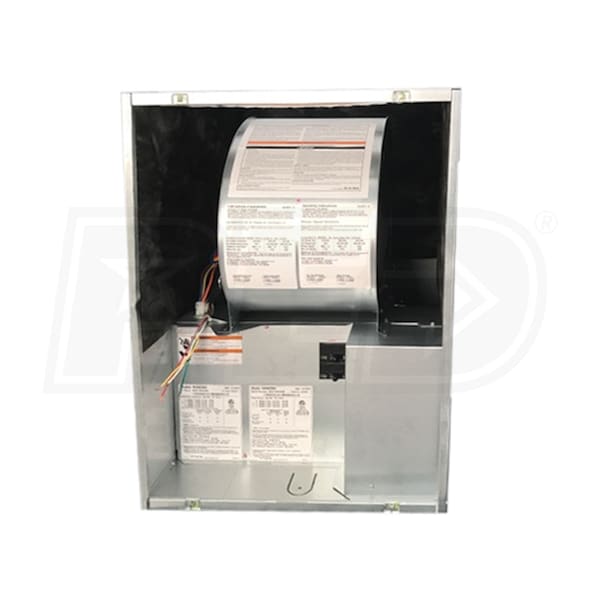

    Revolv is dedicated to bringing efficient comfort to the manufactured and mobile home market. The RE9X17N4 is a multi-directional electric furnace capable of providing 57,000 BTU of heating at 100% efficiency. Designed for easy installation in a variety of manufactured and modular homes, it enjoys a 0" required clearance to combustibles at the rear and sides and only 6" are required at the front of the unit. If you're struggling to effectively and safely heat your manufactured home, the RE9X17N4 is a solution that you can believe in.
  • Nichrome Heating Elements
  • Revolv electric furnaces feature nichrome heating elements, designed to provide long lasting, efficient heating without breaking the bank.
  • Multi-Positional Installation
  • The Revolv RE9X models are designed specifically to fit any installation. They can be used in both upflow and downflow systems making them the perfect fit for any home.
  • Multiple Cooling Choices
  • RE9X models can be paired with either air conditioners or heat pumps up to a maximum of 4 tons of cooling.
  • High Quality, Low Maintenance
  • Features such as sealed bearings on the motors, reliable controllers, and a built-in circuit breakers means these units are made to last and provide uninterrupted comfort for years.
  • Multi-Speed Fan
  • The RE9X17N4 uses a four-speed motor for the blower, giving you excellent airflow that can be scaled to the size of your home.
  • Product Note
    Grille not included.
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

RE9X17N4
specs product image PID-77171
General Information
Type
Electric Furnace
Product Line
RE9
Blower Type Learn More
Blower Type
Blower type describes the motor that powers the fan in the unit. PSC multi-speed is the standard motor that operates with pre-set fan speed levels. ECM multi-speed are more efficient but still operate with pre-set fan speeds. Finally, ECM variable-speed motors are also energy efficient and automatically adjust to changing system conditions.
PSC Multi-Speed
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Downflow/Upflow
UPC
663132344246
Performance
Heating BTU
57000
Electric Heat Capacity
17 kW
Electrical Data
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
88 Amps
Recommended Breaker Size
88 Amps
Dimensions
Product Height
29 Inches
Product Width
20 Inches
Product Depth
24 3/4 Inches
Product Weight
75 Pounds
Shipping Weight
75 Pounds
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
