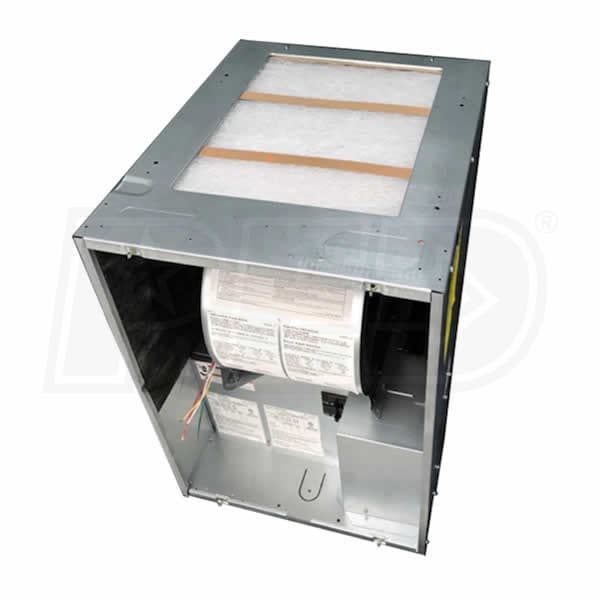

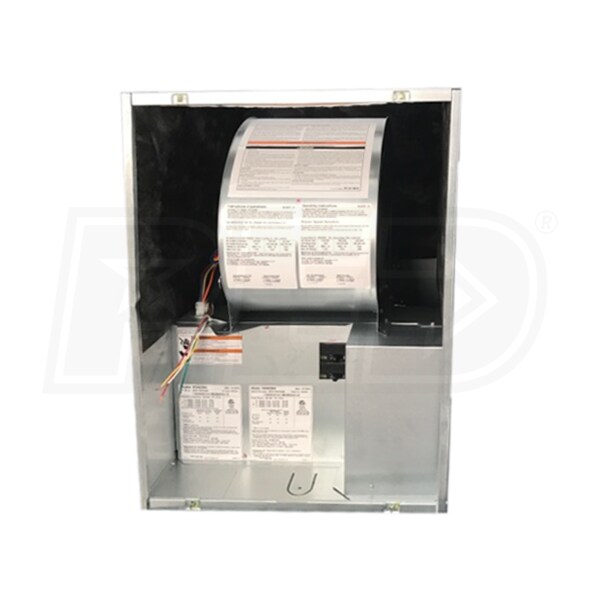

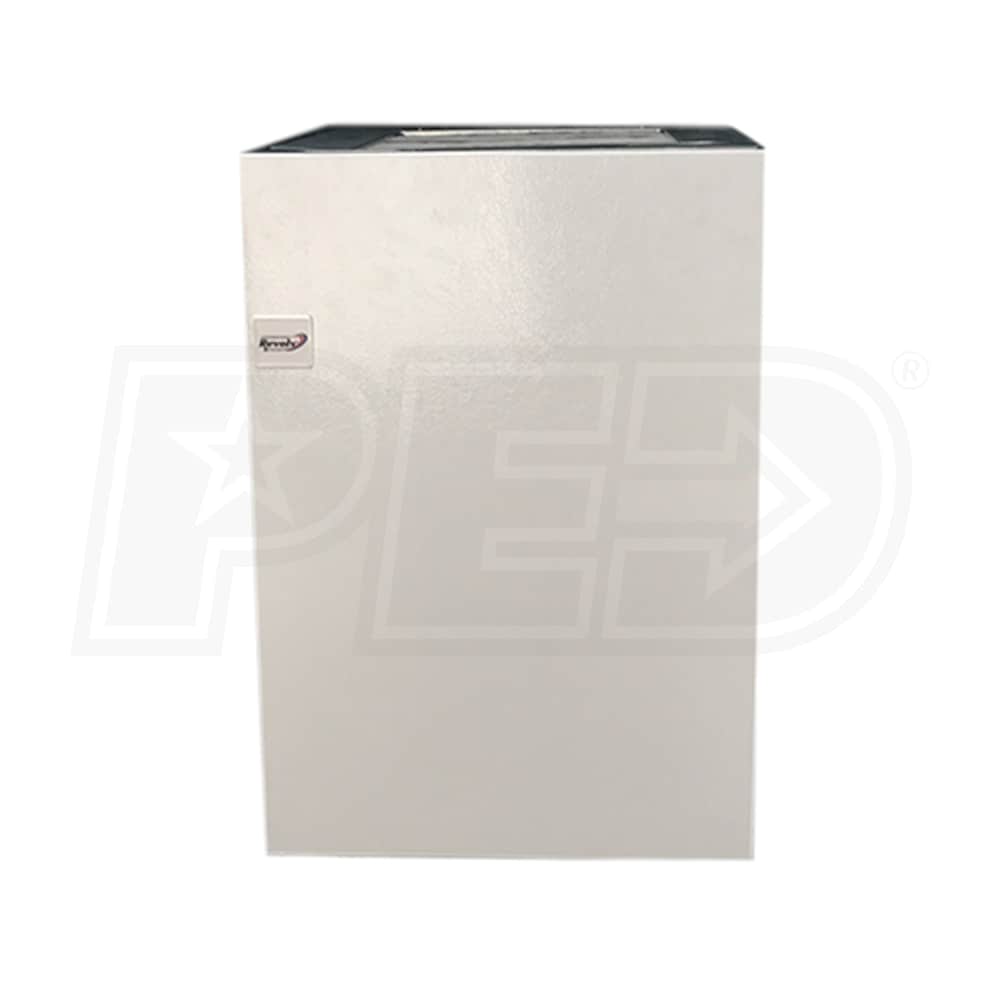

Revolv - 41k BTU - Electric Furnace - Manufactured Home - 100% Efficiency - 12 kW - Multi-Positional - Multi-Speed
Model:
RE9X12N4
+
Share This Product
Features
- Nichrome Heating Elements
- Revolv electric furnaces feature nichrome heating elements, designed to provide long lasting, efficient heating without breaking the bank.
- Multi-Positional Installation
- The Revolv RE9X models are designed specifically to fit any installation. They can be used in both upflow and downflow systems making them the perfect fit for any home.
- Multiple Cooling Choices
- RE9X models can be paired with either air conditioners or heat pumps up to a maximum of 4 tons of cooling.
- High Quality, Low Maintenance
- Features such as sealed bearings on the motors, reliable controllers, and a built-in circuit breakers means these units are made to last and provide uninterrupted comfort for years.
- Multi-Speed Fan
- The RE9X12N4 uses a four-speed motor for the blower, giving you excellent airflow that can be scaled to the size of your home.
Revolv is dedicated to bringing efficient comfort to the manufactured and mobile home market. The RE9X12N4 is a multi-directional electric furnace capable of providing 41,000 BTU of heating at 100% efficiency. Designed for easy installation in a variety of manufactured and modular homes, it enjoys a 0" required clearance to combustibles at the rear and sides and only 6" are required at the front of the unit. If you're struggling to effectively and safely heat your manufactured home, the RE9X12N4 is a solution that you can believe in.
Product Note
Grille not included.
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
RE9X12N4
General Information
Type
Electric Furnace
Product Line
RE9
Fuel Type
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Electric
Modulating/Staging
Modulating/Staging
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Single Stage
Blower Motor Type
PSC Multi-Speed
Configuration
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Downflow/Upflow
UPC
663132344222
Performance
Heating BTU
41000
Electric Heat Capacity
12 kW
Electrical Data
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
64 Amps
Recommended Breaker Size
64 Amps
Dimensions
Product Height
29 Inches
Product Width
20 Inches
Product Depth
24 3/4 Inches
Product Weight
75 Pounds
Shipping Weight
75 Pounds
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
