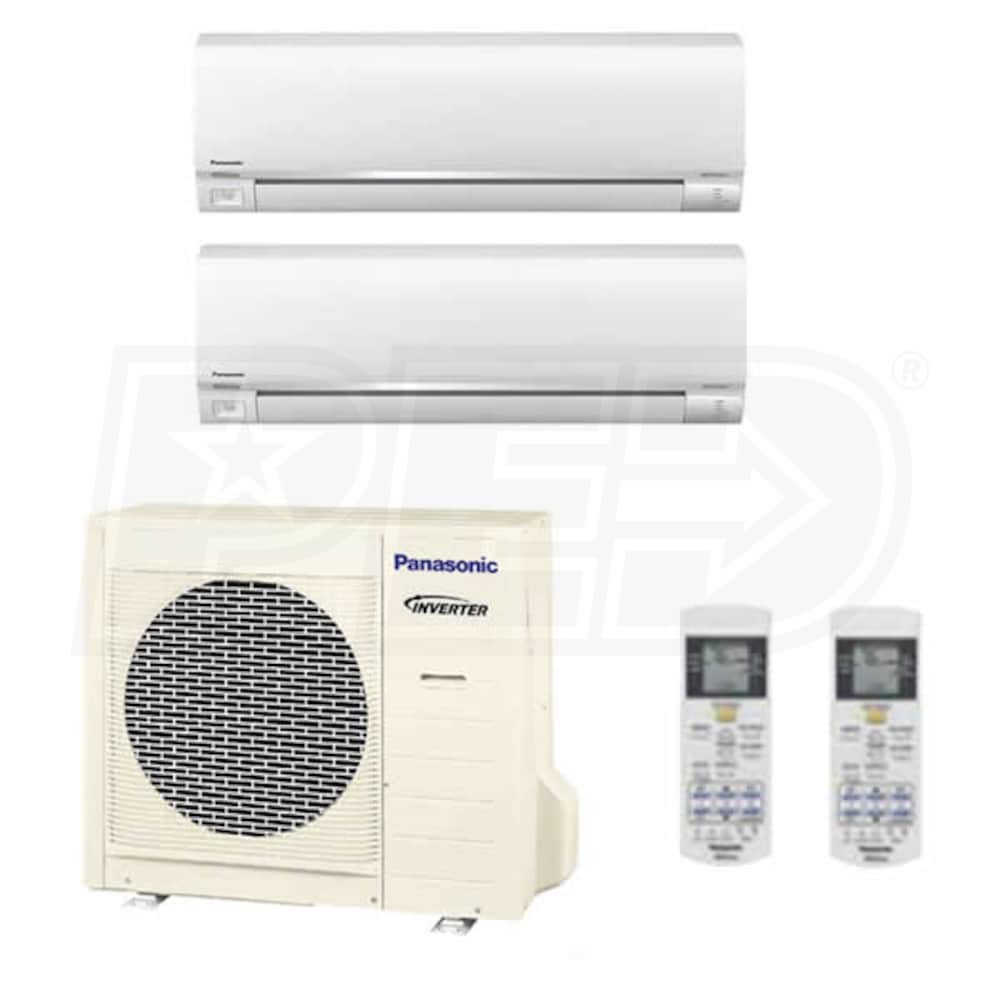

Panasonic Wall Mounted 2-Zone System - 18,000 BTU Outdoor - 9k + 9k Indoor - 18.0 SEER
Model:
P2H18W09090000
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
4
These accessories are required to properly setup/install this product.
Model: MSPLTKIT-143815
Length (ft)
$303.61
Model: UC1636-3
$44.00
In-Stock
Model: MSPLTKIT2-143850
Length (ft)
$486.61
$105.62
In-Stock
Optional Accessories
5
Model: MLS143812-25
Length (ft)
$200.00
In-Stock
Model: MSCABLE144-25
$45.00
Model: WS-1
$93.97
In-Stock
Features
- Cold Resistant
- The CU-2E18SBU-5 compressor can handle outdoor temperatures as low as -5 degrees Fahrenheit with consistent high performance. Panasonic uses the best cold-resistant components to prevent weather related issues.
- Inverter Technology
- Panasonic's inverter controls the power and makes operation extremely efficient by changing the power supply frequency. It is constantly adjusting the compressor rotation speed to provide the best performance at all times.
- Blue Fin Condenser
- Condensers are constantly exposed to wind, dust and salty air that take their toll on your unit. Panasonic coats their condensers with an anti-rust coating to extend its lifespan.
- ECONAVI
- ECONAVI Intelligent Sensors detect unconscious waste of energy using the Human Activity Sensor and Sunlight Sensor. It is able to monitor human location, movements, absence and sunlight intensity.
- Air Sweep Control
- This function controls the louvers up and down to direct the air in a sweeping motion, providing comfort in all parts of the room.
- Night Setback
- This function slows down the operating speed at night to provide an even quieter unit.
- Installation Flexibility
- Match virtually any building design with the long piping length this outdoor condenser has to offer. The CU-2E18SBU-5 can support 82 feet of line set per indoor unit and a total of 164 feet of line set per system.
- Power Failure Automatic Restart
- This unit will restart automatically after a power outage to avoid any potentional damage.
- Recommended line set sizes for indoor unit connectivity:
- CS-E9RKUAW: 1/4" x 3/8" Line Set (Qty 2)
- (1) Panasonic - 18k BTU - Outdoor Condenser - For 2 Zones (CU-2E18SBU-5)
- (2) Panasonic 9k BTU Wall Mounted Unit - For Multi or Single-Zone (CS-E9RKUAW)
- Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor unit.
- Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor unit to drain locations of your choosing.
- Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
- Connecting Wire - This durable, insulated wire provides power to your indoor unit from your outdoor condenser.
- Base Pan Heater - The base pan heater prevents ice from building up on the outdoor unit. Excessive ice build will lead to performance issues and could damage your unit.
- Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
Panasonic has over 53 years of air conditioning experience and the RAC Multi E Series mini splits are a prime example. This is a dual zone mini split system designed to give you individual control over the temperature of multiple rooms. The P2H18W09090000 has inverter technology to adjust the compressor rotation speed to maximize efficiency. Paired up with multiple indoor units that have multiple operating modes, multiple fan speeds, and multiple airflow directions, this is a system that fits the needs of nearly any home.
Product Includes
Product Note
This product requires the following accessories for installation:
California residents see
Warning: This product can expose you to chemicals including Formaldehyde (gas) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
Product Includes
- (1) Panasonic - 18k BTU - Outdoor Condenser - For 2 Zones (CU-2E18SBU-5)
- (2) Panasonic 9k BTU Wall Mounted Unit - For Multi or Single-Zone (CS-E9RKUAW)
P2H18W09090000
General Information
Type
Wall Mounted
Product Line
RAC Multi E
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Number of Zones
Number of Zones
A zone is a room or area within a building that has its own temperature control.
2
Refrigerant Type
R-410A
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
9 + 9
DOE Regional Compliance
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Performance
SEER
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
18.0
EER
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
11.5
HSPF
HSPF
HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system. Learn More
8.8
Cooling Power Input
1450 Watts
Heating Power Input
1850 Watts
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-5 F
Minimum Outdoor Temperature for Cooling
14 F
Dimensions
Product Weight
172 Pounds
Shipping Weight
184 Pounds
Certifications
CSA Listed
Yes
AHRI Certified
Yes
CU-2E18SBU-5
General Information
Type
Outdoor Condenser
Product Line
RAC Multi E
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Maximum Number of Zones
2
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Installation Location
Outdoor
Performance
Cooling BTU
18000
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
49 dB
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-5 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Phase
1
Frequency
60 Hz
Recommended Breaker Size
25 Amps
Dimensions
Maximum Line Length
164 Feet
Line Set A Liquid Connection
1/4 Inch
Line Set A Gas Connection
3/8 Inch
Line Set B Liquid Connection
1/4 Inch
Line Set B Gas Connection
3/8 Inch
Product Height
31 5/16 Inches
Product Width
34 23/48 Inches
Product Depth
12 5/8 Inches
Product Weight
152 Pounds
Shipping Weight
162 Pounds
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
CS-E9RKUAW
General Information
Type
Wall Mounted
Product Line
RAC Multi E
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
9
Installation Location
Indoor
Performance
Cooling BTU
9000
Cooling Capacity
9000 BTU
Moisture Removal
1.3 Pints/Hour
Maximum Air Flow
455 CFM
Minimum Air Flow
425 CFM
Minimum Sound Level
20 dB
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
42 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
11 7/16 Inches
Product Width
34 13/48 Inches
Product Depth
8 7/16 Inches
Product Weight
20 Pounds
Shipping Height
14 3/16 Inches
Shipping Width
37 13/16 Inches
Shipping Depth
9 43/48 Inches
Shipping Weight
22 Pounds
Certifications
Energy Star Listed
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Reviews
(1)
Panasonic Heating and Cooling P2H18W09090000 Reviews & Ratings
Works well but price has gone up
By David B.
Clarksville, Maryland
Review Posted 01/04/2016
I have had this Panasonic Dual Zone CU-2E18/CS-E12x2 for over 2 years now. I am pleased overall but would offer a few tips:
- My application is primarily for heating, and I am in a location where temps can dip below zero. The unit does a surprising job of heating down to 5 degrees F, but after that will drop off significantly, and eventually shut itself off around zero. As a result, you really want to have a backup source of heat in that climate. (I used cheap electric strip heaters)
- The lowest inside setting is 60 degrees. While this is generally OK, is good to know if you go away often or if this is for a vacation home, etc
- Location of the outdoor unit matters: Try to keep away from weather and dampness, and mount it so it has plenty of room to drain underneath. In cold weather it will freeze up around the base.
- These issues are no different than most other mini splits. Dual zone units generally have lower efficiency than single zone systems, so that is a trade off vs getting 2 single zone systems, and are limited to 5 degrees. The exception is a new multisplit unit from Mitsubishi, but cost is much higher.
- The Panasonic unit was a good value for the money, and has better warranty than the off brand units flooding the market. However, the price has gone up by several hundred dollars since I bought the same unit, while technology has moved on and improved. In my mind, the price should have gone down, not up. If I had to do it again today, I would purchase 2 9K single zone units which would provide higher performance and flexibility in terms of mounting locations, not to mention redundancy if the compressor were to fail.
- My application is primarily for heating, and I am in a location where temps can dip below zero. The unit does a surprising job of heating down to 5 degrees F, but after that will drop off significantly, and eventually shut itself off around zero. As a result, you really want to have a backup source of heat in that climate. (I used cheap electric strip heaters)
- The lowest inside setting is 60 degrees. While this is generally OK, is good to know if you go away often or if this is for a vacation home, etc
- Location of the outdoor unit matters: Try to keep away from weather and dampness, and mount it so it has plenty of room to drain underneath. In cold weather it will freeze up around the base.
- These issues are no different than most other mini splits. Dual zone units generally have lower efficiency than single zone systems, so that is a trade off vs getting 2 single zone systems, and are limited to 5 degrees. The exception is a new multisplit unit from Mitsubishi, but cost is much higher.
- The Panasonic unit was a good value for the money, and has better warranty than the off brand units flooding the market. However, the price has gone up by several hundred dollars since I bought the same unit, while technology has moved on and improved. In my mind, the price should have gone down, not up. If I had to do it again today, I would purchase 2 9K single zone units which would provide higher performance and flexibility in terms of mounting locations, not to mention redundancy if the compressor were to fail.
David B. Recommends This
Was this review helpful?
Rating Breakdown
4/5
5/5
3/5
4/5
