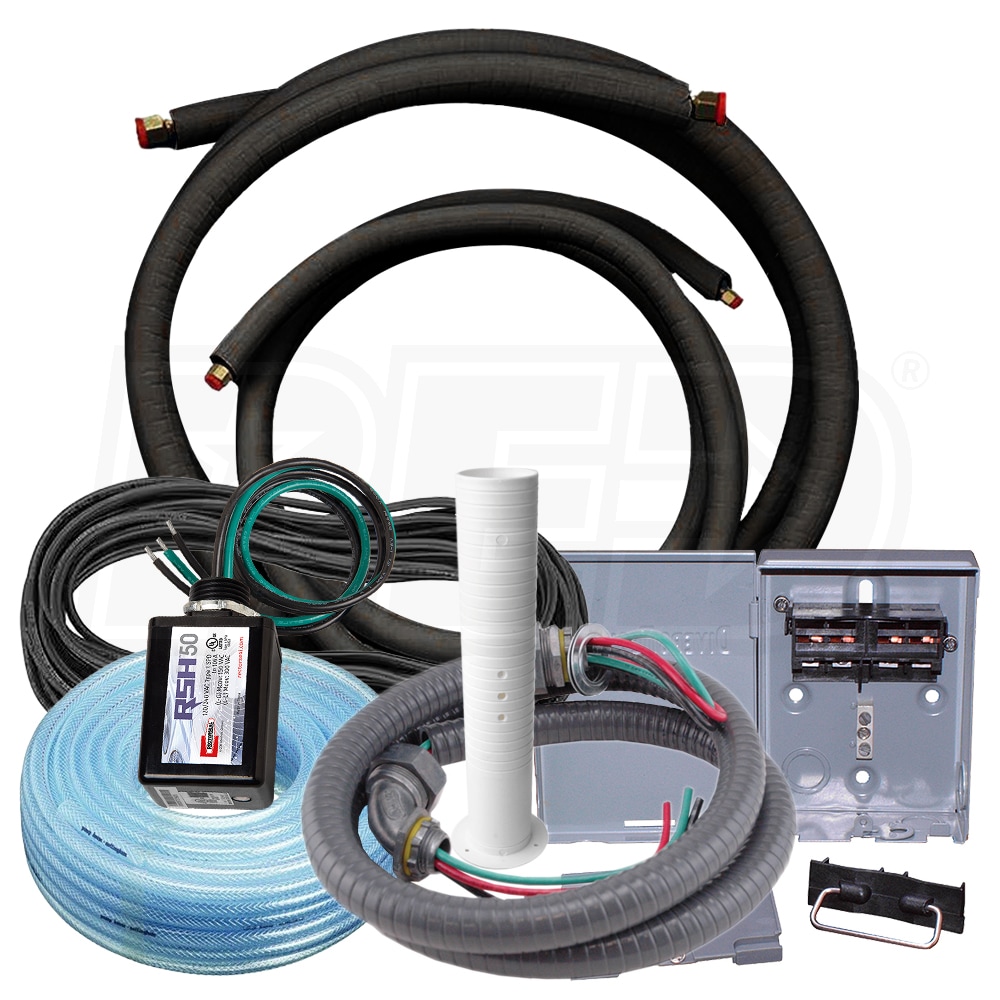

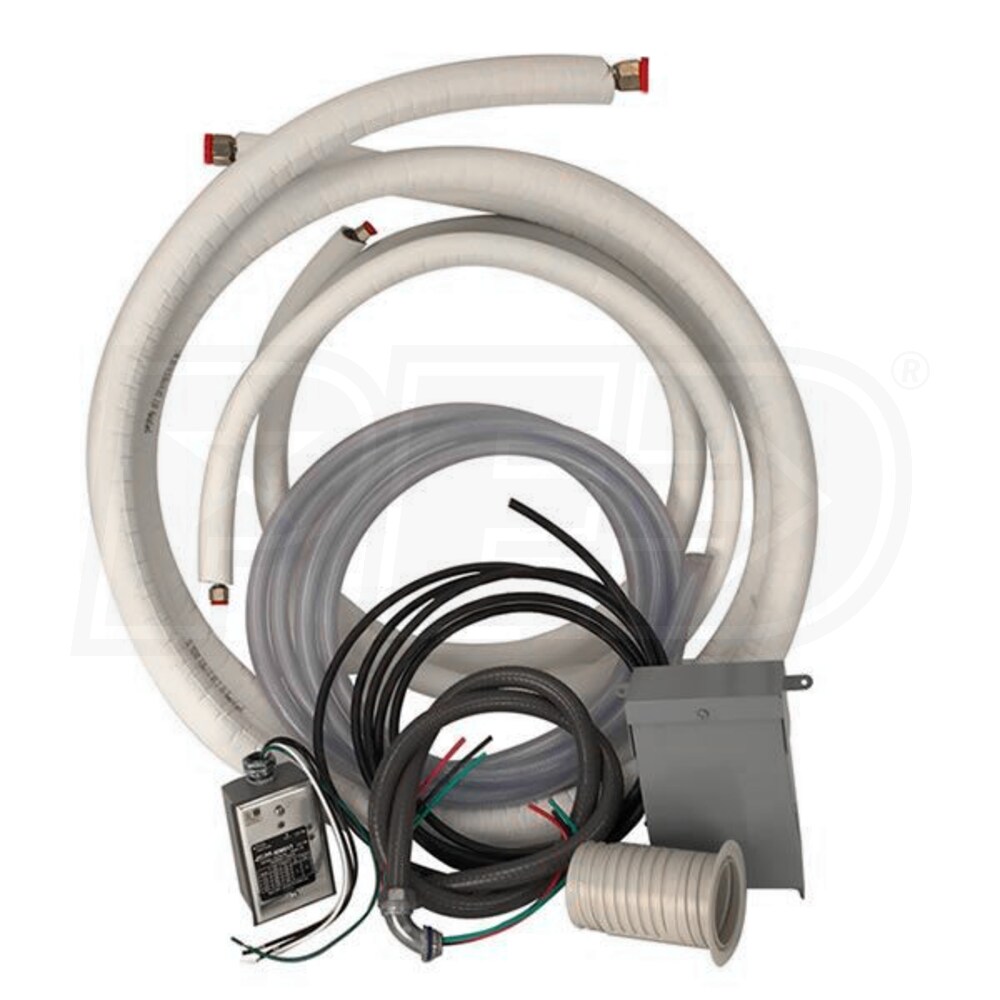

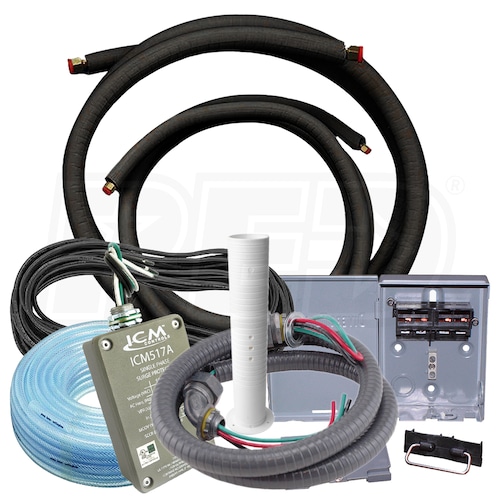

Mini Split Installation Starter Kit - 15' Long - 1/4" x 3/8" Line Set

Mini Split Installation Starter Kit - 15' Long - 1/4" x 3/8" Line Set
Model: MSPLTKIT-143815
$247.00
In-Stock
Ships Monday, Aug 20th
Free Shipping
Size (Liquid x Suction)
Length (ft)

In-Stock
Ships Monday, Aug 20th
Free Shipping
Free Shipping
Expedited Shipping
Expedited Shipping
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • 3
    Reviews
  • 2
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
    Each mini split system requires certain accessories for installation. The Mini Split Installation Starter Kit has everything necessary to install your new single-zone mini split system. Our convenient starter package brings together essential components--from a selection of top brands--to ensure that your mini split installation is a quick, smooth, and safe process.
    Product Includes
    • (1) JMF - 1/4" x 3/8" Mini Split Line Set - 1/2" EZ Pull Insulation - 15' Length - Factory Flared (MLS143812-15)
    • (1) ICM Controls HVAC Surge Protector - 120-240 V (ICM517)
    • (1) Mini Split Connecting Cable - 14 GA - 4 Conductors - Stranded - 15' Length (MSCABLE144-15)

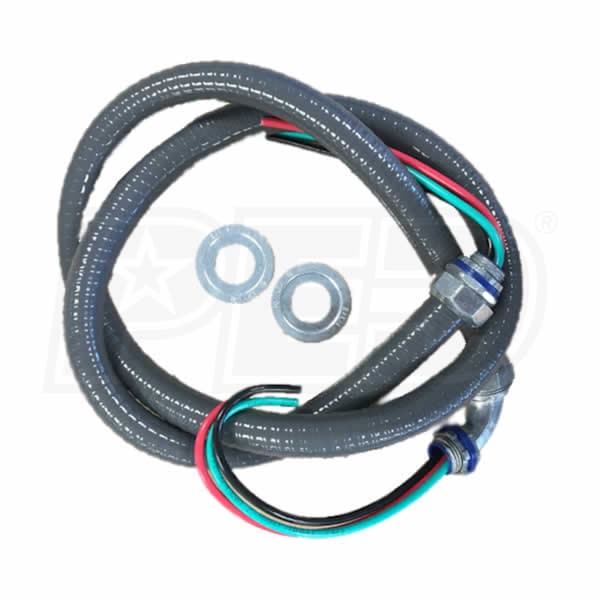

    • (1) Bramec 1/2" x 4', 10 Gauge THHN with 1-Straight Connector and 1-90 Connector (18831)
    • (1) Bramec 60A Non-Fused Metal Disconnect (20650)

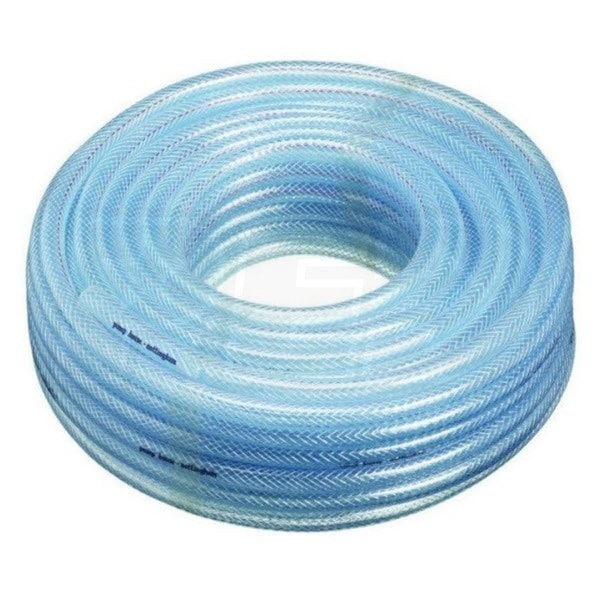

    • (1) Mini Split 5/8" ID PVC Braided Drain Tubing - 15' Length (DRAINTUBING-15)
    • (1) Rectorseal NFP - Telescopic Wall Sleeve - 2-1/2" ID - 2-7/8" OD (NFP-75)
Specifications
General Information
Type
Installation Kit
Dimensions
Product Weight
16.9 Pounds
MLS143812-15 Specifications
General Information
Type
Mini Split Line Set
Product Line
EZ-Pull
Connection Type
Flare
Dimensions
Insulation Depth
0.5 Inches
Liquid Connection Size
0.25 Inches
Suction Connection Size
0.375 Inches
Product Length
15 Feet
Shipping Height
33 Inches
Shipping Width
3.5 Inches
Shipping Depth
34 Inches
Shipping Weight
7 Pounds
ICM517 Specifications
General Information
Type
Surge Protector
Surge Protection Device Type
2
Electrical Data
Voltage
120-240 Volts
Phase
1
Frequency
50/60 Hz
Nominal Discharge Current
10000 Amps
Short Circuit Current Rating
20000 Amps
Dimensions
Product Height
4.5 Inches
Product Width
4.25 Inches
Product Depth
2 Inches
Product Weight
0.6 Pounds
Certifications
UL Listed
Yes
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years
MSCABLE144-15 Specifications
General Information
Length Increments
15
Color
Black
Electrical Data
Voltage
600 Volts
Certifications
Country of Origin
United States
UL Listed
Yes
DRAINTUBING-15 Specifications
General Information
Type
Drain Tubing
Dimensions
Product Length
15 Feet
Product Weight
0.15 Pounds
NFP-75 Specifications
General Information
Type
Lineset Cover
Dimensions
Product Depth
7.5 Inches
Inner Diameter
2.5 Inches
Outer Diameter
2.875 Inches
Features
Features
    Each mini split system requires certain accessories for installation. The Mini Split Installation Starter Kit has everything necessary to install your new single-zone mini split system. Our convenient starter package brings together essential components--from a selection of top brands--to ensure that your mini split installation is a quick, smooth, and safe process.
    Product Includes
    • (1) JMF - 1/4" x 3/8" Mini Split Line Set - 1/2" EZ Pull Insulation - 15' Length - Factory Flared (MLS143812-15)
    • (1) ICM Controls HVAC Surge Protector - 120-240 V (ICM517)
    • (1) Mini Split Connecting Cable - 14 GA - 4 Conductors - Stranded - 15' Length (MSCABLE144-15)
    • (1) Bramec 1/2" x 4', 10 Gauge THHN with 1-Straight Connector and 1-90 Connector (18831)
    • (1) Bramec 60A Non-Fused Metal Disconnect (20650)
    • (1) Mini Split 5/8" ID PVC Braided Drain Tubing - 15' Length (DRAINTUBING-15)
    • (1) Rectorseal NFP - Telescopic Wall Sleeve - 2-1/2" ID - 2-7/8" OD (NFP-75)
Specifications
General Information
Type
Installation Kit
Dimensions
Product Weight
16.9 Pounds
MLS143812-15 Specifications
General Information
Type
Mini Split Line Set
Product Line
EZ-Pull
Connection Type
Flare
Dimensions
Insulation Depth
0.5 Inches
Liquid Connection Size
0.25 Inches
Suction Connection Size
0.375 Inches
Product Length
15 Feet
Shipping Height
33 Inches
Shipping Width
3.5 Inches
Shipping Depth
34 Inches
Shipping Weight
7 Pounds
ICM517 Specifications
General Information
Type
Surge Protector
Surge Protection Device Type
2
Electrical Data
Voltage
120-240 Volts
Phase
1
Frequency
50/60 Hz
Nominal Discharge Current
10000 Amps
Short Circuit Current Rating
20000 Amps
Dimensions
Product Height
4.5 Inches
Product Width
4.25 Inches
Product Depth
2 Inches
Product Weight
0.6 Pounds
Certifications
UL Listed
Yes
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years
MSCABLE144-15 Specifications
General Information
Length Increments
15
Color
Black
Electrical Data
Voltage
600 Volts
Certifications
Country of Origin
United States
UL Listed
Yes
DRAINTUBING-15 Specifications
General Information
Type
Drain Tubing
Dimensions
Product Length
15 Feet
Product Weight
0.15 Pounds
NFP-75 Specifications
General Information
Type
Lineset Cover
Dimensions
Product Depth
7.5 Inches
Inner Diameter
2.5 Inches
Outer Diameter
2.875 Inches
Product Specs
+
Specifications
General Information
Type
Installation Kit
Dimensions
Product Weight
16.9 Pounds
MLS143812-15 Specifications
General Information
Type
Mini Split Line Set
Product Line
EZ-Pull
Connection Type
Flare
Dimensions
Insulation Depth
0.5 Inches
Liquid Connection Size
0.25 Inches
Suction Connection Size
0.375 Inches
Product Length
15 Feet
Shipping Height
33 Inches
Shipping Width
3.5 Inches
Shipping Depth
34 Inches
Shipping Weight
7 Pounds
ICM517 Specifications
General Information
Type
Surge Protector
Surge Protection Device Type
2
Electrical Data
Voltage
120-240 Volts
Phase
1
Frequency
50/60 Hz
Nominal Discharge Current
10000 Amps
Short Circuit Current Rating
20000 Amps
Dimensions
Product Height
4.5 Inches
Product Width
4.25 Inches
Product Depth
2 Inches
Product Weight
0.6 Pounds
Certifications
UL Listed
Yes
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years
MSCABLE144-15 Specifications
General Information
Length Increments
15
Color
Black
Electrical Data
Voltage
600 Volts
Certifications
Country of Origin
United States
UL Listed
Yes
DRAINTUBING-15 Specifications
General Information
Type
Drain Tubing
Dimensions
Product Length
15 Feet
Product Weight
0.15 Pounds
NFP-75 Specifications
General Information
Type
Lineset Cover
Dimensions
Product Depth
7.5 Inches
Inner Diameter
2.5 Inches
Outer Diameter
2.875 Inches
Reviews
(3)
+
Mini Split Accessories MSPLTKIT-143815 Reviews & Ratings
Product Q&A
(2)
+
Search Product Q&A's Answered by Chris, the eComfort Product Expert
icon-social-fb1
+
Can the line set be bent 90 degrees to go around an outside corner of a building?
Steve
from Florida
June 22, 2016
Answer
Yes, the line set can be safely bent with a tubing bender tool. Make sure you maintain the minimum bend radius specified by the equipment manufacturer and avoid kinking the tubing.
+
Does the disconnect box include an electrical shut-off switch?
Greg
from Arkansas
June 22, 2016
Answer
Yes, the disconnect box does include an electrical shut-off to cut power from the fuse to the entire system.
