Mitsubishi PKY-A36NHA
Mitsubishi PKY-A36NHA

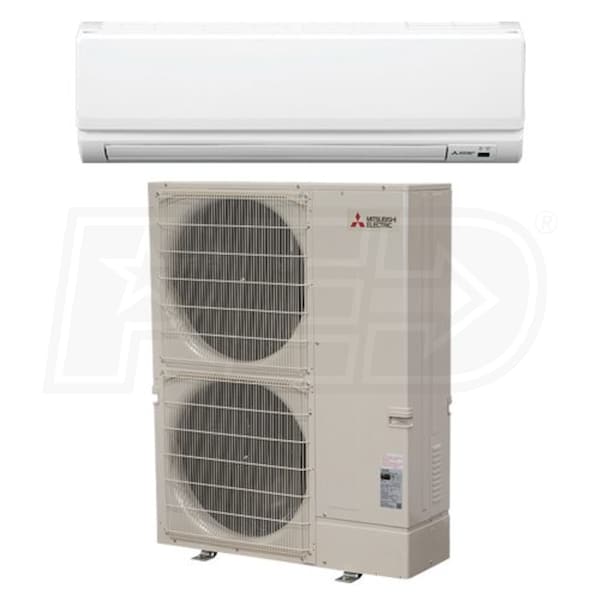

Mitsubishi - 36k BTU Cooling Only - P-Series Wall Mounted Air Conditioning System - 18.8 SEER

Model:

PKY-A36NHA

Write A Review
$4,594.20
Was $4,836.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 4-6 Weeks
synchrony card logo
$58 / Month
With our 132 months 9.99% APR*
132 fixed monthly payments required.
Mitsubishi - 36k BTU Cooling Only - P-Series Wall Mounted Air Conditioning System - 18.8 SEER
Mitsubishi - 36k BTU Cooling Only - P-Series Wall Mounted Air Conditioning System - 18.8 SEER
Model: PKY-A36NHA
$4,594.20
Was $4,836.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    For over 50 years, Mitsubishi has remained at the forefront of the mini split industry thanks to their dedication to providing efficient, user-friendly comfort solutions. The PKY-A36NHA is a single zone air conditioner mini split system designed to bring effective cooling to any room in a large home or business. A wall mounted indoor unit, PKA-A36KA7, is paired with an outdoor condenser that uses some of the most advanced technology available to modulate temperature without the energy-wasting overshoots and short-cycling associated with simpler systems. With the included mounting plate, it is easy to install the indoor unit on nearly any wall. As part of Mitsubishi's commercial P-Series, the condenser is constructed with industrial-grade materials to ensure consistent performance in the harshest conditions, making this system ideal for critical load applications that require constant conditioning.
  • Precision Temperature Control Technology
  • The PUY-A36NHA outdoor condenser includes inverter technology and an electronic linear expansion valve. By adjusting compressor speed and refrigerant flow, output can be matched to the zone for precise temperature control and improved efficiency.
  • Dehumidification
  • When the indoor unit runs in dry mode, the coil's temperature stays just below the dew point of the return air, removing unwanted moisture. This improves comfort and reduces the chance of mold growth and other property damage in the conditioned space.
  • Vane Control
  • Optimal air flow can be achieved with the PKA-A36HA thanks to the vane control option. This function provides access to four different horizontal vane positions and a swing mode. Swing mode cycles through all positions for maximum coverage.
  • This system can maintain operation down to -20° outdoor temperature with the optional wind baffle.
  • Product Includes
    • (1) Mitsubishi - 36k BTU - P-Series Cooling Only Outdoor Condenser - Single Zone Only (PUY-A36NKA7)
    • (1) Mitsubishi - 36k BTU - P-Series Wall Mounted Unit - Single Zone Only (PKA-A36KA7)
    Product Note
    This product requires the following accessories for installation:
    • Thermostat - Mitsubishi P-Series mini splits do not include a thermostat for system control. Recommended thermostats can be found under the "Accessories" tab.
    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor unit.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor unit to drain locations of your choosing.
    • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
    • Connecting Wire - This durable, insulated wire provides power to your indoor unit from your outdoor condenser.
    • Base Pan Heater - The base pan heater prevents ice from building up on the outdoor unit. Excessive ice build will lead to performance issues and could damage your unit.
    • Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
    Adding these accessories to your order will provide a complete, ready-to-install mini split system. All Mini Split Systems require one Primary Mini Split Installation Kit. You may also require one or more Secondary Installation Kits if you have a Multi-Zone system. You will need a Secondary Installation Kit for each additional indoor unit.

Specifications

Product Includes
  • (1) Mitsubishi - 36k BTU - P-Series Cooling Only Outdoor Condenser - Single Zone Only (PUY-A36NKA7)
  • (1) Mitsubishi - 36k BTU - P-Series Wall Mounted Unit - Single Zone Only (PKA-A36KA7)
PKY-A36NHA
specs product image PID-88221
Overview
Product Category
Mini Split Cooling Only System
Additional Model Numbers

PUY-A36NKA7 PKA-A36KA7, PKY-A36NHA

General Information
Type
Wall Mounted
Product Line
P-Series
Product Category
Mini Split Cooling Only System
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling Only
Number of Zones Learn More
Number of Zones
A zone is a room or area within a building that has its own temperature control.
1
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
36
Outdoor Unit Size
36000 BTU
DOE Regional Compliance Learn More
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Line Set Size
3/8" x 5/8"
Performance
Cooling BTU
36000
Cooling Capacity
36000 BTU
SEER Learn More
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
18.8
EER Learn More
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
10.8
Cooling Power Input
3330 Watts
Minimum Outdoor Temperature for Cooling
23 F
Dimensions
Product Weight
261 Pounds
Shipping Weight
288 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
201754533
PUY-A36NKA7
General Information
Type
Outdoor Condenser
Product Line
P-Series
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling Only
Refrigerant Type
R-410A
Installation Location
Outdoor
Compressor Stages Learn More
Compressor Stages
Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Variable-Speed
Performance
Cooling BTU
36000
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
31 dB
Electrical Data
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
25 Amps
Recommended Breaker Size
30 Amps
Dimensions
Gas Connection Size
5/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
52 3/4 Inches
Product Width
41 5/24 Inches
Product Depth
14 Inches
Product Weight
267 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
PKA-A36KA7
General Information
Product Line
P-Series
Refrigerant Type
R-410A
Motor Type
Twin Rotary
Performance
Maximum Air Flow
425 CFM
Minimum Air Flow
320 CFM
Electrical Data
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
11 Amps
Recommended Breaker Size
15 Amps
Dimensions
Gas Connection Size
3/4 Inch
Liquid Connection Size
1/4 Inch
Product Height
14 3/8 Inches
Product Width
46 2/12 Inches
Product Depth
11 5/8 Inches
Shipping Weight
33 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
