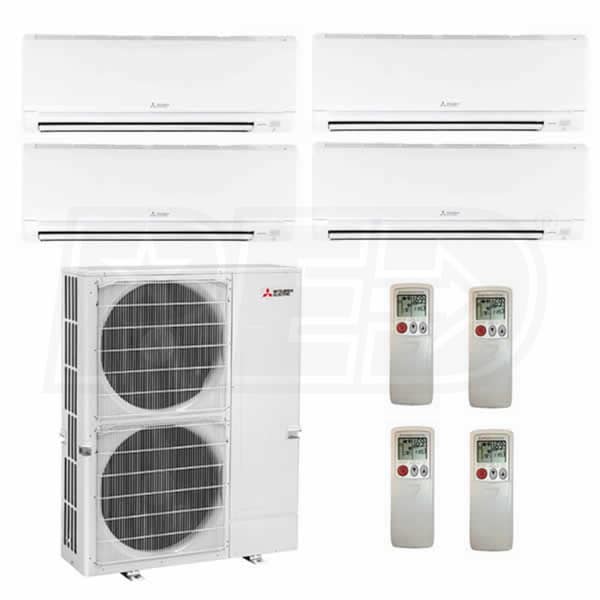

Mitsubishi Wall Mounted 4-Zone System - 60,000 BTU Outdoor - 6k + 9k + 18k + 18k Indoor - 17.4 SEER

Mitsubishi Wall Mounted 4-Zone System - 60,000 BTU Outdoor - 6k + 9k + 18k + 18k Indoor - 17.4 SEER
Our Price
Compare Prices
Shipping Info
Model: M4H60W06091818
(Based on expert analysis, manufacturer ratings and customer reviews)
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Number of Reviews (3)
Write A Review
$7,256.09

Only 5 In-Stock
Ships Friday, Nov 22nd
Shipping Crate Icon
Free Shipping
Free Lift Gate Service -
Indoor Units Sizes Learn More Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. For example (9k + 12k) means the system includes a 9k BTU unit and a 12k BTU unit.
Hyper-Heating Learn More Certain mini split systems have the ability to produce heat at lower outdoor temperatures than standard systems. Mini split systems with hyper-heating technology are also able to heat with 100% capacity at lower outdoor temperatures compared to standard systems.
Outdoor Unit BTU/h
Add-Ons
Only 5 In-Stock
Ships Friday, Nov 22nd
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • 3
    Reviews
  • 1
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
    For over 50 years, Mitsubishi has remained at the forefront of the mini split industry thanks to their dedication to providing efficient, user-friendly comfort solutions. This is a four zone mini split system designed to give you individual control over the temperature in multiple rooms. An efficient MXZ-8C60NA-U1 outdoor condenser, built with advanced technology, is combined with quiet, wall-mounted MSZ-GL indoor units and four wireless remote controllers for the perfect marriage of convenience and comfort. With multiple operating modes, multiple fan speeds, and multiple airflow directions, this is a system that fits the needs of nearly any home.
  • Precision Temperature Control Technology
  • The MXZ-8C60NA outdoor condenser is equipped with inverter technology and an electronic linear expansion valve. These components improve temperature accuracy and system efficiency through precise adjustments of both compressor speed and refrigerant flow.
  • Advanced Filtration System
  • MSZ-GL model indoor units combine a hybrid catechin deodorizing filter with an enzyme-based filter for managing allergens. The anti-allergy filter not only captures the offending particles, it also breaks them down, cleaning the air as it is conditioned.
  • Hot-Start
  • In heating mode, Mitsubishi's hot start technology prevents cold drafts by stalling fan operation while the heat exchanger is warming up.
  • Smart Set
  • Mitsubishi's Smart Set function allows you to save a cooling profile and a heating profile, each consisting of a temperature, a fan speed, and an airflow direction. These profiles can be activated easily with a press of the Smart Set button on the remote.
  • Econo Cool Mode
  • By slowly adjusting the cooling set point and swinging the horizontal vanes, the MSZ-GL mini split indoor units can improve the efficiency of cooling operations without compromising the comfort provided.
  • Dehumidification
  • When the indoor unit is run in dry mode, it will remove extra moisture from the room. This improves your comfort and reduces both mold growth and the chance of property damage in the conditioned space.
  • Vane Control
  • Optimal air flow is easy with Mitsubishi's MSZ-GL mini split indoor units thanks to the vane control option. This provides five horizontal vane positions, an auto mode, and a swing mode. Auto selects the best vane position and swing cycles all positions.
  • Recommended line set sizes for indoor unit connectivity:
  • MSZ-GL06NA-U1: 1/4" x 3/8" Line Set
  • MSZ-GL09NA-U1: 1/4" x 3/8" Line Set
  • MSZ-GL18NA-U1: 1/4" x 1/2" Line Set (Qty 2)
  • A 3/8" x 3/4" line set is required to connect the condenser to a single branch box or distribution pipe. For configurations requiring multiple branch boxes, 3/8" x 5/8" line sets are also required to connect the distribution pipe to the branch boxes.
  • Product Includes
    • (1) Mitsubishi - 60k BTU - M-Series Outdoor Condenser - For 2-8 Zones (MXZ-8C60NA-U1)
    • (2) Mitsubishi GL-Series 18k BTU Wall Mounted Unit - For Multi or Single-Zone (MSZ-GL18NA-U1)
    • (1) Mitsubishi GL-Series 9k BTU Wall Mounted Unit - For Multi or Single-Zone (MSZ-GL09NA-U1)
    • (1) Mitsubishi GL-Series 6k BTU Wall Mounted Unit - For Multi-Zone (MSZ-GL06NA-U1)
    • (1) Mitsubishi 3/4" Condenser x 5/8" Line Set - Port Adapter - Flare Connections (ADP5834)
    Product Note
    This product requires at least two compatible Mitsubishi mini split indoor units and the following accessories for installation:
    • Branch Box - A Mitsubishi branch box is required to connect this condenser to Mitsubishi mini split indoor units.
    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
    • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
    • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
    • Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
    Adding these accessories to your order will provide a complete, ready-to-install mini split system.
      Port Adapter - The included Mitsubishi ADP3458 port adapter is required to connect the 5/8 inch line set to the 3/4 inch condenser port when installing a multi-zone mini split system. All Mini Split Systems require one Primary Mini Split Installation Kit. You may also require one or more Secondary Installation Kits if you have a Multi-Zone system. You will need a Secondary Installation Kit for each additional indoor unit.
Specifications
General Information
Type
Wall Mounted
Product Line
M-Series
Product Sub-line
06091818
Operating Mode Learn More Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Number of Zones Learn More A zone is a room or area within a building that has its own temperature control.
4
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
7 + 9 + 18 + 18
DOE Regional Compliance Learn More In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Performance
SEER Learn More SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
17.4
EER Learn More EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
12.5
HSPF Learn More HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system. Learn More
10.5
Cooling Power Input
4800 Watts
Heating Power Input
4870 Watts
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating Learn More This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-4 F
Minimum Outdoor Temperature for Cooling
23 F
Dimensions
Product Weight
409 Pounds
Shipping Weight
413 Pounds
Certifications
Energy Star Listed
Yes
ETL Listed
Yes
AHRI Certified
Yes
MXZ-8C60NA Specifications+
General Information
Type
Outdoor Condenser
Product Line
M-Series
Operating Mode Learn More Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Maximum Number of Zones
8
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Installation Location
Outdoor
Branch Box Required Learn More By making a single connection to the outdoor condenser, a branch box can supply the right amount of refrigerant to multiple indoor units. Learn More
Yes
Performance
Cooling BTU
60000
Maximum Sound Level Learn More Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
59 dB
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating Learn More This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-4 F
Minimum Outdoor Temperature for Cooling
23 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
50 Amps
Dimensions
Maximum Line Length
492 Feet
Gas Connection Size
3/4 Inch
Liquid Connection Size
3/8 Inch
Product Height
52 11/16 Inches
Product Width
41 17/48 Inches
Product Depth
13 Inches
Product Weight
309 Pounds
Shipping Height
56 1/4 Inches
Shipping Width
42 15/16 Inches
Shipping Depth
17 11/16 Inches
Shipping Weight
333 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Parts Warranty Learn More A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
MSZ-GL18NA-U1 Specifications+
General Information
Type
Wall Mounted
Product Line
GL-Series
Operating Mode Learn More Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s) Learn More Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
18
Installation Location
Indoor
Performance
Cooling BTU
18000
Cooling Capacity
18000 BTU
Moisture Removal
4.6 Pints/Hour
Minimum Air Flow
233 CFM
Maximum Air Flow
646 CFM
Maximum Sound Level Learn More Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
49 dB
Minimum Sound Level
28 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
1/2 Inch
Liquid Connection Size
1/4 Inch
Product Height
12 Inches
Product Width
36 5/16 Inches
Product Depth
9 13/16 Inches
Product Weight
28 Pounds
Shipping Weight
35 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Parts Warranty Learn More A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
MSZ-GL09NA-U1 Specifications+
General Information
Type
Wall Mounted
Product Line
GL-Series
Operating Mode Learn More Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s) Learn More Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
9
Installation Location
Indoor
Performance
Cooling BTU
9000
Cooling Capacity
9000 BTU
Moisture Removal
1.5 Pints/Hour
Minimum Air Flow
145 CFM
Maximum Air Flow
399 CFM
Maximum Sound Level Learn More Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
43 dB
Minimum Sound Level
19 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
11 5/8 Inches
Product Width
31 7/16 Inches
Product Depth
9 1/8 Inches
Product Weight
22 Pounds
Shipping Weight
27 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Parts Warranty Learn More A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
MSZ-GL06NA-U1 Specifications+
General Information
Type
Wall Mounted
Product Line
GL-Series
Operating Mode Learn More Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s) Learn More Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
6
Installation Location
Indoor
Performance
Cooling BTU
6000
Cooling Capacity
6000 BTU
Minimum Air Flow
145 CFM
Maximum Air Flow
399 CFM
Maximum Sound Level Learn More Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
43 dB
Minimum Sound Level
19 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
11 5/8 Inches
Product Width
31 7/16 Inches
Product Depth
9 1/8 Inches
Product Weight
22 Pounds
Shipping Weight
27 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Parts Warranty Learn More A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
ADP5834 Specifications+
General Information
Type
Port Adapter
Connection Type
Flared
Dimensions
End 1 Connection Size
3/4 Inch
End 2 Connection Size
5/8 Inch
Product Weight
1 Pound
Shipping Weight
5 Pounds
Warranty Information
Parts Warranty
90 Days
Features
Features
    For over 50 years, Mitsubishi has remained at the forefront of the mini split industry thanks to their dedication to providing efficient, user-friendly comfort solutions. This is a four zone mini split system designed to give you individual control over the temperature in multiple rooms. An efficient MXZ-8C60NA-U1 outdoor condenser, built with advanced technology, is combined with quiet, wall-mounted MSZ-GL indoor units and four wireless remote controllers for the perfect marriage of convenience and comfort. With multiple operating modes, multiple fan speeds, and multiple airflow directions, this is a system that fits the needs of nearly any home.
  • Precision Temperature Control Technology
  • The MXZ-8C60NA outdoor condenser is equipped with inverter technology and an electronic linear expansion valve. These components improve temperature accuracy and system efficiency through precise adjustments of both compressor speed and refrigerant flow.
  • Advanced Filtration System
  • MSZ-GL model indoor units combine a hybrid catechin deodorizing filter with an enzyme-based filter for managing allergens. The anti-allergy filter not only captures the offending particles, it also breaks them down, cleaning the air as it is conditioned.
  • Hot-Start
  • In heating mode, Mitsubishi's hot start technology prevents cold drafts by stalling fan operation while the heat exchanger is warming up.
  • Smart Set
  • Mitsubishi's Smart Set function allows you to save a cooling profile and a heating profile, each consisting of a temperature, a fan speed, and an airflow direction. These profiles can be activated easily with a press of the Smart Set button on the remote.
  • Econo Cool Mode
  • By slowly adjusting the cooling set point and swinging the horizontal vanes, the MSZ-GL mini split indoor units can improve the efficiency of cooling operations without compromising the comfort provided.
  • Dehumidification
  • When the indoor unit is run in dry mode, it will remove extra moisture from the room. This improves your comfort and reduces both mold growth and the chance of property damage in the conditioned space.
  • Vane Control
  • Optimal air flow is easy with Mitsubishi's MSZ-GL mini split indoor units thanks to the vane control option. This provides five horizontal vane positions, an auto mode, and a swing mode. Auto selects the best vane position and swing cycles all positions.
  • Recommended line set sizes for indoor unit connectivity:
  • MSZ-GL06NA-U1: 1/4" x 3/8" Line Set
  • MSZ-GL09NA-U1: 1/4" x 3/8" Line Set
  • MSZ-GL18NA-U1: 1/4" x 1/2" Line Set (Qty 2)
  • A 3/8" x 3/4" line set is required to connect the condenser to a single branch box or distribution pipe. For configurations requiring multiple branch boxes, 3/8" x 5/8" line sets are also required to connect the distribution pipe to the branch boxes.
  • Product Includes
    • (1) Mitsubishi - 60k BTU - M-Series Outdoor Condenser - For 2-8 Zones (MXZ-8C60NA-U1)
    • (2) Mitsubishi GL-Series 18k BTU Wall Mounted Unit - For Multi or Single-Zone (MSZ-GL18NA-U1)
    • (1) Mitsubishi GL-Series 9k BTU Wall Mounted Unit - For Multi or Single-Zone (MSZ-GL09NA-U1)
    • (1) Mitsubishi GL-Series 6k BTU Wall Mounted Unit - For Multi-Zone (MSZ-GL06NA-U1)
    • (1) Mitsubishi 3/4" Condenser x 5/8" Line Set - Port Adapter - Flare Connections (ADP5834)
    Product Note
    This product requires at least two compatible Mitsubishi mini split indoor units and the following accessories for installation:
    • Branch Box - A Mitsubishi branch box is required to connect this condenser to Mitsubishi mini split indoor units.
    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
    • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
    • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
    • Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
    Adding these accessories to your order will provide a complete, ready-to-install mini split system.
      Port Adapter - The included Mitsubishi ADP3458 port adapter is required to connect the 5/8 inch line set to the 3/4 inch condenser port when installing a multi-zone mini split system. All Mini Split Systems require one Primary Mini Split Installation Kit. You may also require one or more Secondary Installation Kits if you have a Multi-Zone system. You will need a Secondary Installation Kit for each additional indoor unit.
Specifications
General Information
Type
Wall Mounted
Product Line
M-Series
Product Sub-line
06091818
Operating Mode Learn More Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Number of Zones Learn More A zone is a room or area within a building that has its own temperature control.
4
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
7 + 9 + 18 + 18
DOE Regional Compliance Learn More In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Performance
SEER Learn More SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
17.4
EER Learn More EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
12.5
HSPF Learn More HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system. Learn More
10.5
Cooling Power Input
4800 Watts
Heating Power Input
4870 Watts
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating Learn More This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-4 F
Minimum Outdoor Temperature for Cooling
23 F
Dimensions
Product Weight
409 Pounds
Shipping Weight
413 Pounds
Certifications
Energy Star Listed
Yes
ETL Listed
Yes
AHRI Certified
Yes
MXZ-8C60NA Specifications+
General Information
Type
Outdoor Condenser
Product Line
M-Series
Operating Mode Learn More Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Maximum Number of Zones
8
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Installation Location
Outdoor
Branch Box Required Learn More By making a single connection to the outdoor condenser, a branch box can supply the right amount of refrigerant to multiple indoor units. Learn More
Yes
Performance
Cooling BTU
60000
Maximum Sound Level Learn More Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
59 dB
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating Learn More This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-4 F
Minimum Outdoor Temperature for Cooling
23 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
50 Amps
Dimensions
Maximum Line Length
492 Feet
Gas Connection Size
3/4 Inch
Liquid Connection Size
3/8 Inch
Product Height
52 11/16 Inches
Product Width
41 17/48 Inches
Product Depth
13 Inches
Product Weight
309 Pounds
Shipping Height
56 1/4 Inches
Shipping Width
42 15/16 Inches
Shipping Depth
17 11/16 Inches
Shipping Weight
333 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Parts Warranty Learn More A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
MSZ-GL18NA-U1 Specifications+
General Information
Type
Wall Mounted
Product Line
GL-Series
Operating Mode Learn More Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s) Learn More Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
18
Installation Location
Indoor
Performance
Cooling BTU
18000
Cooling Capacity
18000 BTU
Moisture Removal
4.6 Pints/Hour
Minimum Air Flow
233 CFM
Maximum Air Flow
646 CFM
Maximum Sound Level Learn More Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
49 dB
Minimum Sound Level
28 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
1/2 Inch
Liquid Connection Size
1/4 Inch
Product Height
12 Inches
Product Width
36 5/16 Inches
Product Depth
9 13/16 Inches
Product Weight
28 Pounds
Shipping Weight
35 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Parts Warranty Learn More A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
MSZ-GL09NA-U1 Specifications+
General Information
Type
Wall Mounted
Product Line
GL-Series
Operating Mode Learn More Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s) Learn More Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
9
Installation Location
Indoor
Performance
Cooling BTU
9000
Cooling Capacity
9000 BTU
Moisture Removal
1.5 Pints/Hour
Minimum Air Flow
145 CFM
Maximum Air Flow
399 CFM
Maximum Sound Level Learn More Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
43 dB
Minimum Sound Level
19 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
11 5/8 Inches
Product Width
31 7/16 Inches
Product Depth
9 1/8 Inches
Product Weight
22 Pounds
Shipping Weight
27 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Parts Warranty Learn More A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
MSZ-GL06NA-U1 Specifications+
General Information
Type
Wall Mounted
Product Line
GL-Series
Operating Mode Learn More Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s) Learn More Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
6
Installation Location
Indoor
Performance
Cooling BTU
6000
Cooling Capacity
6000 BTU
Minimum Air Flow
145 CFM
Maximum Air Flow
399 CFM
Maximum Sound Level Learn More Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
43 dB
Minimum Sound Level
19 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
11 5/8 Inches
Product Width
31 7/16 Inches
Product Depth
9 1/8 Inches
Product Weight
22 Pounds
Shipping Weight
27 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Parts Warranty Learn More A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
ADP5834 Specifications+
General Information
Type
Port Adapter
Connection Type
Flared
Dimensions
End 1 Connection Size
3/4 Inch
End 2 Connection Size
5/8 Inch
Product Weight
1 Pound
Shipping Weight
5 Pounds
Warranty Information
Parts Warranty
90 Days
Product Specs
+
Specifications
General Information
Type
Wall Mounted
Product Line
M-Series
Product Sub-line
06091818
Operating Mode Learn More Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Number of Zones Learn More A zone is a room or area within a building that has its own temperature control.
4
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
7 + 9 + 18 + 18
DOE Regional Compliance Learn More In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Performance
SEER Learn More SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
17.4
EER Learn More EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
12.5
HSPF Learn More HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system. Learn More
10.5
Cooling Power Input
4800 Watts
Heating Power Input
4870 Watts
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating Learn More This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-4 F
Minimum Outdoor Temperature for Cooling
23 F
Dimensions
Product Weight
409 Pounds
Shipping Weight
413 Pounds
Certifications
Energy Star Listed
Yes
ETL Listed
Yes
AHRI Certified
Yes
MXZ-8C60NA Specifications+
General Information
Type
Outdoor Condenser
Product Line
M-Series
Operating Mode Learn More Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Maximum Number of Zones
8
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Installation Location
Outdoor
Branch Box Required Learn More By making a single connection to the outdoor condenser, a branch box can supply the right amount of refrigerant to multiple indoor units. Learn More
Yes
Performance
Cooling BTU
60000
Maximum Sound Level Learn More Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
59 dB
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating Learn More This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-4 F
Minimum Outdoor Temperature for Cooling
23 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
50 Amps
Dimensions
Maximum Line Length
492 Feet
Gas Connection Size
3/4 Inch
Liquid Connection Size
3/8 Inch
Product Height
52 11/16 Inches
Product Width
41 17/48 Inches
Product Depth
13 Inches
Product Weight
309 Pounds
Shipping Height
56 1/4 Inches
Shipping Width
42 15/16 Inches
Shipping Depth
17 11/16 Inches
Shipping Weight
333 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Parts Warranty Learn More A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
MSZ-GL18NA-U1 Specifications+
General Information
Type
Wall Mounted
Product Line
GL-Series
Operating Mode Learn More Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s) Learn More Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
18
Installation Location
Indoor
Performance
Cooling BTU
18000
Cooling Capacity
18000 BTU
Moisture Removal
4.6 Pints/Hour
Minimum Air Flow
233 CFM
Maximum Air Flow
646 CFM
Maximum Sound Level Learn More Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
49 dB
Minimum Sound Level
28 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
1/2 Inch
Liquid Connection Size
1/4 Inch
Product Height
12 Inches
Product Width
36 5/16 Inches
Product Depth
9 13/16 Inches
Product Weight
28 Pounds
Shipping Weight
35 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Parts Warranty Learn More A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
MSZ-GL09NA-U1 Specifications+
General Information
Type
Wall Mounted
Product Line
GL-Series
Operating Mode Learn More Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s) Learn More Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
9
Installation Location
Indoor
Performance
Cooling BTU
9000
Cooling Capacity
9000 BTU
Moisture Removal
1.5 Pints/Hour
Minimum Air Flow
145 CFM
Maximum Air Flow
399 CFM
Maximum Sound Level Learn More Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
43 dB
Minimum Sound Level
19 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
11 5/8 Inches
Product Width
31 7/16 Inches
Product Depth
9 1/8 Inches
Product Weight
22 Pounds
Shipping Weight
27 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Parts Warranty Learn More A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
MSZ-GL06NA-U1 Specifications+
General Information
Type
Wall Mounted
Product Line
GL-Series
Operating Mode Learn More Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s) Learn More Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
6
Installation Location
Indoor
Performance
Cooling BTU
6000
Cooling Capacity
6000 BTU
Minimum Air Flow
145 CFM
Maximum Air Flow
399 CFM
Maximum Sound Level Learn More Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
43 dB
Minimum Sound Level
19 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
11 5/8 Inches
Product Width
31 7/16 Inches
Product Depth
9 1/8 Inches
Product Weight
22 Pounds
Shipping Weight
27 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Parts Warranty Learn More A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
ADP5834 Specifications+
General Information
Type
Port Adapter
Connection Type
Flared
Dimensions
End 1 Connection Size
3/4 Inch
End 2 Connection Size
5/8 Inch
Product Weight
1 Pound
Shipping Weight
5 Pounds
Warranty Information
Parts Warranty
90 Days
Reviews
(3)
+
Mitsubishi M4H60W06091818 Reviews & Ratings
Product Q&A
(1)
+
Search Product Q&A's Answered by Chris, the eComfort Product Expert
icon-social-fb1
+
Can these systems can be controlled by the Nest learning thermostat?
Jeff
from New York
February 15, 2017
Answer
Mitsubishi mini splits can be controlled with a Nest or any other standard thermostat, but you will need one thermostat for each indoor unit you wish to control. You will also need a thermostat interface, PAC-US444CN-1, and a transformer, 90-T40M3, for each indoor unit.
Recommended Accessories
+
Expert Recommended Accessories Hand Picked By Our Expert Chris
icon-social-fb1
Required Accessories Add All Required
Optional Accessories
How-To Articles
+
Manuals
+


×
Mitsubishi Wall Mounted 4-Zone System - 60,000 BTU Outdoor - 6k + 9k + 18k + 18k Indoor - 17.4 SEER
Mitsubishi M4H60W06091818
+
Reset View
Mitsubishi M4H60W06091818
Mitsubishi M4H60W06091818
Mitsubishi M4H60W06091818
Mitsubishi M4H60W06091818
Mitsubishi M4H60W06091818
Mitsubishi M4H60W06091818
Mitsubishi M4H60W06091818
Mitsubishi M4H60W06091818
Mitsubishi M4H60W06091818
×
Customer Review Images
