Honeywell Heating Valve, Linear flow, 1" Pipe

Honeywell Heating Valve, Linear flow, 1" Pipe
Our Price
Compare Prices
Shipping Info
Model: VC6831MS6111
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Discontinued
Sorry, this product is no longer available
Shipping Info
Shipping Info
*We currently CANNOT ship this product to California or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • How-To Articles
  • Manuals
Product Description
+
Features
Features

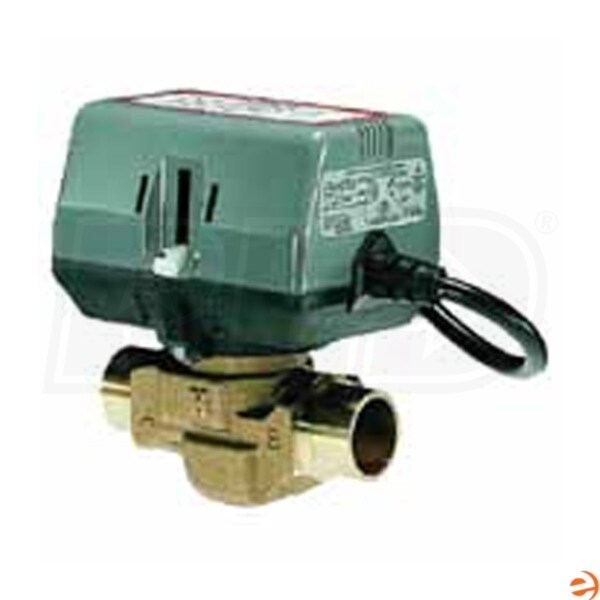

    Honeywell Heating Valve, Linear flow, 1" Pipe

    The Honeywell VC6831MS6111 Heating Valve is used to control central heating and/or cooling systems, fan coil systems, radiators and convectors. Depending on the model selected, it can be controlled by either a low or line voltage SPST or SPDT or floating controller such as a room thermostat, Aquastat control or flow switch.

    Honeywell VC6831MS6111 Heating Valve Features:
    • Three-way Valve
    • Minimal actuator power consumption
    • Double insulated actuator
    • Quick-connect or one-meter cable electrical connections
    • Safe for use with potable water
    • Quick and easy replacement of moving parts
    • Actuator head installation does not require draining the system
    • On/Off models with six second nominal timing
    Honeywell VC6831MS6111 Heating Valve Warranty:
    • Parts: 1 Year
Specifications
General Information
Product Line
VC6831
Valve Type
Thermostatic
Body Pattern
Three-way
Connection Type
Sweat
Maximum Differential Pressure Range
60 PSI
UPC
085267817011
Performance
CV Value
6.6
Electrical Data
Voltage
24 Volts
Phase
1
Frequency
50/60 Hz
Dimensions
Connection Size
1 Inch
Product Height
3.56 Inches
Product Width
2.75 Inches
Product Length
3.75 Inches
Product Weight
2.3 Pounds
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Features
Features

    Honeywell Heating Valve, Linear flow, 1" Pipe

    The Honeywell VC6831MS6111 Heating Valve is used to control central heating and/or cooling systems, fan coil systems, radiators and convectors. Depending on the model selected, it can be controlled by either a low or line voltage SPST or SPDT or floating controller such as a room thermostat, Aquastat control or flow switch.

    Honeywell VC6831MS6111 Heating Valve Features:
    • Three-way Valve
    • Minimal actuator power consumption
    • Double insulated actuator
    • Quick-connect or one-meter cable electrical connections
    • Safe for use with potable water
    • Quick and easy replacement of moving parts
    • Actuator head installation does not require draining the system
    • On/Off models with six second nominal timing
    Honeywell VC6831MS6111 Heating Valve Warranty:
    • Parts: 1 Year
Specifications
General Information
Product Line
VC6831
Valve Type
Thermostatic
Body Pattern
Three-way
Connection Type
Sweat
Maximum Differential Pressure Range
60 PSI
UPC
085267817011
Performance
CV Value
6.6
Electrical Data
Voltage
24 Volts
Phase
1
Frequency
50/60 Hz
Dimensions
Connection Size
1 Inch
Product Height
3.56 Inches
Product Width
2.75 Inches
Product Length
3.75 Inches
Product Weight
2.3 Pounds
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Product Specs
+
Specifications
General Information
Product Line
VC6831
Valve Type
Thermostatic
Body Pattern
Three-way
Connection Type
Sweat
Maximum Differential Pressure Range
60 PSI
UPC
085267817011
Performance
CV Value
6.6
Electrical Data
Voltage
24 Volts
Phase
1
Frequency
50/60 Hz
Dimensions
Connection Size
1 Inch
Product Height
3.56 Inches
Product Width
2.75 Inches
Product Length
3.75 Inches
Product Weight
2.3 Pounds
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
