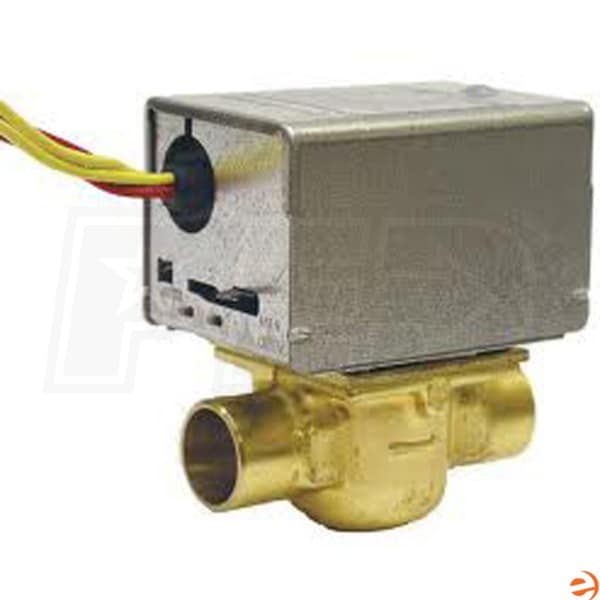

Honeywell Motorized Low Voltage Normally Closed Zone Valve, 1/2" Pipe, Sweat Connection

Honeywell Motorized Low Voltage Normally Closed Zone Valve, 1/2" Pipe, Sweat Connection
Model: V8043F1028
Product Discontinued
Sorry, this product is no longer available.
Only 1 In-Stock
Ships Friday, Sep 21st
Shipping Info
Shipping Info
*We currently CANNOT ship this product to California or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • How-To Articles
  • Manuals
Product Description
+
Features
Features

    Honeywell Motorized Low Voltage Normally Closed Zone Valve, 1/2" Pipe, Sweat Connection

    The Honeywell V8043F1028 Motorized Low Voltage Normally Closed Zone Valve consists of an actuator motor and valve assembly for controlling the flow of hot water. The Honeywell V8043F1028 Motorized Low Voltage Normally Closed Zone Valve is a 0.5 inch Two-way, Straight-Through Sweat valve, with a Cv of 3.5.

    Honeywell V8043F1028 Motorized Low Voltage Normally Closed Zone Valve Features:
    • May be installed without disassembling the valve
    • Compact construction for easy installation
    • Complete powerhead may be removed or replaced without breaking plumbing line connections or draining the system
    • Motor may be replaced without removing the valve body or draining the system
    Honeywell V8043F1028 Motorized Low Voltage Normally Closed Zone Valve Warranty:
    • Parts: 1 Year
Specifications
General Information
Product Line
V4043
Valve Type
Zone
Body Pattern
Two-way, Straight -Through
Connection Type
Sweat
Maximum Differential Pressure Range
20 PSI
UPC
085267109758
Performance
CV Value
3.5
Electrical Data
Voltage
24 Volts
Phase
1
Frequency
50/60 Hz
Dimensions
Connection Size
0.5 Inches
Product Height
3.56 Inches
Product Width
2.75 Inches
Product Length
3.75 Inches
Product Weight
2.25 Pounds
Certifications
UL Listed
Yes
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Features
Features

    Honeywell Motorized Low Voltage Normally Closed Zone Valve, 1/2" Pipe, Sweat Connection

    The Honeywell V8043F1028 Motorized Low Voltage Normally Closed Zone Valve consists of an actuator motor and valve assembly for controlling the flow of hot water. The Honeywell V8043F1028 Motorized Low Voltage Normally Closed Zone Valve is a 0.5 inch Two-way, Straight-Through Sweat valve, with a Cv of 3.5.

    Honeywell V8043F1028 Motorized Low Voltage Normally Closed Zone Valve Features:
    • May be installed without disassembling the valve
    • Compact construction for easy installation
    • Complete powerhead may be removed or replaced without breaking plumbing line connections or draining the system
    • Motor may be replaced without removing the valve body or draining the system
    Honeywell V8043F1028 Motorized Low Voltage Normally Closed Zone Valve Warranty:
    • Parts: 1 Year
Specifications
General Information
Product Line
V4043
Valve Type
Zone
Body Pattern
Two-way, Straight -Through
Connection Type
Sweat
Maximum Differential Pressure Range
20 PSI
UPC
085267109758
Performance
CV Value
3.5
Electrical Data
Voltage
24 Volts
Phase
1
Frequency
50/60 Hz
Dimensions
Connection Size
0.5 Inches
Product Height
3.56 Inches
Product Width
2.75 Inches
Product Length
3.75 Inches
Product Weight
2.25 Pounds
Certifications
UL Listed
Yes
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Product Specs
+
Specifications
General Information
Product Line
V4043
Valve Type
Zone
Body Pattern
Two-way, Straight -Through
Connection Type
Sweat
Maximum Differential Pressure Range
20 PSI
UPC
085267109758
Performance
CV Value
3.5
Electrical Data
Voltage
24 Volts
Phase
1
Frequency
50/60 Hz
Dimensions
Connection Size
0.5 Inches
Product Height
3.56 Inches
Product Width
2.75 Inches
Product Length
3.75 Inches
Product Weight
2.25 Pounds
Certifications
UL Listed
Yes
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
