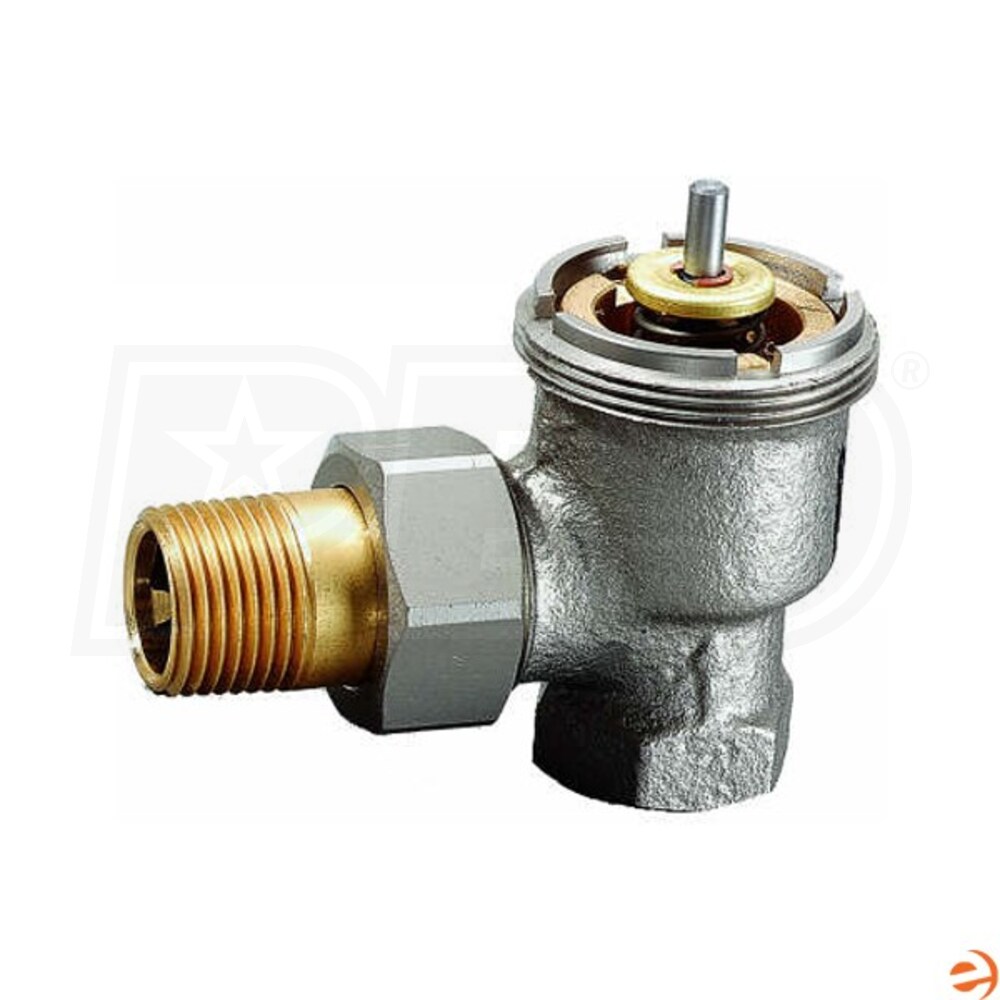

Honeywell High Capacity Thermostatic Radiator Valve, 5.8 Cv, Angle Body, 3/4" Sweat, 162,000 BTU
Honeywell High Capacity Thermostatic Radiator Valve, 5.8 Cv, Angle Body, 3/4" Sweat, 162,000 BTU
+
Share This Product
-
Product Description
-
Reviews
-
How-To Articles
-
Manuals
Product Description
+−
Features
Features
- Designed with the higher capacity normally required by North American heating systems
- Valve seat disc, which is made of resilient material (EPDM), ensures tight shutoff on steam or hot water systems.
- Nickel-plated bronze casted body with working parts in cartridge insert for ease of service
- All working parts are replaceable using service tool (MT100C1011)
- Valves normally open without control mounted
- Valves may be used with T104 Thermostat Actuators
- Meets ASHRAE Standard 102-1989
- Parts: 1 Year
Honeywell High Capacity Thermostatic Radiator Valve, 5.8 Cv, Angle Body, 3/4" Sweat, 162,000 BTU
The Honeywell V110E5013 High Capacity Thermostatic Radiator Valve provides precise and automatic control of room temperature in two-pipe systems by modulating the flow of hot water or steam through free-standing radiators, convectors and other heating units with high capacity requirements. The Honeywell V110E5013 High Capacity Thermostatic Radiator Valve is an Angle body pattern valve with a 0.75 inch Sweat connection. It has a Cv of 5.8.
Honeywell V110E5013 High Capacity Thermostatic Radiator Valve Features:
Honeywell V110E5013 High Capacity Thermostatic Radiator Valve Warranty:
Specifications
General Information
Product Line
V110
Valve Type
Thermostatic
Connection Type
Sweat
Body Pattern
Angle
UPC
085267103268
Performance
CV Value
5.8
Dimensions
Connection Size
3/4 Inch
Product Weight
0.95 Pounds
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Features
Features
- Designed with the higher capacity normally required by North American heating systems
- Valve seat disc, which is made of resilient material (EPDM), ensures tight shutoff on steam or hot water systems.
- Nickel-plated bronze casted body with working parts in cartridge insert for ease of service
- All working parts are replaceable using service tool (MT100C1011)
- Valves normally open without control mounted
- Valves may be used with T104 Thermostat Actuators
- Meets ASHRAE Standard 102-1989
- Parts: 1 Year
Honeywell High Capacity Thermostatic Radiator Valve, 5.8 Cv, Angle Body, 3/4" Sweat, 162,000 BTU
The Honeywell V110E5013 High Capacity Thermostatic Radiator Valve provides precise and automatic control of room temperature in two-pipe systems by modulating the flow of hot water or steam through free-standing radiators, convectors and other heating units with high capacity requirements. The Honeywell V110E5013 High Capacity Thermostatic Radiator Valve is an Angle body pattern valve with a 0.75 inch Sweat connection. It has a Cv of 5.8.
Honeywell V110E5013 High Capacity Thermostatic Radiator Valve Features:
Honeywell V110E5013 High Capacity Thermostatic Radiator Valve Warranty:
Specifications
General Information
Product Line
V110
Valve Type
Thermostatic
Connection Type
Sweat
Body Pattern
Angle
UPC
085267103268
Performance
CV Value
5.8
Dimensions
Connection Size
3/4 Inch
Product Weight
0.95 Pounds
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Product Specs
+−
Specifications
General Information
Product Line
V110
Valve Type
Thermostatic
Connection Type
Sweat
Body Pattern
Angle
UPC
085267103268
Performance
CV Value
5.8
Dimensions
Connection Size
3/4 Inch
Product Weight
0.95 Pounds
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
