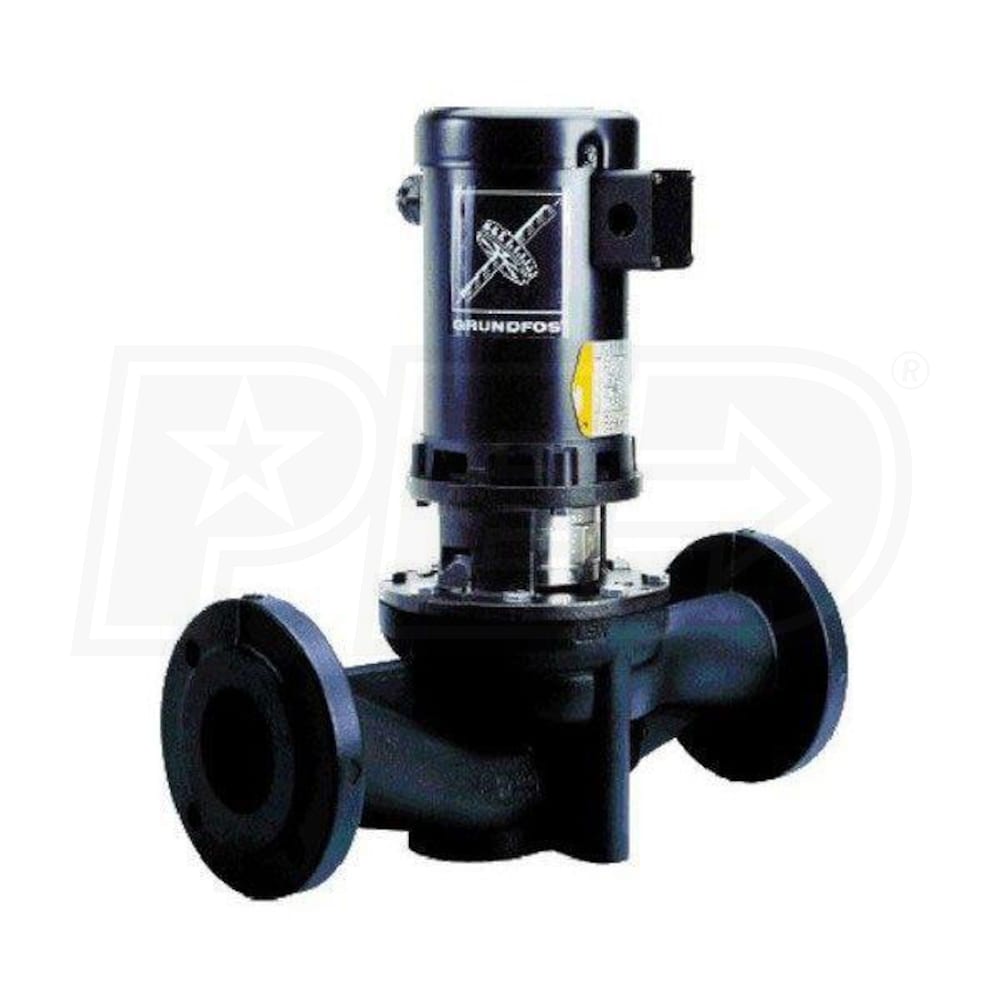

Grundfos TP50-80/2 Direct Coupled In-Line Circulator, 3/4 HP, RUUE Seal, Cast Iron, 115/208-230V, GF 50 Flange Mount

Model:

96731063

Write a Review
$1,300.55
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Factory-Direct
Ships in 7-14 Business Days
synchrony card logo
$217 / Month
Suggested monthly payments with 6 month financing.
Grundfos TP50-80/2 Direct Coupled In-Line Circulator, 3/4 HP, RUUE Seal, Cast Iron, 115/208-230V, GF 50 Flange Mount
Grundfos TP50-80/2 Direct Coupled In-Line Circulator, 3/4 HP, RUUE Seal, Cast Iron, 115/208-230V, GF 50 Flange Mount
Model: 96731063
$1,300.55
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

    The Grundfos TP50-80/2 is a direct coupled, single-stage, in-line centrifugal pump with a mechanical shaft seal and the world-renowned IE3 as its standard motor. Grundfos' Blueflux motors are among the most efficient motors available, and are engineered for maximum efficiency at both full and part-capacity. Since it maintains a very high level of efficiency over a broad range of operations, it is ideal for an array of applications. The TP 50-80/2 is a top-pull-out design, meaning the pump head (which includes the motor, motor stool and impeller) can be detached without interfering with the pump housing's pipework. This simplifies the routine service work needed to maintain the performance of these pumps, enabling a single person to service even the largest pumps. The Grundfos TP series pumps are specifically designed for the circulation of liquids in heating and air-conditioning systems. Typical applications for this cast iron pump include: district heating/cooling, industrial cooling/processes, general water supply, boiler/hydronic heating, chilled water, air conditioning systems, cooling towers, radiant floor heating, solar and snow melt systems.
  • Advanced fan design
  • Results in dramatically reduced noise levels
  • All-in-one-solution
  • The coupling and shaft are friction-welded together in order to create a completely stable mechanical unit, drastically reducing the vibration levels and prolongs the lifetime of the shaft seals and bearings
  • Mechanically and hydraulically balanced impeller
  • Further minimizes vibration levels and axial forces while maximizing motor bearing and shaft seal lifetime
  • Anti-corrosion surface
  • Cataphoresis surface treatment consisting of Powercon cathodic electrocoating and zinc phosphate coating results in maximal protection against corrosion and a longer lasting inside surface that keeps efficiency high
  • Renewable neck rings
  • Makes it easy to upgrade your pump when necessary
  • Unique design of shaft seal chamber
  • Eliminates the need for external piping and ensures optimal water circulation, prolonging the lifetime of the shaft seal
  • Grundfos Blueflux IE3
  • Only motors with the official IE3 logo are certified maximum efficiency motors
  • Compact perfection
  • A large shaft diameter and a short distance from the impeller to the motor maximizes stability and results in lower maintenance costs

Specifications

96731063
specs product image PID-36587
General Information
Product Line
TP50-80/2
Motor Type
Single Speed
Connection Type
Flanged
Mount Type
In-Line
Material
Cast Iron
Drive Type
Close-Coupled
DHW Compatible Learn More
No
UPC
05700837947619
Performance
Maximum Head
26.2 Feet
Maximum Flow Rate
88.1 GPM
Minimum Fluid Temperature
5 F
Maximum Fluid Temperature
284 F
Maximum Operating Pressure
145 PSI
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Connection Size
2 Inches
Product Weight
80 Pounds
Shipping Weight
90 Pounds
Warranty Information
Warranty Learn More
2 Years
