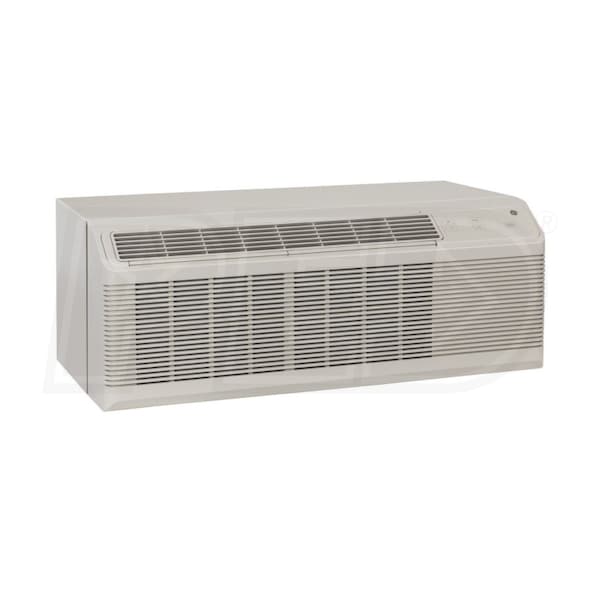

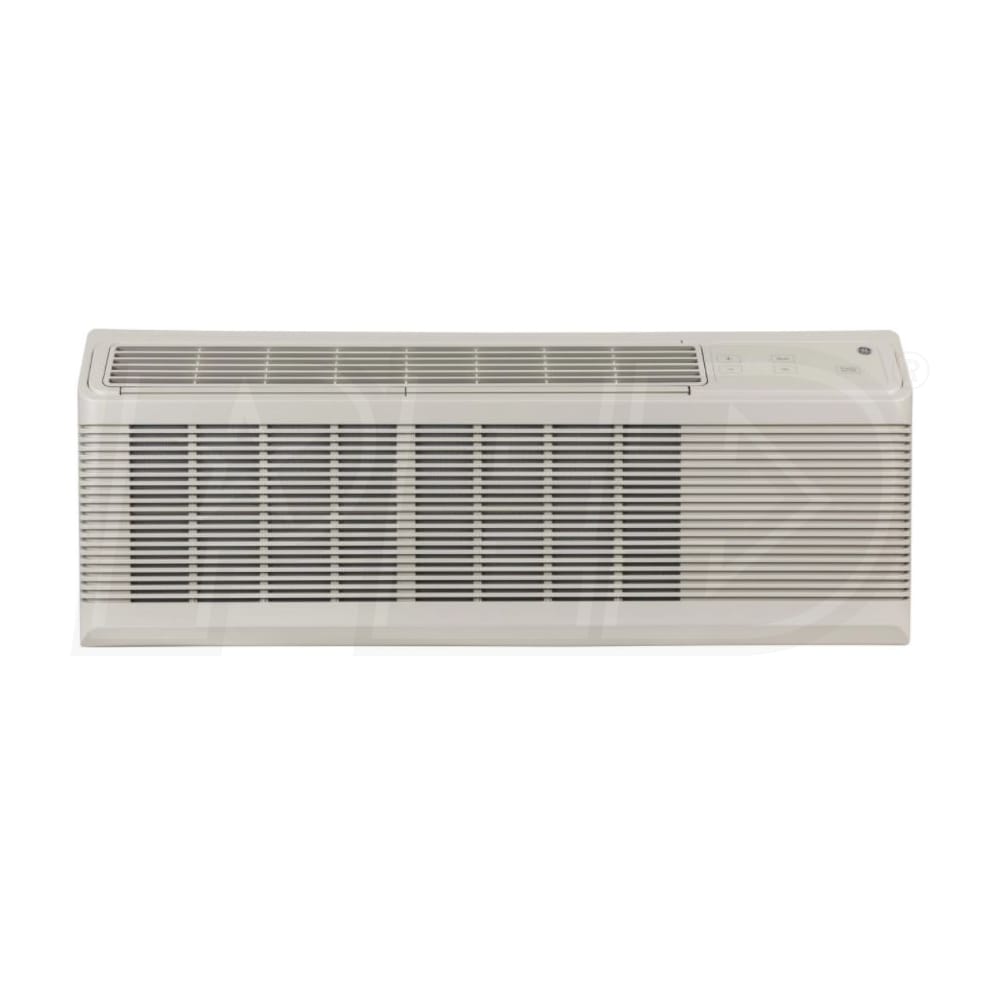

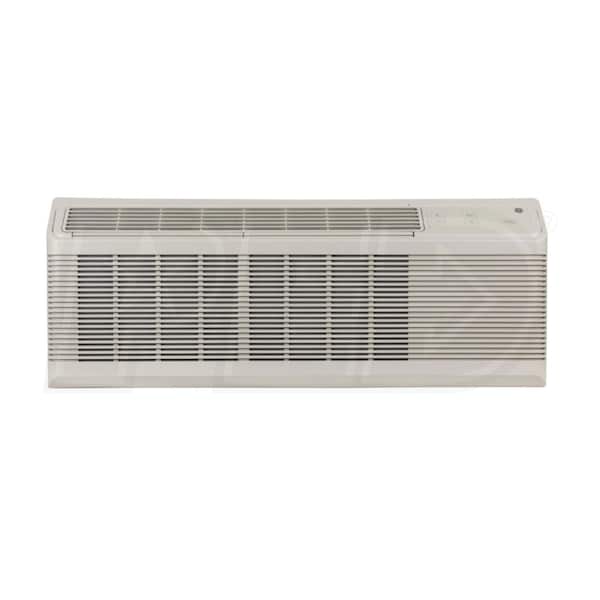

GE Zoneline - 12k BTU - Packaged Terminal Air Conditioner (PTAC) - Heat Pump - 208/230V

Model:

AZ65H12DAB

Write A Review
$1,086.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 8-12 Weeks
synchrony card logo
$181 / Month
Suggested monthly payments with 6 month financing.
GE Zoneline - 12k BTU - Packaged Terminal Air Conditioner (PTAC) - Heat Pump - 208/230V
GE Zoneline - 12k BTU - Packaged Terminal Air Conditioner (PTAC) - Heat Pump - 208/230V
Model: AZ65H12DAB
$1,086.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Bob, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    GE appliances makes every day better by answering to real-life needs. They do this by simplifying routines with next generation features. GE Zoneline packaged terminal air conditioners (PTAC) offer unrivaled reliability and consistent performance. Thanks to the integrated structural components, GE Zoneline PTACs are easy to maintain and service. When it comes to guest comfort, GE Zoneline PTAC is the best choice.
  • Heat and Freeze Sentinels
  • The GE Zoneline PTAC comes with specially designed sentinels that prevent the unit from overheating or freezing. This feature reduces operating cost as well as improving room comfort.
  • Smart Fan
  • The indoor fan runs in continuous mode while cooling and cycle mode during heating without having to change any settings or switches. This improves guest comfort and saves energy.
  • Two DC Fan Motors
  • Independent fan motors provide a quiet and more exact airflow for each heating and cooling function.
  • Large Cross-Flow Blower
  • While providing efficient heating and cooling performance, the airflow of a GE Zoneline PTAC is optimized for a balanced sound that is hardly noticeable.
  • Electronic Temperature Limiting
  • Temperature limits are preset to avoid excessive temperature swings, so seasonal adjustments are not necessary.
  • Product Note
    PTAC units require a power cord, wall sleeve and exterior grille for functionality. These can be found under the "Recommended Accessories" tab.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

AZ65H12DAB
specs product image PID-113885
Overview
Product Category
PTAC Unit
UPC
084691815846
General Information
Type
PTAC
Product Line
AZ65H
Product Category
PTAC Unit
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating + Cooling
Refrigerant Type
R-410a
Electric Heat
Yes
Performance
Cooling BTU
11900
Cooling Capacity
12100 BTU
Heating Capacity
10500 BTU
Moisture Removal
3.7 Pints/Hour
EER Learn More
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
11.9
Cooling Power Input
1005 Watts
Maximum Air Flow
449 CFM
Minimum Air Flow
300 CFM
Heating Power Input
850 Watts
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Product Height
16 Inches
Product Width
42 Inches
Product Depth
20 13/16 Inches
Product Weight
104 Pounds
Shipping Weight
114 Pounds
Certifications
AHRI Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
