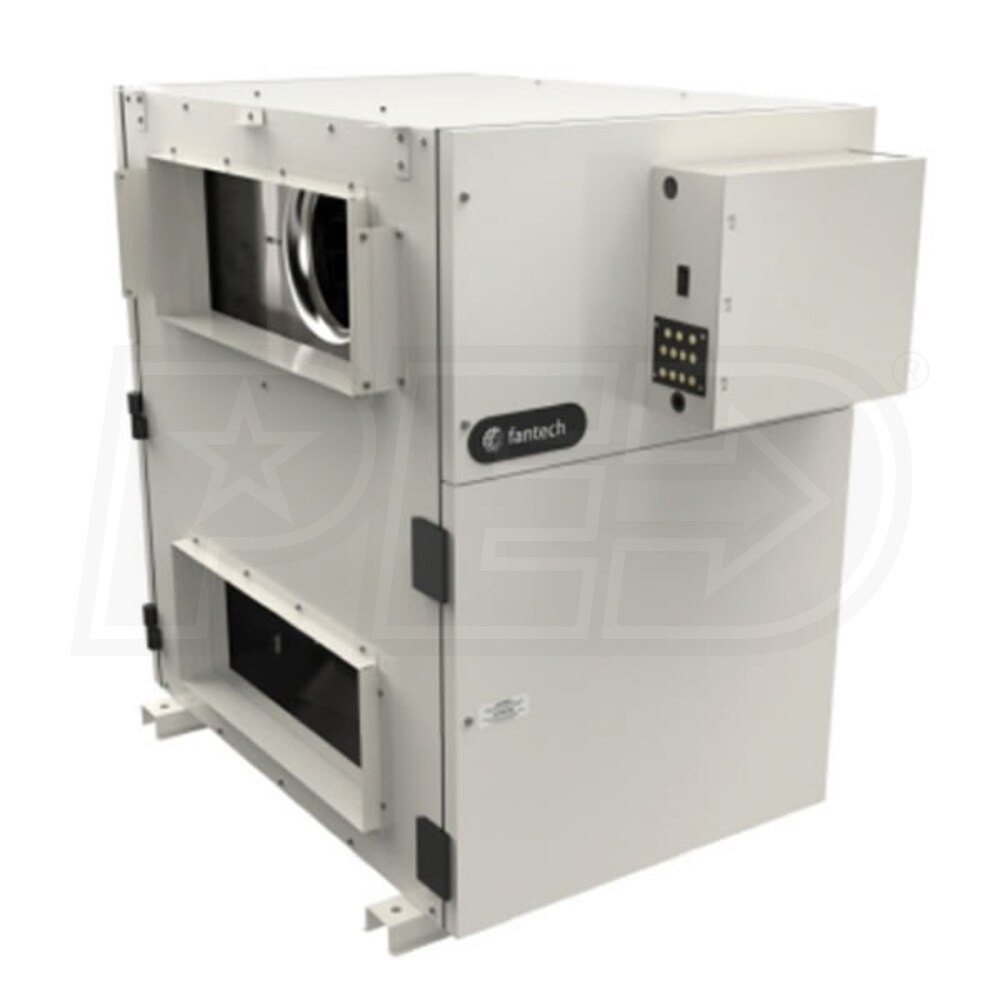

Fantech SHR - 772 CFM - Heat Recovery Ventilator (HRV) - Side Ports - 20 x 8" Duct - Exhaust Defrost
Model:
SHR8004
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Optional Accessories
1
Model: MDEH1
$20.00
Only 4 In-Stock
Features
- Heat Recovery Core
- An aluminum heat recovery core provides improved heat transfer capacity while taking up less space than traditional cores.
- Winter Guard
- A built-in exhaust defrost system allows for consistent, reliable operation during the winter months.
- Washable Electrostatic Filters
- Electrostatic filters capture airborne particles traveling through the ventilator. Easily washable, these filters can be repeatedly reused before replacement.
Every building needs proper ventilation to maintain the quality of the indoor air. The Fantech SHR 8004 Heat Recovery Ventilator (HRV) is specifically designed for commercial applications to efficiently exchange stale indoor air for fresh outdoor air. By transferring heat between the fresh and stale air, this HRV will lead to tremendous savings on your heating and coolings bills. The SHR 8004 HRV maximizes your savings with highly efficient aluminum heat exchange and washable filters.
Specifications
SHR8004
General Information
Type
HRV
Product Line
SHR
Defrost Type
Defrost Type
ERV and HRV units may periodically suffer from frost formation on the heat exchanger. Units have different methods of eliminating this frost.
Exhaust
Ports Quantity
4
Port Location
Side
UPC
650737454463
Performance
Maximum Air Flow
829 CFM
Minimum Air Flow
135 CFM
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Duct Connection
20 x 8 Inches
Product Height
35 Inches
Product Width
36 19/48 Inches
Product Depth
25 17/24 Inches
Product Weight
158 Pounds
Shipping Width
28 Inches
Shipping Height
38 Inches
Shipping Length
57 Inches
Shipping Weight
158 Pounds
Certifications
CSA Listed
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years
Reviews
(6)
Fantech SHR8004 Reviews & Ratings
Quality product
By Mark S
west Pittston, Pennsylvania
Purchased 11/15/2018 |
Review Posted 01/25/2019
Fantech's customer service/tech assistance is exceptional. If you have any problems with installation or wiring, they go out of there way to help you get it installed.
Mark S Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
GOOD QUALITY
By Bob R
BILLINGS, Montana
Purchased 11/19/2018 |
Review Posted 12/19/2018
WORKS WELL, VERY QUIET
Bob R Recommends This
Was this review helpful?
Rating Breakdown
4/5
4/5
4/5
4/5
KISS "Keep It Simple Stup**"
By Jim S.
Hamilton, Massachusetts
Purchased 11/11/2015 |
Review Posted 01/23/2016
OK, first thing to do is to consider the space, (including walls and doors) you are trying to condition. Envision the air flow between where the air will eventually come in and where it will be exhausted once you install the ductwork. Lastly, based on the inlet and exhaust locations, figure out where you want to position the unit you are going to use.
Now there are lot's of installation tips an experienced professional can offer you while going through this process, but common sense and a good route for running the duct work needed if the most time consuming challenge involved in this project. Consider the following:
-Locations for inlet and outlet exhaust locations
-Having your length of ductwork, (aka run) with fewer bends in it.
-Using smooth metal ducts as much as possible instead of flexible ductwork
-using a simple outlet style timer to run the unit during the best times of the day to avoid damp mornings etc.
-Having the unit mounted at a height and location that allows for easy maintenance, (not that it needs much mind you)
Now there are lot's of installation tips an experienced professional can offer you while going through this process, but common sense and a good route for running the duct work needed if the most time consuming challenge involved in this project. Consider the following:
-Locations for inlet and outlet exhaust locations
-Having your length of ductwork, (aka run) with fewer bends in it.
-Using smooth metal ducts as much as possible instead of flexible ductwork
-using a simple outlet style timer to run the unit during the best times of the day to avoid damp mornings etc.
-Having the unit mounted at a height and location that allows for easy maintenance, (not that it needs much mind you)
Jim S. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
3/5
5/5
Best money I spent
By David
IL
Review Posted 04/06/2015
I live in Canada ordered this, saved about $500. The service was great, shipping was fast. Installed easy, works great, best money we spent. Will order from EComfort again, Thanks.
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
GM
By Dave
IL
Review Posted 01/05/2015
Every thing was fine except it took a lot longer to recieve than I was told it would
Was this review helpful?
Rating Breakdown
4/5
4/5
4/5
4/5
SHR - 159 CFM - Heat Recovery
By Carrie
IL
Review Posted 11/13/2014
We bought this unit to replace a 30 year old unit. We wanted one very similar so installation would be easy and a do it yourself job. I am always leery about on line shopping, but ecomfort made me comfortable with my experience. The unit was exactly what we wanted and installation was fantastic. We had to modify one piece of duct work--which was really nothing. I would shop at ecomfort in the future.
Was this review helpful?
Rating Breakdown
4/5
4/5
4/5
4/5
