Fantech FLEX® - 104 CFM - Heat Recovery Ventilator (HRV) - Top Ports - 5" Duct - Recirculation Defrost

Model:

FLEX 100H ES

Write A Review
$784.66
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Only 1 In-Stock
Ships Friday, Apr 26th
Shipping to60601
synchrony card logo
$131 / Month
Suggested monthly payments with 6 month financing.
Fantech FLEX® - 104 CFM - Heat Recovery Ventilator (HRV) - Top Ports - 5
Fantech FLEX® - 104 CFM - Heat Recovery Ventilator (HRV) - Top Ports - 5" Duct - Recirculation Defrost
Model: FLEX 100H ES
$784.66
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

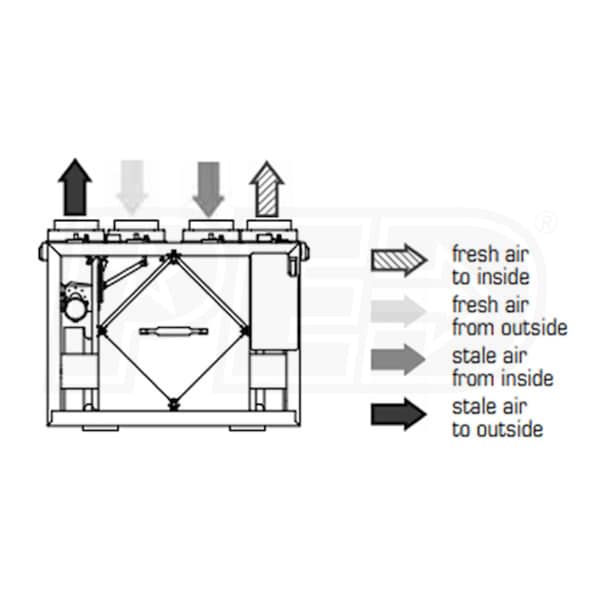

    The Fantech FLEX® 100H ES is a 104 CFM heat recovery ventilator (HRV) with top ports and recirculation defrost capabilities. The FLEX® 100H ES is a 120-volt unit designed with 4 ports and 5" ducts. It is designed for applications in single-family homes, multi-family homes, town houses and apartment buildings. HRVs make your heating and cooling systems more efficient by transferring heat between fresh and stale air during ventilation. The Fantech FLEX® is constructed with a built-in TurboTouch feature that boosts exhaust capacity up to 50%.
  • Heat Recovery Core
  • An aluminum heat recovery core provides improved heat transfer capacity while taking up less space than traditional cores. Fantech designs their heat recovery cores to withstand drastic temperature variations.
  • Winter Guard™ Defrost
  • The recirculation defrost sequence automatically adjusts based on operating conditions without depressurizing your home, allowing for a smooth transition between Ventilation and Defrost mode.
  • Controls
  • An External rocker switch featuring three positions (Low/Stand By/Medium) that allows for simple control of air flow.
  • Washable Electrostatic Filters
  • Easily washable, these filters can be used throughout the life of the FLEX® 100H ES.
  • Easy Maintenance and Service
  • An access panel on the FLEX® 100H ES allows for simple maintenance and serviceability.
  • Compact Flexible Installation
  • The compact top port design of the FLEX® 100H ES allows it to be installed in spaces as small as 24 inches. The included EZ-Mount™ wall bracket also makes the FLEX® 100H ES simple to install.
  • TurboTouch
  • With the TurboTouch feature, the FLEX® 100H ES provides up to 50% more exhaust capacity when additional airflow is required and allows the FLEX® to easily meet supplemental ventilation needs when required.
  • Insulated Cabinet
  • The 24 gauge galvanized steel cabinet is insulated with 1" high density expanded polystyrene. It also has a baked power coated paint for exceptional adhesion and resistance.

Specifications

FLEX 100H ES
specs product image PID-83351
Overview
Product Category
Heat Recovery Ventilators (HRVs)
UPC
650737633332
General Information
Type
HRV
Product Line
Flex
Product Category
Heat Recovery Ventilators (HRVs)
Defrost Type Learn More
Defrost Type
ERV and HRV units may periodically suffer from frost formation on the heat exchanger. Units have different methods of eliminating this frost.
Exhaust
Ports Quantity
4
Port Location
Top
Performance
Maximum Air Flow
131 CFM
Apparent Sensible Effectiveness
68 %
Minimum Air Flow
70 CFM
Sensible Recovery Efficiency
63 %
Electrical Data
Voltage
120 Volts
Power Consumption
168 Watts
Phase
1
Frequency
60 Hz
Current Draw
1.4 Amps
Dimensions
Duct Connection
5 Inches
Product Height
17 7/8 Inches
Product Width
22 1/2 Inches
Product Depth
14 1/2 Inches
Product Weight
39.2 Pounds
Shipping Height
21 Inches
Shipping Width
17 Inches
Shipping Length
24 Inches
Shipping Weight
46 Pounds
Certifications
Energy Star Listed
Yes
CSA Listed
Yes
HVI Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Motor Warranty
7 Years
