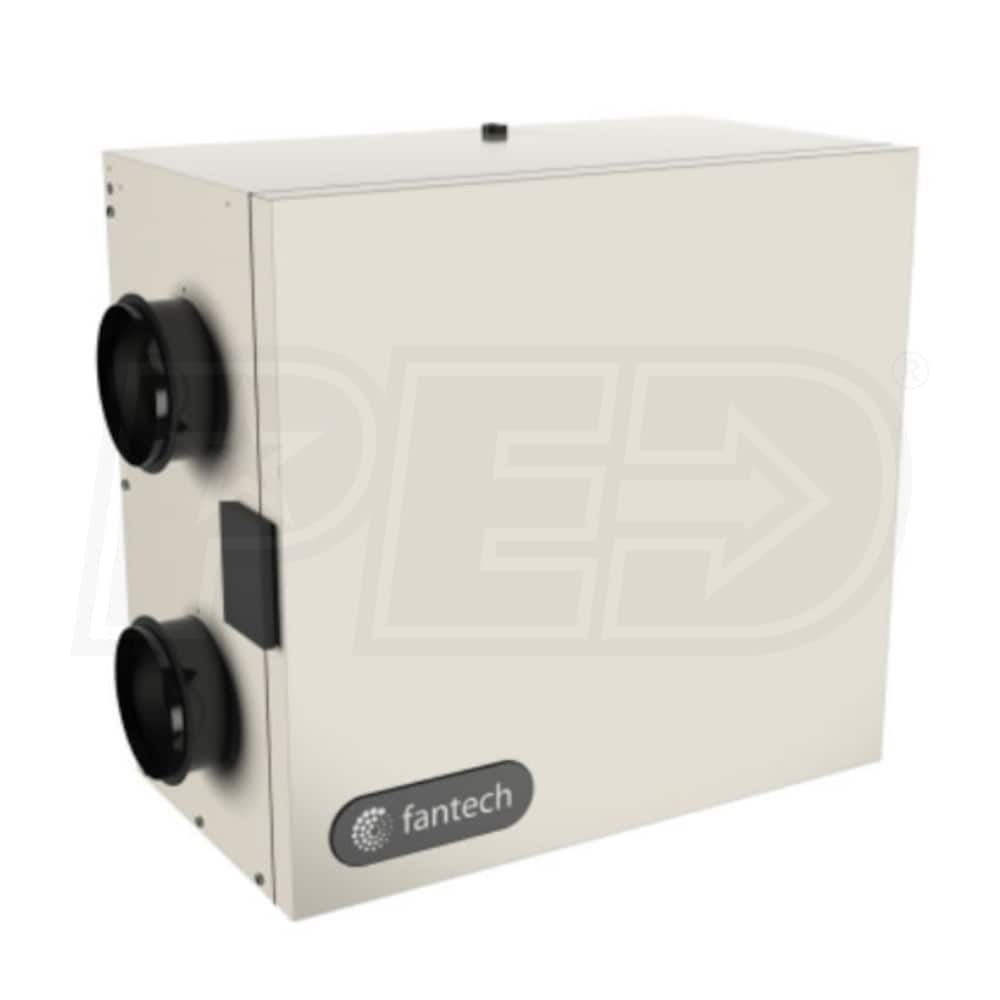

Fantech SH - 56 CFM - Heat Recovery Ventilator (HRV) - Side Ports - 4" Duct - Exhaust Defrost
Model: SH704
+
Share This Product
-
Product Description
-
3Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Features
Features
- Heat Recovery Core
- An aluminum heat recovery core provides improved heat transfer capacity while taking up less space than traditional cores.
- Winter Guard
- A built-in exhaust defrost system allows for consistent, reliable operation during the winter months.
- Controls
- The SH 704 is designed to operate on a single speed.
- Washable Electrostatic Filters
- Electrostatic filters capture airborne particles traveling through the ventilator. Easily washable, these filters can be repeatedly reused before replacement.
- Product Includes
- SH 704 Heat Recovery Ventilator (HRV)
- Mounting Bracket
The Fantech SH 704 Heat Recovery Ventilator (HRV) is a 56 CFM heat recovery ventilator with side ports and exhaust defrost capabilities. The SH 704 is a 115 volt unit designed with 4 ports with 4" ducts. HRVs make your heating and cooling systems more efficient by transferring heat between fresh and stale air during ventilation. Its compact size and wall bracket make this HRV easy to mount. The SH 704 Heat Recovery Ventilator (HRV) features an aluminum core and washable electrostatic filters.
Specifications
General Information
Type
HRV
Product Line
SH
Defrost Type
Defrost Type
ERV and HRV units may periodically suffer from frost formation on the heat exchanger. Units have different methods of eliminating this frost.
Exhaust
Ports Quantity
4
Port Location
Side
UPC
650737638009
Performance
Maximum Air Flow
96 CFM
Apparent Sensible Effectiveness
67 %
Minimum Air Flow
42 CFM
Sensible Recovery Efficiency
57 %
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Dimensions
Condensate Drain Size
1/2 Inch
Duct Connection
4 Inches
Product Height
17 1/4 Inches
Product Width
21 29/48 Inches
Product Depth
10 13/24 Inches
Product Weight
25 Pounds
Shipping Width
14 Inches
Shipping Height
21 Inches
Shipping Length
24 Inches
Shipping Weight
25 Pounds
Certifications
CSA Listed
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Motor Warranty
7 Years
Features
Features
- Heat Recovery Core
- An aluminum heat recovery core provides improved heat transfer capacity while taking up less space than traditional cores.
- Winter Guard
- A built-in exhaust defrost system allows for consistent, reliable operation during the winter months.
- Controls
- The SH 704 is designed to operate on a single speed.
- Washable Electrostatic Filters
- Electrostatic filters capture airborne particles traveling through the ventilator. Easily washable, these filters can be repeatedly reused before replacement.
- Product Includes
- SH 704 Heat Recovery Ventilator (HRV)
- Mounting Bracket
The Fantech SH 704 Heat Recovery Ventilator (HRV) is a 56 CFM heat recovery ventilator with side ports and exhaust defrost capabilities. The SH 704 is a 115 volt unit designed with 4 ports with 4" ducts. HRVs make your heating and cooling systems more efficient by transferring heat between fresh and stale air during ventilation. Its compact size and wall bracket make this HRV easy to mount. The SH 704 Heat Recovery Ventilator (HRV) features an aluminum core and washable electrostatic filters.
Specifications
General Information
Type
HRV
Product Line
SH
Defrost Type
Defrost Type
ERV and HRV units may periodically suffer from frost formation on the heat exchanger. Units have different methods of eliminating this frost.
Exhaust
Ports Quantity
4
Port Location
Side
UPC
650737638009
Performance
Maximum Air Flow
96 CFM
Apparent Sensible Effectiveness
67 %
Minimum Air Flow
42 CFM
Sensible Recovery Efficiency
57 %
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Dimensions
Condensate Drain Size
1/2 Inch
Duct Connection
4 Inches
Product Height
17 1/4 Inches
Product Width
21 29/48 Inches
Product Depth
10 13/24 Inches
Product Weight
25 Pounds
Shipping Width
14 Inches
Shipping Height
21 Inches
Shipping Length
24 Inches
Shipping Weight
25 Pounds
Certifications
CSA Listed
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Motor Warranty
7 Years
Product Specs
+−
Specifications
General Information
Type
HRV
Product Line
SH
Defrost Type
Defrost Type
ERV and HRV units may periodically suffer from frost formation on the heat exchanger. Units have different methods of eliminating this frost.
Exhaust
Ports Quantity
4
Port Location
Side
UPC
650737638009
Performance
Maximum Air Flow
96 CFM
Apparent Sensible Effectiveness
67 %
Minimum Air Flow
42 CFM
Sensible Recovery Efficiency
57 %
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Dimensions
Condensate Drain Size
1/2 Inch
Duct Connection
4 Inches
Product Height
17 1/4 Inches
Product Width
21 29/48 Inches
Product Depth
10 13/24 Inches
Product Weight
25 Pounds
Shipping Width
14 Inches
Shipping Height
21 Inches
Shipping Length
24 Inches
Shipping Weight
25 Pounds
Certifications
CSA Listed
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Motor Warranty
7 Years
