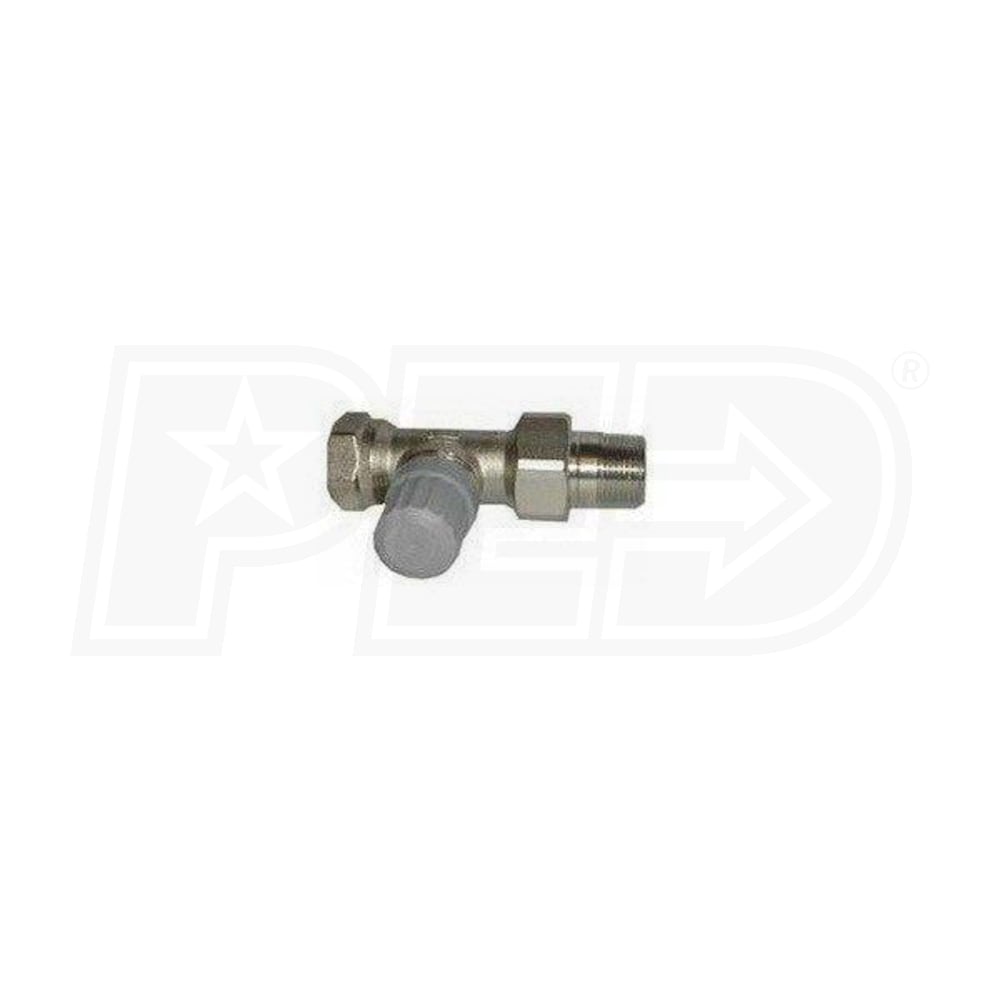

Danfoss RA2000 Thermostatic Radiator Valve, Straight - 1-1/4" FPT x MPT Union Tailpiece Connections

Model:

013G8032

Write a Review
$117.00
Factory-Direct
Ships in 4-7 Business Days
Factory items ship direct from the manufacturer. Shipping times vary.
Danfoss RA2000 Thermostatic Radiator Valve, Straight - 1-1/4
Danfoss RA2000 Thermostatic Radiator Valve, Straight - 1-1/4" FPT x MPT Union Tailpiece Connections
Model: 013G8032
$117.00
Features
Specifications
Reviews
Accessories
How-To Articles
Manuals
Share

Features

    RA 2000 Thermostatic Radiator Valves regulate the flow of hot water or low pressure steam through free-standing radiators, baseboards, or convectors in hot water and two-pipe steam systems. Operators and valves are packaged separately to allow an installer an ability to select a suitable combination for each application.
  • Danfoss 013G8032 Features
  • RA 2000 valves are fitted with a packing gland assembly that is replaceable while the system is in operation. The packing gland is fitted with a grease cup to ensure the o-ring packing is lubricated for life
  • Sturdy EPDM rubber valve disc provides a positive seal against the valve seat at differential pressures of up to 15 PSI in hot water heating systems, while 15psig for low pressure steam systems
  • Plastic cap supplied to protect the valve pushpin can provide manual control of the valve during installation. If manual operation is required, a separate hand knob is available as an accessory
  • Valves remain normally open with no operator mounted
  • Replaceable packing assembly while system is in operation
  • Non-electric thermostatic radiator valve conforms to ASHREA/ANSI standard 102-1983
  • Same valve body can be used for both hot water and low pressure steam applications
  • Patented vapor charged bellows for quick response from valve mounted operators
  • Snap-action mechanism for standard valve mounted operators for ease of installation and removal without the use of tools
  • Valve Orientation: Straight

Specifications

013G8032
specs product image PID-32374
General Information
Product Line
RA2000
Valve Type
Thermostatic
Performance
CV Value
2.8
Maximum Operating Temperature
250 F
Dimensions
Product Weight
5 Pounds
Warranty Information
Parts Warranty Learn More
1 Year
