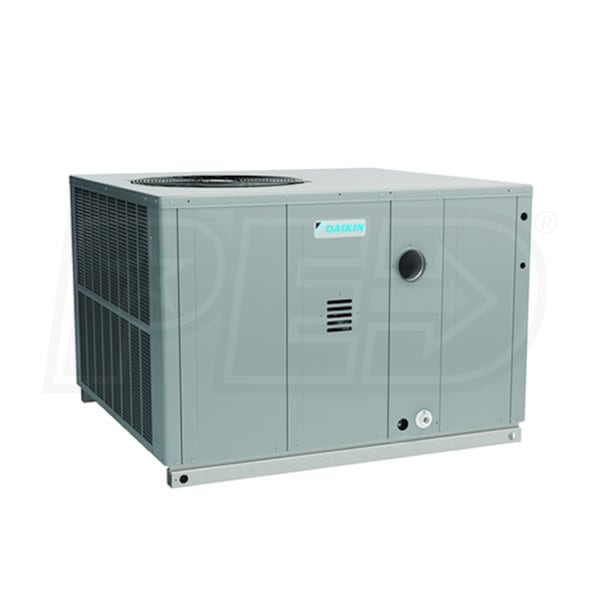

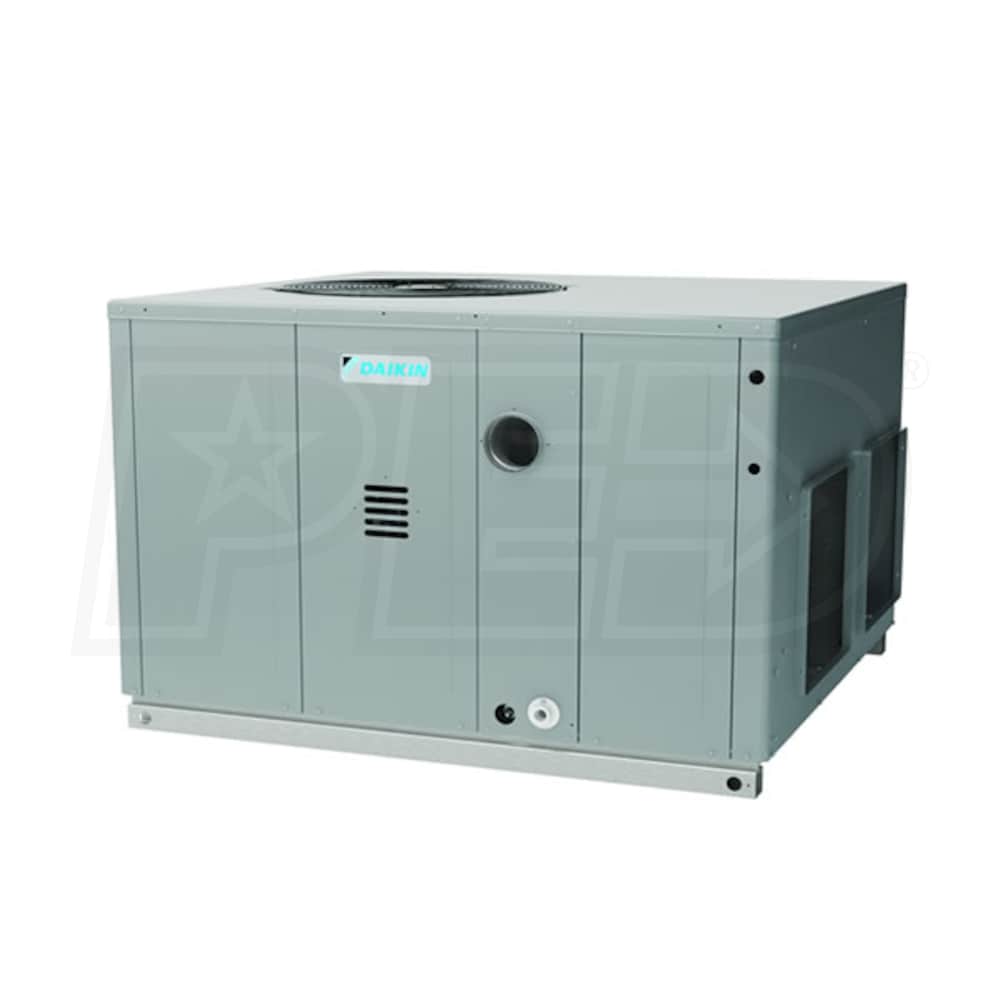

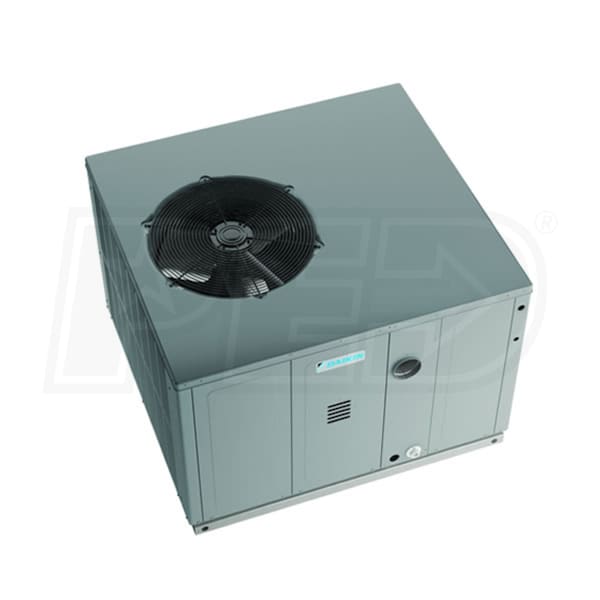

Daikin DP14GM - 4 Ton Cooling - 80,000 BTU Heating - Packaged Gas & Electric Central Air System - 14 SEER - 81% AFUE - Downflow/Horizontal - 208-230/3/60
Model:
DP14GM4808043
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Stainless-Steel Heat Exchanger
- The DP14GM's furnace employs a reliable dual-diameter tubular heat exchanger design. Stainless-steel is used for incredibly efficient heat transfer, and a wrinkle-bend is applied to the tubes to enhance the heat exchanger's dependability and longevity.
- High-Efficiency Coils
- The condenser coil of this packaged unit is designed with aluminum fins and rifled copper tubing to maximize surface area and efficiency. It also features a durable all-aluminum evaporator coil that optimizes heat transfer.
- High-Efficiency Scroll Compressor
- This unit utilizes a high-efficiency scroll compressor with an internal relief valve to provide refrigerant flow. Scroll compressors are renowned for operating more smoothly and reliably than traditional compressors.
- Secure Cabinet
- The cabinet of the DP14GM unit is made from heavy-gauge, galvanized-steel to protect itself from the elements and ensure longevity.
- EEM Motor
- The DP14GM has a multi-speed EEM motor that is cost and energy efficient and can reduce operating costs.
Daikin's packaged HVAC systems offer the perfect all-in-one comfort solution for nearly any residential or light commercial application. The DP14GM series combines a furnace, air conditioning condenser, evaporator coil, and blower all into one unit. Daikin's high-performance compressors operate in tandem with their all-aluminum evaporator coil design, providing powerful heating and cooling without wasting energy. The DP14GM's heavy-gauge, zinc-coated steel cabinet will protect its inner components from all the elements for years to come. Compatible with ground-level or rooftop installations in horizontal or downflow applications, this versatile unit can be adapted for almost any installation requirement.
Product Note
NOTE: Due to DOE regulations, as of January 1st this unit can no longer be installed in the southwest and southeast DOE regions.
California residents see
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm..
For more information go to: www.p65Warnings.ca.gov
Specifications
DP14GM4808043
Overview
Product Category
Packaged HVAC Unit
UPC
663051537194
General Information
Type
Gas/Electric Packaged Unit
Product Line
DP14GM
Product Category
Packaged HVAC Unit
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Fuel Type
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Blower Motor Type
Multi-Speed
Motor Type
EEM
Configuration
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Downflow/Horizontal
Installation Location
Outdoor
Gas Conversion Kit
Available
Compressor Stages
Compressor Stages
Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Single Stage
DOE Regional Compliance
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Performance
AFUE
AFUE
AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
81 %
Capacity
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
4.0 Tons
Cooling BTU
48000
Heating Capacity
80000 BTU
SEER
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
14.0
EER
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
11.0
Maximum Air Flow
1525 CFM
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
80 dB
Low NOx Emissions
Low NOx Emissions
NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Low NOx appliances emit less than 40 ng/J (nanogram per Joule) of NOx. Learn More
Yes
Electrical Data
Voltage
208/230 Volts
Phase
3
Frequency
60 Hz
Minimum Circuit Ampacity
23.2 Amps
Recommended Breaker Size
35 Amps
Dimensions
Product Height
42 3/4 Inches
Product Width
47 Inches
Product Depth
51 Inches
Product Weight
545 Pounds
Shipping Weight
545 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
9956310
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Heat Exchanger Warranty
20 Years
