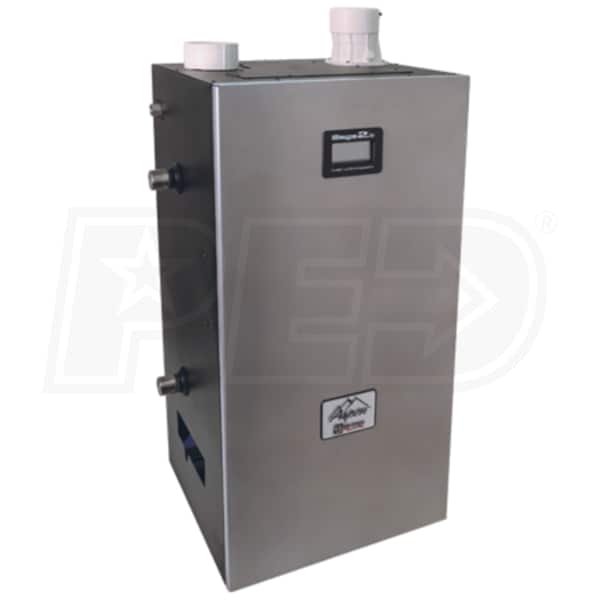

Burnham Aspen Light Commercial - 304K BTU - 95% AFUE - Hot Water Gas Boiler - Direct Vent

Model:

ASPN-320

Write a Review
$6,999.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Only 5 In-Stock
Ships Thursday, Jun 17th
Shipping to60601
synchrony card logo
$88 / Month
With our 132 months 9.99% APR*
132 fixed monthly payments required.
Burnham Aspen Light Commercial - 304K BTU - 95% AFUE - Hot Water Gas Boiler - Direct Vent
Burnham Aspen Light Commercial - 304K BTU - 95% AFUE - Hot Water Gas Boiler - Direct Vent
Model: ASPN-320
$6,999.00
Features
Specifications
Reviews
Accessories
How-To Articles
Manuals
Share

Features

    The Burnham Aspen Light Commercial Series is a high efficiency condensing boiler. With a 10:1 turn down ratio and a variable speed combustion blower, the Aspen is incredibly efficient, reaching an AFUE rating of 95%. The Aspen line also introduces the Sage2.3 boiler control system with easy setup and high performance right out of the box. Unique to the Aspen Light Commercial Series, wall and floor mounting options are standard with pre-installed brackets and feet.
  • Sage2.3 Control System
  • The Sage2.3 system has a simple touchscreen interface built into the boiler. The system provides step-by-step instructions for changing settings and running system diagnostics, making the Aspen one of the most user friendly boilers on the market.
  • Multiple Installation Options
  • The Aspen Light Commercial model comes with built-in wall and floor mount options allowing for flexibility in almost any installation situation. The Aspen's relatively small size and weight allow it to fit in nearly any space.
  • Outdoor Reset
  • The Aspen Light Commercial increases efficiency by including an outdoor sensor, allowing the boiler to lower water temperatures when the outdoor temperatures are warmer.
  • High Altitude
  • The Aspen is ready for higher altitudes with minimal de-rating. This reduces the costs of oversizing a boiler as the Aspen is easily field adjustable.
  • Product Includes
  • (1) Burnham ASPN-320A-6L00 Hot Water Gas Boiler
  • (1) Wall Mounting Kit
  • (1) Outdoor Reset and Sensor
California residents see
Warning: This product can expose you to chemicals including Chromium (hexavalent compounds) which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

ASPN-320
specs product image PID-82241
General Information
Product Line
Aspen
Medium Learn More
Hot Water
Heat Exchanger Material
Stainless Steel
Fuel Type Learn More
Natural Gas
Combustion Type Learn More
Condensing
Vent Type Learn More
Direct Vent
DHW Production Learn More
No
Modulating/Staging Learn More
Modulating
Mount Type
Wall
Minimum Altitude
0 Feet
Maximum Altitude
10100 Feet
Includes Pump
No
Assembly Type
Packaged
UPC
672616764395
Additional Model Numbers

ASPN-320A-6L00, ASPN-320

Performance
AFUE Learn More
95 %
Maximum Input Capacity Learn More
320000 BTU
Minimum Input Capacity
32000 BTU
DOE Heating Capacity Learn More
304000 BTU
Net I=B=R Capacity Learn More
264000 BTU
Ultra Low NOx Emissions Learn More
Yes
Turndown Ratio
10:1
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Flue Connection Size
4 Inches
Gas Connection Size
3/4 Inch
Supply Connection
1 1/2 Inches
Return Connection
1 1/2 Inches
Product Height
45 13/48 Inches
Product Width
23 Inches
Product Depth
22 19/48 Inches
Shipping Weight
270 Pounds
Certifications
Energy Star Listed
Yes
ETL Listed
Yes
ASME Certified
Yes
AHRI Certified
Yes
AHRI Reference Number
10334563
Warranty Information
Parts Warranty Learn More
5 Years
