Buderus G215/4 - 171K BTU - 86.2% AFUE - Hot Water Oil Boiler - Chimney Vent - Includes Beckett AFG Burner

Model:

G215/4-AFG

Write a Review
$3,428.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Factory-Direct
Ships in 3-4 Weeks
synchrony card logo
$60 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
Buderus G215/4 - 171K BTU - 86.2% AFUE - Hot Water Oil Boiler - Chimney Vent - Includes Beckett AFG Burner
Buderus G215/4 - 171K BTU - 86.2% AFUE - Hot Water Oil Boiler - Chimney Vent - Includes Beckett AFG Burner
Model: G215/4-AFG
$3,428.00
Features
Specifications
Reviews
Accessories
How-To Articles
Manuals
Share

Features

    The Buderus G215 oil boiler is a complete home oil heating solution that works equally well in both new construction and renovations of existing buildings. The three pass heat exchanger extracts every last possible BTU of heat energy out of the oil supply, resulting in higher efficiencies across the board. The flexible cast iron included in the boiler's construction, giving the boiler fantastic resistance to thermal shock. Combined with its installation versatility and optimal connection placements, the G215 is a boiler package that will last your home for many years to come.
  • Three-Pass Heat Exchanger
  • The three-pass heat exchanger included with the G215 allows the water to be heated three separate times, allowing a higher water temperature to be maintained throughout the system while improving heating efficiency.
  • Fully Thermally Insulated
  • The G215 boiler is encased by three inches of thermal insulation, keeping generated heat inside the boiler during downtime and preventing heat loss during uptime.
  • Ideal for New Installations or Renovations
  • The G215 boiler is ideal for both new construction and renovations of aged housing due to its adaptive heat exchanger and optimal connection placement.
  • Flexible Cast Iron
  • The heat exchanger of the Buderus G215 boiler is made of patented flexible cast iron, allowing the boiler to resist even the most punishing thermal shock.
  • Product Includes

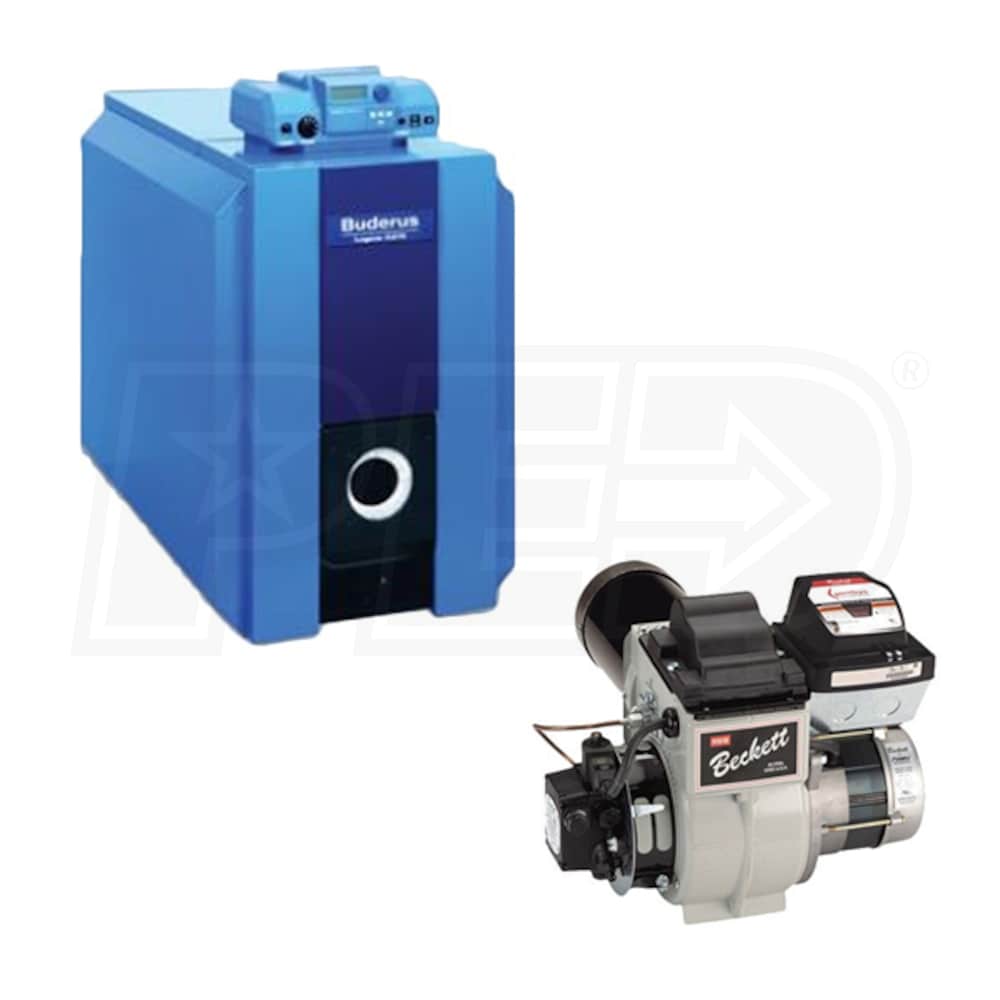

    • (1) Buderus G215/4 - 171K BTU - 86.2% AFUE - Hot Water Oil Boiler - Chimney Vent - Burner Sold Separately (G215/4)
    • (1) Buderus Oil Burner Kit for G215/4 - Beckett AFG - 1.4 GPH - Chimney Vent (7738004860)
    Product Note
    The boiler has an optional Logamatic R2107 that can be purchased separately as an accessory and be mounted onto the top of the boiler.

Specifications

Product Includes
  • (1) Buderus G215/4 - 171K BTU - 86.2% AFUE - Hot Water Oil Boiler - Chimney Vent - Burner Sold Separately (G215/4)
  • (1) Buderus Oil Burner Kit for G215/4 - Beckett AFG - 1.4 GPH - Chimney Vent (7738004860)
G215/4-AFG
specs product image PID-72594
General Information
Product Line
G215
Medium Learn More
Hot Water
Heat Exchanger Material
Cast Iron
Fuel Type Learn More
Oil
Combustion Type Learn More
Conventional
Vent Type Learn More
Chimney Vent
DHW Production Learn More
No
Modulating/Staging Learn More
Single Stage
Mount Type
Floor
Maximum Altitude
2000 Feet
Includes Pump
No
Assembly Type
Semi-Packaged
Performance
AFUE Learn More
86.2 %
Input Rate
1.4 GPH
DOE Heating Capacity Learn More
171000 BTU
Net I=B=R Capacity Learn More
149000 BTU
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Flue Connection Size
6 Inches
Supply Connection
1 1/2 Inches
Return Connection
1 1/2 Inches
Certifications
IBR Listed
Yes
Warranty Information
Parts Warranty Learn More
1 Year
Heat Exchanger Warranty
Lifetime Years
General Information
Product Line
G215
Medium Learn More
Hot Water
Heat Exchanger Material
Cast Iron
Fuel Type Learn More
Oil
Combustion Type Learn More
Conventional
Vent Type Learn More
Chimney Vent
DHW Production Learn More
No
Modulating/Staging Learn More
Single Stage
Mount Type
Floor
Maximum Altitude
2000 Feet
Includes Pump
Included with Burner Kit
Assembly Type
Semi-Packaged
Burner Model
Sold Separately
Performance
AFUE Learn More
86.2 %
Input Rate
1.4 GPH
DOE Heating Capacity Learn More
171000 BTU
Net I=B=R Capacity Learn More
149000 BTU
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Flue Connection Size
6 Inches
Supply Connection
1 1/2 Inches
Return Connection
1 1/2 Inches
Product Height
34 1/2 Inches
Product Width
23 1/2 Inches
Product Depth
31 Inches
Product Weight
500 Pounds
Certifications
IBR Listed
Yes
Warranty Information
Parts Warranty Learn More
1 Year
Heat Exchanger Warranty
Lifetime Years
7738004860
General Information
Product Line
G215
Vent Type Learn More
Chimney Vent
Performance
Maximum Input Capacity Learn More
196000 BTU
Input Rate
1.4 GPH
Dimensions
Product Weight
15 Pounds
Warranty Information
Parts Warranty Learn More
5 Years
