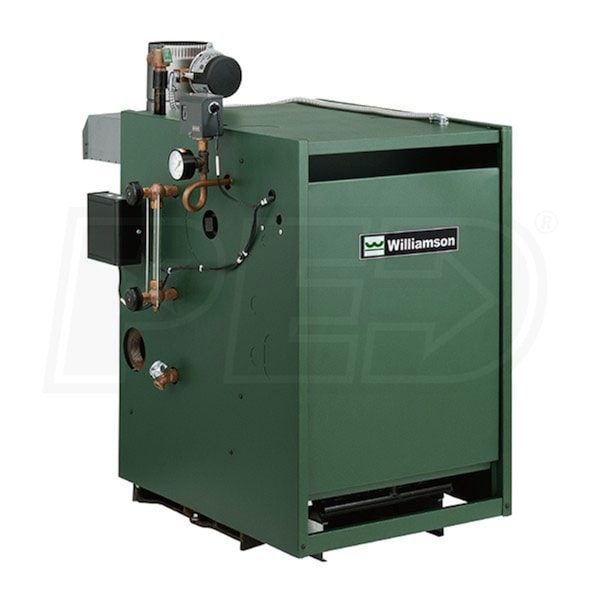

Williamson-Thermoflo GSA-200 - 125K BTU - 82.8% AFUE - Steam Gas Boiler - Chimney Vent (Scratch & Dent)

Williamson-Thermoflo GSA-200 - 125K BTU - 82.8% AFUE - Steam Gas Boiler - Chimney Vent (Scratch & Dent)
Our Price
Compare Prices
Shipping Info
Model: GSA-200-N-IP-SD
(Based on expert analysis, manufacturer ratings and customer reviews)
No RatingNo RatingNo RatingNo RatingNo Rating
Number of Reviews (0)
Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Discontinued
Sorry, this product is no longer available
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Texas, Utah, California or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
    ***Scratch & Dent*** Side, top and back panel are dented. "Uncover warm possibilities" with Williamson-Thermoflo's GSA gas fired steam boiler. The highly efficient GSA-200-N-IP pumps out 200,000 BTUs with an AFUE (annual fuel utilization efficiency) rating of 82.8 percent. The GSA is also designed with a generous heating surface and an automatic vent damper to maintain that efficiency. This factory-packaged boiler is equipped with many features, such as a spark (intermittent) pilot system, cast-iron sections, and an insulated heavy-gauge steel jacket. The GSA is also easily serviced with all controls in reach and a one-piece access door. Since it is factory tested and comes with a limited 10 year warranty on boiler sections, you can be absolutely sure that your investment is reliable and built to last.
  • Factory Tested
  • Every single GSA boiler is factory tested, ensuring reliability and properly functioning equipment.
  • Factory Packaged
  • GSA boilers are factory packaged meaning that the boiler comes to you with cast iron sections and the boiler assembled and ready for installation.
  • Easy Service
  • Service is simple with a one-piece access door and easily accessible controls.
  • 10 Year Warranty
  • A limited 10 year warranty on boiler parts means that you can rest assured that your investment is covered, should there be a problem.
Specifications
General Information
Product Line
GSA
Medium Learn More
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Steam
Heat Exchanger Material
Cast Iron
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Combustion Type Learn More
Combustion Type
Condensing appliances use leftover thermal energy from combustion gases to heat water in a secondary heat exchanger, resulting in higher efficiency and lower exhaust temperature.
Conventional
Vent Type Learn More
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Chimney Vent
DHW Production Learn More
DHW Production
DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
No
Modulating/Staging Learn More
Modulating/Staging
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Single Stage
Mount Type
Floor
Minimum Altitude
0 Feet
Maximum Altitude
2000 Feet
Includes Pump
No
Assembly Type
Packaged
Performance
AFUE Learn More
AFUE
AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
82 %
Maximum Input Capacity Learn More
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
200000 BTU
DOE Heating Capacity Learn More
DOE Heating Capacity
Also referred to as Gross Output, this is the output of a boiler after accounting for combustion efficiency. We recommend sizing hot water boilers based on the DOE Heating Capacity.
167000 BTU
Net I=B=R Capacity Learn More
Net I=B=R Capacity
I=B=R, also referred to as Net Output or AHRI Capacity, is the rated heat output of a boiler after accounting for combustion efficiency, piping loss, and an extra pickup factor. We recommend sizing steam boilers based on the I=B=R rating.
125000 BTU
Ultra Low NOx Emissions Learn More
Ultra Low NOx Emissions
NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx. Learn More
No
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Flue Connection Size
7 Inches
Gas Connection Size
1/2 Inch
Supply Connection
3 Inches
Return Connection
2 1/2 Inches
Product Height
41 3/8 Inches
Product Width
37 1/4 Inches
Product Depth
39 3/8 Inches
Product Weight
585 Pounds
Shipping Weight
595 Pounds
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Heat Exchanger Warranty
10 Years
Features
Features
    ***Scratch & Dent*** Side, top and back panel are dented. "Uncover warm possibilities" with Williamson-Thermoflo's GSA gas fired steam boiler. The highly efficient GSA-200-N-IP pumps out 200,000 BTUs with an AFUE (annual fuel utilization efficiency) rating of 82.8 percent. The GSA is also designed with a generous heating surface and an automatic vent damper to maintain that efficiency. This factory-packaged boiler is equipped with many features, such as a spark (intermittent) pilot system, cast-iron sections, and an insulated heavy-gauge steel jacket. The GSA is also easily serviced with all controls in reach and a one-piece access door. Since it is factory tested and comes with a limited 10 year warranty on boiler sections, you can be absolutely sure that your investment is reliable and built to last.
  • Factory Tested
  • Every single GSA boiler is factory tested, ensuring reliability and properly functioning equipment.
  • Factory Packaged
  • GSA boilers are factory packaged meaning that the boiler comes to you with cast iron sections and the boiler assembled and ready for installation.
  • Easy Service
  • Service is simple with a one-piece access door and easily accessible controls.
  • 10 Year Warranty
  • A limited 10 year warranty on boiler parts means that you can rest assured that your investment is covered, should there be a problem.
Specifications
General Information
Product Line
GSA
Medium Learn More
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Steam
Heat Exchanger Material
Cast Iron
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Combustion Type Learn More
Combustion Type
Condensing appliances use leftover thermal energy from combustion gases to heat water in a secondary heat exchanger, resulting in higher efficiency and lower exhaust temperature.
Conventional
Vent Type Learn More
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Chimney Vent
DHW Production Learn More
DHW Production
DHW (Domestic Hot Water) is potable water for uses other than space heat. Some boilers are able to provide DHW "out of the box", while others can do so with the purchase of optional accessories.
No
Modulating/Staging Learn More
Modulating/Staging
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Single Stage
Mount Type
Floor
Minimum Altitude
0 Feet
Maximum Altitude
2000 Feet
Includes Pump
No
Assembly Type
Packaged
Performance
AFUE Learn More
AFUE
AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
82 %
Maximum Input Capacity Learn More
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
200000 BTU
DOE Heating Capacity Learn More
DOE Heating Capacity
Also referred to as Gross Output, this is the output of a boiler after accounting for combustion efficiency. We recommend sizing hot water boilers based on the DOE Heating Capacity.
167000 BTU
Net I=B=R Capacity Learn More
Net I=B=R Capacity
I=B=R, also referred to as Net Output or AHRI Capacity, is the rated heat output of a boiler after accounting for combustion efficiency, piping loss, and an extra pickup factor. We recommend sizing steam boilers based on the I=B=R rating.
125000 BTU
Ultra Low NOx Emissions Learn More
Ultra Low NOx Emissions
NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx. Learn More
No
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Flue Connection Size
7 Inches
Gas Connection Size
1/2 Inch
Supply Connection
3 Inches
Return Connection
2 1/2 Inches
Product Height
41 3/8 Inches
Product Width
37 1/4 Inches
Product Depth
39 3/8 Inches
Product Weight
585 Pounds
Shipping Weight
595 Pounds
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Heat Exchanger Warranty
10 Years
