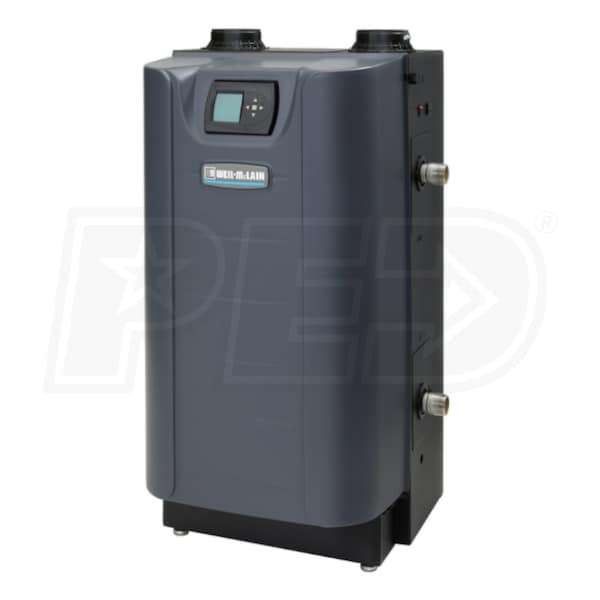

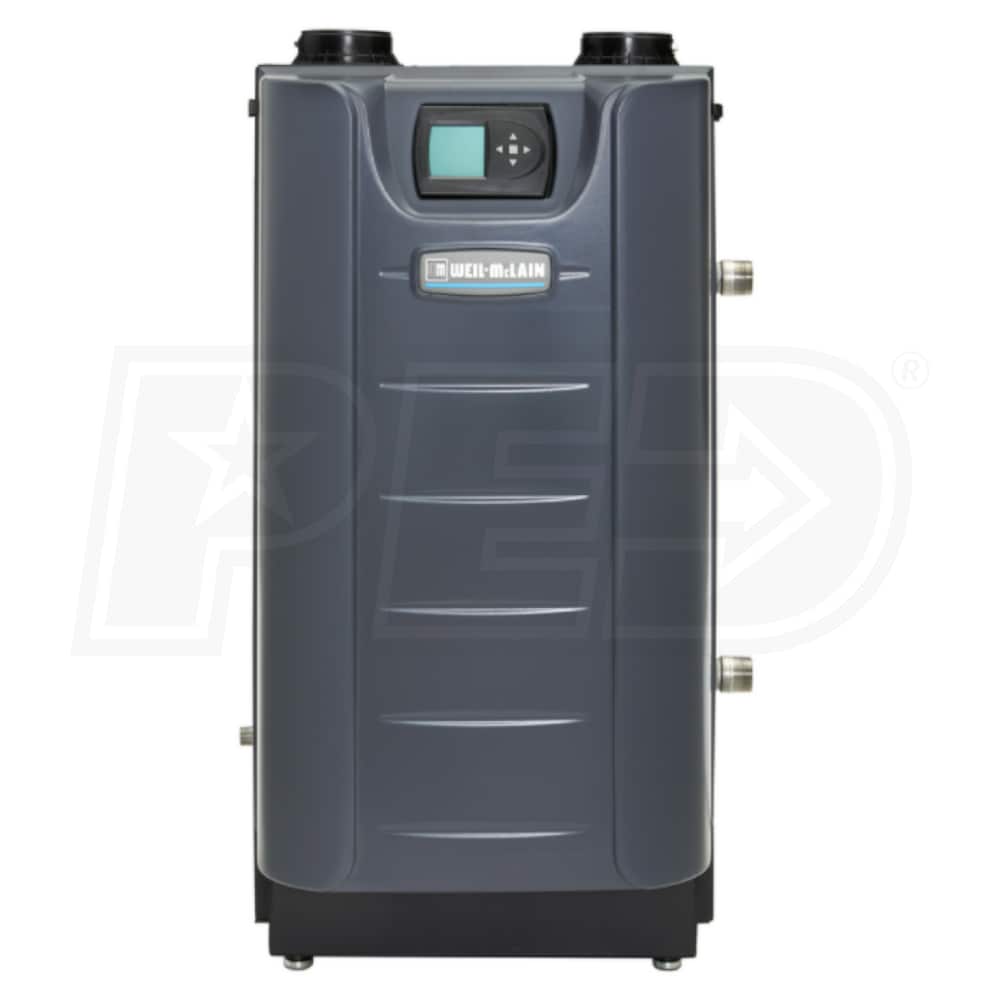

Weil-McLain EVG 110 - 101K BTU - 95% AFUE - Hot Water Gas Boiler - Direct Vent

Model:

383900005

Write a Review
$3,193.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
In-Stock
Ships in 1-2 Business Days
Shipping to60601
synchrony card logo
$56 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
Weil-McLain EVG 110 - 101K BTU - 95% AFUE - Hot Water Gas Boiler - Direct Vent
Weil-McLain EVG 110 - 101K BTU - 95% AFUE - Hot Water Gas Boiler - Direct Vent
Model: 383900005
$3,193.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Bob, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
    Using its modulating burner to scale fuel use and condensing technology to reuse heat that traditional boilers lose, the Weil-McLain EVG 110 is rated as one of the most efficient boilers on the market. With multiple features making the EVG 110 easy to install and maintain, the Evergreen line has made home boilers easier to use than ever. The flexibility of the Evergreen line is unmatched, as up to eight units can be connected and controlled simultaneously. With the ability to be wall or floor mounted, the Evergreen series boilers can fit in almost any application.
  • Durable Design
  • Using their stainless steel heat exchanger technology and non-metallic condensate base, Weil-McLain has designed one of the most durable boilers available. Built in diagnostic tests will ensure your unit is running at peak efficiency at all times.
  • Simple Efficiency
  • With a 95% AFUE efficiency rating, the Evergreen series is one of the most efficient boiler lines on the market. Not only will this keep utility bills lower, but it will help to reduce carbon footprint as well.
  • Easy Heat, Effortless Comfort
  • The Evergreen boilers are easy to install and even easier to maintain. With an optional wall kit (sold separately), they will fit in nearly any space.
  • Innovative Control
  • Evergreen boilers come with an easy-to-use control that features a Setup Wizard, zone and/or priority control, and integrated low water protection. Interactive diagnostic capabilities makes it easy to monitor controls for years of reliable operation.
  • Product Includes
  • (1) Weil-McLain EVG 110 Hot Water Boiler
  • (1) Taco ECM 007e Circulator
  • (1) Low Water Cut-Off
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

383900005
specs product image PID-82121
General Information
Product Line
Evergreen
Medium Learn More
Hot Water
Fuel Type Learn More
Natural Gas
Combustion Type Learn More
Condensing
Vent Type Learn More
Direct Vent
DHW Production Learn More
No
Modulating/Staging Learn More
Modulating
Mount Type
Floor/Wall
Maximum Altitude
11000 Feet
Includes Pump
Yes
Assembly Type
Packaged
Gas Conversion Kit
Available
UPC
0672619209527
Additional Model Numbers

EVG 110, 383900005

Performance
AFUE Learn More
95 %
Maximum Input Capacity Learn More
110000 BTU
Minimum Input Capacity
22000 BTU
DOE Heating Capacity Learn More
101000 BTU
Net I=B=R Capacity Learn More
88000 BTU
Turndown Ratio
5:1
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Flue Connection Size
3 Inches
Gas Connection Size
1/2 Inch
Supply Connection
1 Inch
Return Connection
1 Inch
Product Height
40 3/4 Inches
Product Width
17 5/8 Inches
Product Depth
18 5/8 Inches
Product Weight
125 Pounds
Shipping Weight
125 Pounds
Certifications
Energy Star Listed
Yes
CSA Listed
Yes
ASME Certified
Yes
AHRI Certified
Yes
AHRI Reference Number
10511533
Warranty Information
Parts Warranty Learn More
5 Years
Heat Exchanger Warranty
12 Years
