Watts Radiant HydroNex - 7 Circuits - Zone Basic Panel - With Actuators

Watts Radiant HydroNex - 7 Circuits - Zone Basic Panel - With Actuators
Model: ZB-A-7
$1,456.00
Ships in 4-7 Business Days
Free Shipping
Circuits
Actuators

Ships in 4-7 Business Days
Free Freight
Free Freight
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features

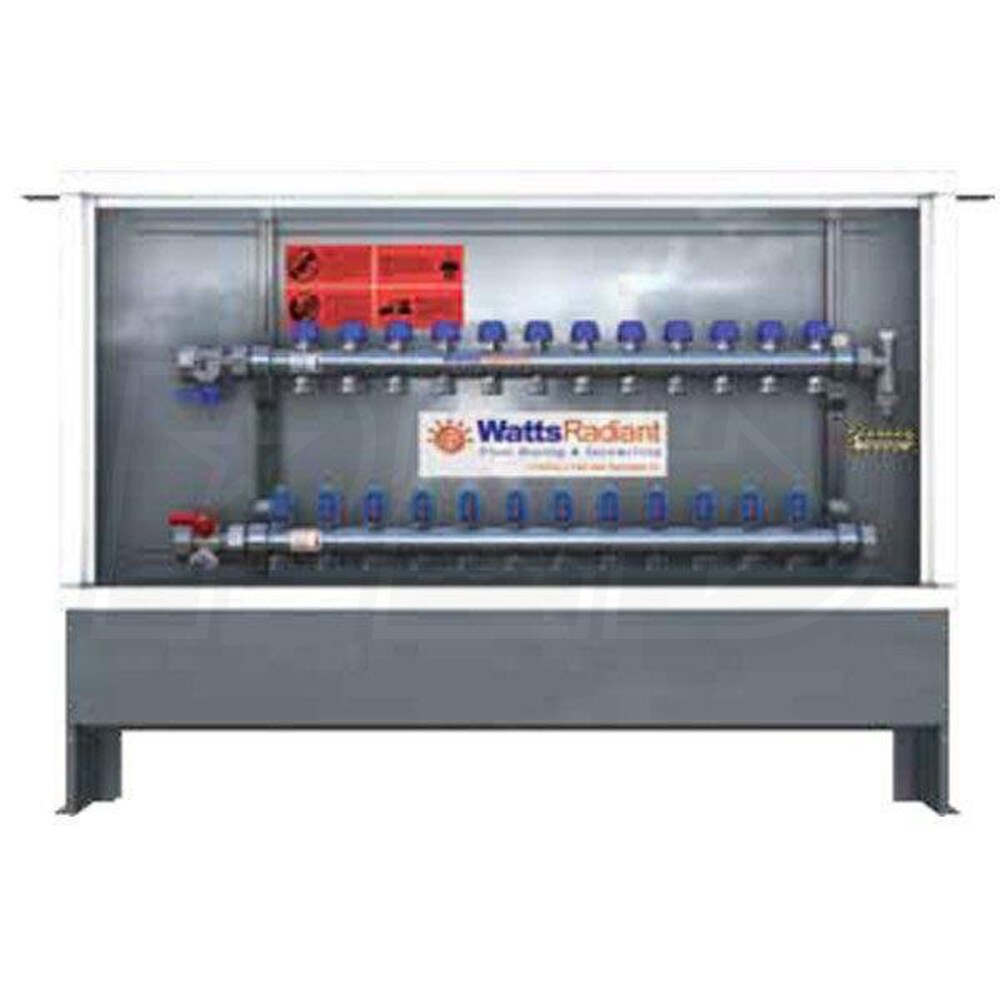

    Zone panels combination of commonly used components and pre-installed wiring make them Watts Radiant's most popular panel. The ZB-A-7 panel combines a rigid, durable powdered steel casing with a Watts Radiant M series stainless steel manifold. The manifold is pre-mounted to the casing, taking any guesswork out of installation. The enclosure has a built-in latching door to prevent tampering, and the manifold includes isolation valves, temperature gauges, and a vent and purge assembly.
  • Long Lasting Strength
  • The panel itself is made out of powder coated steel. This gives the panel the strength and rigidity it needs to give you years of reliable use.
  • Stainless Steel Manifold
  • The included distribution manifold is made from stainless steel for corrosion resistance and can supply up to 2 GPM to each zone. Flow meters are included for each circuit for quick temperature readings.
  • Pre-Wired Valve Actuators
  • This zone panel contains actuators for every single outlet on the included manifold. These actuators are pre-wired to an included valve actuator control, taking any guesswork out of the installation.
Specifications
General Information
Type
Zone Basic Panel
Product Line
HydroNex
UPC
840213075996
Dimensions
End 1 Connection Type
NPT
End 1 Connection Size
1.25 Inches
End 2 Connection Type
NPT
End 2 Connection Size
1.25 Inches
Product Height
29.5 Inches
Product Width
41.5 Inches
Product Depth
4.5 Inches
Shipping Weight
65 Pounds
Certifications
Country of Origin
United States
Warranty Information
Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Features
Features
    Zone panels combination of commonly used components and pre-installed wiring make them Watts Radiant's most popular panel. The ZB-A-7 panel combines a rigid, durable powdered steel casing with a Watts Radiant M series stainless steel manifold. The manifold is pre-mounted to the casing, taking any guesswork out of installation. The enclosure has a built-in latching door to prevent tampering, and the manifold includes isolation valves, temperature gauges, and a vent and purge assembly.
  • Long Lasting Strength
  • The panel itself is made out of powder coated steel. This gives the panel the strength and rigidity it needs to give you years of reliable use.
  • Stainless Steel Manifold
  • The included distribution manifold is made from stainless steel for corrosion resistance and can supply up to 2 GPM to each zone. Flow meters are included for each circuit for quick temperature readings.
  • Pre-Wired Valve Actuators
  • This zone panel contains actuators for every single outlet on the included manifold. These actuators are pre-wired to an included valve actuator control, taking any guesswork out of the installation.
Specifications
General Information
Type
Zone Basic Panel
Product Line
HydroNex
UPC
840213075996
Dimensions
End 1 Connection Type
NPT
End 1 Connection Size
1.25 Inches
End 2 Connection Type
NPT
End 2 Connection Size
1.25 Inches
Product Height
29.5 Inches
Product Width
41.5 Inches
Product Depth
4.5 Inches
Shipping Weight
65 Pounds
Certifications
Country of Origin
United States
Warranty Information
Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Product Specs
+
Specifications
General Information
Type
Zone Basic Panel
Product Line
HydroNex
UPC
840213075996
Dimensions
End 1 Connection Type
NPT
End 1 Connection Size
1.25 Inches
End 2 Connection Type
NPT
End 2 Connection Size
1.25 Inches
Product Height
29.5 Inches
Product Width
41.5 Inches
Product Depth
4.5 Inches
Shipping Weight
65 Pounds
Certifications
Country of Origin
United States
Warranty Information
Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
