Watts Radiant UnderFloor - 12.67 Sq. Ft. - Underfloor Heating Mat - 120V - 16" x 9.5' - 1 Amps

Watts Radiant UnderFloor - 12.67 Sq. Ft. - Underfloor Heating Mat - 120V - 16" x 9.5' - 1 Amps
Model: 1200916U2HW
Product Discontinued
Sorry, this product is no longer available.
There Is A Newer Model Of This Item
Discontinued

(as of 09:42 CST - Details) Sales Tax Extra $85.09Visit Site
Only 1 In-Stock
Ships Wednesday, Jan 24th
Enter your ZIP Code below to see an estimated arrival time of delivery to your home or business.
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Shipping Info
Shipping Info
Expedited Shipping
Expedited Shipping
  • Product Description
  • 1
    Reviews
  • 2
    Product Q&A
  • How-To Articles
  • Manuals
Product Description
+
Features
Features

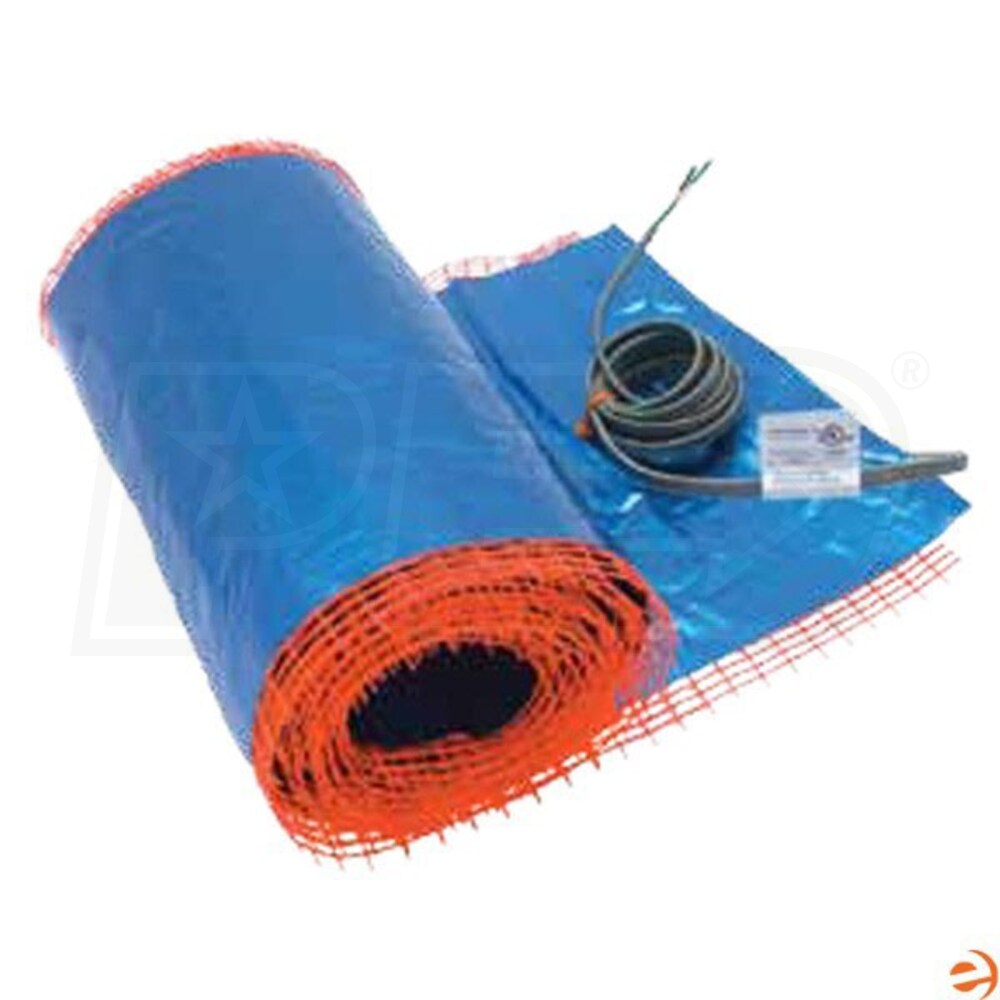

    This is a Watts Radiant UnderFloor mat, a variation of HeatWeave heating mats that are used for already existing flooring. The 1200916U2HW mat is designed to fit in between already existing joists and can be stapled in place quickly and easily. Designed to heat wood, vinyl, laminate, and tile floor coverings with ease, the UnderFloor mats use the same industry leading wire as other Watts Radiant electric radiant heating products. The wires are shielded and fully grounded, guaranteeing operational safety in a vast range of existing building types.

    Product Features

    Dual High-Grade Copper Heating Elements
    The heating wire's heating element is made from high quality oxygen-free copper, giving the wire uncompromising heat transfer efficiency while retaining flexibility. The entire wire contains a pair of twisted heating elements which keeps the electromagnetic field generated by the wire to a minimum.

    ETFE Wire Insulation with Grounding Jacket
    The heating wire is enveloped in a durable ETFE insulation. This unique insulation offers significant resilience against chemical and temperature corrosion. The two wires are then bound together by a stainless steel jacket for grounding and durability purposes.

    Single Power Lead
    Both wires connect to the power supply with a single power lead, simplifying labor and reducing installation time.

    Flexible Mesh Siding
    The sides of the mat are made of a flexible material arranged in a grid. This arrangement allows the mat to be stapled to floor joists using simple wood staples.

Specifications
General Information
Type
Mat
Product Line
UnderFloor
Application
Floor Heating
UPC
840213087241
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Current Draw
1 Amp
Dimensions
Product Length
9.5 Feet
Area Covered
12.67 Square Feet
Product Width
16 Inches
Shipping Weight
4 Pounds
Warranty Information
Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
25 Years
Certifications
Country of Origin
United States
UL Listed
Yes
Features
Features

    This is a Watts Radiant UnderFloor mat, a variation of HeatWeave heating mats that are used for already existing flooring. The 1200916U2HW mat is designed to fit in between already existing joists and can be stapled in place quickly and easily. Designed to heat wood, vinyl, laminate, and tile floor coverings with ease, the UnderFloor mats use the same industry leading wire as other Watts Radiant electric radiant heating products. The wires are shielded and fully grounded, guaranteeing operational safety in a vast range of existing building types.

    Product Features

    Dual High-Grade Copper Heating Elements
    The heating wire's heating element is made from high quality oxygen-free copper, giving the wire uncompromising heat transfer efficiency while retaining flexibility. The entire wire contains a pair of twisted heating elements which keeps the electromagnetic field generated by the wire to a minimum.

    ETFE Wire Insulation with Grounding Jacket
    The heating wire is enveloped in a durable ETFE insulation. This unique insulation offers significant resilience against chemical and temperature corrosion. The two wires are then bound together by a stainless steel jacket for grounding and durability purposes.

    Single Power Lead
    Both wires connect to the power supply with a single power lead, simplifying labor and reducing installation time.

    Flexible Mesh Siding
    The sides of the mat are made of a flexible material arranged in a grid. This arrangement allows the mat to be stapled to floor joists using simple wood staples.

Specifications
General Information
Type
Mat
Product Line
UnderFloor
Application
Floor Heating
UPC
840213087241
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Current Draw
1 Amp
Dimensions
Product Length
9.5 Feet
Area Covered
12.67 Square Feet
Product Width
16 Inches
Shipping Weight
4 Pounds
Warranty Information
Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
25 Years
Certifications
Country of Origin
United States
UL Listed
Yes
Product Specs
+
Specifications
General Information
Type
Mat
Product Line
UnderFloor
Application
Floor Heating
UPC
840213087241
Electrical Data
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Current Draw
1 Amp
Dimensions
Product Length
9.5 Feet
Area Covered
12.67 Square Feet
Product Width
16 Inches
Shipping Weight
4 Pounds
Warranty Information
Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
25 Years
Certifications
Country of Origin
United States
UL Listed
Yes
Reviews
(1)
+
Watts Radiant 1200916U2HW Reviews & Ratings
Product Q&A
(2)
+
Is closed cell insulating foam an option to spray on the heating mat?
Allan
from Nevada
May 25, 2016
Read Response +
Answer
Spray foam is an option, but there are a couple of important precautions that must be observed. The 2" air gap above the mat must be maintained under all conditions, and the total R-value of the foam cannot exceed R-19. Also, the foam cannot be in direct contact with the mat, so some sort of barrier will be needed to separate the two.
Hide Response -
I have a old house, I'd like to apply a heat source between floor joists in the basement under current tile floors.What would you advise?
Bob S.
from Rhode Island
January 19, 2016
Read Response +
Answer
The UnderFloor mats in your inquiry are likely the simplest solution, but may consume a lot of energy depending on how large of an area you are heating and how frequently they will be used. They also will require that an electrician pull new circuits to power them.

If your home already has an existing boiler, it may be more cost effective to suspend radiant tubing in the joist bays.

Please feel free to call us and discuss these options further.
Hide Response -
