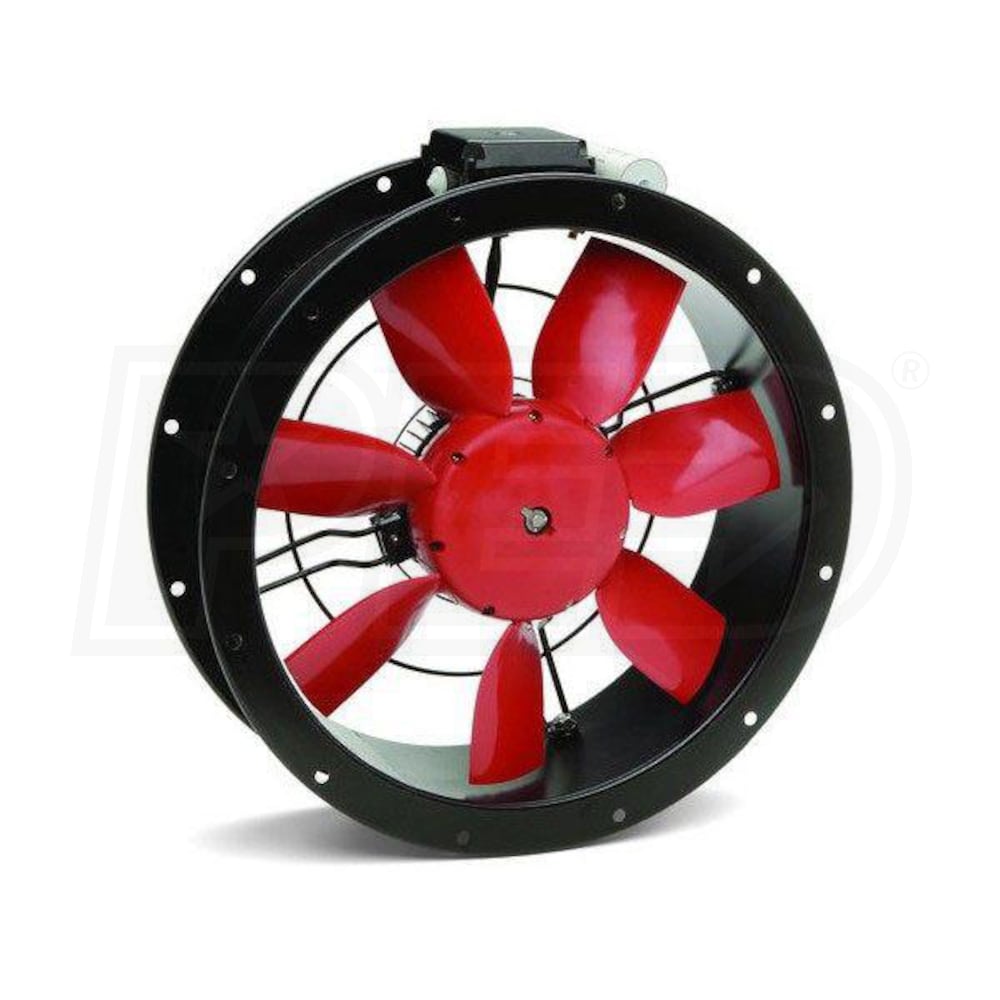

Soler & Palau DA 20 Low Silhouette Tubular Duct Axial Fan, Aerofoil Blade - 20", 4,750 CFM

Model:

DA 20

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Soler & Palau DA 20 Low Silhouette Tubular Duct Axial Fan, Aerofoil Blade - 20
Soler & Palau DA 20 Low Silhouette Tubular Duct Axial Fan, Aerofoil Blade - 20", 4,750 CFM
Model: DA 20
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

    The S&P COMPACT WALL and DUCT AXIAL FANS feature, as the name suggests, an extremely compact design created by the combination of an external rotor motor matched with a direct drive wrap around an impeller hub. This very low profile design optimizes airflow performance while minimizing noise generation. Both wall and duct mounted versions require an absolute minimum depth for any given wall, ceiling, panel or in-line duct mounted installation. The S&P COMPACT DUCT AXIAL FANS are designed to be installed in-line with inducted or partially ducted ventilation systems for exhaust or supply air applications.
  • Motor
  • All models include asynchronous induction capacitor run and start motors
  • Constructed from die cast aluminum and finished in a black polyester paint coating
  • 100% Speed controllable
  • Totally enclosed IP/65 protection
  • Class F insulation
  • All models include a Safety Auto Reset Thermal Overload Protection
  • Terminal Box
  • Manufactured from high impact grade aluminum
  • IP65 protected
  • Wheel/Impeller
  • Manufactured from glass filled UV resistant polyamide
  • Special Order: Die cast aluminum
  • Corrosion and weather resistant

Specifications

DA 20
specs product image PID-30878
Overview
Product Category
Fans
UPC
812482010541
General Information
Type
Axial Fan
Product Category
Fans
Mount Type
In-Line
Performance
Maximum Air Flow
4750 CFM
Electrical Data
Voltage
120 Volts
Power Consumption
770 Watts
Phase
1
Frequency
60 Hz
Dimensions
Duct Connection
20 Inches
Product Height
23 7/16 Inches
Product Width
23 7/16 Inches
Product Length
7 1/8 Inches
Product Weight
49 Pounds
Warranty Information
Warranty Learn More
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
