Reznor UEAS-130-CC6
Reznor UEAS-130-CC6
Hover to zoom
1 Of 5
Reznor UEAS-130 High Efficiency Gas Fired Unit Heater - Separated Combustion - Thru Wall Vent - 131,000 BTU
Model: UEAS-130-CC6
Recommended
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Number of Reviews(4)
Write a Review
$3,020.00
Was $3,178.95
Free Shipping
&
Lift Gate
Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 3-4 Weeks
Factory items ship direct from the manufacturer. Shipping times vary.
Shipping to60601
Shipping Details
  • Lift Gate Service Available - Free Lift Gate Learn More
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Input Capacity (BTU/h)
Vent Type Learn More
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Available Add-Ons
FREE
Learn More
Lift Gate Service
All products weighing more than 100 lbs. ship via semi-truck. We recommend ordering the Lift Gate Service to safely lower the product to the curb. If you have a loading dock or forklift, you do NOT need a Lift Gate service. If you are a residential customer, you must have at least 2-4 able-bodied people present to unload the product. Learn More
Share
  • Product Description
  • 4
    Reviews
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
    Reznor UEAS-130-CC6 High Efficiency Gas Fired Unit Heater is a 115 volt, high efficiency gas fired unit heater designed to provide efficient heating. It uses separated combustion venting to provide a 131000 BTU/hr. output with a 93% thermal efficiency. Vibration isolated venter motors reduce operating noise. UEAS-130-CC6 provides a 50-60 F rise range. UEAS models use an integrated circuit board with diagnostic indicator lights to control heater operation. External gas connection allows for easy gas service connection. Reznor UEAS-130-CC6 is designed to be suspended from 4 suspension points. UEAS-130-CC6 provides improved efficiency and easier installation over previous Reznor models.
  • Reznor UEAS-130-CC6 Features
  • Transformer for 24-volt controls
  • Multi-try direct spark ignition with 100% lockout
  • PSC venter motor
  • Vibration isolated fan motors
  • 4-pt suspension
  • External gas connection/li
  • Included LP conversion kit
  • Product Note

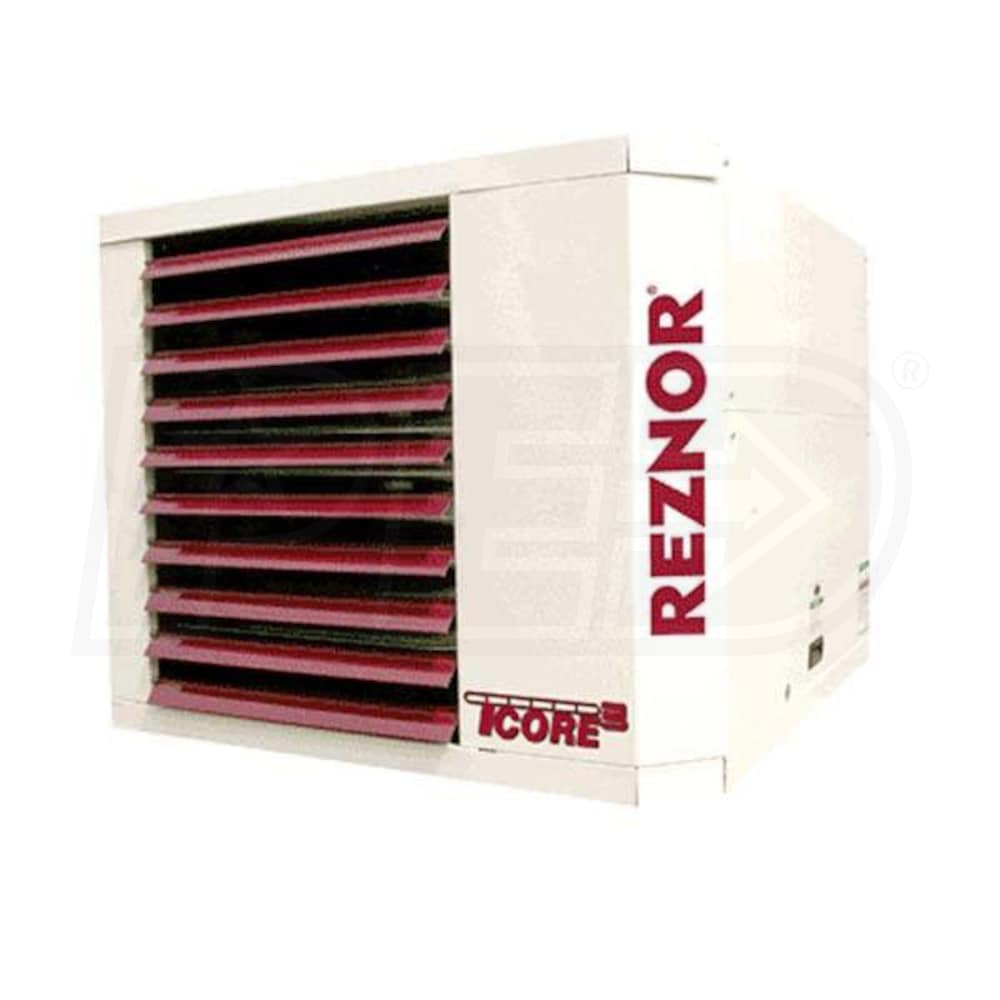

    The image may not reflect actual product features. The Reznor UEAS-130 comes with five horizontal louvers.
Specifications
General Information
Product Line
UEAS
Heat Exchanger Material
Aluminized Steel
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Vent Type Learn More
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Direct Vent
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
Gas Conversion Kit
Included
Performance
Heating Capacity
122000 BTU
Maximum Input Capacity Learn More
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
131000 BTU
Efficiency
93 %
Maximum Air Flow
2256 CFM
Minimum Air Flow
2256 CFM
Electrical Data
Phase
1
Dimensions
Flue Connection Size
4 Inches
Gas Connection Size
1/2 Inch
Product Height
20 1/8 Inches
Product Width
39 3/16 Inches
Product Depth
50 1/2 Inches
Product Weight
230 Pounds
Shipping Weight
230 Pounds
Certifications
Country of Origin
United States
ETL Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Features
Features
    Reznor UEAS-130-CC6 High Efficiency Gas Fired Unit Heater is a 115 volt, high efficiency gas fired unit heater designed to provide efficient heating. It uses separated combustion venting to provide a 131000 BTU/hr. output with a 93% thermal efficiency. Vibration isolated venter motors reduce operating noise. UEAS-130-CC6 provides a 50-60 F rise range. UEAS models use an integrated circuit board with diagnostic indicator lights to control heater operation. External gas connection allows for easy gas service connection. Reznor UEAS-130-CC6 is designed to be suspended from 4 suspension points. UEAS-130-CC6 provides improved efficiency and easier installation over previous Reznor models.
  • Reznor UEAS-130-CC6 Features
  • Transformer for 24-volt controls
  • Multi-try direct spark ignition with 100% lockout
  • PSC venter motor
  • Vibration isolated fan motors
  • 4-pt suspension
  • External gas connection/li
  • Included LP conversion kit
  • Product Note
    The image may not reflect actual product features. The Reznor UEAS-130 comes with five horizontal louvers.
Specifications
General Information
Product Line
UEAS
Heat Exchanger Material
Aluminized Steel
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Vent Type Learn More
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Direct Vent
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
Gas Conversion Kit
Included
Performance
Heating Capacity
122000 BTU
Maximum Input Capacity Learn More
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
131000 BTU
Efficiency
93 %
Maximum Air Flow
2256 CFM
Minimum Air Flow
2256 CFM
Electrical Data
Phase
1
Dimensions
Flue Connection Size
4 Inches
Gas Connection Size
1/2 Inch
Product Height
20 1/8 Inches
Product Width
39 3/16 Inches
Product Depth
50 1/2 Inches
Product Weight
230 Pounds
Shipping Weight
230 Pounds
Certifications
Country of Origin
United States
ETL Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Product Specs
+
Specifications
General Information
Product Line
UEAS
Heat Exchanger Material
Aluminized Steel
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Vent Type Learn More
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Direct Vent
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
Gas Conversion Kit
Included
Performance
Heating Capacity
122000 BTU
Maximum Input Capacity Learn More
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
131000 BTU
Efficiency
93 %
Maximum Air Flow
2256 CFM
Minimum Air Flow
2256 CFM
Electrical Data
Phase
1
Dimensions
Flue Connection Size
4 Inches
Gas Connection Size
1/2 Inch
Product Height
20 1/8 Inches
Product Width
39 3/16 Inches
Product Depth
50 1/2 Inches
Product Weight
230 Pounds
Shipping Weight
230 Pounds
Certifications
Country of Origin
United States
ETL Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
