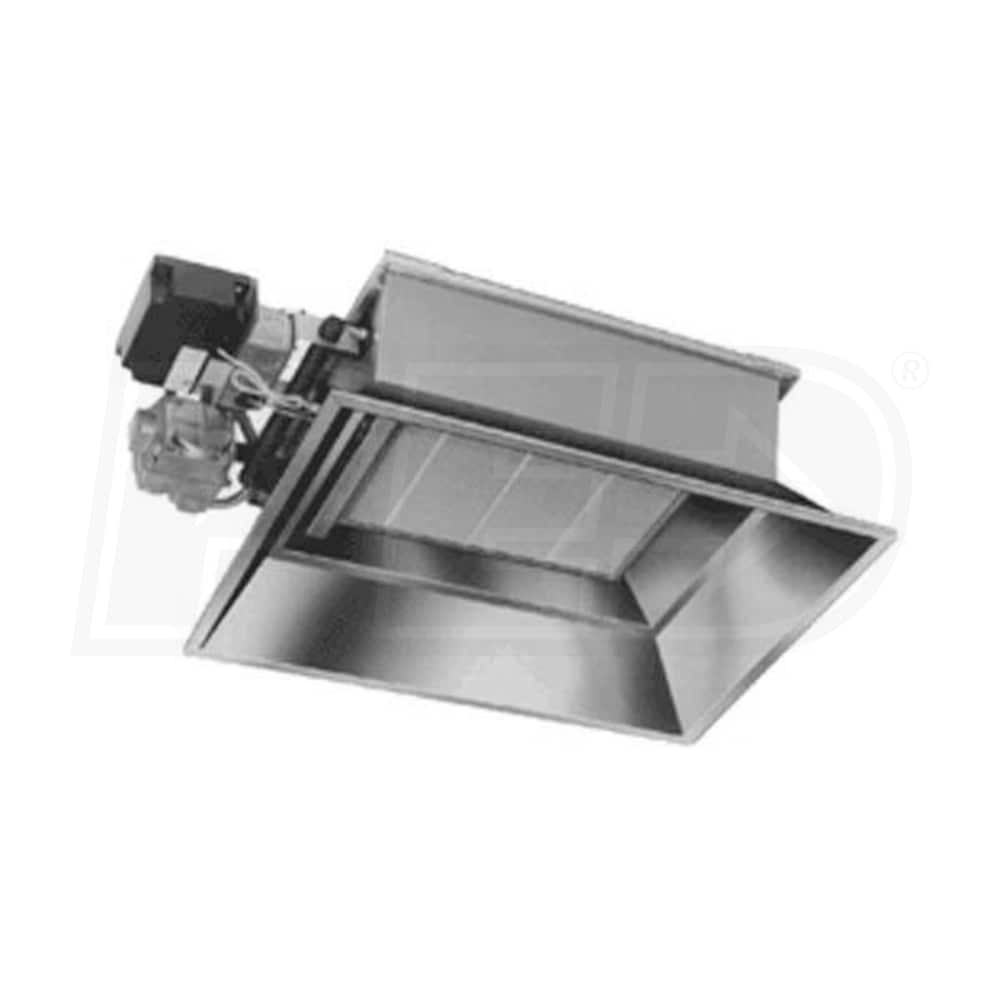

Reznor RIHN60 Gas Fired High Intensity Infrared Heater, NG - 60,000 BTU
Model: RIHN60
+
Share This Product
-
Product Description
-
1Reviews
-
1Product Q&A
-
How-To Articles
-
Manuals
Product Description
+−
Features
Features
- Reznor RIHN60 Features
- Direct spark ignition
- 100% safety shut-off
- Solenoid gas valve, .5" NPT inlet
- Ceramic combustion surface temperature up to 1850 F
- Seamless aluminized steel plenum chamber
- Highly polished aluminum reflector
- Balanced suspension holes, .375" diameter
Reznor RIHN60 Gas Fired High Intensity Infrared Heater is a 115 volt, high-intensity gas fired infrared heater designed to provide efficient heating with reduced energy costs. Reznor RIHN60 uses natural gas to provide a 60000 BTU/hr. output. Infrared heaters use infrared rays to heat floors, walls, and other surfaces without heating the air between them. Heated objects then warm the surrounding air. Infrared heating reduces heat loss when compared to conventional heating equipment with fuel savings of up to 50%. RIHN models can be wall mounted or ceiling suspended.
Specifications
General Information
Product Line
RIH
Fuel Type
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Configuration
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
Finish
Aluminized Steel
Performance
Heating Capacity
60000 BTU
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
1/2 Inch
Product Height
8 1/2 Inches
Product Width
18 3/8 Inches
Product Depth
16 5/8 Inches
Product Weight
26 Pounds
Shipping Weight
36 Pounds
Certifications
Country of Origin
United States
ANSI Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Features
Features
- Reznor RIHN60 Features
- Direct spark ignition
- 100% safety shut-off
- Solenoid gas valve, .5" NPT inlet
- Ceramic combustion surface temperature up to 1850 F
- Seamless aluminized steel plenum chamber
- Highly polished aluminum reflector
- Balanced suspension holes, .375" diameter
Reznor RIHN60 Gas Fired High Intensity Infrared Heater is a 115 volt, high-intensity gas fired infrared heater designed to provide efficient heating with reduced energy costs. Reznor RIHN60 uses natural gas to provide a 60000 BTU/hr. output. Infrared heaters use infrared rays to heat floors, walls, and other surfaces without heating the air between them. Heated objects then warm the surrounding air. Infrared heating reduces heat loss when compared to conventional heating equipment with fuel savings of up to 50%. RIHN models can be wall mounted or ceiling suspended.
Specifications
General Information
Product Line
RIH
Fuel Type
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Configuration
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
Finish
Aluminized Steel
Performance
Heating Capacity
60000 BTU
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
1/2 Inch
Product Height
8 1/2 Inches
Product Width
18 3/8 Inches
Product Depth
16 5/8 Inches
Product Weight
26 Pounds
Shipping Weight
36 Pounds
Certifications
Country of Origin
United States
ANSI Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Product Specs
+−
Specifications
General Information
Product Line
RIH
Fuel Type
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Configuration
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
Finish
Aluminized Steel
Performance
Heating Capacity
60000 BTU
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
1/2 Inch
Product Height
8 1/2 Inches
Product Width
18 3/8 Inches
Product Depth
16 5/8 Inches
Product Weight
26 Pounds
Shipping Weight
36 Pounds
Certifications
Country of Origin
United States
ANSI Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Product Q&A
(1)
+−
Search Product Q&A's
Answered by Bob, the Heating Product Expert
+−
Can you use propane gas on this model?
Justin L.
from Utah
March 27, 2018
Answer
With this exact product, you cannot use propane with. However, we do sell a propane model but we only have in 50k, 90k and 120k BTU's. RIHL50.
