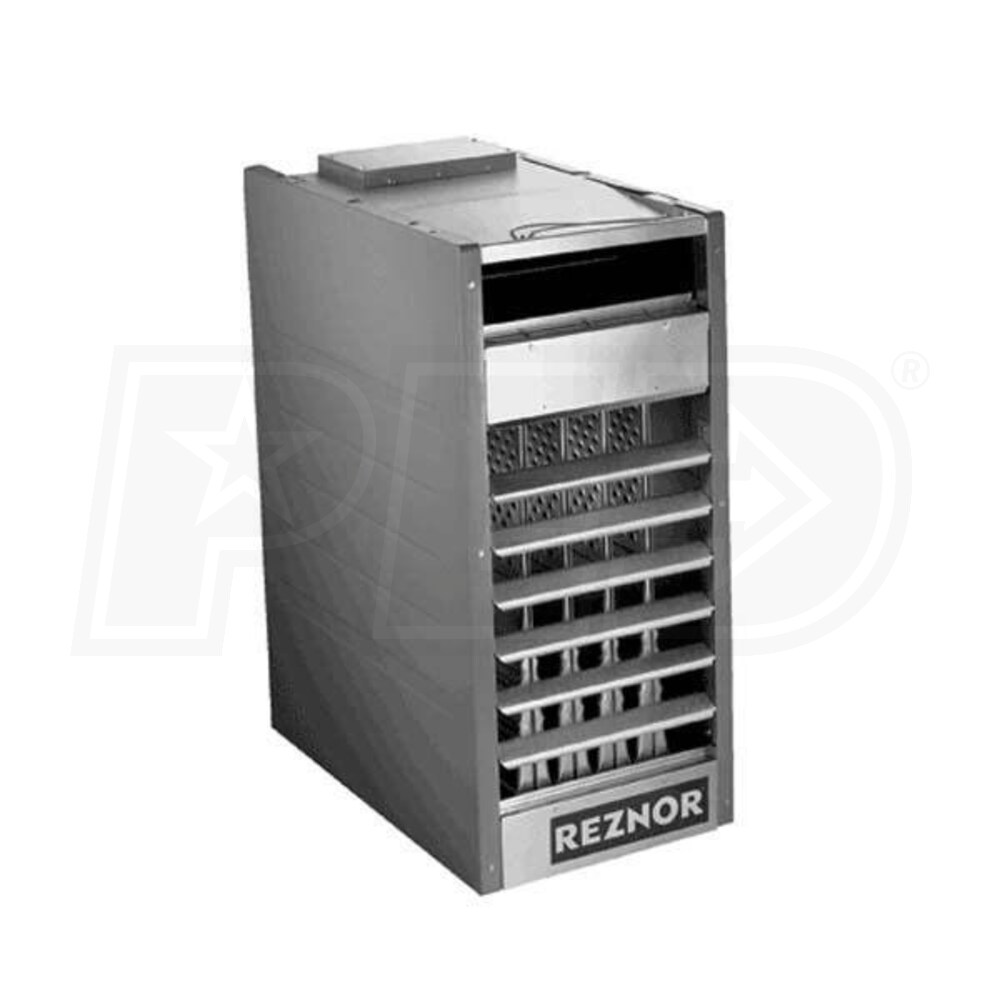

Reznor F-100 Gas Fired Unit Heater - Gravity Vented - NG - Aluminized Heat Exchanger - 100,000 BTU

Reznor F-100 Gas Fired Unit Heater - Gravity Vented - NG - Aluminized Heat Exchanger - 100,000 BTU
Our Price
Compare Prices
Shipping Info
Model: F-100
$1,256.05
Factory-Direct
Ships in 3-4 Weeks
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping
Free Lift Gate Service -
Holiday Shipping Schedule
Holiday Schedule -
Input Capacity (BTU/h)
Fuel Type ? To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Heat Exchanger Material
Add-Ons

Factory-Direct
Ships in 3-4 Weeks
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • 1
    Product Q&A
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
    Reznor F-100 Gas Fired Unit Heater is a 115 volt, gas fired unit heater. It provides a 100000 BTU/hr. output with an 80% thermal efficiency. F models come equipped with blocked vent shut off. Reznor F-100 is designed for ceiling suspension. Gas-fired appliances are not designed for use in atmospheres containing flammable vapors, combustible dust, or chlorinated or halogenated hydrocarbons. In California, F model units require AH2 or AH3 spark pilot.
  • Reznor F-100 Features
  • Aluminized steel heat exchanger
  • Single stage combination gas valve
  • Transformer for 24-volt controls
  • Manual match-lit pilot with 100% lockout
  • Blocked vent shutoff system
  • 2-pt threaded hanger connections
  • Convenient bottom burner access
  • Product Note
    Due to federal regulations, this product includes option code AH3 (spark pilot with timed lock) out and AV7 (vent damper). Option code AV7 will be shipped in a separate box.
Specifications
General Information
Product Line
F
Heat Exchanger Material
Aluminized Steel
Fuel Type ? To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Vent Type ? Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Chimney Vent
Orientation ? Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
Performance
Heating Capacity
80000 BTU
Maximum Input Capacity ? The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
100000 BTU
Efficiency
80 %
Minimum Air Flow
1250 CFM
Maximum Air Flow
1250 CFM
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Dimensions
Flue Connection Size
6 Inches
Gas Connection Size
1/2 Inch
Product Height
30 1/8 Inches
Product Width
17 1/2 Inches
Product Depth
30 1/2 Inches
Product Weight
97 Pounds
Certifications
Country of Origin
United States
CSA Listed
Yes
ANSI Certified
Yes
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Features
Features
    Reznor F-100 Gas Fired Unit Heater is a 115 volt, gas fired unit heater. It provides a 100000 BTU/hr. output with an 80% thermal efficiency. F models come equipped with blocked vent shut off. Reznor F-100 is designed for ceiling suspension. Gas-fired appliances are not designed for use in atmospheres containing flammable vapors, combustible dust, or chlorinated or halogenated hydrocarbons. In California, F model units require AH2 or AH3 spark pilot.
  • Reznor F-100 Features
  • Aluminized steel heat exchanger
  • Single stage combination gas valve
  • Transformer for 24-volt controls
  • Manual match-lit pilot with 100% lockout
  • Blocked vent shutoff system
  • 2-pt threaded hanger connections
  • Convenient bottom burner access
  • Product Note
    Due to federal regulations, this product includes option code AH3 (spark pilot with timed lock) out and AV7 (vent damper). Option code AV7 will be shipped in a separate box.
Specifications
General Information
Product Line
F
Heat Exchanger Material
Aluminized Steel
Fuel Type ? To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Vent Type ? Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Chimney Vent
Orientation ? Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
Performance
Heating Capacity
80000 BTU
Maximum Input Capacity ? The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
100000 BTU
Efficiency
80 %
Minimum Air Flow
1250 CFM
Maximum Air Flow
1250 CFM
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Dimensions
Flue Connection Size
6 Inches
Gas Connection Size
1/2 Inch
Product Height
30 1/8 Inches
Product Width
17 1/2 Inches
Product Depth
30 1/2 Inches
Product Weight
97 Pounds
Certifications
Country of Origin
United States
CSA Listed
Yes
ANSI Certified
Yes
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Product Specs
+
Specifications
General Information
Product Line
F
Heat Exchanger Material
Aluminized Steel
Fuel Type ? To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Vent Type ? Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Chimney Vent
Orientation ? Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
Performance
Heating Capacity
80000 BTU
Maximum Input Capacity ? The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
100000 BTU
Efficiency
80 %
Minimum Air Flow
1250 CFM
Maximum Air Flow
1250 CFM
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Dimensions
Flue Connection Size
6 Inches
Gas Connection Size
1/2 Inch
Product Height
30 1/8 Inches
Product Width
17 1/2 Inches
Product Depth
30 1/2 Inches
Product Weight
97 Pounds
Certifications
Country of Origin
United States
CSA Listed
Yes
ANSI Certified
Yes
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Reviews
+
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Product Q&A
(1)
+
Search Product Q&A's Answered by Chris, the eComfort Product Expert
icon-social-fb1
+
Trying to inquire about the amount of space between top of unit and ceiling? I have a F 50 series unit. Feet or inches?
Johnny M.
from Texas
August 08, 2016
Answer
Please refer to the measurements below for all the clearances:

Sizes Top Sides Rear
25-125k 2" 18" 24"
165-400k 6" 18" 24"
