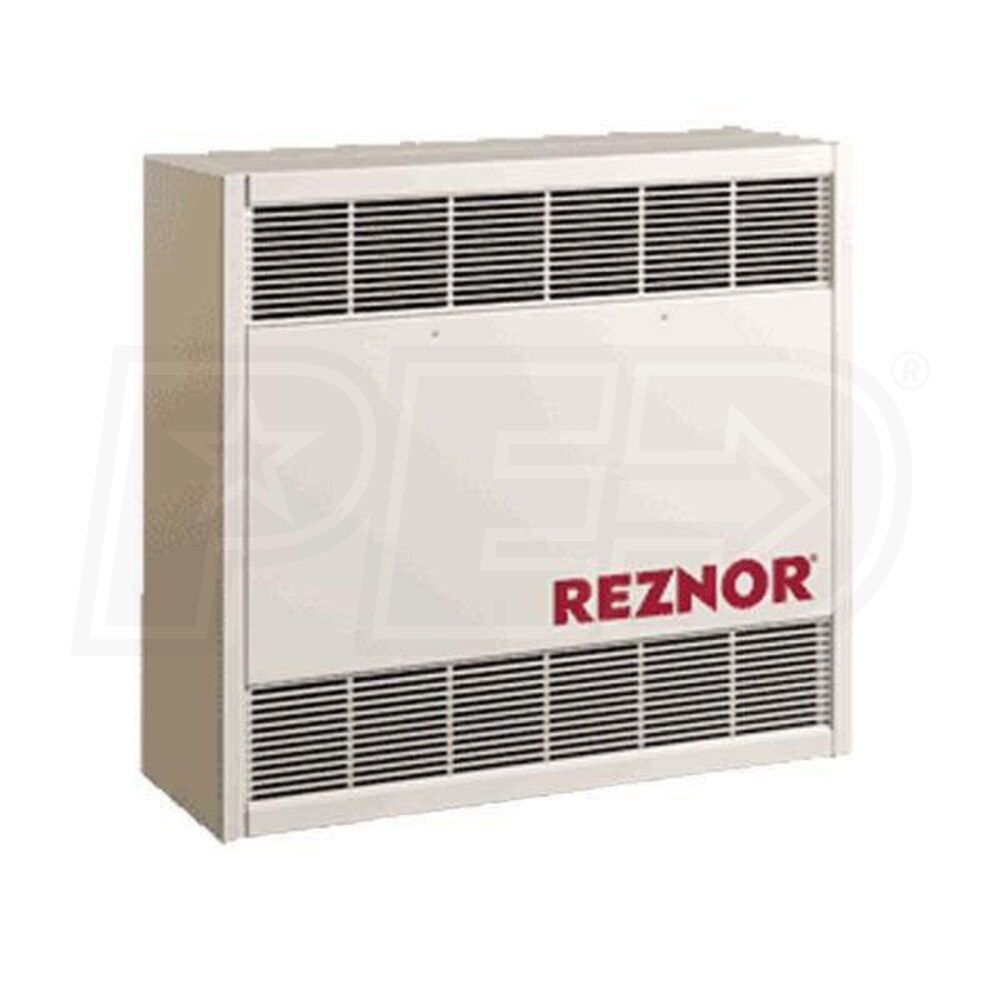

Reznor EMC-5 Electric Cabinet Unit Heater, Wall Mounted, HG1 Config, 240V, 1 Phase - 5 kW (17,072 BTU)
Model: EMC-5-AK3E-HG1
No RatingNo RatingNo RatingNo RatingNo Rating
Number of Reviews(0)
Write a Review
$1,478.30
Was $1,556.11
Free Shipping
&
Lift Gate
Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 3-4 Weeks
Factory items ship direct from the manufacturer. Shipping times vary.
Shipping to60601
Shipping Details
  • Lift Gate Service Available - Free Lift Gate Learn More
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Voltage/Phase
Air Flow Configuration
Available Add-Ons
FREE
Learn More
Lift Gate Service
All products weighing more than 100 lbs. ship via semi-truck. We recommend ordering the Lift Gate Service to safely lower the product to the curb. If you have a loading dock or forklift, you do NOT need a Lift Gate service. If you are a residential customer, you must have at least 2-4 able-bodied people present to unload the product. Learn More
Share
  • Product Description
  • Reviews
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
    Reznor EMC-5-AK3E-HG1 Electric Cabinet Unit Heater is a 240 volt, electric cabinet unit heater equipped with a two-speed motor. It has a maximum heat capacity of 17072 BTU/hr. to provide primary or supplementary heating or freeze protection. The Reznor EMC-5-AK3E-HG1 can be floor or ceiling mounted. EMC models are coated with epoxy/polyester powder paint to provide corrosion resistance.
  • Reznor EMC-5-AK3E-HG1 Features
  • 18 gauge, stainless steel housing
  • High-temperature control with automatic reset
  • Direct drive, variable speed fan
  • Tubular heating elements with fins
  • Epoxy/polyester powder paint
Specifications
General Information
Type
Standard
Product Line
EMC
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Electric
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Vertical
Mount Type
Wall
Performance
Heating Capacity
17072 BTU
Maximum Input Capacity Learn More
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
17072 BTU
Heating Capacity (kW)
5 kW
Maximum Air Flow
250 CFM
Minimum Air Flow
200 CFM
Electrical Data
Voltage
240 Volts
Phase
1
Frequency
60 Hz
Current Draw
20.84 Amps
Dimensions
Product Height
26 Inches
Product Width
28 Inches
Product Depth
10 Inches
Product Weight
115 Pounds
Shipping Weight
115 Pounds
Certifications
Country of Origin
United States
CSA Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
