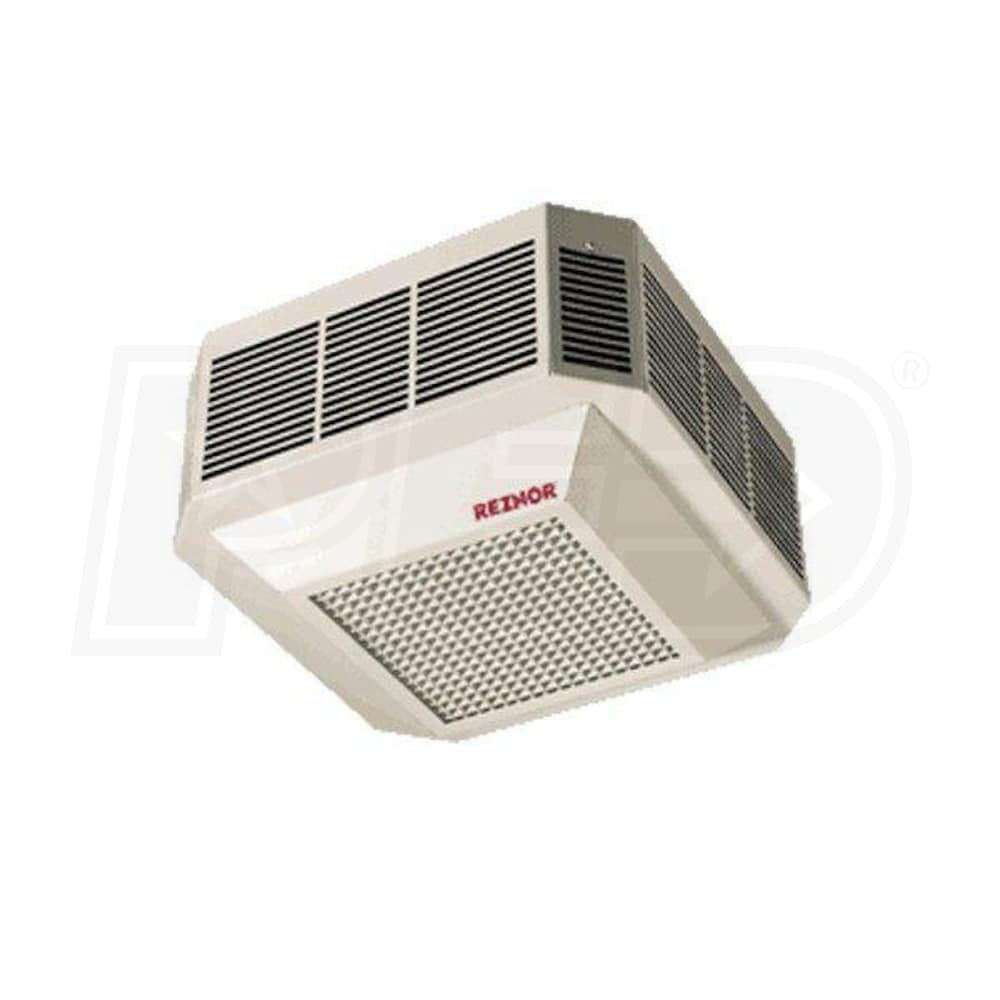

Reznor ECS-10 Ceiling Surface Mounted Electric Unit heater, 208V, 1 Phase - 9.9 kW (33,803 BTU)
Model: ECS-10-AK2
Recommended
No RatingNo RatingNo RatingNo RatingNo Rating
Number of Reviews(0)
Write a Review
$1,827.14
Was $1,923.31
Free Shipping
&
Lift Gate
Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 3-4 Weeks
Factory items ship direct from the manufacturer. Shipping times vary.
Shipping to60601
Shipping Details
  • Lift Gate Service Available - Free Lift Gate Learn More
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Voltage/Phase
Available Add-Ons
FREE
Learn More
Lift Gate Service
All products weighing more than 100 lbs. ship via semi-truck. We recommend ordering the Lift Gate Service to safely lower the product to the curb. If you have a loading dock or forklift, you do NOT need a Lift Gate service. If you are a residential customer, you must have at least 2-4 able-bodied people present to unload the product. Learn More
Share
  • Product Description
  • Reviews
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
    Reznor ECS-10-AK2 Ceiling Surface Mounted Electric Unit Heater is a 208 volt, ceiling mounted electric unit heater. It has an maximum heat capacity of 33803 BTU/hr. to provide supplementary heating in a variety of ceiling constructions. The Reznor ECS-10-AK2 is suitable for use in apartment buildings, drop ceilings, stairwells, garages, and entrance vestibules. With epoxy/polyester powder paint, the ECS-10-AK2 is corrosion resistant.
  • Reznor ECS-10-AK2 Features
  • Three stainless steel tubular heating elements with aluminum fins
  • Epoxy/polyester powder paint
  • High-limit temperature control with automatic reset
Specifications
General Information
Type
Standard
Product Line
ECS
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Electric
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Vertical
Mount Type
Ceiling
Performance
Heating Capacity
33803 BTU
Maximum Input Capacity Learn More
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
33803 BTU
Heating Capacity (kW)
9.9 kW
Maximum Air Flow
700 CFM
Minimum Air Flow
700 CFM
Electrical Data
Voltage
208 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
60 Amps
Current Draw
47.6 Amps
Dimensions
Product Height
8 1/2 Inches
Product Width
22 5/16 Inches
Product Depth
22 5/16 Inches
Product Weight
34 Pounds
Shipping Weight
44 Pounds
Certifications
Country of Origin
United States
CSA Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Heat Exchanger Warranty
10 Years
Features
Features
    Reznor ECS-10-AK2 Ceiling Surface Mounted Electric Unit Heater is a 208 volt, ceiling mounted electric unit heater. It has an maximum heat capacity of 33803 BTU/hr. to provide supplementary heating in a variety of ceiling constructions. The Reznor ECS-10-AK2 is suitable for use in apartment buildings, drop ceilings, stairwells, garages, and entrance vestibules. With epoxy/polyester powder paint, the ECS-10-AK2 is corrosion resistant.
  • Reznor ECS-10-AK2 Features
  • Three stainless steel tubular heating elements with aluminum fins
  • Epoxy/polyester powder paint
  • High-limit temperature control with automatic reset
