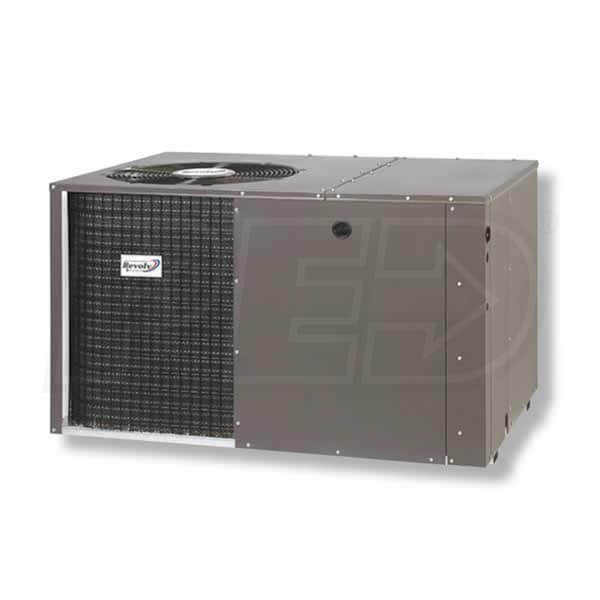

Revolv - 3.0 Ton Cooling - 36k BTU/Hr Heating - Packaged Heat Pump - Manufactured Home - 14.0 SEER - 8.0 HSPF - Horizontal

Revolv - 3.0 Ton Cooling - 36k BTU/Hr Heating - Packaged Heat Pump - Manufactured Home - 14.0 SEER - 8.0 HSPF - Horizontal
Model: RPH1436
$2,250.00
Only 2 In-Stock
Ships Wednesday, Apr 25th
Free Shipping &
Tax-Free (Except IL)
Free Lift Gate Service -
Add-Ons

Only 2 In-Stock
Ships Wednesday, Apr 25th
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
    Revolv is dedicated to bringing efficient comfort to the manufactured and mobile home market. The RPH1436 combines everything you will need for whole home heating and cooling in one convenient package. These 14 SEER systems are designed specifically for manufactured and mobile homes as they feature a compact footprint and profile to fit into any environment. The RPH is built with a galvanized steel frame and features micro-channel coils to ensure peak performance for years to come. Pair it with an optional electric heat kit to supplement your whole home heating as well.
  • Hot Gas Defrost
  • RPH units feature a patented hot gas defrost system to ensure complete, worry-free defrosts when the temperature drops outside.
  • Five Minute Restart
  • A built in five minute delay keeps the unit from instantly restarting after being shut down, eliminating the highest cause of compressor failure.
  • Quality Compressor
  • Revolv packaged units come with a state of the art compressor with a built-in Hi Pressure Switch to ensure a long lasting, efficient compressor.
  • Micro-Channel Coils
  • All of the Revolv models have all aluminum coils, which are highly corrosion resistant and prevent the unit from premature failure.
  • Compact Footprint and Profile
  • By combining the comrpessor and coil into a single unit, the RPC series provides an easy to install, space-saving alternative to traditional home cooling options.
  • Product Note
    Please note, this product uses RQ7RE-036K as its AHRI model number.
Specifications
General Information
Type
Heat Pump Packaged Unit
Operating Mode Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating + Cooling
Refrigerant Type
R-410A
Blower Type Blower type describes the motor that powers the fan in the unit. PSC multi-speed is the standard motor that operates with pre-set fan speed levels. ECM multi-speed are more efficient but still operate with pre-set fan speeds. Finally, ECM variable-speed motors are also energy efficient and automatically adjust to changing system conditions.
ECM Multi-Speed
Orientation Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
Installation Location
Outside
Compressor Stages Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Single Stage
DOE Regional Compliance In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
UPC
663132329465
Performance
Cooling Capacity
35000 BTU
Heating Capacity
34600 BTU
Tonnage Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
3.0 Tons
SEER SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
14.0
EER EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consitantly under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
11.0
HSPF HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system. Learn More
8.0
Maximum Sound Level Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
74 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
28.2 Amps
Recommended Breaker Size
45 Amps
Dimensions
Product Height
30.2 Inches
Product Width
35 Inches
Product Length
49 Inches
Product Weight
263 Pounds
Shipping Weight
277 Pounds
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
10 Years
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
8657778
