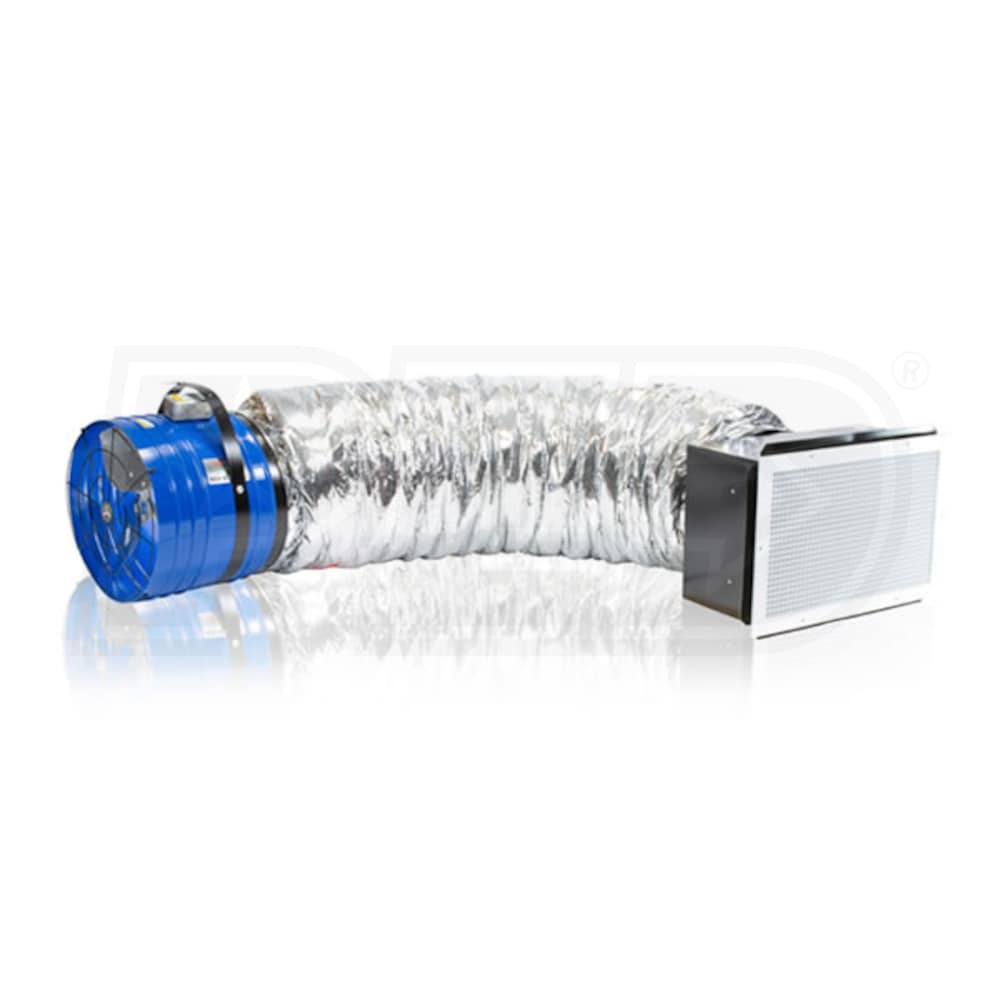

QuietCool - 3,126 CFM - Classic Advanced Whole House Fan
Model: QC CL-3100
+
Share This Product
-
Product Description
-
105Reviews
-
5Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Never run your A/C at night again!
- QuietCool works perfectly at night when the temperature drops, mass-cooling your home without the use of A/C. By mass cooling your home at night it will remain cooler during the day.
- Save up to 50-90% off A/C Usage
- QuietCool advanced whole house fans use and improve upon the principle of ventilation cooling with savings of up to 50-90% off traditional cooling methods such as A/C. The more you use your QuietCool whole house fan, the less you need to use your A/C.
- American Quality
- QuietCool is proudly designed and built in the USA with a 98% customer satisfaction rate.
- Innovative Design
- Zero noise vibration for quiet operation, efficient split capacitor motors to save you money, and R5 Insulated Damper System to ensure no heating/cooling loss between home and attic.

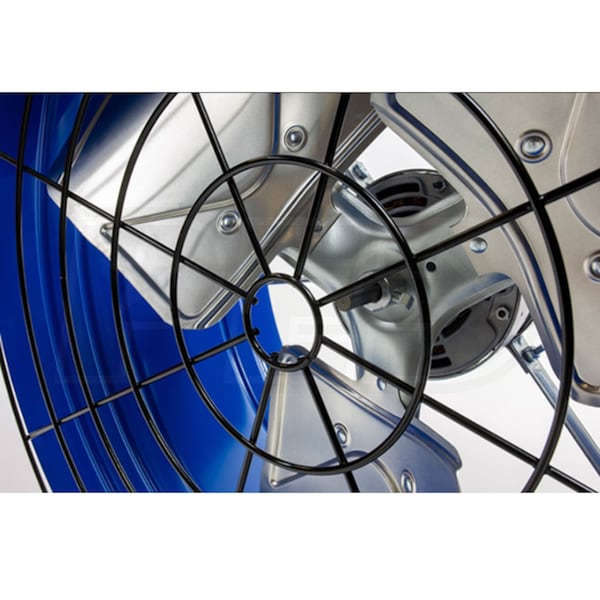

- High Efficiency Motor
- 320-watt, 2-speed PSC motor ensures efficient operation and airflow, fully exchanging air in the room every 3-5 minutes.
- Attic Venting
- 4.1 sq. ft. of net free attic venting required for proper ventilation.

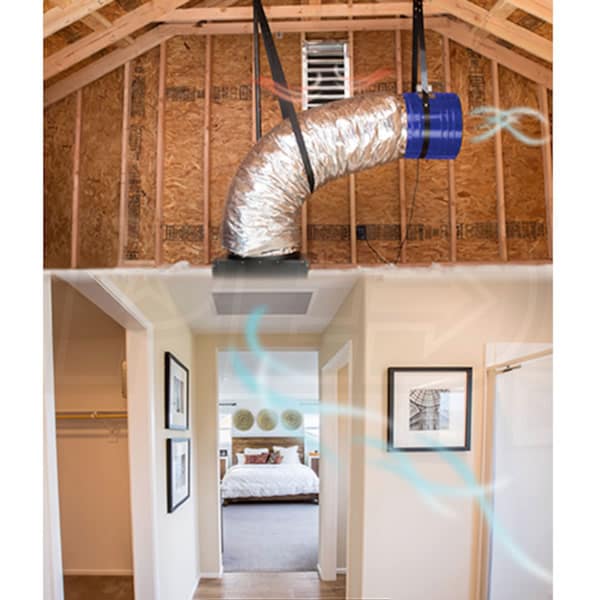

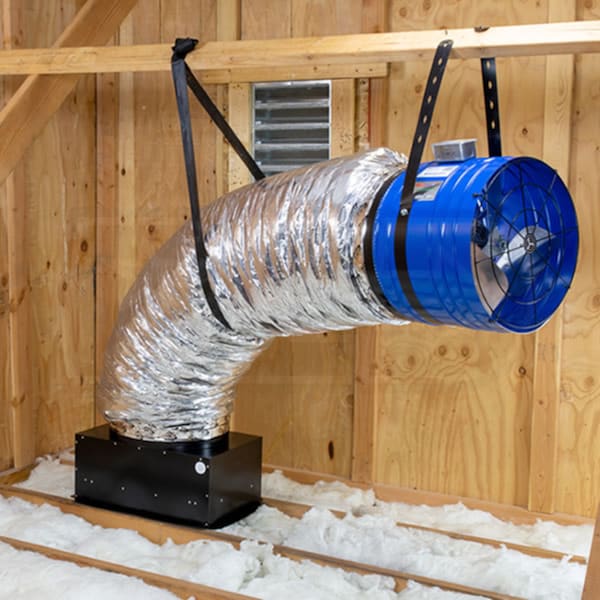

The QC CL-3100 advanced whole house fan is a new take on the idea of whole house ventilation. Whole house ventilation allows you to bring the cooler outdoor air through your windows, home, and attic space to thoroughly cool and ventilate both the home and attic. This is what allows your home to stay cooler the next day and resist heating up as much as it would if you only ran the AC to cool the home. The QuietCool QC CL-3100 is designed to be installed centrally in small-to-midsize homes. Simply open a window when you get home from work, flip on the QuietCool, and enjoy a peaceful and cool evening relaxing. And for an even better system, purchase another smaller QuietCool unit for your master bedroom to enjoy a full range of cooling and ventilation.
Product Note
The CFM rating per HVI-916 for this model is 2380 CFM.
Specifications
General Information
Type
Circulation Fan
Product Line
Classic
Blower Motor
2
UPC
811658020025
Performance
Maximum Air Flow
3126 CFM
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
48 dB
Duct Run
6 Feet
Electrical Data
Voltage
120 Volts
Power Consumption
299 Watts
Frequency
60 Hz
Dimensions
Duct Connection
16 Inches
Product Height
24 Inches
Product Width
16 Inches
Product Length
13 3/4 Inches
Product Weight
47 Pounds
Certifications
UL Listed
Yes
Warranty Information
Warranty
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
10 Years
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Never run your A/C at night again!
- QuietCool works perfectly at night when the temperature drops, mass-cooling your home without the use of A/C. By mass cooling your home at night it will remain cooler during the day.
- Save up to 50-90% off A/C Usage
- QuietCool advanced whole house fans use and improve upon the principle of ventilation cooling with savings of up to 50-90% off traditional cooling methods such as A/C. The more you use your QuietCool whole house fan, the less you need to use your A/C.
- American Quality
- QuietCool is proudly designed and built in the USA with a 98% customer satisfaction rate.
- Innovative Design
- Zero noise vibration for quiet operation, efficient split capacitor motors to save you money, and R5 Insulated Damper System to ensure no heating/cooling loss between home and attic.
- High Efficiency Motor
- 320-watt, 2-speed PSC motor ensures efficient operation and airflow, fully exchanging air in the room every 3-5 minutes.
- Attic Venting
- 4.1 sq. ft. of net free attic venting required for proper ventilation.
The QC CL-3100 advanced whole house fan is a new take on the idea of whole house ventilation. Whole house ventilation allows you to bring the cooler outdoor air through your windows, home, and attic space to thoroughly cool and ventilate both the home and attic. This is what allows your home to stay cooler the next day and resist heating up as much as it would if you only ran the AC to cool the home. The QuietCool QC CL-3100 is designed to be installed centrally in small-to-midsize homes. Simply open a window when you get home from work, flip on the QuietCool, and enjoy a peaceful and cool evening relaxing. And for an even better system, purchase another smaller QuietCool unit for your master bedroom to enjoy a full range of cooling and ventilation.
Product Note
The CFM rating per HVI-916 for this model is 2380 CFM.
Specifications
General Information
Type
Circulation Fan
Product Line
Classic
Blower Motor
2
UPC
811658020025
Performance
Maximum Air Flow
3126 CFM
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
48 dB
Duct Run
6 Feet
Electrical Data
Voltage
120 Volts
Power Consumption
299 Watts
Frequency
60 Hz
Dimensions
Duct Connection
16 Inches
Product Height
24 Inches
Product Width
16 Inches
Product Length
13 3/4 Inches
Product Weight
47 Pounds
Certifications
UL Listed
Yes
Warranty Information
Warranty
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
10 Years
Product Specs
+−
Specifications
General Information
Type
Circulation Fan
Product Line
Classic
Blower Motor
2
UPC
811658020025
Performance
Maximum Air Flow
3126 CFM
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
48 dB
Duct Run
6 Feet
Electrical Data
Voltage
120 Volts
Power Consumption
299 Watts
Frequency
60 Hz
Dimensions
Duct Connection
16 Inches
Product Height
24 Inches
Product Width
16 Inches
Product Length
13 3/4 Inches
Product Weight
47 Pounds
Certifications
UL Listed
Yes
Warranty Information
Warranty
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
10 Years
Product Q&A
(5)
+−

Search Product Q&A's
Answered by Chris, the eComfort Product Expert
+−
How do you determine what size (CFM) you need? I have a single story home that's about 3100 sq. ft.
Carlos T.
from California
July 07, 2019
Answer
Our Whole House Fan Sizing Calculator can be found at this link.
Was this answer helpful?
Yes

0
No

4
+−
Can this unit be installed at the top of a high wall (18ft) and vent into the attic instead of in a ceiling?
Edward G.
from Rhode Island
August 05, 2016
Answer
If the grille is being installed on a vertical surface, you will need a vertical adapter to ensure the dampers work properly.
Was this answer helpful?
Yes

0
No

0
+−
What diameter is duct, and what is the max length it can be extended without reducing CFM?
Stephen M.
from New York
June 24, 2016
Answer
This QuietCool fan has a 16" duct diameter, and 6' duct length. Any extension of the duct would add static pressure, causing reduced CFM. The duct work is intended simply to reduce noise levels, and the fan head simply hangs in the middle of the attic.
Was this answer helpful?
Yes

3
No

0
+−
How is cold winter air insulated from entering your home through the fan? Is there an insulation rating?
James
from Utah
June 23, 2016
Answer
The Classic and Energy Saver whole house fans use dampers with an R5 insulation value to help keep cold air out of the home. An R-40 winterizing kit is available to seal the grille during cold winter temperatures.
Was this answer helpful?
Yes

5
No

0
+−
I have a vaulted ceiling. 8' at lowest and 10' at highest. Not much of a pitch. Question. Can I mount the damper box on that pitch. As long as I mount it in a fashion that the flapper will want to stay closed
Dave A.
from Michigan
May 27, 2016
Answer
As long as the pitch is less than 45 degrees from horizontal, you will not have a problem.
Was this answer helpful?
Yes

0
No

0
