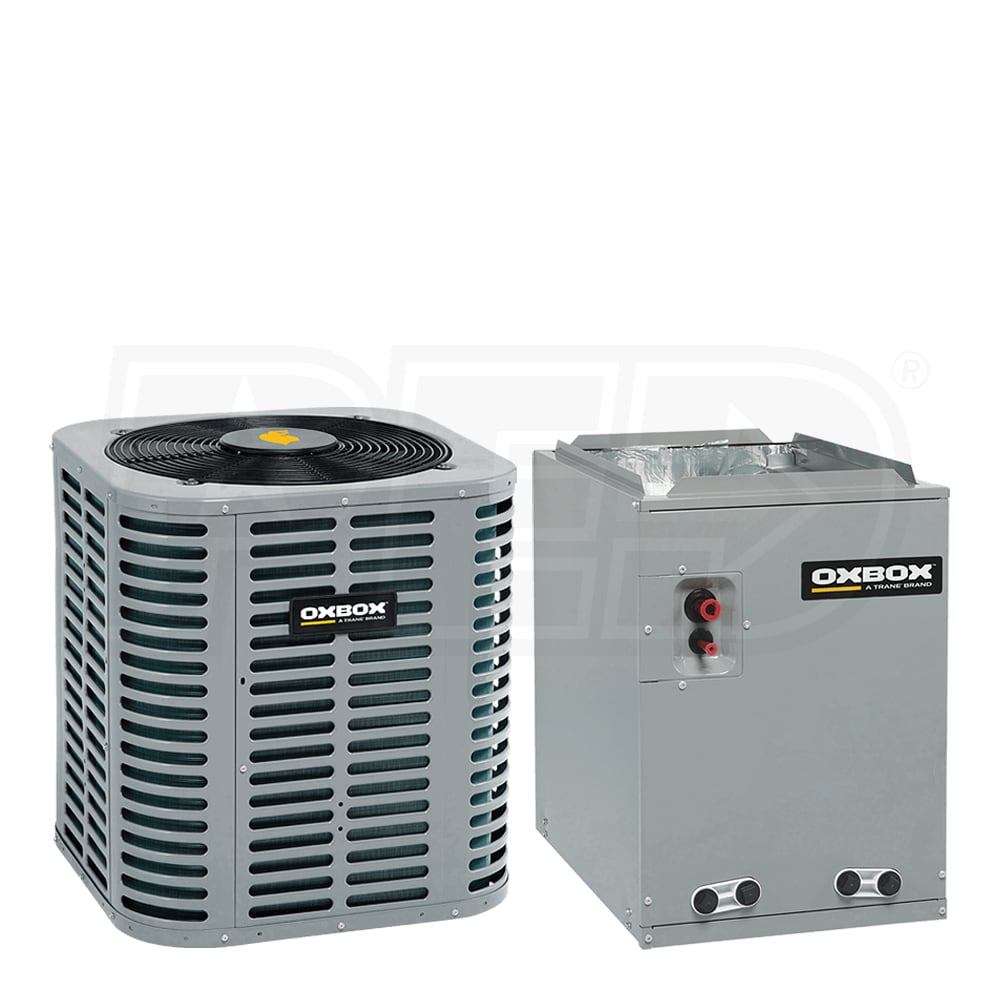

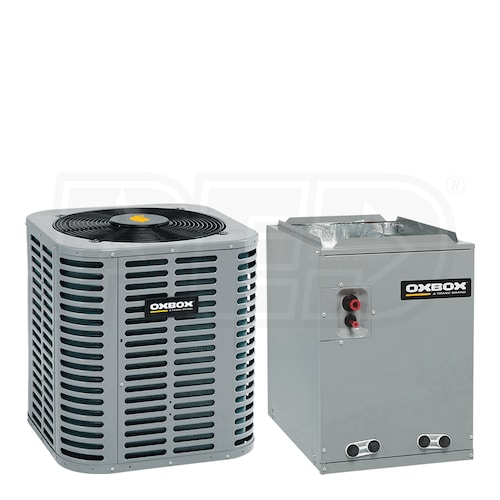

Oxbox - 3 Ton Air Conditioner + Coil Kit - 13.0 SEER - 17.5\" Coil Width - Upflow/Downflow

Model:

J4AC3036B1000AA J4GXCB006AC6HUA

Write A Review
$2,077.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days
synchrony card logo
$347 / Month
Suggested monthly payments with 6 month financing.
Oxbox - 3 Ton Air Conditioner + Coil Kit - 13.0 SEER - 17.5\
Oxbox - 3 Ton Air Conditioner + Coil Kit - 13.0 SEER - 17.5\" Coil Width - Upflow/Downflow
Model: J4AC3036B1000AA J4GXCB006AC6HUA
$2,077.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Bob, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Oxbox air conditioners and indoor air coils are designed to heat or cool your central system\'s air while maximizing the efficiency of all of its components. Oxbox products are designed to be quiet, dependable and affordable. Tested to perform in the hottest climates and guaranteed to provide efficient cool air when you need it. The air conditioner\'s compact size and small footprint are ideal for homeowners with limited yard space, while its painted galvanized steel cabinet resists rust and stands up to harsh weather. The all-aluminum coil design provides maximum heat transfer while its foil-faced thermal insulation ensures you won\'t be wasting energy.
  • Maximum Efficiency
  • The Oxbox indoor coil's sole purpose is to effectively transfer the heated or cooled air from your system to your home while maximizing its efficiency.
  • All-aluminum Coil
  • The Oxbox indoor coil includes an all-aluminum coil for advanced heat transfer and efficiency.
  • Foil-faced Insulation
  • The indoor air coil feature foil-faced insulation for simple cleaning and reduced service time. The insulation traps in heated and cooled air to ensure you're getting the most out of your central air system.
  • Affordable Quality
  • Oxbox air conditioners offer powerful and dependable cooling at an affordable price.
  • Small Footprint
  • With its compact size, the Oxbox air conditioner is perfect for homes that have limited yard space.
  • Durable Cabinet
  • Oxbox air conditioners include a painted, galvanized steel cabinet to resist rust and stand up to weather.
  • Quiet Operation
  • With a maximum sound level of 76 dB, you'll barely notice your air conditioner is running.
  • Low Voltage Control
  • The Oxbox air conditioner features 24V low-voltage control, providing added safety to installation and operation.
  • Product Includes
    • (1) Oxbox J4AC3 - 3.0 Ton - Air Conditioner - 13.0 Nominal SEER - Single-Stage - R-410A Refrigerant (J4AC3036A1000AA)

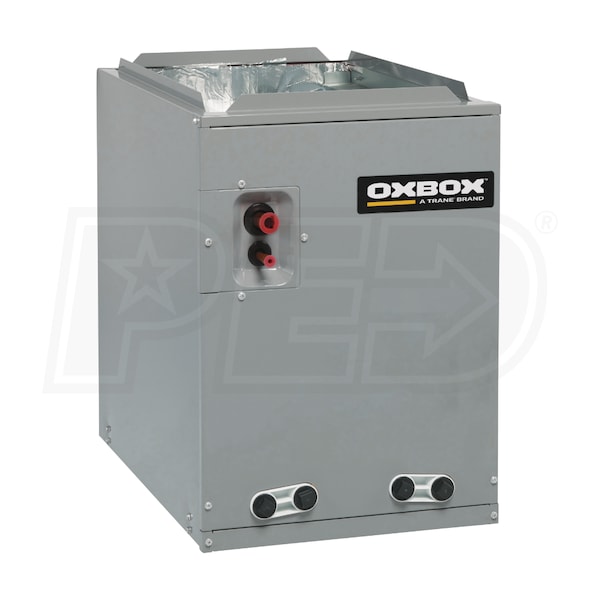

    • (1) Oxbox J4GXC - 3.0 - 4.0 Ton - Upflow/Downflow A Coil - Cased - 17.5" Width (J4GXCB006AC6HUA)
    Product Note
    The recommended line set size for this system will vary based on the length of line set you require for installation. Compatible line sets can be found under the \"Recommended Accessories\" tab. | The US Department of Energy regulates minimum efficiency standards for central air conditioners and heat pumps based on geographic regions. We are required to abide by these regulations when selling products, and take this responsibility seriously. The standards depend on the rated efficiency of the entire system, not the nominal efficiencies of individual components. If you are unsure if your system will be compliant, please call or email us for help.
California residents see
Warning: This product can expose you to chemicals including Lead and lead compounds which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

Product Includes
  • (1) Oxbox J4AC3 - 3.0 Ton - Air Conditioner - 13.0 Nominal SEER - Single-Stage - R-410A Refrigerant (J4AC3036A1000AA)
  • (1) Oxbox J4GXC - 3.0 - 4.0 Ton - Upflow/Downflow A Coil - Cased - 17.5" Width (J4GXCB006AC6HUA)
J4AC3036B1000AA J4GXCB006AC6HUA
specs product image PID-114414
Overview
Product Category
Air Conditioner & Coil Package
Additional Model Numbers

J4AC3036A1000AA J4GXCB006AC6HUA, J4AC3036B1000AA J4GXCB006AC6HUA

General Information
Product Category
Air Conditioner & Coil Package
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling
Refrigerant Type
R-410A
Coil Width
17.5 Inches
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Upflow/Downflow
Compressor Stages Learn More
Compressor Stages
Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Single Stage
DOE Regional Compliance Learn More
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
North
Installation Available
Yes
Performance
Capacity Learn More
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
3 Tons
Cooling Capacity
36000 BTU
Nominal Cooling Capacity
36000 BTU
SEER Learn More
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
13
Dimensions
Shipping Weight
219 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
J4AC3036B1000AA
General Information
Type
Condenser
Product Line
J4AC3
Product Category
Air Conditioning Condensers
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling
Refrigerant Type
R-410A
Installation Location
Outdoor
Compressor Stages Learn More
Compressor Stages
Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Single Stage
DOE Regional Compliance Learn More
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
North
Performance
Capacity Learn More
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
3.0 Tons
Cooling BTU
36000
Cooling Capacity
36000 BTU
SEER Learn More
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
13.0
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
74 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
19.1 Amps
Recommended Breaker Size
30 Amps
Dimensions
Suction Connection Size
3/4 Inch
Liquid Connection Size
3/8 Inch
Product Height
24 15/16 Inches
Product Width
23 5/8 Inches
Product Depth
23 5/8 Inches
Product Weight
132 Pounds
Shipping Height
31 1/2 Inches
Shipping Width
24 35/48 Inches
Shipping Length
24 35/48 Inches
Shipping Weight
157 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
10 Years
Overview
Product Category
Air Conditioning Condensers
J4GXCB006AC6HUA
General Information
Type
Evaporator Coil
Product Line
J4GXC
Product Category
Evaporator Coil
Refrigerant Type
R-410A
Casing
Cased
Style
A Coil
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Upflow/Downflow
Performance
Capacity Learn More
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
3.0 - 4.0 Tons
Dimensions
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Cabinet Width
17 1/2 Inches
Product Height
26 Inches
Product Width
17 1/2 Inches
Product Depth
21 Inches
Product Weight
54 Pounds
Shipping Height
28 7/48 Inches
Shipping Width
20 5/8 Inches
Shipping Length
24 23/24 Inches
Shipping Weight
62 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Warranty Learn More
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Overview
Product Category
Evaporator Coil
