Modine VE - 5 kW - Electric Unit Heater - 480V/60Hz/3 Phase - Vertical Orientation
Modine VE - 5 kW - Electric Unit Heater - 480V/60Hz/3 Phase - Vertical Orientation
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−

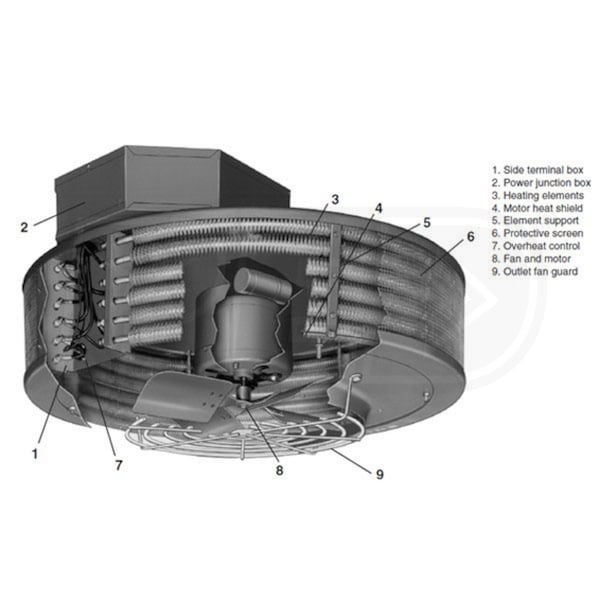

Features
Features
- Thermally Protected Motor
- The air propulsion motor included on the VE50 is entirely enclosed and thermally protected. Rubber vibration guards and the lightweight aluminum fan give the air propulsion system of the VE50 a notably long service life.
- Nickel Chromium Heating Element
- The heating element of the VE50 consists of nickel-chromium wire elements enclosed in powder-filled aluminum coated steel tubes. This arrangement makes the heating element highly resistant to thermal shock and vibration.
- Safety Fan Guard
- The fan guard of the VE50 is formed of heavy gauge steel rod stock, providing substantial support for the motor and protection from the exposed fan.
- Perfectly Suited for Tall Ceilings
- The powerful fan and vertical orientation combined with its numerous louver and fin accessories make the VE50 perfectly suited to warehouse and tall ceiling heating applications.
- Control Compartment
- The control compartment included on the VE50 safely encloses terminal blocks, fuses, and the large transformer. This provides a central location for easy field wiring and protects sensitive, high current elements from accidental damage.
- Automatic Safety Reset Control
- In the event of overheating, the included reset control interrupts the power supply to the heating elements until the ambient temperature has fallen to acceptable operating levels.
- Baked-On Polyester Paint
- The VE50 features a neutral colored baked-on polyester paint, providing excellent corrosion resistance and durability while blending in with a wide variety of environments.
- Modine Installation
- Installation by a professional installer is required by the manufacturer.
- 208V/60Hz/3 Phase
- 240V/60Hz/3 Phase
- 240V/60Hz/1 Phase
Modine's VE50 electric unit heater is a fantastic heating tool that is easy to use and service. Installation costs of electric unit heaters are comparably lower than their gas or hydronic counterparts, a standard Modine extends upon by providing fully furnished terminal blocks to simplify power and control wiring. An easily accessible bottom panel makes the VE50 easy to service and maintain, and the automatic reset control ensures that the unit heater's sensitive elements remain safe and sound even during high operating temperatures.
Product Note
This product has other power configurations available for order, including:
For ordering information, call our sales department at (866) 554-HEAT (4328).
Specifications
General Information
Type
Standard
Product Line
VE
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Electric
Orientation
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Vertical
Mount Type
Suspended
Performance
Heating Capacity
17100 BTU
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
17100 BTU
Heating Capacity (kW)
5 kW
Maximum Air Flow
800 CFM
Electrical Data
Voltage
480 Volts
Phase
3
Frequency
60 Hz
Dimensions
Product Height
14 3/4 Inches
Product Width
24 7/8 Inches
Product Depth
24 7/8 Inches
Shipping Weight
62 Pounds
Certifications
Country of Origin
United States
UL Listed
Yes
Warranty Information
Features
Features
- Thermally Protected Motor
- The air propulsion motor included on the VE50 is entirely enclosed and thermally protected. Rubber vibration guards and the lightweight aluminum fan give the air propulsion system of the VE50 a notably long service life.
- Nickel Chromium Heating Element
- The heating element of the VE50 consists of nickel-chromium wire elements enclosed in powder-filled aluminum coated steel tubes. This arrangement makes the heating element highly resistant to thermal shock and vibration.
- Safety Fan Guard
- The fan guard of the VE50 is formed of heavy gauge steel rod stock, providing substantial support for the motor and protection from the exposed fan.
- Perfectly Suited for Tall Ceilings
- The powerful fan and vertical orientation combined with its numerous louver and fin accessories make the VE50 perfectly suited to warehouse and tall ceiling heating applications.
- Control Compartment
- The control compartment included on the VE50 safely encloses terminal blocks, fuses, and the large transformer. This provides a central location for easy field wiring and protects sensitive, high current elements from accidental damage.
- Automatic Safety Reset Control
- In the event of overheating, the included reset control interrupts the power supply to the heating elements until the ambient temperature has fallen to acceptable operating levels.
- Baked-On Polyester Paint
- The VE50 features a neutral colored baked-on polyester paint, providing excellent corrosion resistance and durability while blending in with a wide variety of environments.
- Modine Installation
- Installation by a professional installer is required by the manufacturer.
- 208V/60Hz/3 Phase
- 240V/60Hz/3 Phase
- 240V/60Hz/1 Phase
Modine's VE50 electric unit heater is a fantastic heating tool that is easy to use and service. Installation costs of electric unit heaters are comparably lower than their gas or hydronic counterparts, a standard Modine extends upon by providing fully furnished terminal blocks to simplify power and control wiring. An easily accessible bottom panel makes the VE50 easy to service and maintain, and the automatic reset control ensures that the unit heater's sensitive elements remain safe and sound even during high operating temperatures.
Product Note
This product has other power configurations available for order, including:
For ordering information, call our sales department at (866) 554-HEAT (4328).
Specifications
General Information
Type
Standard
Product Line
VE
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Electric
Orientation
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Vertical
Mount Type
Suspended
Performance
Heating Capacity
17100 BTU
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
17100 BTU
Heating Capacity (kW)
5 kW
Maximum Air Flow
800 CFM
Electrical Data
Voltage
480 Volts
Phase
3
Frequency
60 Hz
Dimensions
Product Height
14 3/4 Inches
Product Width
24 7/8 Inches
Product Depth
24 7/8 Inches
Shipping Weight
62 Pounds
Certifications
Country of Origin
United States
UL Listed
Yes
Warranty Information
Product Specs
+−
Specifications
General Information
Type
Standard
Product Line
VE
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Electric
Orientation
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Vertical
Mount Type
Suspended
Performance
Heating Capacity
17100 BTU
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
17100 BTU
Heating Capacity (kW)
5 kW
Maximum Air Flow
800 CFM
Electrical Data
Voltage
480 Volts
Phase
3
Frequency
60 Hz
Dimensions
Product Height
14 3/4 Inches
Product Width
24 7/8 Inches
Product Depth
24 7/8 Inches
Shipping Weight
62 Pounds
Certifications
Country of Origin
United States
UL Listed
Yes
Warranty Information
