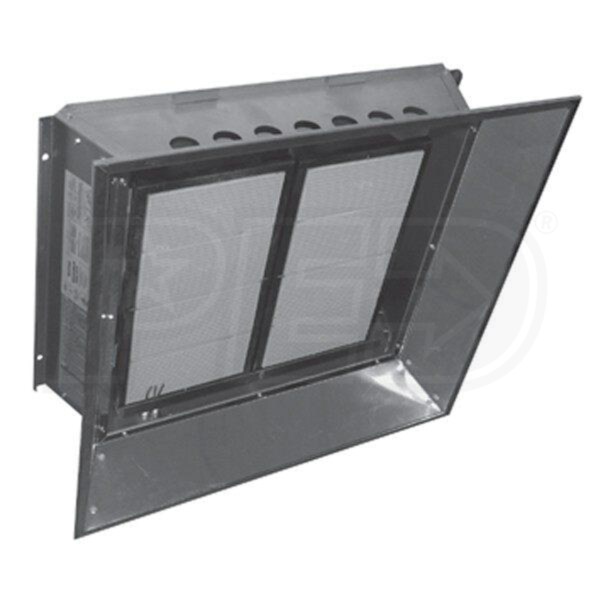

Modine MHR - 160,000 BTU - Infrared Unit Heater - LP - High Intensity - 115V/60Hz/1 Phase

Model:

MHR160S97

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Modine MHR - 160,000 BTU - Infrared Unit Heater - LP - High Intensity - 115V/60Hz/1 Phase
Modine MHR - 160,000 BTU - Infrared Unit Heater - LP - High Intensity - 115V/60Hz/1 Phase
Model: MHR160S97
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

    Modine's MHR160 is a cost efficient way to provide high intensity infrared heat to any garage or workplace. Able to recover from cold outdoor air drafts almost instantly, the MHR160 is well suited for workshops with outdoor workspaces. No air mover is required because infrared heat is used, which makes operation whisper quiet. Because the MHR160 heats objects instead of the air surrounding them, it is an excellent choice for spot heating, even in drafty spaces or large warehouses. Combined with its versatility, these features make the MHR160 a well rounded, efficient infrared unit heater capable of heating nearly any work environment.

    Product Features

    Grooved Ceramic Heating Tiles
    High temperature cordierite-based grooved heating tiles form the heating element of the MHR160. These specially designed heating tiles are capable of withstanding extreme temperatures to provide maximum heat transfer while maintaining clean and efficient operation.

    Fast Temperature Recovery
    The MHR160 heats surfaces instead of the air surrounding them, which allows for incredibly fast temperature recovery. Patrons in high traffic commercial locations will feel warmth the instant they step into the heated area.

    Whisper Quiet Operation
    The MHR160 does not use any forced air mechanism for air movement which allows for almost completely silent operation. This is a fantastic benefit for commercial locations where noise could distract from work being done.

    Polished Aluminum Reflectors
    The MHR160 comes equipped with polished aluminum reflectors, effective at directing nearly all heat generated by the infrared heater to the desired heating area. This provides even, comfortable heat transfer over a wide area.

    Aluminized Steel Frame
    The aluminized steel frame used with the infrared unit heater lends steadfast durability to its operation. This adds to the longevity of the heater and also allows for a wide variety of hanging configurations.

    Product Note

    This MHR high intensity infrared heater is also available in the following pilot light configurations:

    • 24V Direct Spark Ignition
    • Two Stage 24V Ignition
    • Millivolt Standing Pilot Ignition
    • For ordering information, call our sales department at (866) 554-HEAT (4328).

California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

MHR160S97
specs product image PID-48484
General Information
Product Line
MHR
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Liquid Propane
Gas Conversion Kit
Not Available
Performance
Maximum Input Capacity Learn More
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
160000 BTU
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Dimensions
Gas Piping Diameter
1/2 Inch
Product Height
23 35/48 Inches
Product Width
42 1/2 Inches
Product Depth
8 1/2 Inches
Shipping Weight
56 Pounds
Certifications
Country of Origin
United States
CSA Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
