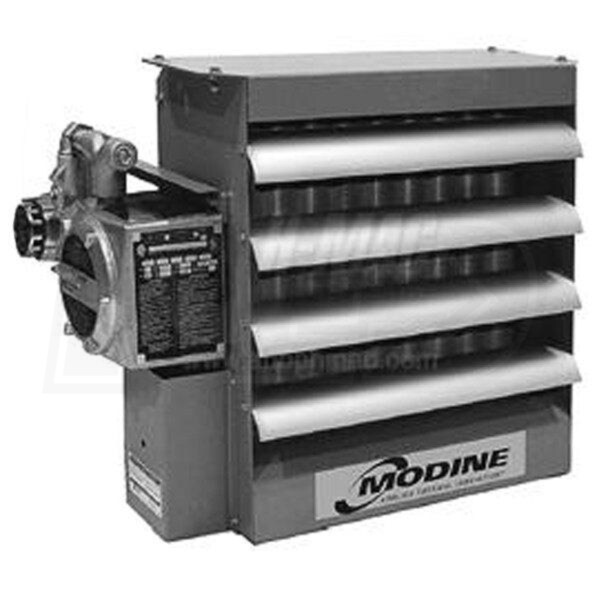

Modine HEX5 - 7.5 kW - Electric Unit Heater for Hazardous Locations - 240V/60Hz/3 Phase - Horizontal Orientation

Modine HEX5 - 7.5 kW - Electric Unit Heater for Hazardous Locations - 240V/60Hz/3 Phase - Horizontal Orientation
Our Price
Compare Prices
Shipping Info
Model: HEX5-240360-075
Product Discontinued
Sorry, this product is no longer available.
Discontinued
Sorry, this product is no longer available
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features

    Modine's HEX5-75 hazardous environment unit heater is designed for rugged industrial applications in unforgiving, dirty environments. From pulp and paper mills and agricultural plants to oil refineries and coal mines, the HEX5-75 has the durability needed to withstand the most punishing of conditions. This unit heater comes equipped with the necessary features to prevent fires and explosions from flammable gases, vapors, or powdered metals that may exist around the heater.

    Product Features

    14 Gauge Steel Cabinet
    The outer shell of the HEX5-75 uses epoxy coated 14 gauge steel. The coated steel is highly effective at protecting the sensitive internal components from a hazardous surrounding environment.

    Temperature Change Resistant
    The unit heater uses an ethylene glycol and water solution as a heat transfer medium, providing freeze protection down to a level of -49 degrees Fahrenheit. An included pressure relief valve protects against overpressure damage.

    Teflon-Lined Heating Element Tank
    A liquid filled tank on the lower part of the HEX5-75 protects the electric heating elements from outside hazards. This tank is lined with Teflon, simultaneously protecting the heating elements and keeping them away from the sides of the tank.

    High Current Wiring
    The wiring on the HEX5-75 consists of high current, industrial grade wiring attached to tin plated copper bus bars, giving the unit heater the ability to handle high current with ease.

    NEMA Type 7 and 9 Wiring Housing
    The rugged NEMA type control box houses a large aluminum data plate, control transformer, and convenient terminals for the wiring of accessories to the unit heater.

    Heavy Gauge Embossed Fan Blades
    The HEX5-75 uses heavy gauge embossed steel for its fan blades, providing superior corrosion resistance while being durable enough to last for years.

    Product Note

    HEX5 hazardous environment unit heaters are offered with a number of factory installed options. These options include:

    • Factory Installed Disconnect Switch
    • Factory Installed 3-Way Switch - On/Off/Fan Only
    • Factory Installed Pilot Light - Indicates Heat On
    • Factory Installed Thermostat
    • Please call our sales department at (866) 554-HEAT (4328) for availability and pricing information.

Specifications
General Information
Type
Explosion Resistant
Product Line
HEX5
Fuel Type To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Electric
Orientation Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
Mount Type
Suspended
Performance
Heating Capacity
25600 BTU
Maximum Input Capacity The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
25600 BTU
Heating Capacity (kW)
7.5 kW
Maximum Air Flow
850 CFM
Air Throw
30 Feet
Electrical Data
Voltage
240 Volts
Phase
3
Frequency
60 Hz
Dimensions
Product Height
18.5 Inches
Product Width
24.625 Inches
Product Depth
24.625 Inches
Shipping Weight
151 Pounds
Certifications
Country of Origin
United States
UL Listed
Yes
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
