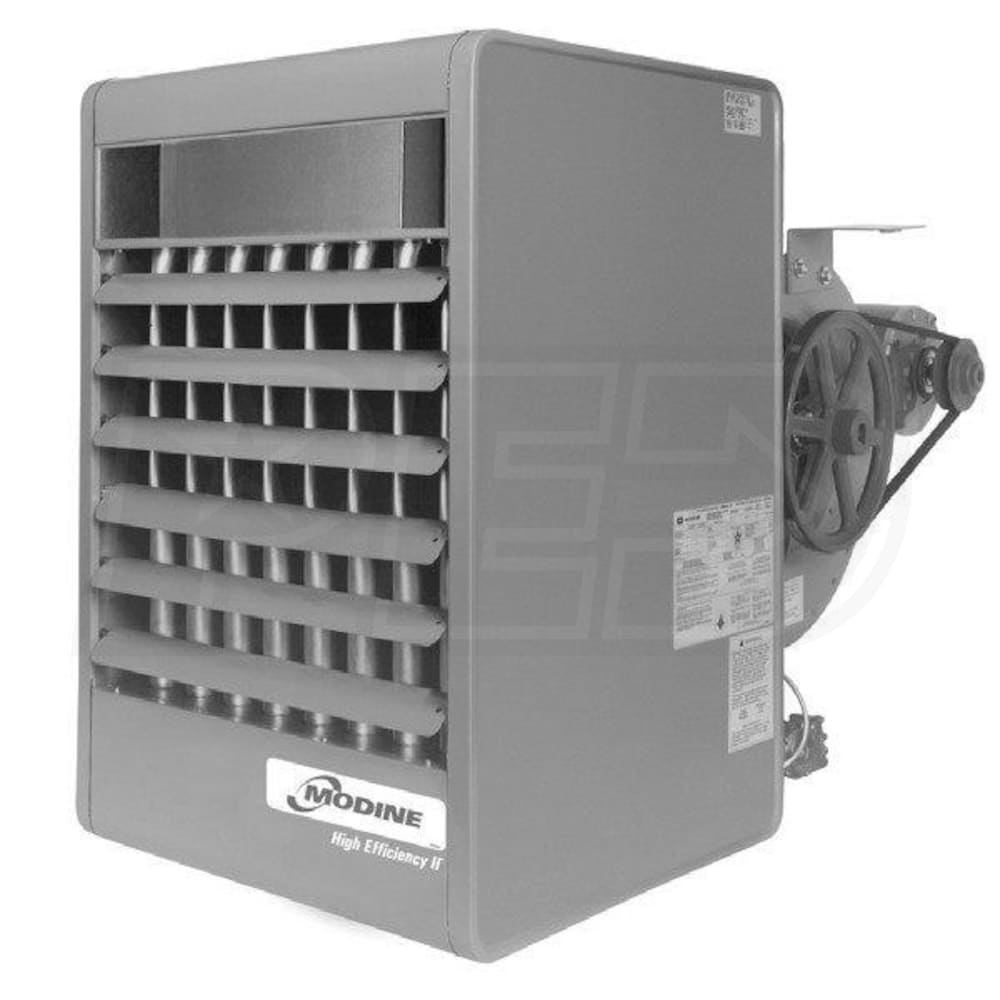

Modine BDP - 150,000 BTU - Unit Heater - LP - 80% Thermal Efficiency - Power Vented - Stainless Steel Heat Exchanger - Blower

Model:

BDP150SE0185

Write A Review
$3,494.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 4-6 Weeks
synchrony card logo
$62 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
Modine BDP - 150,000 BTU - Unit Heater - LP - 80% Thermal Efficiency - Power Vented - Stainless Steel Heat Exchanger - Blower
Modine BDP - 150,000 BTU - Unit Heater - LP - 80% Thermal Efficiency - Power Vented - Stainless Steel Heat Exchanger - Blower
Model: BDP150SE0185
$3,494.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Bob, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Modine brings its engineering experience to large capacity applications with the BDP unit heater line. The BDP150 is a large unit heater purpose-built for commercial and industrial applications. With 150,000 BTU/hour of heating power, the BDP150 can fulfill a wide variety of heating needs from workshops to warehouses. A power venting system simplifies venting while minimizing labor hours required for installation and maintenance.
  • Blower Based Air Propulsion
  • The BDP150 uses a blower that allows for a range of air speed control and higher moveable air volume, as well as the ability to be integrated into a building's ductwork.
  • Stainless Steel Heat Exchanger
  • The stainless steel heat exchanger has incredible corrosion resistance and high heat transfer. Built to last, it is also protected by a full 10 year warranty by Modine.
  • Electric Knockouts
  • Electric wiring knockouts and field wiring connections on the BDP150 keep installation costs low and save time during both installation and maintenance for your contractor by simplifying all required electrical work.
  • Ignition Controller
  • The ignition controller is designed with safety in mind and features built in ignition attempt timers. This minimizes the chance of false starts and prevents unnecessary gas from being used during the ignition process.
  • Permanently Lubricated Motor
  • The motor on the BDP150 has a permanent, effective lubricant straight from the factory. This means that the motor never has to be oiled, reducing maintenance costs, general wear and tear, and operational noise.
  • Power Venting System
  • The power venting system quickly and efficiently brings flue exhaust from the unit heater to the outdoors and requires minimal installation labor. This keeps installation related costs as low as possible.
  • Baked-On Polyester Paint
  • The BDP150 features a neutral colored baked-on polyester paint, providing excellent corrosion resistance and durability while blending in with a wide variety of environments.
  • Modine Installation
  • Installation by a professional installer is required by the manufacturer.
  • Product Note
    These alternate power configurations are available for this item:

    • 230V/1Ph/60Hz
    • 208V/3Ph/60Hz
    • 230V/3Ph/60Hz
    • 460V/3Ph/60Hz
    • 575V/3Ph/60Hz

    These alternate power configurations require unique step-down transformers for proper operation. If you require a unit with an alternative power configuration, call our customer service department at (866) 554-HEAT (4328).

California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

BDP150SE0185
specs product image PID-48112
Overview
Product Category
Unit Heater
General Information
Product Line
BDP
Product Category
Unit Heater
Heat Exchanger Material
Stainless Steel
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Liquid Propane
Vent Type Learn More
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Power Vent
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
Gas Conversion Kit
Available
Performance
Heating Capacity
120000 BTU
Maximum Input Capacity Learn More
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
150000 BTU
Thermal Efficiency
80 %
Maximum Air Flow
2778 CFM
Minimum Air Flow
1587 CFM
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Dimensions
Flue Connection Size
5 Inches
Gas Piping Diameter
1/2 Inch
Product Height
35 1/4 Inches
Product Width
21 Inches
Product Depth
47 1/8 Inches
Product Weight
168 Pounds
Shipping Weight
168 Pounds
Certifications
Country of Origin
United States
CSA Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
Heat Exchanger Warranty
10 Years
