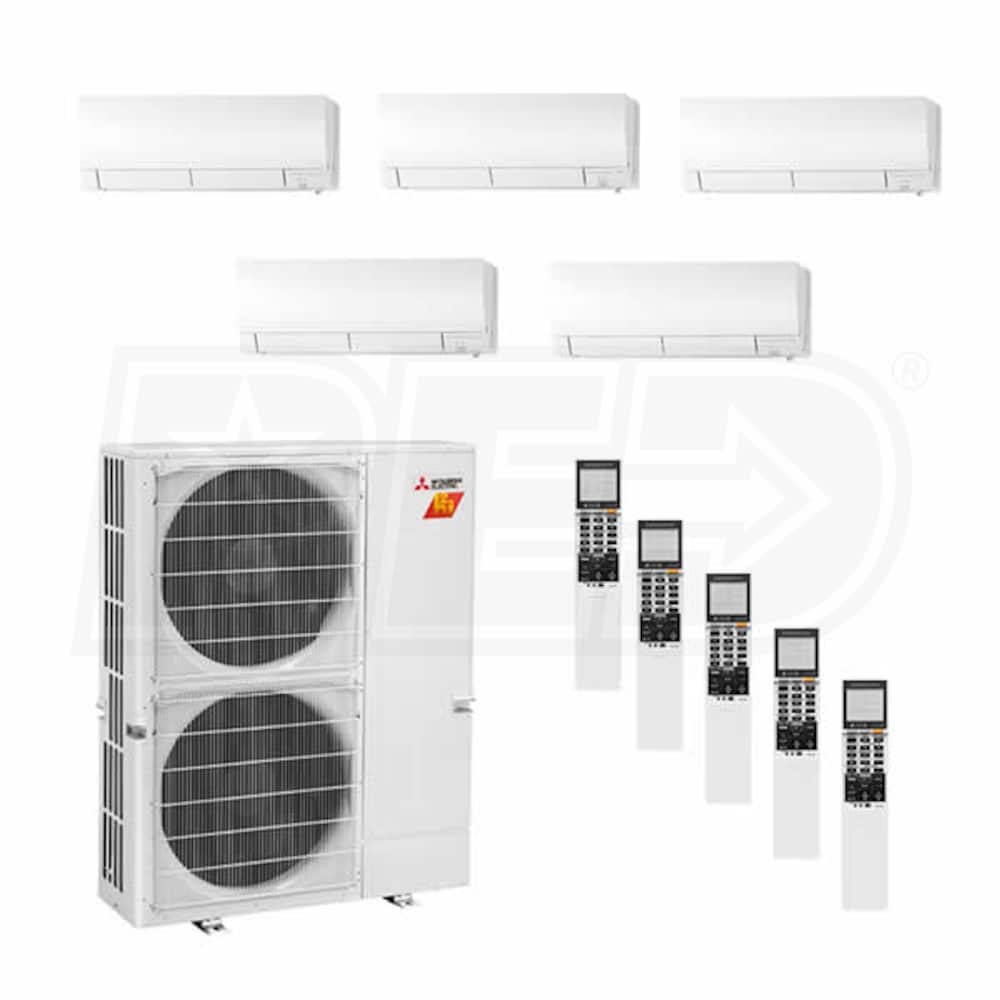

Mitsubishi Wall Mounted 5-Zone H2i System - 48,000 BTU Outdoor - 9k + 9k + 9k + 9k + 9k Indoor - 18.9 SEER
Mitsubishi Wall Mounted 5-Zone H2i System - 48,000 BTU Outdoor - 9k + 9k + 9k + 9k + 9k Indoor - 18.9 SEER
+
Share This Product
-
Product Description
-
4Reviews
-
1Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Features
Features
- H2i Technology
- Low and negative ambient temperatures don't bother the MXZ-8C48NAHZ. It is rated for 100% heating capacity at 5° F and continues to provide heating in outdoor conditions as low as -13° F.
- Integrated Base Pan Heater
- MXZ-C outdoor condensers have a factory-installed base pan heater in the drain pan. This prevents condensate from freezing and damaging the unit in frigid climates.
- Precision Temperature Control Technology
- This condenser is equipped with advanced inverter technology. By adjusting compressor speed and refrigerant flow, these components match the output of the condenser to the active zones. This provides precise temperature control and incredible efficiency.
- i-see Sensor
- Each MSZ-FH indoor unit has an i-see Sensor 3D that monitors its zone for changes in temperature and occupancy. If an underserved area is detected, an MSZ-FH will temporarily adjust airflow to ensure complete comfort throughout the zone.
- Occupancy Sensor
- Mitsubishi's i-see technology can also detect a room's current occupancy. Through the use of targeted airflow, and adjusting the temperature of an empty room, the i-see sensor will conserve energy and save you money.
- Hot-Start
- Mitsubishi's hot start technology prevents cold drafts by delaying indoor unit fan operation until the heat exchanger has warmed up.
- Advanced Filtration System
- With three unique filters inside the MSZ-FH indoor units, the air in your zones is not only being conditioned, but it is also actively being cleaned. Three levels of filtration will keep foul odors and harmful bacteria from floating around your home.
- Smart Set
- Mitsubishi's Smart Set function allows you to save a comfort profile consisting of a temperature down to 50° F, fan speed, and airflow direction for each indoor unit. These profiles can be activated with a single press of the Smart Set button.
- Powerful Mode
- The powerful setting on an MSZ-FH indoor unit makes it easy to get your zones to the perfect temperature quickly. When it is activated, a unit temporarily increases refrigerant flow and fan speed to provide quick comfort through rapid heating or cooling.
- Econo Cool Mode
- By slowly adjusting the cooling set point and swinging the horizontal vanes, an MSZ-FH mini split indoor unit can improve the efficiency of cooling operations without compromising the comfort provided.
- Dehumidification
- When the indoor unit is run in dry mode, it will remove extra moisture from the room. This improves your comfort and reduces both mold growth and the chance of property damage in the conditioned space.
- Vane Control
- Optimal air flow is easy with Mitsubishi's MSZ-FH mini split indoor units thanks to the vane control option. This provides five horizontal vane positions, an auto mode, and a swing mode. Four way vane control helps provide unmatched comfort.
- Recommended line set sizes for indoor unit connectivity:
- MSZ-FH09NA: 1/4" x 3/8" Line Set (Qty 5)
- A branch box with a 3/8" x 5/8" line set connection is also required. Additional branch boxes and line sets may be required based on your configuration.
- (1) Mitsubishi - 48k BTU - M-Series H2i Outdoor Condenser - For 2-8 Zones (MXZ-8C48NAHZ)
- (5) Mitsubishi FH-Series 9k BTU Wall Mounted Unit - For Multi or Single-Zone (MSZ-FH09NA)
- Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
- Branch Box - A Mitsubishi branch box is required to connect this condenser to Mitsubishi mini split indoor units.
- Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
- Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
- Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
- Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
Mitsubishi's dedication to new technology means that multi-zone mini split systems are now a year-round comfort solution for homes in freezing climates. This low ambient system uses a hyper-heating H2i MXZ-8C48NAHZ outdoor condenser to provide efficient cooling and subzero heating through five advanced MSZ-FH wall mounted indoor units. These indoor units feature Mitsubishi's i-See sensor, which automatically detects where heating or cooling is needed. Five wireless remote controllers guarantee convenient comfort by allowing you to control the temperature in individual rooms. With multiple operating modes, multiple fan speeds, and multiple airflow directions, this is a system that fits the needs of nearly any home.
Product Includes
Product Note
Each indoor unit will include any port adapters necessary for multi-zone installation. This product requires the following accessories for installation:
Specifications
General Information
Type
Wall Mounted
Product Line
M-Series
Product Sub-line
Hyper-Heating
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Number of Zones
A zone is a room or area within a building that has its own temperature control.
A zone is a room or area within a building that has its own temperature control.
5
Refrigerant Type
R-410A
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
9 + 9 + 9 + 9 + 9
Base Pan Heater Included
Yes
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Performance
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
18.9
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
12.0
HSPF
HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system. Learn More
HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system. Learn More
11.0
Cooling Power Input
4525 Watts
Heating Power Input
5327 Watts
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-13 F
Minimum Outdoor Temperature for Cooling
23 F
Dimensions
Product Weight
421 Pounds
Shipping Weight
425 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
7432944
MXZ-8C48NAHZ Specifications+
MSZ-FH09NA Specifications+
Features
Features
- H2i Technology
- Low and negative ambient temperatures don't bother the MXZ-8C48NAHZ. It is rated for 100% heating capacity at 5° F and continues to provide heating in outdoor conditions as low as -13° F.
- Integrated Base Pan Heater
- MXZ-C outdoor condensers have a factory-installed base pan heater in the drain pan. This prevents condensate from freezing and damaging the unit in frigid climates.
- Precision Temperature Control Technology
- This condenser is equipped with advanced inverter technology. By adjusting compressor speed and refrigerant flow, these components match the output of the condenser to the active zones. This provides precise temperature control and incredible efficiency.
- i-see Sensor
- Each MSZ-FH indoor unit has an i-see Sensor 3D that monitors its zone for changes in temperature and occupancy. If an underserved area is detected, an MSZ-FH will temporarily adjust airflow to ensure complete comfort throughout the zone.
- Occupancy Sensor
- Mitsubishi's i-see technology can also detect a room's current occupancy. Through the use of targeted airflow, and adjusting the temperature of an empty room, the i-see sensor will conserve energy and save you money.
- Hot-Start
- Mitsubishi's hot start technology prevents cold drafts by delaying indoor unit fan operation until the heat exchanger has warmed up.
- Advanced Filtration System
- With three unique filters inside the MSZ-FH indoor units, the air in your zones is not only being conditioned, but it is also actively being cleaned. Three levels of filtration will keep foul odors and harmful bacteria from floating around your home.
- Smart Set
- Mitsubishi's Smart Set function allows you to save a comfort profile consisting of a temperature down to 50° F, fan speed, and airflow direction for each indoor unit. These profiles can be activated with a single press of the Smart Set button.
- Powerful Mode
- The powerful setting on an MSZ-FH indoor unit makes it easy to get your zones to the perfect temperature quickly. When it is activated, a unit temporarily increases refrigerant flow and fan speed to provide quick comfort through rapid heating or cooling.
- Econo Cool Mode
- By slowly adjusting the cooling set point and swinging the horizontal vanes, an MSZ-FH mini split indoor unit can improve the efficiency of cooling operations without compromising the comfort provided.
- Dehumidification
- When the indoor unit is run in dry mode, it will remove extra moisture from the room. This improves your comfort and reduces both mold growth and the chance of property damage in the conditioned space.
- Vane Control
- Optimal air flow is easy with Mitsubishi's MSZ-FH mini split indoor units thanks to the vane control option. This provides five horizontal vane positions, an auto mode, and a swing mode. Four way vane control helps provide unmatched comfort.
- Recommended line set sizes for indoor unit connectivity:
- MSZ-FH09NA: 1/4" x 3/8" Line Set (Qty 5)
- A branch box with a 3/8" x 5/8" line set connection is also required. Additional branch boxes and line sets may be required based on your configuration.
- (1) Mitsubishi - 48k BTU - M-Series H2i Outdoor Condenser - For 2-8 Zones (MXZ-8C48NAHZ)
- (5) Mitsubishi FH-Series 9k BTU Wall Mounted Unit - For Multi or Single-Zone (MSZ-FH09NA)
- Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
- Branch Box - A Mitsubishi branch box is required to connect this condenser to Mitsubishi mini split indoor units.
- Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
- Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
- Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
- Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
Mitsubishi's dedication to new technology means that multi-zone mini split systems are now a year-round comfort solution for homes in freezing climates. This low ambient system uses a hyper-heating H2i MXZ-8C48NAHZ outdoor condenser to provide efficient cooling and subzero heating through five advanced MSZ-FH wall mounted indoor units. These indoor units feature Mitsubishi's i-See sensor, which automatically detects where heating or cooling is needed. Five wireless remote controllers guarantee convenient comfort by allowing you to control the temperature in individual rooms. With multiple operating modes, multiple fan speeds, and multiple airflow directions, this is a system that fits the needs of nearly any home.
Product Includes
Product Note
Each indoor unit will include any port adapters necessary for multi-zone installation. This product requires the following accessories for installation:
Specifications
General Information
Type
Wall Mounted
Product Line
M-Series
Product Sub-line
Hyper-Heating
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Number of Zones
A zone is a room or area within a building that has its own temperature control.
A zone is a room or area within a building that has its own temperature control.
5
Refrigerant Type
R-410A
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
9 + 9 + 9 + 9 + 9
Base Pan Heater Included
Yes
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Performance
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
18.9
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
12.0
HSPF
HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system. Learn More
HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system. Learn More
11.0
Cooling Power Input
4525 Watts
Heating Power Input
5327 Watts
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-13 F
Minimum Outdoor Temperature for Cooling
23 F
Dimensions
Product Weight
421 Pounds
Shipping Weight
425 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
7432944
MXZ-8C48NAHZ Specifications+
MSZ-FH09NA Specifications+
Product Specs
+−
Specifications
General Information
Type
Wall Mounted
Product Line
M-Series
Product Sub-line
Hyper-Heating
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Number of Zones
A zone is a room or area within a building that has its own temperature control.
A zone is a room or area within a building that has its own temperature control.
5
Refrigerant Type
R-410A
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
9 + 9 + 9 + 9 + 9
Base Pan Heater Included
Yes
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Performance
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
18.9
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
12.0
HSPF
HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system. Learn More
HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system. Learn More
11.0
Cooling Power Input
4525 Watts
Heating Power Input
5327 Watts
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-13 F
Minimum Outdoor Temperature for Cooling
23 F
Dimensions
Product Weight
421 Pounds
Shipping Weight
425 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
7432944
MXZ-8C48NAHZ Specifications+
MSZ-FH09NA Specifications+
Product Q&A
(1)
+−
Search Product Q&A's
Answered by Chris, the eComfort Product Expert
+−
What is hyper heating?
Dan P.
from Texas
August 05, 2016
Answer
Hyper-Heating (also called H2i) is Mitsubishi's low-ambient temperature (outdoor temperature) heating technology. H2i units are capable of delivering nearly 100% of their rated heating capacity down to 0° F, and are capable of running in temperatures as low as -13° F.
