Mitsubishi Wall Mounted 5-Zone H2i System - 48,000 BTU Outdoor - 6k + 9k + 9k + 12k + 18k Indoor - 18.9 SEER

Mitsubishi Wall Mounted 5-Zone H2i System - 48,000 BTU Outdoor - 6k + 9k + 9k + 12k + 18k Indoor - 18.9 SEER
Our Price
Compare Prices
Shipping Info
Model: M5L48W0609091218
(Based on expert analysis, manufacturer ratings and customer reviews)
5.0 out of 55.0 out of 55.0 out of 55.0 out of 55.0 out of 5
Number of Reviews (4)
Write A Review
$8,603.00
$7,742.70
Only 3 In-Stock
Ships Friday, Dec 14th
Free Shipping
Free Lift Gate Service -
Holiday Shipping Schedule
Holiday Schedule -
Outdoor Unit BTU/h
Indoor Units Sizes ? Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. For example (9k + 12k) means the system includes a 9k BTU unit and a 12k BTU unit.
Hyper-Heating ? Certain mini split systems have the ability to produce heat at lower outdoor temperatures than standard systems. Mini split systems with hyper-heating technology are also able to heat with 100% capacity at lower outdoor temperatures compared to standard systems.
Add-Ons

Only 3 In-Stock
Ships Friday, Dec 14th
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • 4
    Reviews
  • 1
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
    Mitsubishi's dedication to new technology means that multi-zone mini split systems are now a year-round comfort solution for homes in freezing climates. This low ambient system uses a hyper-heating H2i MXZ-8C48NAHZ outdoor condenser to provide efficient cooling and subzero heating through five advanced MSZ-FH wall mounted indoor units. These indoor units feature Mitsubishi's i-See sensor, which automatically detects where heating or cooling is needed. Five wireless remote controllers guarantee convenient comfort by allowing you to control the temperature in individual rooms. With multiple operating modes, multiple fan speeds, and multiple airflow directions, this is a system that fits the needs of nearly any home.
  • H2i Technology
  • Low and negative ambient temperatures don't bother the MXZ-8C48NAHZ. It is rated for 100% heating capacity at 5 F and continues to provide heating in outdoor conditions as low as -13 F.
  • Integrated Base Pan Heater
  • MXZ-C outdoor condensers have a factory-installed base pan heater in the drain pan. This prevents condensate from freezing and damaging the unit in frigid climates.
  • Precision Temperature Control Technology
  • This condenser is equipped with advanced inverter technology. By adjusting compressor speed and refrigerant flow, these components match the output of the condenser to the active zones. This provides precise temperature control and incredible efficiency.
  • i-see Sensor
  • Each MSZ-FH indoor unit has an i-see Sensor 3D that monitors its zone for changes in temperature and occupancy. If an underserved area is detected, an MSZ-FH will temporarily adjust airflow to ensure complete comfort throughout the zone.
  • Occupancy Sensor
  • Mitsubishi's i-see technology can also detect a room's current occupancy. Through the use of targeted airflow, and adjusting the temperature of an empty room, the i-see sensor will conserve energy and save you money.
  • Hot-Start
  • Mitsubishi's hot start technology prevents cold drafts by delaying indoor unit fan operation until the heat exchanger has warmed up.
  • Advanced Filtration System
  • With three unique filters inside the MSZ-FH indoor units, the air in your zones is not only being conditioned, but it is also actively being cleaned. Three levels of filtration will keep foul odors and harmful bacteria from floating around your home.
  • Smart Set
  • Mitsubishi's Smart Set function allows you to save a comfort profile consisting of a temperature down to 50 F, fan speed, and airflow direction for each indoor unit. These profiles can be activated with a single press of the Smart Set button.
  • Powerful Mode
  • The powerful setting on an MSZ-FH indoor unit makes it easy to get your zones to the perfect temperature quickly. When it is activated, a unit temporarily increases refrigerant flow and fan speed to provide quick comfort through rapid heating or cooling.
  • Econo Cool Mode
  • By slowly adjusting the cooling set point and swinging the horizontal vanes, an MSZ-FH mini split indoor unit can improve the efficiency of cooling operations without compromising the comfort provided.
  • Dehumidification
  • When the indoor unit is run in dry mode, it will remove extra moisture from the room. This improves your comfort and reduces both mold growth and the chance of property damage in the conditioned space.
  • Vane Control
  • Optimal air flow is easy with Mitsubishi's MSZ-FH mini split indoor units thanks to the vane control option. This provides five horizontal vane positions, an auto mode, and a swing mode. Four way vane control helps provide unmatched comfort.
  • Recommended line set sizes for indoor unit connectivity:
  • MSZ-FH06NA: 1/4" x 3/8" Line Set
  • MSZ-FH09NA: 1/4" x 3/8" Line Set (Qty 2)
  • MSZ-FH12NA: 1/4" x 3/8" Line Set
  • MSZ-FH18NA2: 1/4" x 1/2" Line Set
  • A branch box with a 3/8" x 5/8" line set connection is also required. Additional branch boxes and line sets may be required based on your configuration.

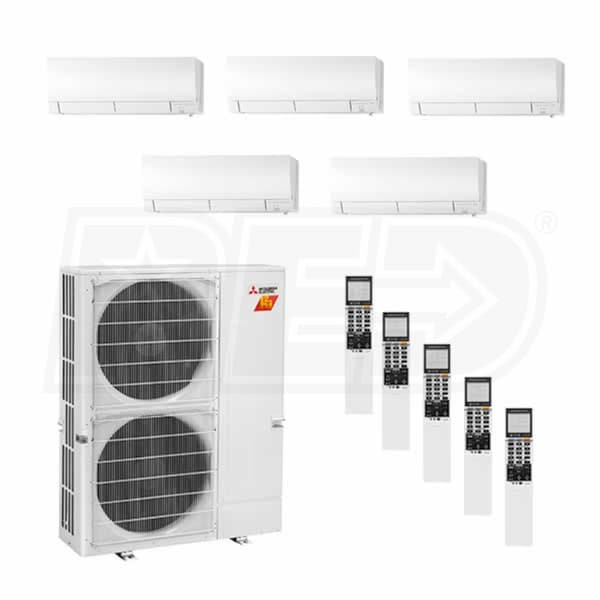

  • Product Includes
    • (1) Mitsubishi - 48k BTU - M-Series H2i Outdoor Condenser - For 2-8 Zones (MXZ-8C48NAHZ)
    • (1) Mitsubishi FH-Series 18k BTU Wall Mounted Unit - For Multi or Single-Zone (MSZ-FH18NA2)
    • (1) Mitsubishi FH-Series 12k BTU Wall Mounted Unit - For Multi or Single-Zone (MSZ-FH12NA)
    • (2) Mitsubishi FH-Series 9k BTU Wall Mounted Unit - For Multi or Single-Zone (MSZ-FH09NA)
    • (1) Mitsubishi FH-Series 6k BTU Wall Mounted Unit - For Multi or Single-Zone (MSZ-FH06NA)
    Product Note
    Each indoor unit will include any port adapters necessary for multi-zone installation. This product requires the following accessories for installation:
    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
    • Branch Box - A Mitsubishi branch box is required to connect this condenser to Mitsubishi mini split indoor units.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
    • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
    • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
    • Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
    Adding these accessories to your order will provide a complete, ready-to-install mini split system.
Specifications
General Information
Type
Wall Mounted
Product Line
M-Series
Product Sub-line
Hyper-Heating
Operating Mode ? Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling + Heating
Number of Zones ? A zone is a room or area within a building that has its own temperature control.
5
Indoor Unit Size(s) ? Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. For example (09 + 12) means the system includes a 9k BTU unit and a 12k BTU unit.
6 + 9 + 9 + 12 + 18
DOE Regional Compliance ? In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Performance
Cooling Capacity
48000 BTU
Heating Capacity
54000 BTU
SEER ? SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
18.9
EER ? EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
12.0
HSPF ? HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system. Learn More
11.0
Cooling Power Input
4923 Watts
Heating Power Input
5400 Watts
Minimum Outdoor Temperature for Heating ? This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-13 F
Minimum Outdoor Temperature for Cooling
23 F
Dimensions
Product Weight
429 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
7432944
MXZ-8C48NAHZ Specifications
General Information
Type
Outdoor Condenser
Product Line
M-Series H2i
Operating Mode ? Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling + Heating
Maximum Number of Zones
8
Multi-Zone Compatible
Yes
Installation Location
Outdoor
Branch Box Required ? By making a single connection to the outdoor condenser, a branch box can supply the right amount of refrigerant to multiple indoor units. Learn More
Yes
Performance
Nominal Capacity
48000 BTU
Maximum Sound Level ? Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
54 dB
Minimum Outdoor Temperature for Heating ? This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-13 F
Minimum Outdoor Temperature for Cooling
23 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
42 Amps
Recommended Breaker Size
50 Amps
Dimensions
Maximum Line Length
492 Feet
Liquid Connection Size
3/8 Inch
Gas Connection Size
5/8 Inch
Product Height
52 11/16 Inches
Product Width
41 17/48 Inches
Product Depth
14 Inches
Product Weight
276 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
MSZ-FH18NA2 Specifications
General Information
Type
Wall Mounted Unit
Product Line
FH-Series
Operating Mode ? Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling + Heating
Multi-Zone Compatible
Yes
Remote Control
Wireless
Installation Location
Indoor
Performance
Nominal Capacity
18000 BTU
Moisture Removal
2.7 Pints/Hour
Minimum Air Flow
194 CFM
Maximum Air Flow
514 CFM
Maximum Sound Level ? Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
46 dB
Minimum Sound Level
25 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Liquid Connection Size
1/4 Inch
Gas Connection Size
1/2 Inch
Product Height
12 13/16 Inches
Product Width
36 3/4 Inches
Product Depth
9 3/8 Inches
Product Weight
37 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
MSZ-FH12NA Specifications
General Information
Type
Wall Mounted Unit
Product Line
FH-Series
Operating Mode ? Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling + Heating
Multi-Zone Compatible
Yes
Remote Control
Wireless
Installation Location
Indoor
Performance
Nominal Capacity
12000 BTU
Moisture Removal
1.9 Pints/Hour
Minimum Air Flow
137 CFM
Maximum Air Flow
398 CFM
Maximum Sound Level ? Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
41 dB
Minimum Sound Level
21 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Liquid Connection Size
1/4 Inch
Gas Connection Size
3/8 Inch
Product Height
12 11/16 Inches
Product Width
36 7/16 Inches
Product Depth
9 3/16 Inches
Product Weight
29 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
MSZ-FH09NA Specifications
General Information
Type
Wall Mounted Unit
Product Line
FH-Series
Operating Mode ? Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling + Heating
Multi-Zone Compatible
Yes
Remote Control
Wireless
Installation Location
Indoor
Performance
Nominal Capacity
9000 BTU
Moisture Removal
0.6 Pints/Hour
Minimum Air Flow
137 CFM
Maximum Air Flow
381 CFM
Maximum Sound Level ? Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
42 dB
Minimum Sound Level
20 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Liquid Connection Size
1/4 Inch
Gas Connection Size
3/8 Inch
Product Height
12 11/16 Inches
Product Width
36 7/16 Inches
Product Depth
9 3/16 Inches
Product Weight
29 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
MSZ-FH06NA Specifications
General Information
Type
Wall Mounted Unit
Product Line
FH-Series
Operating Mode ? Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling + Heating
Multi-Zone Compatible
Yes
Remote Control
Wireless
Installation Location
Indoor
Performance
Nominal Capacity
6000 BTU
Minimum Air Flow
137 CFM
Maximum Air Flow
381 CFM
Maximum Sound Level ? Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
42 dB
Minimum Sound Level
20 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Liquid Connection Size
1/4 Inch
Gas Connection Size
3/8 Inch
Product Height
12 11/16 Inches
Product Width
36 7/16 Inches
Product Depth
9 3/16 Inches
Product Weight
29 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Features
Features
    Mitsubishi's dedication to new technology means that multi-zone mini split systems are now a year-round comfort solution for homes in freezing climates. This low ambient system uses a hyper-heating H2i MXZ-8C48NAHZ outdoor condenser to provide efficient cooling and subzero heating through five advanced MSZ-FH wall mounted indoor units. These indoor units feature Mitsubishi's i-See sensor, which automatically detects where heating or cooling is needed. Five wireless remote controllers guarantee convenient comfort by allowing you to control the temperature in individual rooms. With multiple operating modes, multiple fan speeds, and multiple airflow directions, this is a system that fits the needs of nearly any home.
  • H2i Technology
  • Low and negative ambient temperatures don't bother the MXZ-8C48NAHZ. It is rated for 100% heating capacity at 5 F and continues to provide heating in outdoor conditions as low as -13 F.
  • Integrated Base Pan Heater
  • MXZ-C outdoor condensers have a factory-installed base pan heater in the drain pan. This prevents condensate from freezing and damaging the unit in frigid climates.
  • Precision Temperature Control Technology
  • This condenser is equipped with advanced inverter technology. By adjusting compressor speed and refrigerant flow, these components match the output of the condenser to the active zones. This provides precise temperature control and incredible efficiency.
  • i-see Sensor
  • Each MSZ-FH indoor unit has an i-see Sensor 3D that monitors its zone for changes in temperature and occupancy. If an underserved area is detected, an MSZ-FH will temporarily adjust airflow to ensure complete comfort throughout the zone.
  • Occupancy Sensor
  • Mitsubishi's i-see technology can also detect a room's current occupancy. Through the use of targeted airflow, and adjusting the temperature of an empty room, the i-see sensor will conserve energy and save you money.
  • Hot-Start
  • Mitsubishi's hot start technology prevents cold drafts by delaying indoor unit fan operation until the heat exchanger has warmed up.
  • Advanced Filtration System
  • With three unique filters inside the MSZ-FH indoor units, the air in your zones is not only being conditioned, but it is also actively being cleaned. Three levels of filtration will keep foul odors and harmful bacteria from floating around your home.
  • Smart Set
  • Mitsubishi's Smart Set function allows you to save a comfort profile consisting of a temperature down to 50 F, fan speed, and airflow direction for each indoor unit. These profiles can be activated with a single press of the Smart Set button.
  • Powerful Mode
  • The powerful setting on an MSZ-FH indoor unit makes it easy to get your zones to the perfect temperature quickly. When it is activated, a unit temporarily increases refrigerant flow and fan speed to provide quick comfort through rapid heating or cooling.
  • Econo Cool Mode
  • By slowly adjusting the cooling set point and swinging the horizontal vanes, an MSZ-FH mini split indoor unit can improve the efficiency of cooling operations without compromising the comfort provided.
  • Dehumidification
  • When the indoor unit is run in dry mode, it will remove extra moisture from the room. This improves your comfort and reduces both mold growth and the chance of property damage in the conditioned space.
  • Vane Control
  • Optimal air flow is easy with Mitsubishi's MSZ-FH mini split indoor units thanks to the vane control option. This provides five horizontal vane positions, an auto mode, and a swing mode. Four way vane control helps provide unmatched comfort.
  • Recommended line set sizes for indoor unit connectivity:
  • MSZ-FH06NA: 1/4" x 3/8" Line Set
  • MSZ-FH09NA: 1/4" x 3/8" Line Set (Qty 2)
  • MSZ-FH12NA: 1/4" x 3/8" Line Set
  • MSZ-FH18NA2: 1/4" x 1/2" Line Set
  • A branch box with a 3/8" x 5/8" line set connection is also required. Additional branch boxes and line sets may be required based on your configuration.
  • Product Includes
    • (1) Mitsubishi - 48k BTU - M-Series H2i Outdoor Condenser - For 2-8 Zones (MXZ-8C48NAHZ)
    • (1) Mitsubishi FH-Series 18k BTU Wall Mounted Unit - For Multi or Single-Zone (MSZ-FH18NA2)
    • (1) Mitsubishi FH-Series 12k BTU Wall Mounted Unit - For Multi or Single-Zone (MSZ-FH12NA)
    • (2) Mitsubishi FH-Series 9k BTU Wall Mounted Unit - For Multi or Single-Zone (MSZ-FH09NA)
    • (1) Mitsubishi FH-Series 6k BTU Wall Mounted Unit - For Multi or Single-Zone (MSZ-FH06NA)
    Product Note
    Each indoor unit will include any port adapters necessary for multi-zone installation. This product requires the following accessories for installation:
    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
    • Branch Box - A Mitsubishi branch box is required to connect this condenser to Mitsubishi mini split indoor units.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
    • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
    • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
    • Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
    Adding these accessories to your order will provide a complete, ready-to-install mini split system.
Specifications
General Information
Type
Wall Mounted
Product Line
M-Series
Product Sub-line
Hyper-Heating
Operating Mode ? Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling + Heating
Number of Zones ? A zone is a room or area within a building that has its own temperature control.
5
Indoor Unit Size(s) ? Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. For example (09 + 12) means the system includes a 9k BTU unit and a 12k BTU unit.
6 + 9 + 9 + 12 + 18
DOE Regional Compliance ? In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Performance
Cooling Capacity
48000 BTU
Heating Capacity
54000 BTU
SEER ? SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
18.9
EER ? EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
12.0
HSPF ? HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system. Learn More
11.0
Cooling Power Input
4923 Watts
Heating Power Input
5400 Watts
Minimum Outdoor Temperature for Heating ? This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-13 F
Minimum Outdoor Temperature for Cooling
23 F
Dimensions
Product Weight
429 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
7432944
MXZ-8C48NAHZ Specifications
General Information
Type
Outdoor Condenser
Product Line
M-Series H2i
Operating Mode ? Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling + Heating
Maximum Number of Zones
8
Multi-Zone Compatible
Yes
Installation Location
Outdoor
Branch Box Required ? By making a single connection to the outdoor condenser, a branch box can supply the right amount of refrigerant to multiple indoor units. Learn More
Yes
Performance
Nominal Capacity
48000 BTU
Maximum Sound Level ? Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
54 dB
Minimum Outdoor Temperature for Heating ? This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-13 F
Minimum Outdoor Temperature for Cooling
23 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
42 Amps
Recommended Breaker Size
50 Amps
Dimensions
Maximum Line Length
492 Feet
Liquid Connection Size
3/8 Inch
Gas Connection Size
5/8 Inch
Product Height
52 11/16 Inches
Product Width
41 17/48 Inches
Product Depth
14 Inches
Product Weight
276 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
MSZ-FH18NA2 Specifications
General Information
Type
Wall Mounted Unit
Product Line
FH-Series
Operating Mode ? Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling + Heating
Multi-Zone Compatible
Yes
Remote Control
Wireless
Installation Location
Indoor
Performance
Nominal Capacity
18000 BTU
Moisture Removal
2.7 Pints/Hour
Minimum Air Flow
194 CFM
Maximum Air Flow
514 CFM
Maximum Sound Level ? Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
46 dB
Minimum Sound Level
25 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Liquid Connection Size
1/4 Inch
Gas Connection Size
1/2 Inch
Product Height
12 13/16 Inches
Product Width
36 3/4 Inches
Product Depth
9 3/8 Inches
Product Weight
37 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
MSZ-FH12NA Specifications
General Information
Type
Wall Mounted Unit
Product Line
FH-Series
Operating Mode ? Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling + Heating
Multi-Zone Compatible
Yes
Remote Control
Wireless
Installation Location
Indoor
Performance
Nominal Capacity
12000 BTU
Moisture Removal
1.9 Pints/Hour
Minimum Air Flow
137 CFM
Maximum Air Flow
398 CFM
Maximum Sound Level ? Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
41 dB
Minimum Sound Level
21 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Liquid Connection Size
1/4 Inch
Gas Connection Size
3/8 Inch
Product Height
12 11/16 Inches
Product Width
36 7/16 Inches
Product Depth
9 3/16 Inches
Product Weight
29 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
MSZ-FH09NA Specifications
General Information
Type
Wall Mounted Unit
Product Line
FH-Series
Operating Mode ? Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling + Heating
Multi-Zone Compatible
Yes
Remote Control
Wireless
Installation Location
Indoor
Performance
Nominal Capacity
9000 BTU
Moisture Removal
0.6 Pints/Hour
Minimum Air Flow
137 CFM
Maximum Air Flow
381 CFM
Maximum Sound Level ? Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
42 dB
Minimum Sound Level
20 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Liquid Connection Size
1/4 Inch
Gas Connection Size
3/8 Inch
Product Height
12 11/16 Inches
Product Width
36 7/16 Inches
Product Depth
9 3/16 Inches
Product Weight
29 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
MSZ-FH06NA Specifications
General Information
Type
Wall Mounted Unit
Product Line
FH-Series
Operating Mode ? Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling + Heating
Multi-Zone Compatible
Yes
Remote Control
Wireless
Installation Location
Indoor
Performance
Nominal Capacity
6000 BTU
Minimum Air Flow
137 CFM
Maximum Air Flow
381 CFM
Maximum Sound Level ? Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
42 dB
Minimum Sound Level
20 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Liquid Connection Size
1/4 Inch
Gas Connection Size
3/8 Inch
Product Height
12 11/16 Inches
Product Width
36 7/16 Inches
Product Depth
9 3/16 Inches
Product Weight
29 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Product Specs
+
Specifications
General Information
Type
Wall Mounted
Product Line
M-Series
Product Sub-line
Hyper-Heating
Operating Mode ? Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling + Heating
Number of Zones ? A zone is a room or area within a building that has its own temperature control.
5
Indoor Unit Size(s) ? Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. For example (09 + 12) means the system includes a 9k BTU unit and a 12k BTU unit.
6 + 9 + 9 + 12 + 18
DOE Regional Compliance ? In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Performance
Cooling Capacity
48000 BTU
Heating Capacity
54000 BTU
SEER ? SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
18.9
EER ? EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
12.0
HSPF ? HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system. Learn More
11.0
Cooling Power Input
4923 Watts
Heating Power Input
5400 Watts
Minimum Outdoor Temperature for Heating ? This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-13 F
Minimum Outdoor Temperature for Cooling
23 F
Dimensions
Product Weight
429 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
7432944
MXZ-8C48NAHZ Specifications
General Information
Type
Outdoor Condenser
Product Line
M-Series H2i
Operating Mode ? Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling + Heating
Maximum Number of Zones
8
Multi-Zone Compatible
Yes
Installation Location
Outdoor
Branch Box Required ? By making a single connection to the outdoor condenser, a branch box can supply the right amount of refrigerant to multiple indoor units. Learn More
Yes
Performance
Nominal Capacity
48000 BTU
Maximum Sound Level ? Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
54 dB
Minimum Outdoor Temperature for Heating ? This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-13 F
Minimum Outdoor Temperature for Cooling
23 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
42 Amps
Recommended Breaker Size
50 Amps
Dimensions
Maximum Line Length
492 Feet
Liquid Connection Size
3/8 Inch
Gas Connection Size
5/8 Inch
Product Height
52 11/16 Inches
Product Width
41 17/48 Inches
Product Depth
14 Inches
Product Weight
276 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
MSZ-FH18NA2 Specifications
General Information
Type
Wall Mounted Unit
Product Line
FH-Series
Operating Mode ? Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling + Heating
Multi-Zone Compatible
Yes
Remote Control
Wireless
Installation Location
Indoor
Performance
Nominal Capacity
18000 BTU
Moisture Removal
2.7 Pints/Hour
Minimum Air Flow
194 CFM
Maximum Air Flow
514 CFM
Maximum Sound Level ? Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
46 dB
Minimum Sound Level
25 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Liquid Connection Size
1/4 Inch
Gas Connection Size
1/2 Inch
Product Height
12 13/16 Inches
Product Width
36 3/4 Inches
Product Depth
9 3/8 Inches
Product Weight
37 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
MSZ-FH12NA Specifications
General Information
Type
Wall Mounted Unit
Product Line
FH-Series
Operating Mode ? Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling + Heating
Multi-Zone Compatible
Yes
Remote Control
Wireless
Installation Location
Indoor
Performance
Nominal Capacity
12000 BTU
Moisture Removal
1.9 Pints/Hour
Minimum Air Flow
137 CFM
Maximum Air Flow
398 CFM
Maximum Sound Level ? Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
41 dB
Minimum Sound Level
21 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Liquid Connection Size
1/4 Inch
Gas Connection Size
3/8 Inch
Product Height
12 11/16 Inches
Product Width
36 7/16 Inches
Product Depth
9 3/16 Inches
Product Weight
29 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
MSZ-FH09NA Specifications
General Information
Type
Wall Mounted Unit
Product Line
FH-Series
Operating Mode ? Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling + Heating
Multi-Zone Compatible
Yes
Remote Control
Wireless
Installation Location
Indoor
Performance
Nominal Capacity
9000 BTU
Moisture Removal
0.6 Pints/Hour
Minimum Air Flow
137 CFM
Maximum Air Flow
381 CFM
Maximum Sound Level ? Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
42 dB
Minimum Sound Level
20 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Liquid Connection Size
1/4 Inch
Gas Connection Size
3/8 Inch
Product Height
12 11/16 Inches
Product Width
36 7/16 Inches
Product Depth
9 3/16 Inches
Product Weight
29 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
MSZ-FH06NA Specifications
General Information
Type
Wall Mounted Unit
Product Line
FH-Series
Operating Mode ? Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling + Heating
Multi-Zone Compatible
Yes
Remote Control
Wireless
Installation Location
Indoor
Performance
Nominal Capacity
6000 BTU
Minimum Air Flow
137 CFM
Maximum Air Flow
381 CFM
Maximum Sound Level ? Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
42 dB
Minimum Sound Level
20 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Liquid Connection Size
1/4 Inch
Gas Connection Size
3/8 Inch
Product Height
12 11/16 Inches
Product Width
36 7/16 Inches
Product Depth
9 3/16 Inches
Product Weight
29 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Parts Warranty ? A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Reviews
(4)
+
Mitsubishi M5L48W0609091218 Reviews & Ratings
Product Q&A
(1)
+
Search Product Q&A's Answered by Chris, the eComfort Product Expert
icon-social-fb1
+
What is hyper heating?
Dan P.
from Texas
August 05, 2016
Answer
Hyper-Heating (also called H2i) is Mitsubishi's low-ambient temperature (outdoor temperature) heating technology. H2i units are capable of delivering nearly 100% of their rated heating capacity down to 0 F, and are capable of running in temperatures as low as -13 F.
Recommended Accessories
+
Expert Recommended Accessories Hand Picked By Our Expert Chris
icon-social-fb1
Required Accessories Add All Required
Optional Accessories
How-To Articles
+
Manuals
+


×
Mitsubishi Wall Mounted 5-Zone H2i System - 48,000 BTU Outdoor - 6k + 9k + 9k + 12k + 18k Indoor - 18.9 SEER
Mitsubishi M5L48W0609091218
+
Reset View
Mitsubishi M5L48W0609091218
Mitsubishi M5L48W0609091218
Mitsubishi M5L48W0609091218
Mitsubishi M5L48W0609091218
Mitsubishi M5L48W0609091218
Mitsubishi M5L48W0609091218
Mitsubishi M5L48W0609091218
Mitsubishi M5L48W0609091218
×
Customer Review Images

Visit eComfort on Facebook
View the eComfort Twitter Profile Page
Follow eComfort on Pinterest
View eComfort YouTube Channel
View eComfort LinkedIn Company Profile
