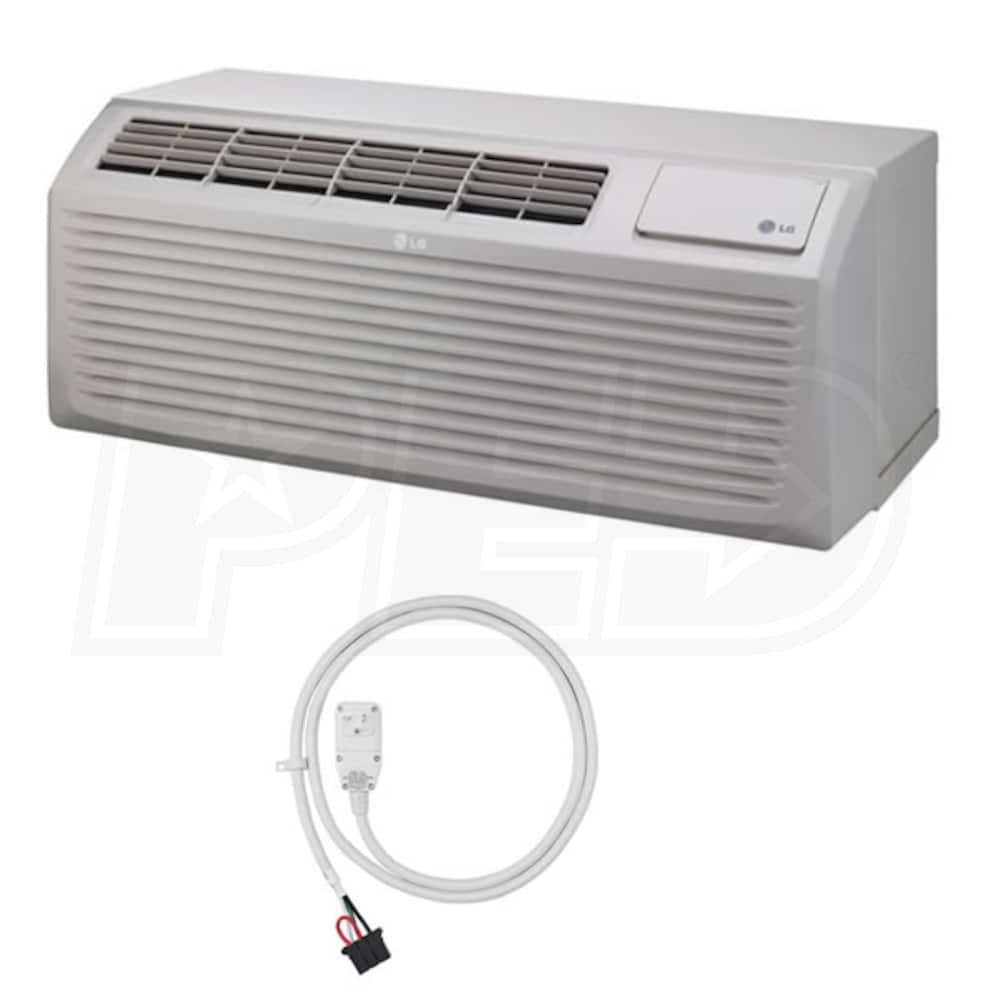

LG - 9k BTU - Packaged Terminal Air Conditioner (PTAC) - Heat Pump - 3.3 kW Electric Heat - 208-230V
Model:
LP093HDUC1-3.5
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Optional Accessories
3
Model: WS-1
$75.00
In-Stock
Model: AYLD1A
$345.00
Only 4 In-Stock
$37.48
In-Stock
Features
- User-Friendly Display
- All of the LP093HDUC's operations can be handled from the convenient display on the unit. Operation mode, fan speed, temperature, and timer functions are easily set through the control panel's push buttons.
- Energy Saving Mode
- When energy saving mode is active, the unit's fan will only run during cooling or heating operations. This prevents continuous fan use which drains energy without affecting the temperature.
- Long Lasting Filters
- LG PTAC units don't just control the temperature, they also clean the air that flows through them. This unit's air filters and vent filter are washable, making it easy to ensure that your guests enjoy ideal air quality.
- Quiet Comfort
- The LP093HDUC employs a split motor configuration that shifts the noisier operations to an outdoor motor. Both the indoor and outdoor motors are brushless direct current motors, which are renowned for their low levels of electrical and mechanical noise.
- Gold Fin Protection
- The corrosive effects of outside air can damage a PTAC and drastically reduce the lifespan of the unit. LG's PTAC units are treated with their Gold Fin corrosion-inhibiting coating to improve their longevity and durability.
- Multiple Thermostat Options
- Each LG PTAC comes with a thermostat connection kit allowing you to use a thermostat of your choosing. LG also offers wireless and wired remote options that have easy-to-use digital displays and will control all of your PTAC's functions.
- (1) LG - 9k BTU - Packaged Terminal Air Conditioner (PTAC) - Heat Pump - Electric Heat - 208-230V (LP093HDUC1)

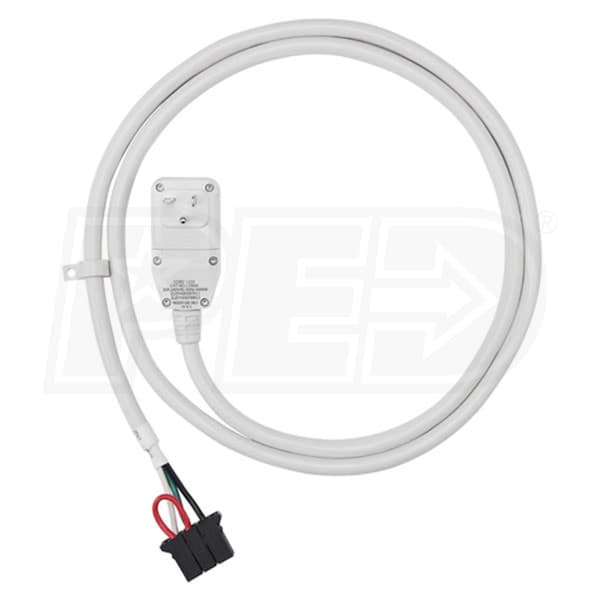

- (1) LG - 20A Electrical Cord and Plug - 3.5 kW Heater - 208-230V (AYUH2120)
Comfort is one of the most important aspects in the hospitality industry and LG packaged terminal air conditioners (PTAC) are the perfect addition to give you the edge over the competition. Thanks to top-of-the-line components and an advanced design, LG PTACs are among the most efficient and quietest units on the market today. The LP093HDUC is a heat pump PTAC that is packaged with 3.3 kW of supplemental electric heat, making it perfect for all climates. When it comes to guest-controlled air conditioning, an LG PTAC is the best choice.
Product Includes
Product Note
Capacity and power consumption specification values are listed for 230V applications. Please consult the submittal within the Manuals tab for 208V values. PTAC units require a wall sleeve and exterior grille for functionality. These can be found under the "Recommended Accessories" tab.
Specifications
Product Includes
- (1) LG - 9k BTU - Packaged Terminal Air Conditioner (PTAC) - Heat Pump - Electric Heat - 208-230V (LP093HDUC1)
- (1) LG - 20A Electrical Cord and Plug - 3.5 kW Heater - 208-230V (AYUH2120)
LP093HDUC1-3.5
General Information
Type
PTAC
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating + Cooling
Electric Heat
Yes
Interface
Buttons
Performance
Cooling BTU
9000
Cooling Capacity
9500 BTU
Heating Capacity
8200 BTU
Electric Heat Capacity
3.3 kW
Moisture Removal
2.6 Pints/Hour
EER
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
12.4
Cooling Power Input
735 Watts
Maximum Air Flow
270 CFM
Heating Power Input
670 Watts
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
61 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
20 Amps
Dimensions
Product Height
16 Inches
Product Width
42 Inches
Product Depth
21 Inches
Product Weight
106 Pounds
Shipping Weight
120 Pounds
Warranty Information
Warranty
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
LP093HDUC1
General Information
Type
PTAC
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heat Pump + Electric Heat
Electric Heat
Yes
Interface
Buttons
Performance
Cooling BTU
9000
Cooling Capacity
9500 BTU
Heating Capacity
8200 BTU
Moisture Removal
2.6 Pints/Hour
EER
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
12.4
Cooling Power Input
735 Watts
Maximum Air Flow
270 CFM
Heating Power Input
670 Watts
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
61 dB
Electrical Data
Voltage
208-230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Product Height
16 Inches
Product Width
42 Inches
Product Depth
21 Inches
Product Weight
106 Pounds
Shipping Weight
120 Pounds
Warranty Information
Warranty
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
AYUH2120
General Information
Type
Power Cord
Product Line
AYUH
Performance
Heating Capacity
11200 BTU
Electrical Data
Recommended Breaker Size
20 Amps
Dimensions
Power Cord Length
4 Feet
