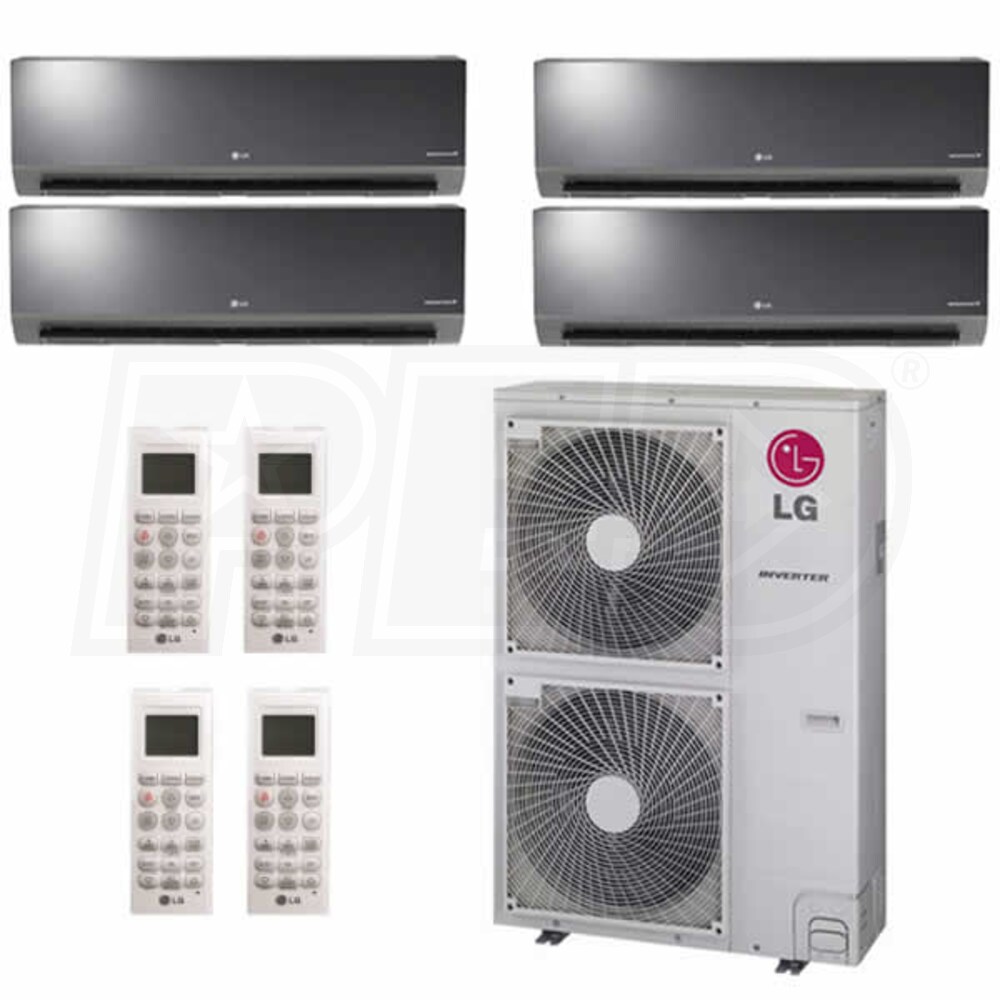

LG Art Cool Mirror Wall Mounted 4-Zone System - 54,000 BTU Outdoor - 12k + 18k + 18k + 18k Indoor - 17.2 SEER

Model:

L4H54A12181818-C

Write a Review
$5,574.60
Was $5,868.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
In-Stock
Ships Tuesday, Jun 15th
Shipping to60601
synchrony card logo
$70 / Month
With our 132 months 9.99% APR*
132 fixed monthly payments required.
LG Art Cool Mirror Wall Mounted 4-Zone System - 54,000 BTU Outdoor - 12k + 18k + 18k + 18k Indoor - 17.2 SEER
LG Art Cool Mirror Wall Mounted 4-Zone System - 54,000 BTU Outdoor - 12k + 18k + 18k + 18k Indoor - 17.2 SEER
Model: L4H54A12181818-C
$5,574.60
Was $5,868.00
Features
Specifications
Reviews
Accessories
How-To Articles
Manuals
Share

Features

    LG's devotion to providing efficient ductless solutions can be seen across the Multi F line. This wall mounted designer ductless heat pump system pairs a powerful LMU540HV outdoor condenser with four wall mounted indoor units from LG's Art Cool Mirror line. With a sleek mirrored finish, Art Cool Mirror units look right at home on the wall of modern homes. The stunning design may be the first thing people notice, but it's hardly the only benefit to these indoor units, their functionality is just as robust as LG's other wall mounted units. With options for automated comfort and a convenient wireless remote, this system has a lot to offer to any home.
  • Inverter Technology
  • LG's outdoor condensers are designed with efficient inverter technology. An electronic expansion valve and a variable speed compressor carefully regulate the refrigerant flow, reducing energy consumption and allowing for consistent, accurate temperatures.
  • Gold Fin Protection
  • To ensure the reliability and longevity of the LMU540HV's heat exchanger, LG employs a Gold Fin coating that prevents corrosion and improves durability.
  • Low Ambient Operations
  • This outdoor unit supports cooling operations down to 14 degrees Fahrenheit and heating operations down to -4 degrees Fahrenheit. There is also a defrost feature, which removes frost from the condenser coil in frigid conditions.
  • Quiet Design
  • Thanks to brushless fan motors, both the outdoor and indoor units in this system produce less mechanical and electrical noise. The indoor units feature a cross flow fan design that further reduces noise by restricting surface pressure of airflow.
  • Air Flow Options
  • These LG units give you two options for automating air flow. In swing mode, a unit will rotate through all four air flow directions. Chaos Wind mode cycles both air flow direction and fan speed to provide a natural circulation pattern.
  • Self-Cleaning Coil
  • These wall mounted indoor units feature self-cleaning heat exchanger coils that automatically remove dirt and moisture. This helps to prevent unpleasant odors and to combat the formation of mold.
  • Jet Cool
  • These LG mini split indoor units feature a Jet Cool operation mode for rapid cooling. In this mode, an indoor unit observes a set point of 64 degrees Fahrenheit while the fan operates at maximum speed for 30 minutes to quickly cool your zone.
  • Automated Operation
  • Auto operation mode continually compares your zones' current and desired temperatures and uses that data to intelligently adjust fan speed and refrigerant flow to provide optimal comfort.
  • Sleep Mode
  • With the sleep mode and timer functions, you can set the indoor units to save energy at night. Sleep mode will incrementally adjust temperatures for an hour before the timer function automatically deactivates the units.
  • Improved Air Quality
  • The Art Cool Mirror indoor units use a dual filtration system to keep your air clean. A washable anti-fungal filter protects against dust and bacteria, while a 3M Micro Protection Filter captures microscopic irritants for pristine air quality.
  • Dehumidify
  • LG's multi-zone indoor units include a dehumidifying operation mode. In this mode, the units' internal sensors monitor temperature and modify the set point and fan speed to remove moisture from the air.
  • Hot Start
  • When the hot start function is enabled on a mini split indoor unit, the fan will not engage until the outdoor condenser has had the opportunity to warm the indoor coil. This prevents the unit from blowing cold air during heating operations.
  • Built in Wi-Fi
  • Built in Wi-Fi allows you to control your LG air conditioner with smart enabled devices. Simply download the SmartThinQ® app on your smart device to get started.
  • Recommended line set sizes for indoor unit connectivity:
  • LAN120HSV4: 1/4" x 3/8" Line Set
  • LAN180HSV4: 1/4" x 1/2" Line Set (Qty 3)
  • A branch box with a 3/8" x 3/4" line set connection is also required. Additional branch boxes and line sets may be required based on your configuration.
  • Product Includes
    • (1) LG - 54k BTU - Outdoor Condenser - For 2-8 Zones (LMU540HV)
    • (3) LG Art Cool Mirror 18k BTU Wall Mounted Unit - For Multi or Single-Zone (LAN180HSV5)
    • (1) LG Art Cool Mirror 12k BTU Wall Mounted Unit - For Multi or Single-Zone (LAN120HSV5)
    • (1) LG Multi F - Branch Box - 4 Ports (PMBD3640)
    Product Note
    Each indoor unit will include any port adapters necessary for multi-zone installation.

    This product requires the following accessories for installation:

    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
    • Branch BoxAn LG branch box is required to connect this condenser to LG mini split indoor units.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
    • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
    • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
    • Base Pan Heater - The base pan heater prevents ice from building up on the outdoor unit. Excessive ice build will lead to performance issues and could damage your unit.
    • Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
    Adding these accessories to your order will provide a complete, ready-to-install mini split system.

    LG products include a 10-year warranty with the requirement that installation is completed by a licensed contractor and that the product is registered at https://lg-dfs-warranty.com/ within 60 days of installation.
    All Mini Split Systems require one Primary Mini Split Installation Kit. You may also require one or more Secondary Installation Kits if you have a Multi-Zone system. You will need a Secondary Installation Kit for each additional indoor unit.

Specifications

Product Includes
  • (1) LG - 54k BTU - Outdoor Condenser - For 2-8 Zones (LMU540HV)
  • (3) LG Art Cool Mirror 18k BTU Wall Mounted Unit - For Multi or Single-Zone (LAN180HSV5)
  • (1) LG Art Cool Mirror 12k BTU Wall Mounted Unit - For Multi or Single-Zone (LAN120HSV5)
  • (1) LG Multi F - Branch Box - 4 Ports (PMBD3640)
L4H54A12181818-C
specs product image PID-57729
General Information
Type
Wall Mounted
Product Line
Multi F
Product Sub-line
Art Cool Mirror
Operating Mode Learn More
Heating and Cooling
Number of Zones Learn More
4
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More
12 + 18 + 18 + 18
Outdoor Unit Size
54000 BTU
DOE Regional Compliance Learn More
Nationwide
Performance
SEER Learn More
17.2
EER Learn More
10.0
HSPF Learn More
8.7
Cooling Power Input
5468 Watts
Heating Power Input
5782 Watts
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating Learn More
-4 F
Minimum Outdoor Temperature for Cooling
14 F
Dimensions
Product Weight
334 Pounds
Shipping Weight
338 Pounds
Certifications
ETL Listed
Yes
UL Listed
Yes
Energy Star Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
AHRI Reference Number
5589698
LMU540HV
General Information
Type
Outdoor Condenser
Product Line
Multi F
Product Sub-line
MAX
Operating Mode Learn More
Heating and Cooling
Maximum Number of Zones
8
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Installation Location
Outdoor
Branch Box Required Learn More
Yes
Performance
Cooling BTU
54000
Maximum Sound Level Learn More
56 dB
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating Learn More
-4 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
40 Amps
Dimensions
Maximum Line Length
475.7 Feet
Gas Connection Size
3/4 Inch
Liquid Connection Size
3/8 Inch
Product Height
54 17/48 Inches
Product Width
37 5/12 Inches
Product Depth
13 Inches
Product Weight
214 Pounds
Shipping Weight
236 Pounds
Certifications
ETL Listed
Yes
UL Listed
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
5 Years
Compressor Warranty
7 Years
LAN180HSV5
General Information
Type
Wall Mounted
Product Line
Multi F
Product Sub-line
Art Cool Mirror
Operating Mode Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s) Learn More
18
Installation Location
Indoor
Performance
Cooling BTU
18000
Cooling Capacity
18000 BTU
Maximum Air Flow
558 CFM
Minimum Air Flow
353 CFM
Minimum Sound Level
29 dB
Maximum Sound Level Learn More
45 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Maximum Line Length
114.8 Feet
Gas Connection Size
5/8 Inch
Liquid Connection Size
3/8 Inch
Drain Outlet Diameter
5/8 Inch
Product Height
12 3/4 Inches
Product Width
40 9/16 Inches
Product Depth
9 11/16 Inches
Product Weight
32 Pounds
Shipping Weight
39 Pounds
Certifications
ETL Listed
Yes
UL Listed
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
5 Years
LAN120HSV5
General Information
Type
Wall Mounted
Product Line
Multi F
Product Sub-line
Art Cool Mirror
Operating Mode Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Remote Control
Wireless
Indoor Unit Size(s) Learn More
12
Installation Location
Indoor
Performance
Cooling BTU
12000
Cooling Capacity
12000 BTU
Maximum Air Flow
282 CFM
Minimum Air Flow
177 CFM
Minimum Sound Level
19 dB
Maximum Sound Level Learn More
39 dB
Electrical Data
Phase
1
Frequency
60 Hz
Dimensions
Maximum Line Length
82 Feet
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Drain Outlet Diameter
5/8 Inch
Product Height
11 1/4 Inches
Product Width
34 13/16 Inches
Product Depth
8 1/16 Inches
Product Weight
24 Pounds
Shipping Weight
29 Pounds
Certifications
ETL Listed
Yes
UL Listed
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
5 Years
PMBD3640
General Information
Type
Branch Box
Product Line
Multi F
Ports Quantity
4
Performance
Maximum Port Capacity
24000 BTU
Maximum Total Port Capacity
73000 BTU
Electrical Data
Power Consumption
32 Watts
Phase
1
Frequency
60 Hz
Dimensions
Suction Connection Size
3/4 Inch
Liquid Connection Size
3/8 Inch
Line Set A Liquid Connection
1/4 Inch
Line Set A Gas Connection
3/8 Inch
Line Set B Liquid Connection
1/4 Inch
Line Set B Gas Connection
3/8 Inch
Line Set C Liquid Connection
1/4 Inch
Line Set C Gas Connection
3/8 Inch
Line Set D Liquid Connection
1/4 Inch
Line Set D Gas Connection
3/8 Inch
Product Height
5 11/12 Inches
Product Width
9 41/48 Inches
Product Depth
11 13/16 Inches
Product Weight
16 Pounds
Shipping Weight
18 Pounds
Certifications
Country of Origin
Korea
