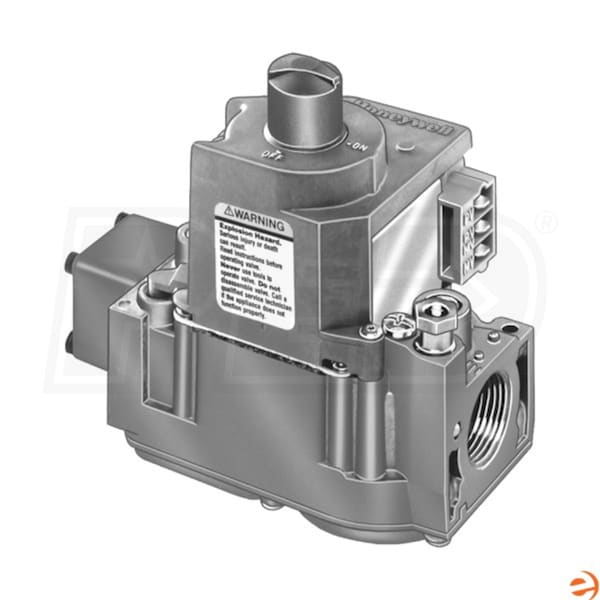

Honeywell Intermittent Pilot Dual Automatic Valve Combination Gas Control, NG or LP, Standard Opening - 1/2" In x 3/4" Out
Honeywell Intermittent Pilot Dual Automatic Valve Combination Gas Control, NG or LP, Standard Opening - 1/2" In x 3/4" Out
+
Share This Product
-
Product Description
-
Reviews
-
How-To Articles
-
Manuals
Product Description
+−
Features
Features
- Compact Size
- Solenoid Operated First Automatic Valve
- Diaphragm Operated Second Automatic Valve
- All adjustments/connections accessible from top of control
- LITE-RITE (OFF-PILOT-ON) Lighting Sequence
- Safety Shutoff
- Manual Valve
- Two Automatic Operators
- Pressure Regulator
- Pilot Adjustment
- Parts: 1 Year
Honeywell Intermittent Pilot Dual Automatic Valve Combination Gas Control, NG or LP, Standard Opening - 1/2" In x 3/4" Out
The Honeywell VR8304M3509 Intermittent Pilot Dual Automatic Valve Combination Gas Control is a great component for 120 Vac, gas-fired, intermittent pilot appliances with capacities from 30 to 415 cfh. With a large amount of automatic and manual controls, you can tailor your unit to your exact needs.
Honeywell VR8304M3509 Intermittent Pilot Dual Automatic Valve Combination Gas Control Features:
Honeywell VR8304M3509 Intermittent Pilot Dual Automatic Valve Combination Gas Control Includes:
Honeywell VR8304M3509 Intermittent Pilot Dual Automatic Valve Combination Gas Control Warranty:
Specifications
General Information
Product Line
VR8304
Gas Type
Natural Gas
Opening Characteristic
Standard
Ignition Type
Intermittent Pilot
Gas Conversion Kit
Not Convertible
UPC
085267114592
Electrical Data
Voltage
24 Volts
Phase
1
Frequency
60 Hz
Dimensions
Supply Connection
3/4 Inch
Return Connection
1/2 Inch
Product Height
5 3/8 Inches
Product Width
2 11/16 Inches
Product Length
4 1/16 Inches
Product Weight
1.9 Pounds
Certifications
UL Listed
Yes
American Gas Association Certification
Yes
Canadian Gas Association Certification
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Features
Features
- Compact Size
- Solenoid Operated First Automatic Valve
- Diaphragm Operated Second Automatic Valve
- All adjustments/connections accessible from top of control
- LITE-RITE (OFF-PILOT-ON) Lighting Sequence
- Safety Shutoff
- Manual Valve
- Two Automatic Operators
- Pressure Regulator
- Pilot Adjustment
- Parts: 1 Year
Honeywell Intermittent Pilot Dual Automatic Valve Combination Gas Control, NG or LP, Standard Opening - 1/2" In x 3/4" Out
The Honeywell VR8304M3509 Intermittent Pilot Dual Automatic Valve Combination Gas Control is a great component for 120 Vac, gas-fired, intermittent pilot appliances with capacities from 30 to 415 cfh. With a large amount of automatic and manual controls, you can tailor your unit to your exact needs.
Honeywell VR8304M3509 Intermittent Pilot Dual Automatic Valve Combination Gas Control Features:
Honeywell VR8304M3509 Intermittent Pilot Dual Automatic Valve Combination Gas Control Includes:
Honeywell VR8304M3509 Intermittent Pilot Dual Automatic Valve Combination Gas Control Warranty:
Specifications
General Information
Product Line
VR8304
Gas Type
Natural Gas
Opening Characteristic
Standard
Ignition Type
Intermittent Pilot
Gas Conversion Kit
Not Convertible
UPC
085267114592
Electrical Data
Voltage
24 Volts
Phase
1
Frequency
60 Hz
Dimensions
Supply Connection
3/4 Inch
Return Connection
1/2 Inch
Product Height
5 3/8 Inches
Product Width
2 11/16 Inches
Product Length
4 1/16 Inches
Product Weight
1.9 Pounds
Certifications
UL Listed
Yes
American Gas Association Certification
Yes
Canadian Gas Association Certification
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Product Specs
+−
Specifications
General Information
Product Line
VR8304
Gas Type
Natural Gas
Opening Characteristic
Standard
Ignition Type
Intermittent Pilot
Gas Conversion Kit
Not Convertible
UPC
085267114592
Electrical Data
Voltage
24 Volts
Phase
1
Frequency
60 Hz
Dimensions
Supply Connection
3/4 Inch
Return Connection
1/2 Inch
Product Height
5 3/8 Inches
Product Width
2 11/16 Inches
Product Length
4 1/16 Inches
Product Weight
1.9 Pounds
Certifications
UL Listed
Yes
American Gas Association Certification
Yes
Canadian Gas Association Certification
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
