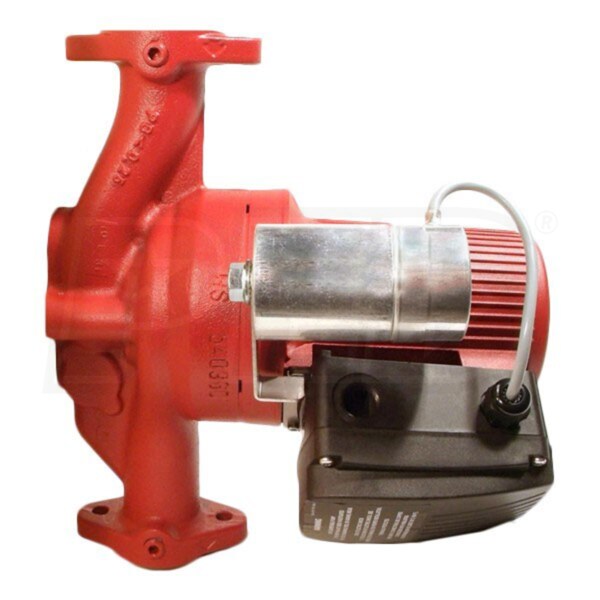

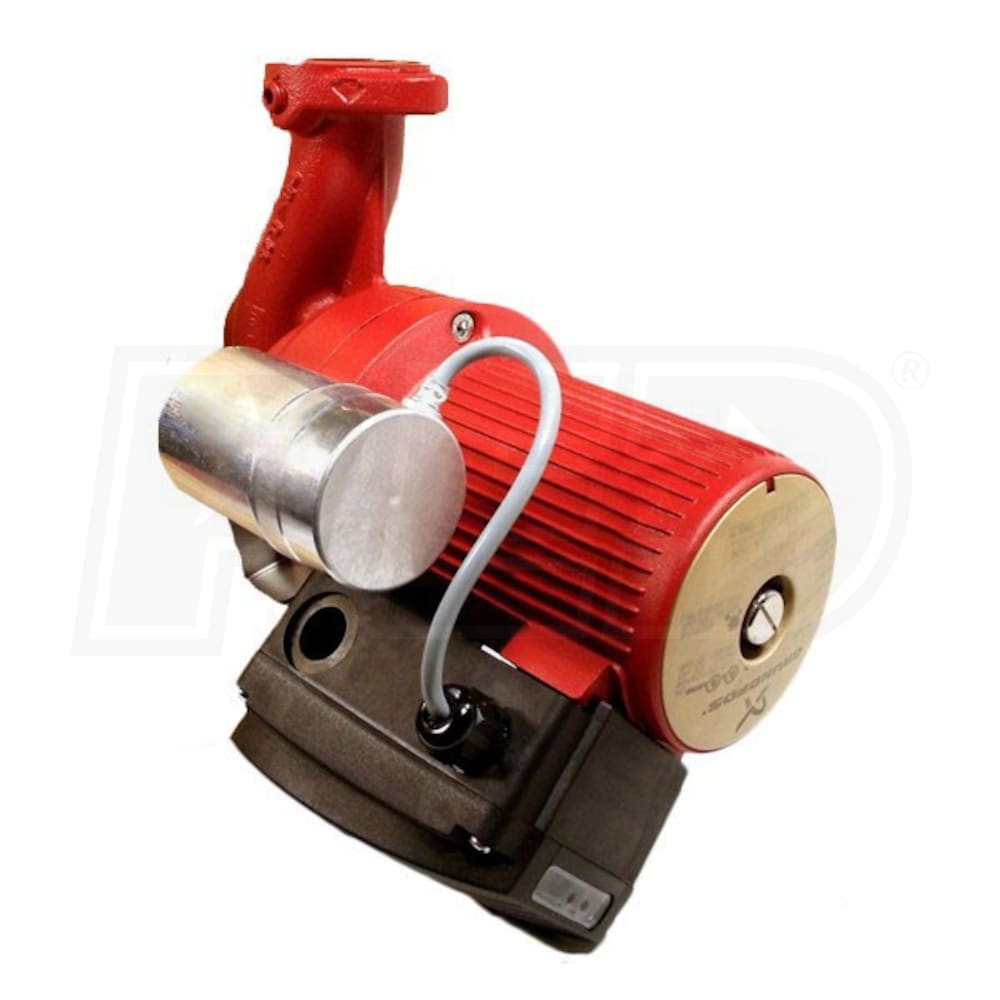

Grundfos UPS - 1/3 HP - 2-Speed Circulation Pump - Bronze - GF 50 Flange

Grundfos UPS - 1/3 HP - 2-Speed Circulation Pump - Bronze - GF 50 Flange
Model: 96402822
$1,400.36
Ships in 3-4 Weeks
Free Shipping

Ships in 3-4 Weeks
Free Shipping
Free Shipping
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Share
  • Product Description
  • 2
    Reviews
  • 1
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Features
Features
    Grundfos pumps offer the pinnacle of reliability and performance for a large variety of water circulation applications. From home hydronic circulation to large scale commercial water movement, Grundfos has a pump that will provide years of trouble-free service. The UPS50-40/4 is a 2-speed circulator with a wet-rotor fluid movement design. Solid bronze construction guarantees years of reliable performance with minimal maintenance needs, while hardwire electrical connection design allows the pump to tap directly into your home's electrical supply.
  • Durable Bronze Construction
  • The Grundfos UPS50-40/4 is crafted from bronze, which gives the pump both extended lifespan and protection against corrosion.
  • Whisper Quiet Operation
  • The UPS50-40/4 pump runs quiet even at high flow levels, ensuring the pump won't distract you from your work or disrupt your sleep.
  • Resilient Wet-Rotor Fluid Movement
  • The wet rotor design of the UPS50-40/4 lends integrity to both the motor and the rotor itself, providing exceptional longevity to any hydronic system the pump is a part of.
Specifications
General Information
Product Line
UPS50-40/4
Speed Settings
Multi-Speed
Connection Type
Flange
Mount Type
In-Line
Material
Bronze
Drive Type
Wet Rotor
Performance
Maximum Head
13.1 Feet
Maximum Flow Rate
51.4 GPM
Maximum Operating Pressure
145 PSI
Minimum Fluid Temperature
14 F
Maximum Fluid Temperature
248 F
Horsepower
0.333333
Electrical Data
Voltage
460 Volts
Phase
3
Frequency
60 Hz
Current Draw
2.66 Amps
Dimensions
Product Height
13 Inches
Product Width
8.375 Inches
Product Depth
14 Inches
Product Weight
58 Pounds
Flange Connection
GF 50
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
Features
Features
    Grundfos pumps offer the pinnacle of reliability and performance for a large variety of water circulation applications. From home hydronic circulation to large scale commercial water movement, Grundfos has a pump that will provide years of trouble-free service. The UPS50-40/4 is a 2-speed circulator with a wet-rotor fluid movement design. Solid bronze construction guarantees years of reliable performance with minimal maintenance needs, while hardwire electrical connection design allows the pump to tap directly into your home's electrical supply.
  • Durable Bronze Construction
  • The Grundfos UPS50-40/4 is crafted from bronze, which gives the pump both extended lifespan and protection against corrosion.
  • Whisper Quiet Operation
  • The UPS50-40/4 pump runs quiet even at high flow levels, ensuring the pump won't distract you from your work or disrupt your sleep.
  • Resilient Wet-Rotor Fluid Movement
  • The wet rotor design of the UPS50-40/4 lends integrity to both the motor and the rotor itself, providing exceptional longevity to any hydronic system the pump is a part of.
Specifications
General Information
Product Line
UPS50-40/4
Speed Settings
Multi-Speed
Connection Type
Flange
Mount Type
In-Line
Material
Bronze
Drive Type
Wet Rotor
Performance
Maximum Head
13.1 Feet
Maximum Flow Rate
51.4 GPM
Maximum Operating Pressure
145 PSI
Minimum Fluid Temperature
14 F
Maximum Fluid Temperature
248 F
Horsepower
0.333333
Electrical Data
Voltage
460 Volts
Phase
3
Frequency
60 Hz
Current Draw
2.66 Amps
Dimensions
Product Height
13 Inches
Product Width
8.375 Inches
Product Depth
14 Inches
Product Weight
58 Pounds
Flange Connection
GF 50
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
Product Specs
+
Specifications
General Information
Product Line
UPS50-40/4
Speed Settings
Multi-Speed
Connection Type
Flange
Mount Type
In-Line
Material
Bronze
Drive Type
Wet Rotor
Performance
Maximum Head
13.1 Feet
Maximum Flow Rate
51.4 GPM
Maximum Operating Pressure
145 PSI
Minimum Fluid Temperature
14 F
Maximum Fluid Temperature
248 F
Horsepower
0.333333
Electrical Data
Voltage
460 Volts
Phase
3
Frequency
60 Hz
Current Draw
2.66 Amps
Dimensions
Product Height
13 Inches
Product Width
8.375 Inches
Product Depth
14 Inches
Product Weight
58 Pounds
Flange Connection
GF 50
Warranty Information
Parts Warranty A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
Reviews
(2)
+
Grundfos 96402822 Reviews & Ratings
Product Q&A
(1)
+
Search Product Q&A's Answered by Chris, the eComfort Product Expert
icon-social-fb1
+
What position of the motor speed switch on this pump is for the low speed?
Sasha
from New York
April 05, 2016
Answer
Fully counter-clockwise is the low speed and turning clockwise will increase the pump speed. The manufacturer says it is important to start the motor in high speed and decrease after pump is running. "After a long shutdown period, multi-speed pumps should be started on speed 3 and then adjusted to the regular setting."
