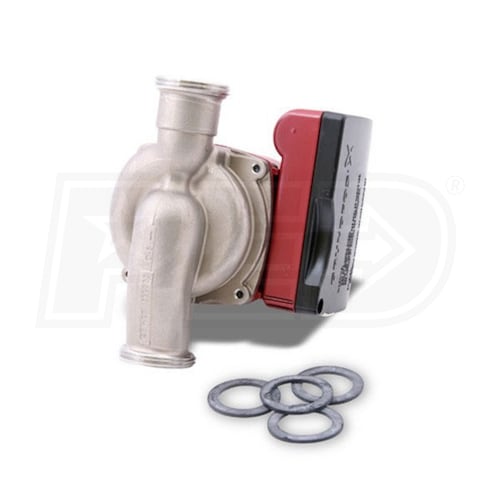

Grundfos UP - 1/12 HP - Single-Speed Circulation Pump - Stainless Steel - GU 125 Union
Grundfos UP - 1/12 HP - Single-Speed Circulation Pump - Stainless Steel - GU 125 Union
+
Share This Product
-
Product Description
-
22Reviews
-
3Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Features
Features
- Durable Stainless Steel Construction
- The Grundfos UP15-29SU is crafted from stainless steel, which gives the pump both extended lifespan and protection against corrosion.
- Whisper Quiet Operation
- The UP15-29SU pump runs quiet even at high flow levels, ensuring the pump won't distract you from your work or disrupt your sleep.
- Resilient Wet-Rotor Fluid Movement
- The wet rotor design of the UP15-29SU lends integrity to both the motor and the rotor itself, providing exceptional longevity to any hydronic system the pump is a part of.
Grundfos pumps offer the pinnacle of reliability and performance for a large variety of water circulation applications. From home hydronic circulation to large scale commercial water movement, Grundfos has a pump that will provide years of trouble-free service. The UP15-29SU is a single speed circulator with a wet-rotor fluid movement design. Solid stainless steel construction guarantees years of reliable performance with minimal maintenance needs, while hardwire electrical connection design allows the pump to tap directly into your home's electrical supply.
Specifications
General Information
Product Line
UP15-29
Blower Motor
Single-Speed
Control Type
None
Connection Type
NPSM Union
Mount Type
In-Line
Material
Stainless Steel
Drive Type
Wet Rotor
UPC
05700837414463
Performance
Maximum Head
9.84 Feet
Maximum Flow Rate
20.7 GPM
Maximum Operating Pressure
145 PSI
Minimum Fluid Temperature
35.6 F
Maximum Fluid Temperature
230 F
Horsepower
1/12
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Current Draw
0.23 Amps
Dimensions
Product Height
5 7/8 Inches
Product Width
4 2/3 Inches
Product Depth
5 1/2 Inches
Product Weight
5.4 Pounds
Flange Connection
GU 125
Warranty Information
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
Features
Features
- Durable Stainless Steel Construction
- The Grundfos UP15-29SU is crafted from stainless steel, which gives the pump both extended lifespan and protection against corrosion.
- Whisper Quiet Operation
- The UP15-29SU pump runs quiet even at high flow levels, ensuring the pump won't distract you from your work or disrupt your sleep.
- Resilient Wet-Rotor Fluid Movement
- The wet rotor design of the UP15-29SU lends integrity to both the motor and the rotor itself, providing exceptional longevity to any hydronic system the pump is a part of.
Grundfos pumps offer the pinnacle of reliability and performance for a large variety of water circulation applications. From home hydronic circulation to large scale commercial water movement, Grundfos has a pump that will provide years of trouble-free service. The UP15-29SU is a single speed circulator with a wet-rotor fluid movement design. Solid stainless steel construction guarantees years of reliable performance with minimal maintenance needs, while hardwire electrical connection design allows the pump to tap directly into your home's electrical supply.
Specifications
General Information
Product Line
UP15-29
Blower Motor
Single-Speed
Control Type
None
Connection Type
NPSM Union
Mount Type
In-Line
Material
Stainless Steel
Drive Type
Wet Rotor
UPC
05700837414463
Performance
Maximum Head
9.84 Feet
Maximum Flow Rate
20.7 GPM
Maximum Operating Pressure
145 PSI
Minimum Fluid Temperature
35.6 F
Maximum Fluid Temperature
230 F
Horsepower
1/12
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Current Draw
0.23 Amps
Dimensions
Product Height
5 7/8 Inches
Product Width
4 2/3 Inches
Product Depth
5 1/2 Inches
Product Weight
5.4 Pounds
Flange Connection
GU 125
Warranty Information
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
Product Specs
+−
Specifications
General Information
Product Line
UP15-29
Blower Motor
Single-Speed
Control Type
None
Connection Type
NPSM Union
Mount Type
In-Line
Material
Stainless Steel
Drive Type
Wet Rotor
UPC
05700837414463
Performance
Maximum Head
9.84 Feet
Maximum Flow Rate
20.7 GPM
Maximum Operating Pressure
145 PSI
Minimum Fluid Temperature
35.6 F
Maximum Fluid Temperature
230 F
Horsepower
1/12
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Current Draw
0.23 Amps
Dimensions
Product Height
5 7/8 Inches
Product Width
4 2/3 Inches
Product Depth
5 1/2 Inches
Product Weight
5.4 Pounds
Flange Connection
GU 125
Warranty Information
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
Product Q&A
(3)
+−
Search Product Q&A's
Answered by Bob, the Heating Product Expert
+−
Can this pump work upside down? That is installed vertically but the flow goes from above to below?
Robert
from Illinois
December 31, 2015
Answer
The pump can be installed in any orientation as long as the motor shaft is located horizontally. It is also best practice to have the terminal box on one side of the pump with the conduit entry facing down. Details can be found in the installation manual on page 7.
+−
Does this Grundfos 59896775 come with a built-in timer?
Dan
from California
November 18, 2015
Answer
The Grundfos 59896775 (UP 15-29 SU) does not include a timer. The most similar pump that does is the 59896777 (UP 15-29 SUC/TLC), which also includes a check valve and line cord.
Alternatively, you can purchase a timer separately. For a new pump, you'll use the Grundfos 599388.
Alternatively, you can purchase a timer separately. For a new pump, you'll use the Grundfos 599388.
+−
My pump froze. Is there more to changing out the pump than shutting both gate valves and undoing the 4 bolts?
Mike
from California
September 19, 2015
Answer
As long as there are isolation valves on either side of the pump, you should be okay. You might need new flanges if they are leaking. Please refer to the Grundfos UP Installation Manual for more details.
